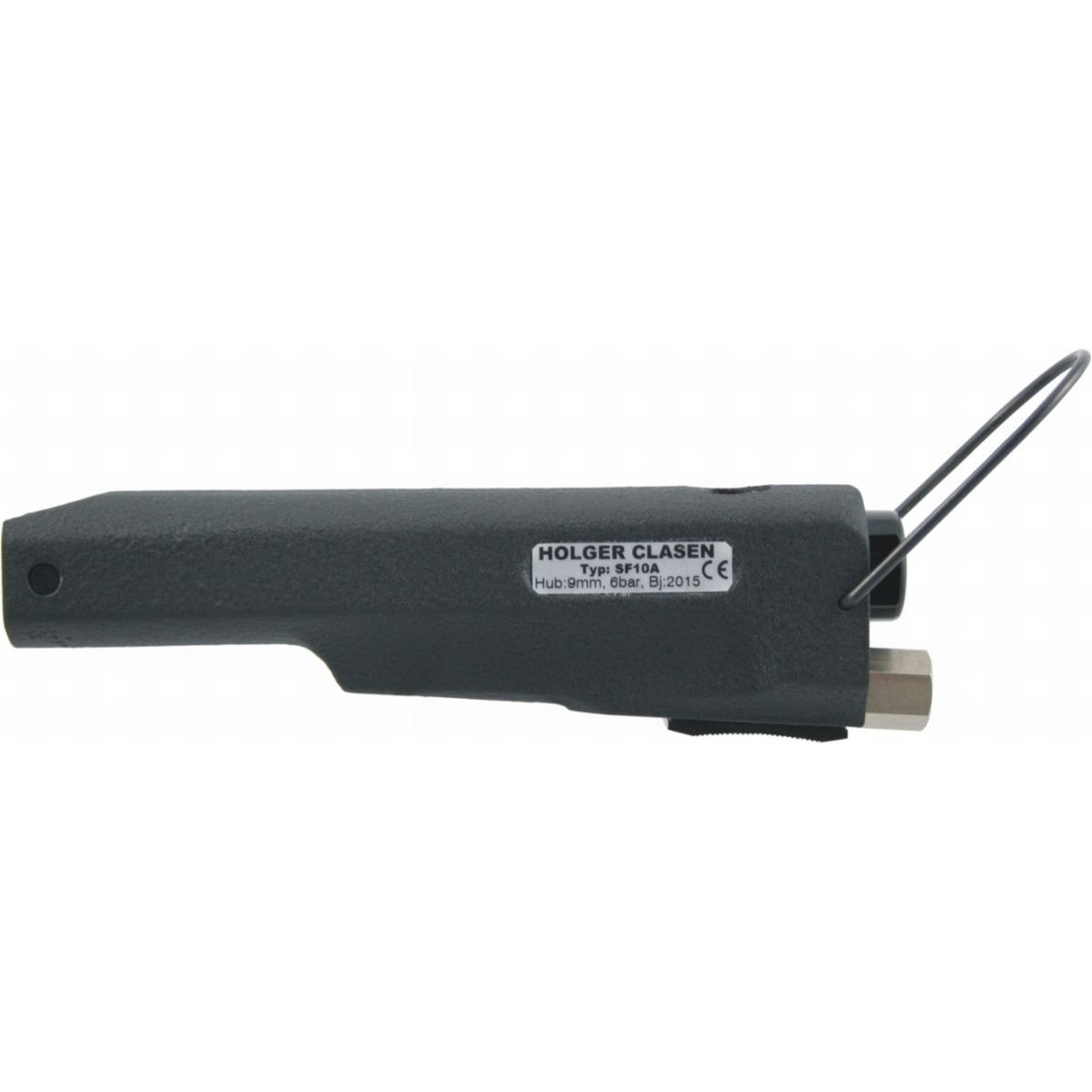

SH-100A (SF10A) Hand file
| Strokes: | 3700 min-1 |
|---|---|
| Stroke length: | 9 mm |
| Chuck: | Round shaft Ø 6.3 mm |
| Weight: | 1.1 kg |
| Current: | Pneumatic |
Product number:
67110000
Low-vibration type
SH-100A (SF10A) Hand file

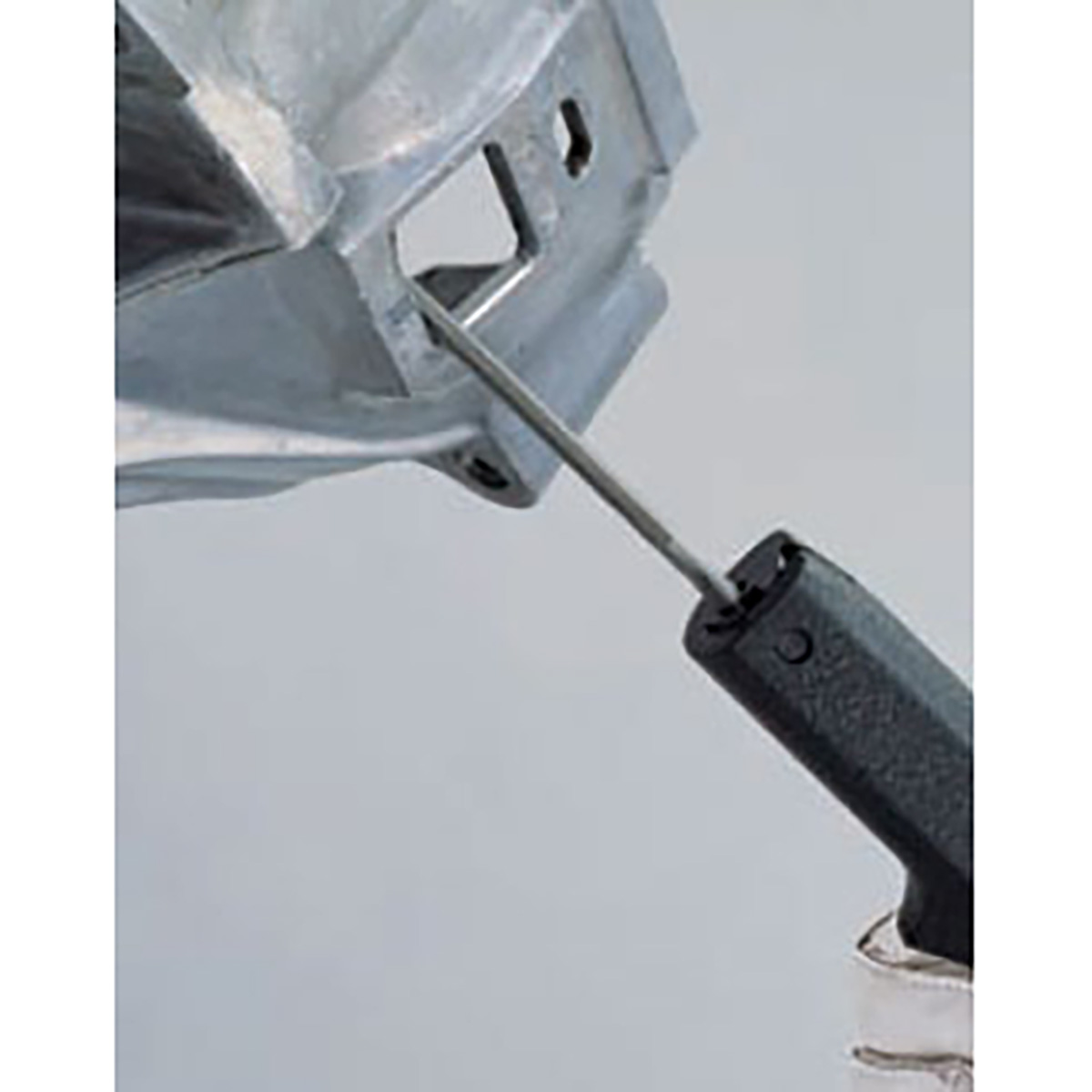

Applications
Pneumatic hand file for deburring, filing, fine grinding and lapping; in mould making, fixture and apparatus construction and in foundries.
Reduces time-consuming manual hand-filing operations.
The pneumatic hand file is ideal for industrial filing applications on steel, aluminum, brass, wood and other materials.
Interchangeable files due to 6 mm round shaft.
The powerful linear motor of the air powered filing tool allows slow vibration performance while reducing operator fatigue.
Technical specifications
The pneumatic hand file is ideal for industrial filing applications on steel, aluminum, brass, wood and other materials.
Interchangeable files due to 6 mm round shaft.
The powerful linear motor of the air powered filing tool allows slow vibration performance while reducing operator fatigue.
| Strokes: | 3700 min-1 |
|---|---|
| Stroke length: | 9 mm |
| Chuck: | Round shaft Ø 6.3 mm |
| Start: | Slide valve |
| Construction form: | Straight |
| Length: | 177 mm |
| Weight: | 1.1 kg |
| Sound pressure level: | 76 dB(A) |
| Sound power level: | 87 dB(A) |
| Vibration: | 5.3 m/s² |
| Air consumption: | (0.24 m³/min) 4,0 l/s |
| Inlet air connection: | R 1/4" |
| Current: | Pneumatic |
| Working pressure: | (0.6 MPa) 6.0 bar |
Included in delivery:
Tool with inlet air hose, File set cut 2 (consists of: flat file, round file, three square file and halfround file)
adapter R1/4 x NPT1/4, hanger and socket screw key 3 mm.
Options
