SHL-40 (CF90/4) Precision hand file
| Strokes: | 9000 min-1 |
|---|---|
| Stroke length: | 4 mm |
| Chuck: | Round shaft Ø 3 mm |
| Weight: | 0.4 kg |
| Current: | Pneumatic |
Product number:
67121500
Light-weight/small
Low-vibration type
SHL-40 (CF90/4) Precision hand file
Applications

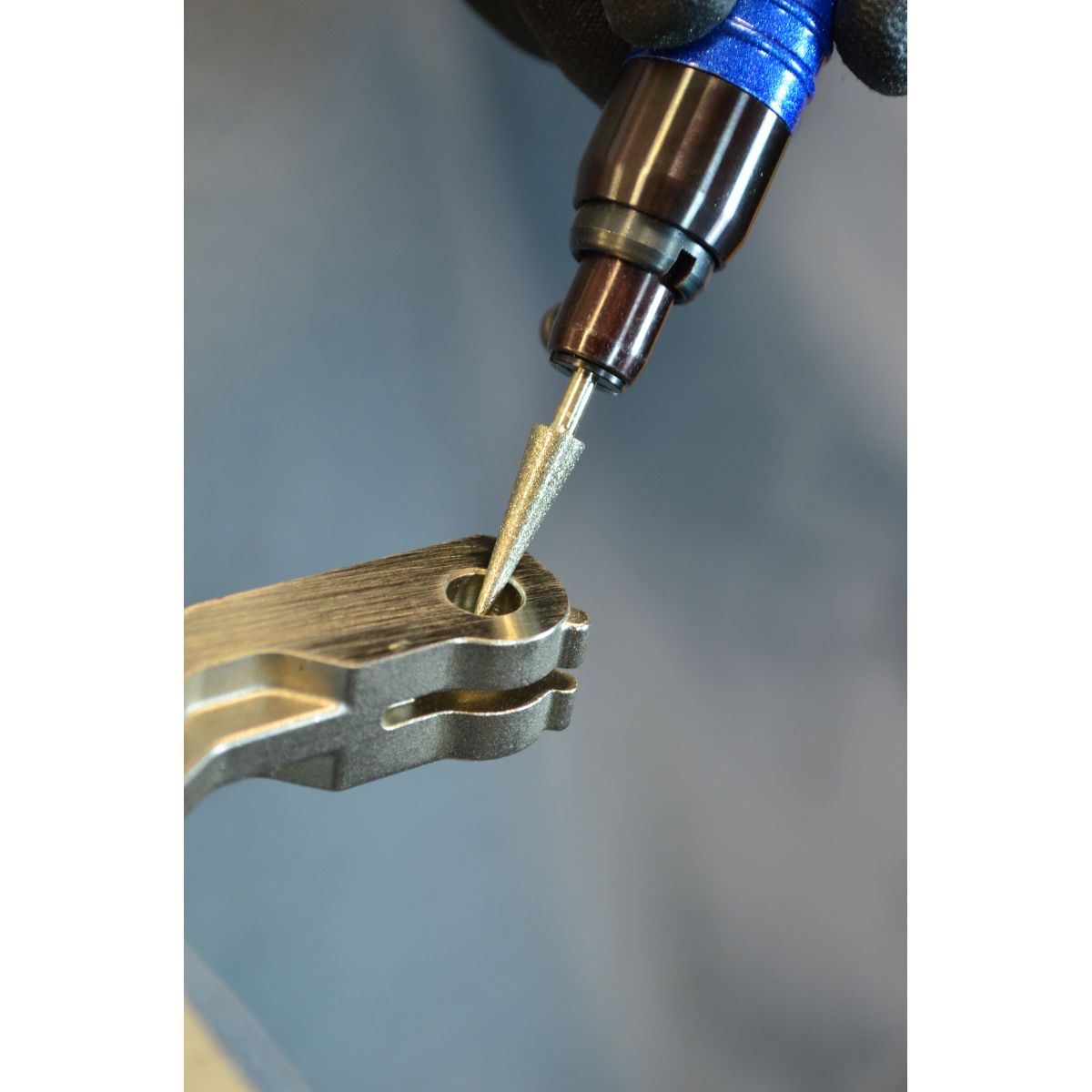

Pneumatic precision file for deburring, filing, fine grinding and lapping; in mould making, fixture and apparatus construction.
Especially light-weight and low-noise pneumatic hand file reduces time-consuming manual hand-filing operations.
For working steel, aluminum, brass, wood and other materials.
Interchangeable files due to Ø 3 mm round shaft.
Fatigue free working thanks to low vibration values.
Workers protection by exhaust air guide (hose-in-hose).
Technical specifications
For working steel, aluminum, brass, wood and other materials.
Interchangeable files due to Ø 3 mm round shaft.
Fatigue free working thanks to low vibration values.
Workers protection by exhaust air guide (hose-in-hose).
| Strokes: | 9000 min-1 |
|---|---|
| Stroke length: | 4 mm |
| Chuck: | Round shaft Ø 3 mm |
| Start: | Slide valve |
| Construction form: | Straight |
| Length: | 179 mm |
| Housing Ø: | 24.5 mm |
| Weight: | 0.4 kg |
| Sound pressure level: | 72 dB(A) |
| Sound power level: | 75 dB(A) |
| Vibration: | < 2.5 m/s² |
| Air consumption: | (0.07 m³/min) 1.17 l/s |
| Inlet air connection: | R 1/4" |
| Current: | Pneumatic |
| Working pressure: | (0.6 MPa) 6.0 bar |
Included in delivery:
Tool with inlet and exhaust air hose, Flat file, adapter R1/4 x NPT1/4 and socket screw key 2.5 mm.
