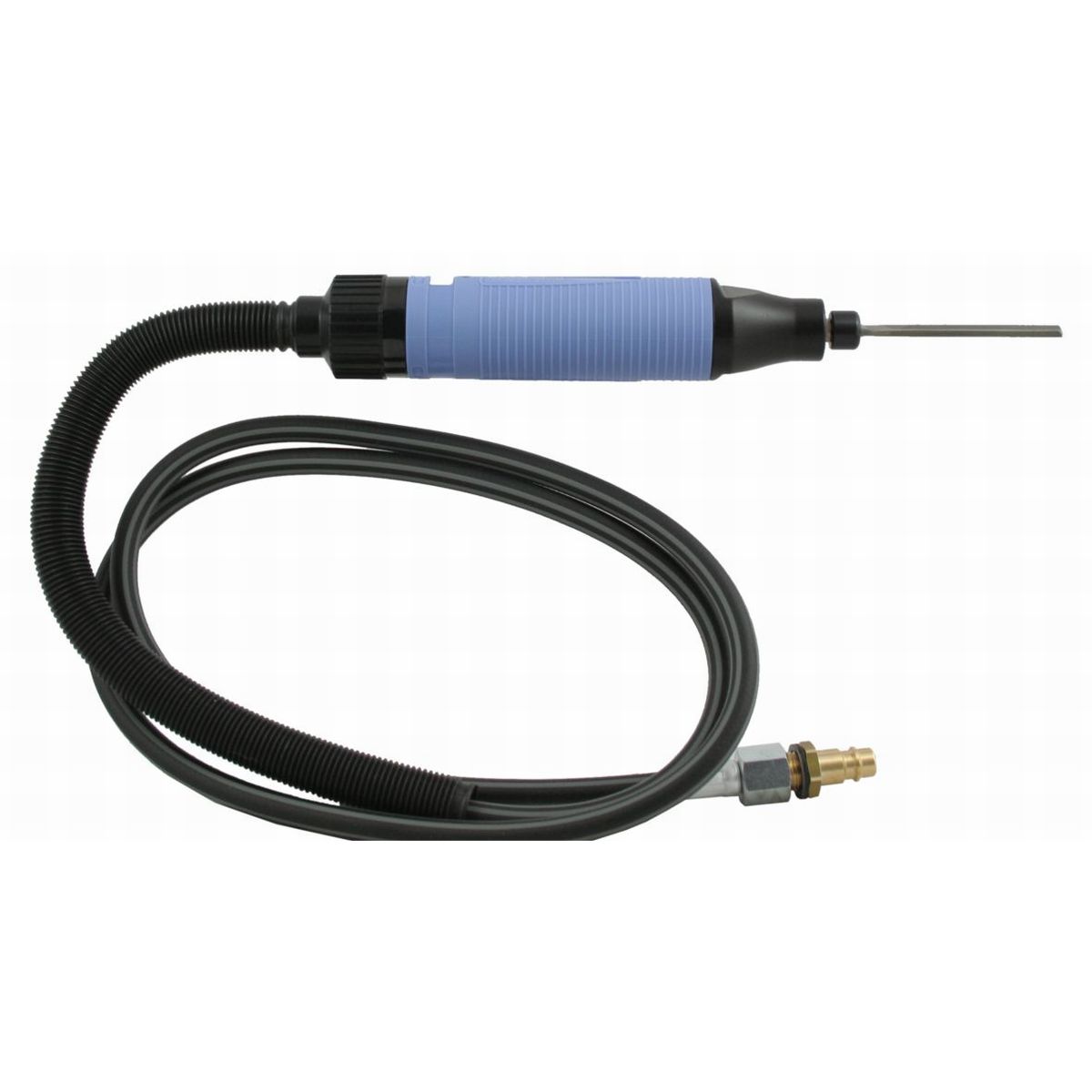

ASH-900 (CF63/9) Hand file
| Strokes: | 6300 min-1 |
|---|---|
| Stroke length: | 9 mm |
| Chuck: | Round shaft Ø 5 mm |
| Weight: | 0.5 kg |
| Current: | Pneumatic |
Product number:
67121000
Light-weight/small
Low-vibration type
ASH-900 (CF63/9) Hand file
Applications
Pneumatic hand file for deburring, filing, fine grinding and lapping; in mould making, fixture and apparatus construction.
Especially light-weight and low-noise pneumatic hand file reduces timeconsuming manual handfiling operations.
For working steel, aluminum, brass, wood and other materials.
Interchangeable files due to Ø 5 mm round shaft.
Fatigue free working thanks to low vibration.
Technical specifications
For working steel, aluminum, brass, wood and other materials.
Interchangeable files due to Ø 5 mm round shaft.
Fatigue free working thanks to low vibration.
| Strokes: | 6300 min-1 |
|---|---|
| Stroke length: | 9 mm |
| Chuck: | Round shaft Ø 5 mm |
| Start: | Slide valve |
| Construction form: | Straight |
| Housing Ø: | 36 mm |
| Length: | 182 mm |
| Weight: | 0.5 kg |
| Sound pressure level: | 62.5 dB(A) |
| Sound power level: | 73.5 dB(A) |
| Vibration: | 4.8 (K 3.0) m/s² |
| Air consumption: | (0.2 m³/min) 3.3 l/s |
| Inlet air connection: | R 1/4" |
| Current: | Pneumatic |
| Working pressure: | (0.6 MPa) 6.0 bar |
Included in delivery:

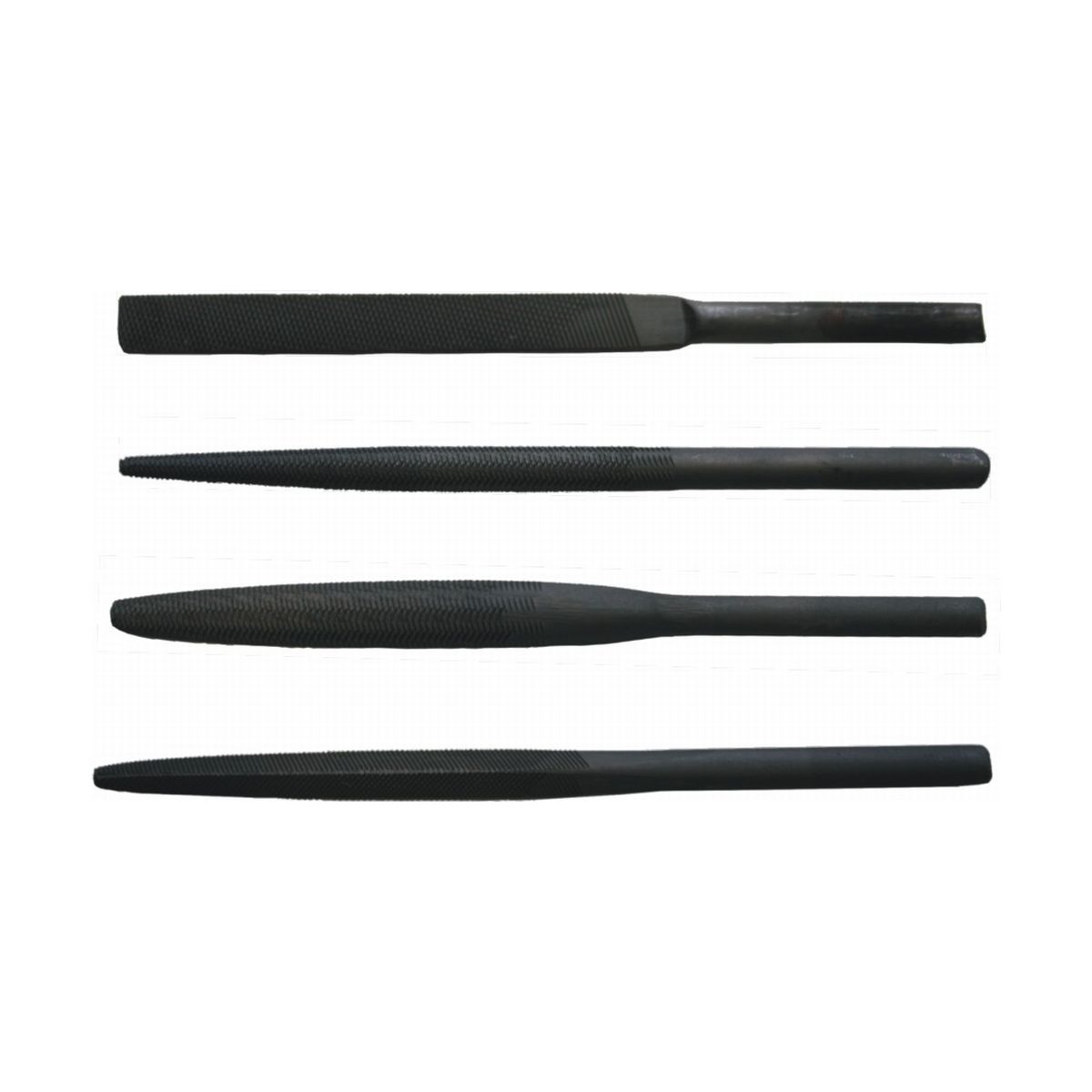

Tool with inlet and exhaust air hose, File set cut 2 (consists of: flat file, round file, three square file and halfround file)
adapter R1/4 x NPT1/4 and socket screw key 2.5 mm.
