MAH-05 (CF220/0,5) Precision hand file
| Strokes: | 22000 min-1 |
|---|---|
| Stroke length: | 0.5 mm |
| Chuck: | Round shaft Ø 3 mm |
| Weight: | 0.4 kg |
| Current: | Pneumatic |
Product number:
67123000
Light-weight/small
Low-vibration type
MAH-05 (CF220/0,5) Precision hand file
Applications

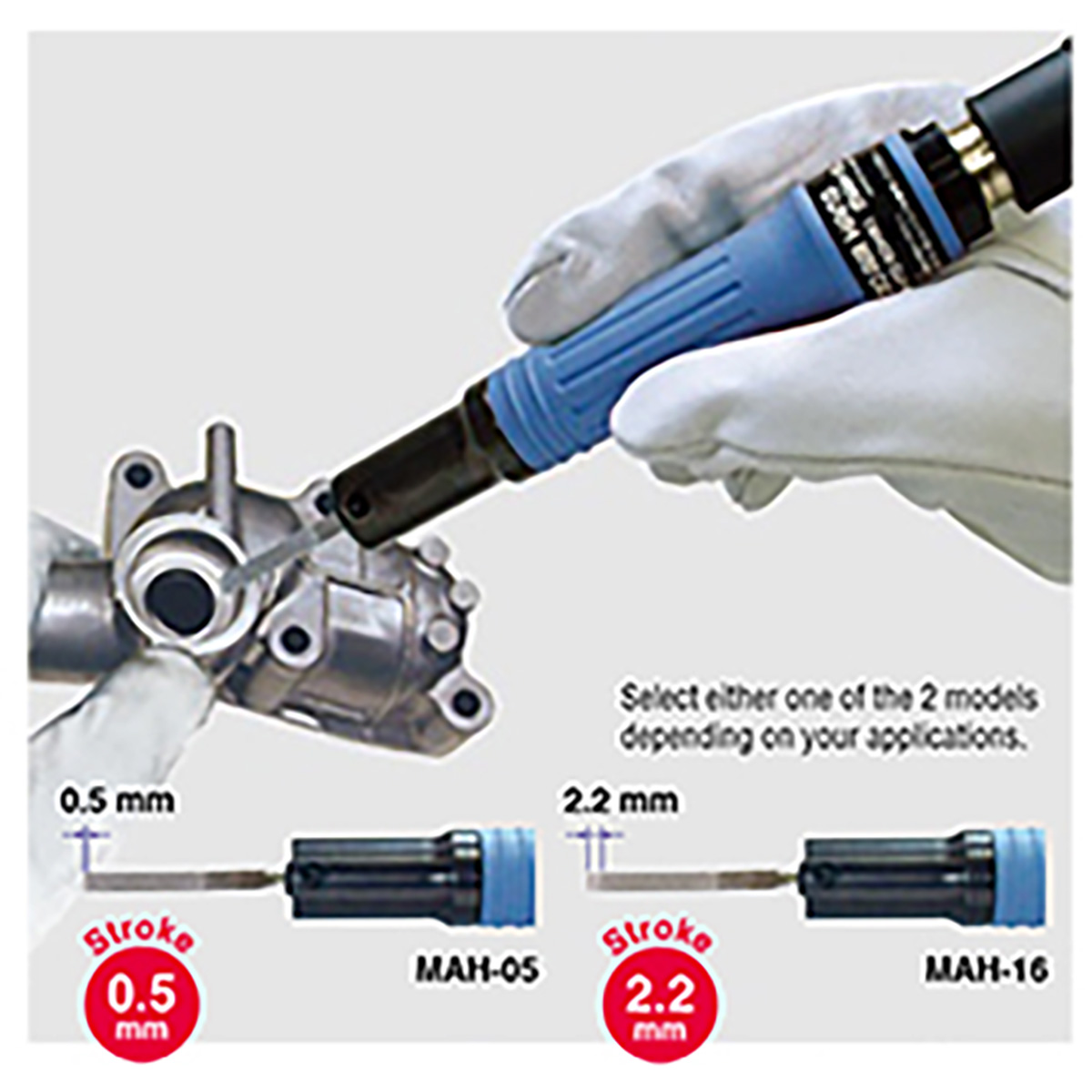

Pneumatic precision hand files for deburring, filing, fine grinding and lapping; in mould making, fixture and apparatus construction.
Especially light-weight and low-noise pneumatic hand file reduces time consuming manual hand filing operations.
Ideally suitable for precision filing works thanks to short stroke of 2.2 mm.
For working steel, aluminum, brass, wood and other materials.
Ø 3 mm round shaft.
Fatigue free working thanks to low vibration values (<2.5 m/s2).
Workers protection by exhaust air guide (hose-in-hose).
| Strokes: | 22000 min-1 |
|---|---|
| Stroke length: | 0.5 mm |
| Chuck: | Round shaft Ø 3 mm |
| Start: | Slide valve |
| Construction form: | Straight |
| Length: | 176 mm |
| Housing Ø: | 21 mm |
| Weight: | 0.4 kg |
| Sound pressure level: | 75 dB(A) |
| Sound power level: | 86 dB(A) |
| Vibration: | 1.0 m/s² |
| Air consumption: | (0.07 m³/min) 1.17 l/s |
| Inlet air connection: | R 1/4" |
| Current: | Pneumatic |
| Working pressure: | (0.6 MPa) 6.0 bar |
Included in delivery:

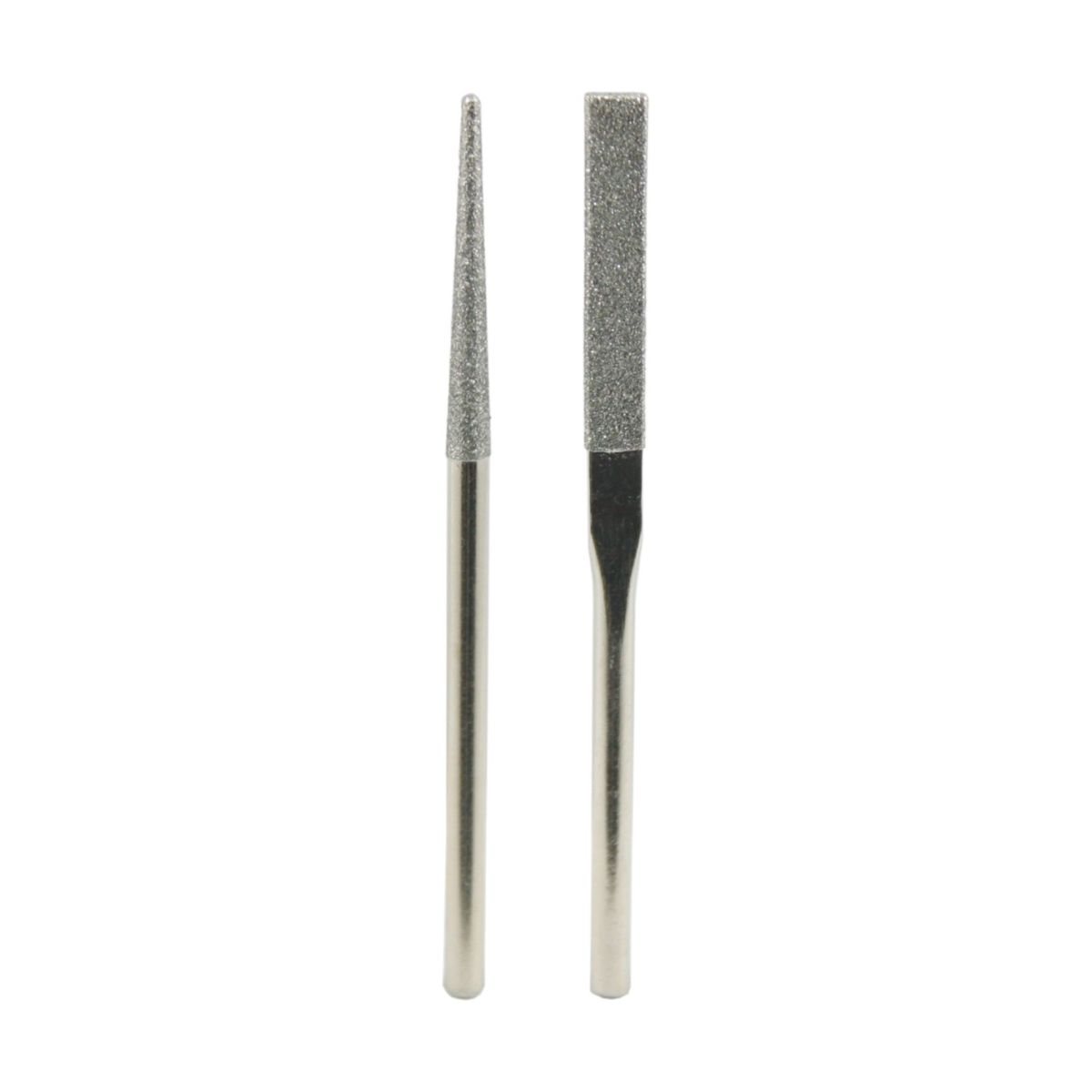

Tool with inlet and exhaust air hose, Diamound flat file, diamond round file, adapter R1/4 x NPT1/4 and socket screw key 2 mm.
Options
