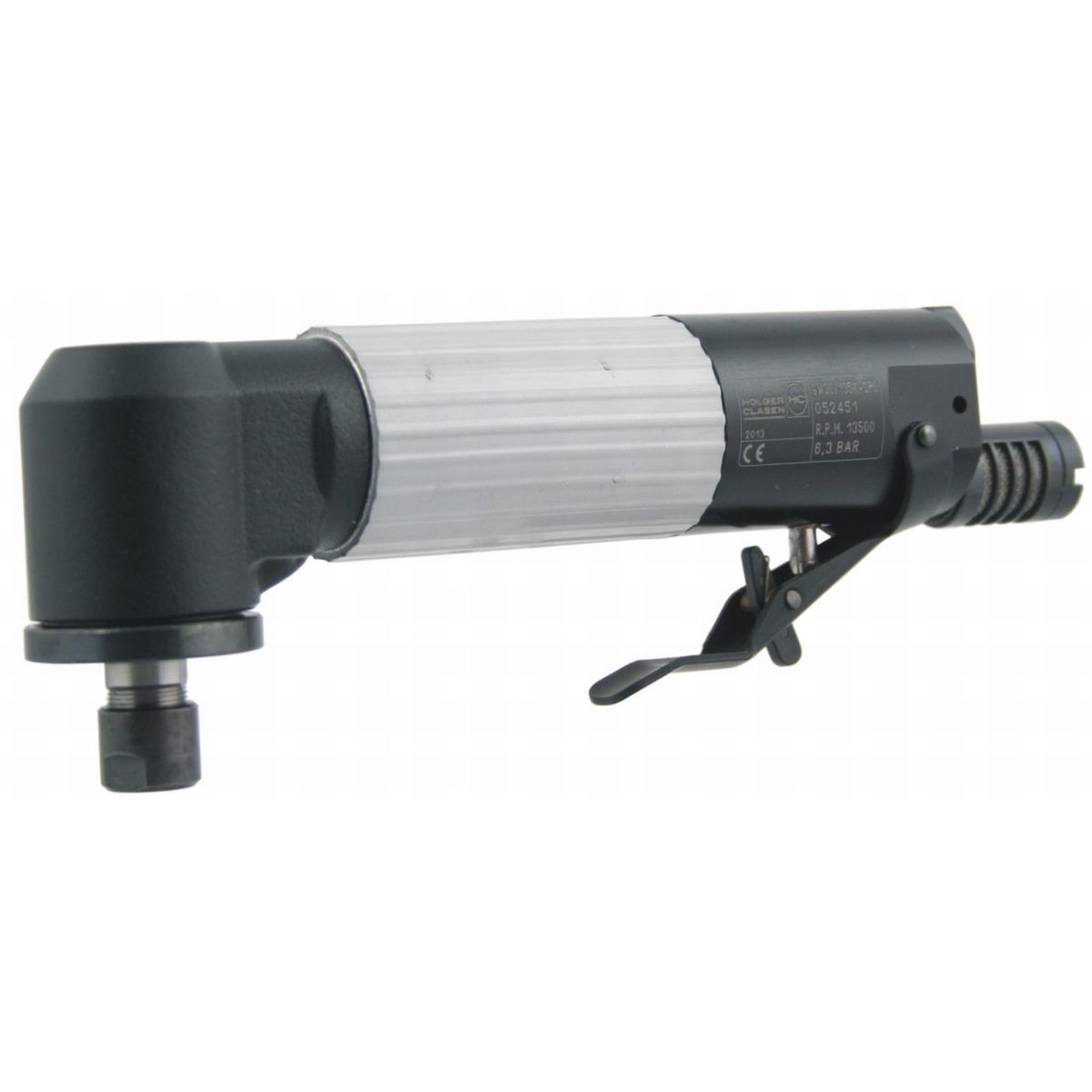

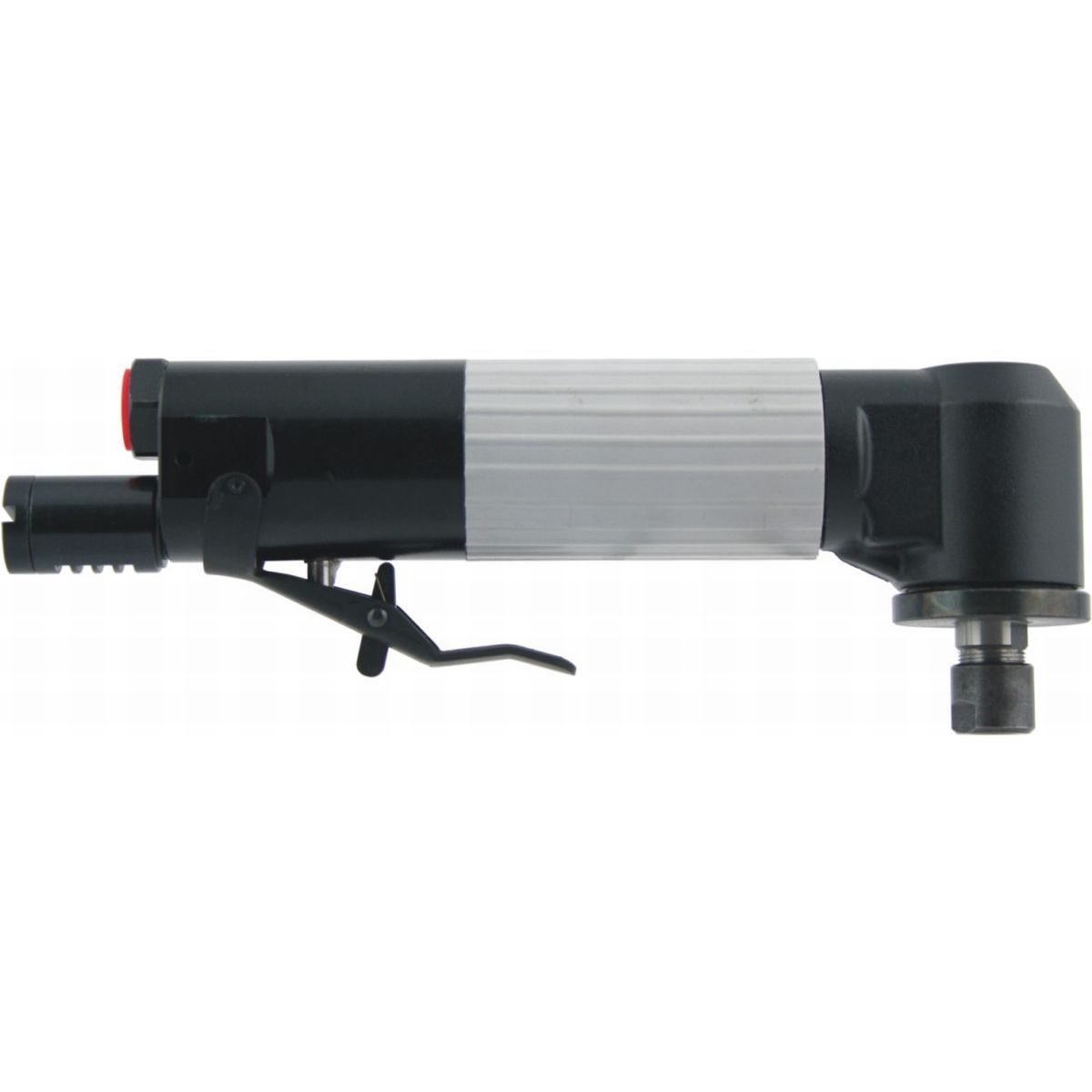

HOLGER CLASEN GW30/135K-SP Pneumatic angle polishing and grinding tool
| Power [W]: | 300 W |
|---|---|
| Speed: | 13500 min-1 |
| Wheel Ø: | max. 75 mm |
| Chuck: | Collet chuck ER11 (Ø 6 mm) |
| Current: | Pneumatic |
Product number:
12124000
Light-weight/small
Low-vibration type
GW30/135K-SP Pneumatic angle polishing and grinding tool
Applications
Pneumatic polishing tool for grinding and polishing in vehicle construction, mould making, machine building and plasctics industry.
The compact, small tool is designed for grinding jobs.Standardized collet chuck Ø 6 mm.Usage of rotary bars and grinding pins possible.Smooth running and low vibration valuesExcellent weight-power ratio.Long service-life and low maintenance.
Technical specifications
| Power [W]: | 300 W |
|---|---|
| Speed: | 13500 min-1 |
| Wheel Ø: | max. 75 mm |
| Chuck: | Collet chuck ER11 (Ø 6 mm) |
| Clamping Range Ø: | 0.5 - 7 mm |
| Start: | Valve lever |

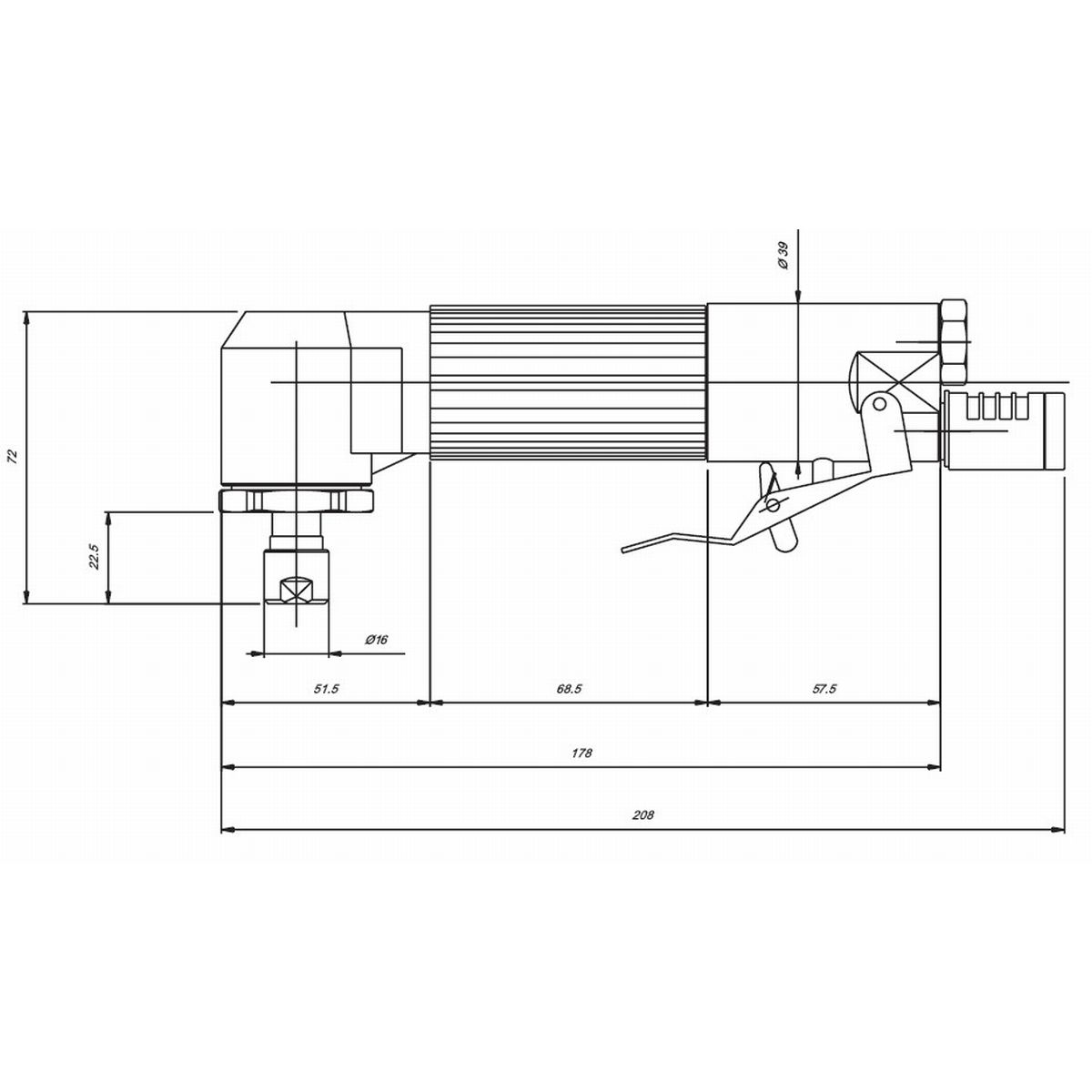

| Length: | 185 mm |
| Height: | 71 mm |
| Housing Ø: | 40 mm |
| Exhaust air: | back side |
| Weight: | 0.9 kg |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 9.0 l/s |
| Sound pressure level: | 79 dB(A) |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Inlet air connection: | G 1/4" |
| Vibration: | < 2.5 m/s² |
Included in delivery:
Tool with collet chuck Ø 6 mm, hose nipple and assembly wrenches.
