RS-C5-O Ma Battery-Operated Mechanical Cutter
| Opening width: | 50 mm |
|---|---|
| Information: | Compatible with 18 V Makita Batteries |
MasterBase-Technologie
Ergonomic
Narrow design
Battery Control
Makita-compatible battery

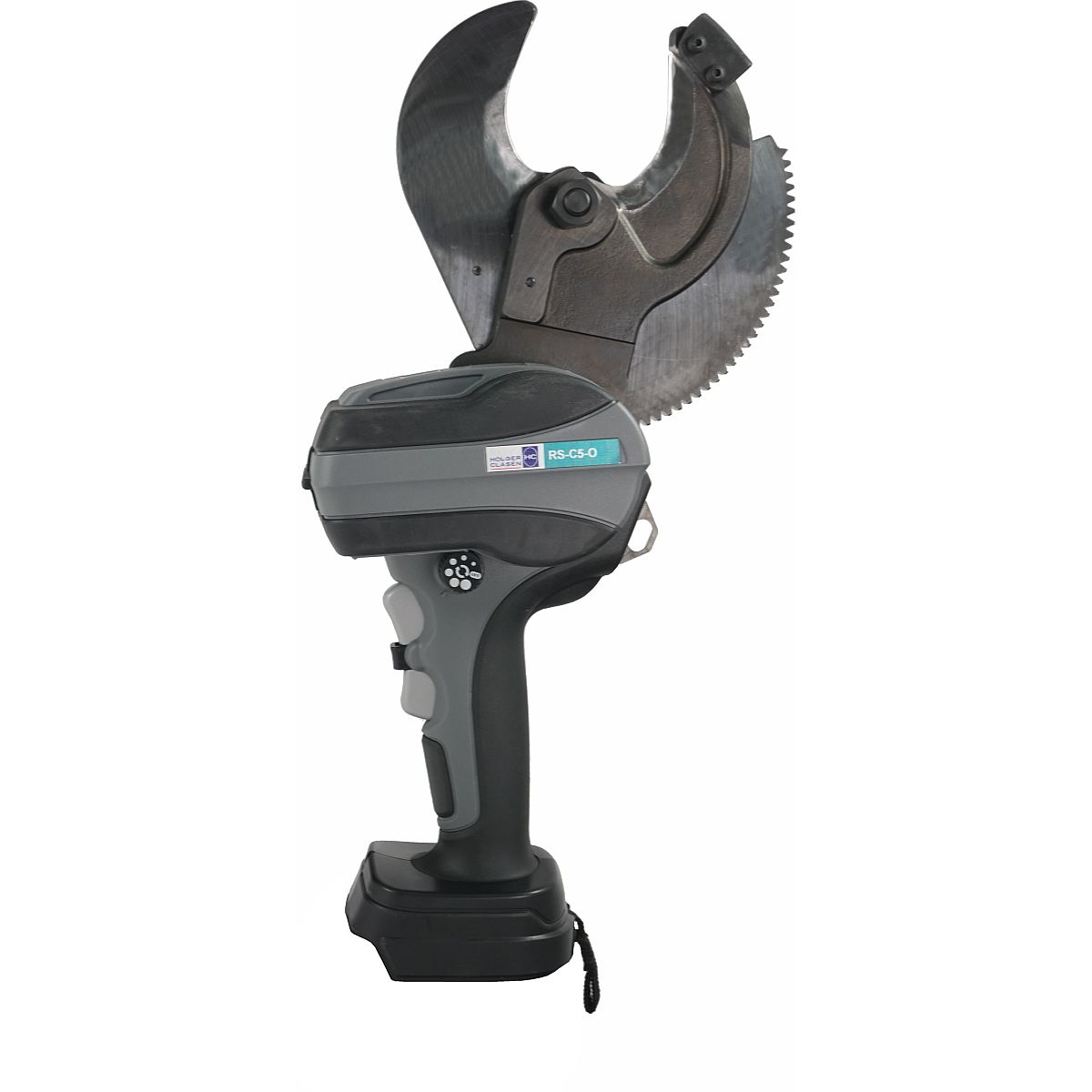

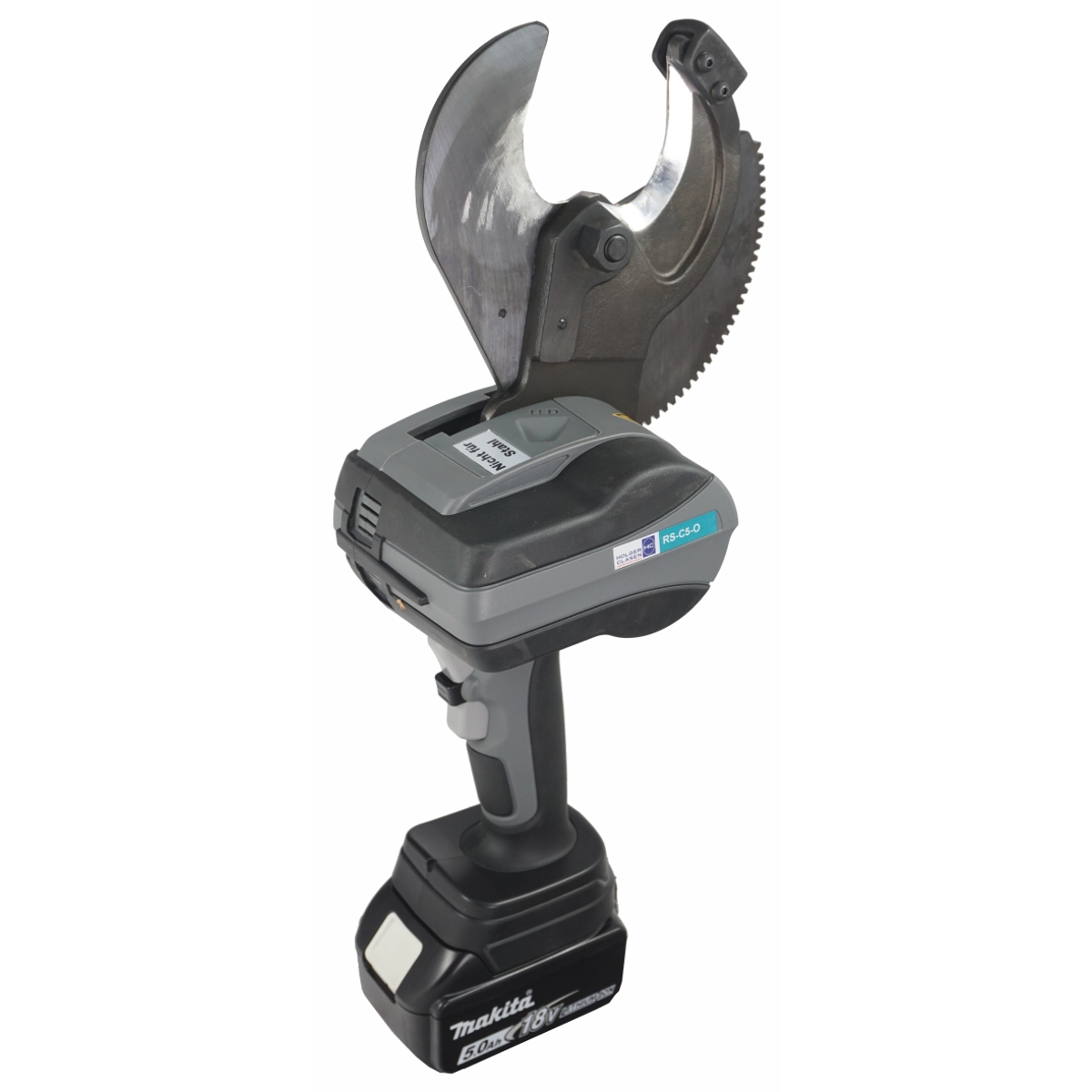

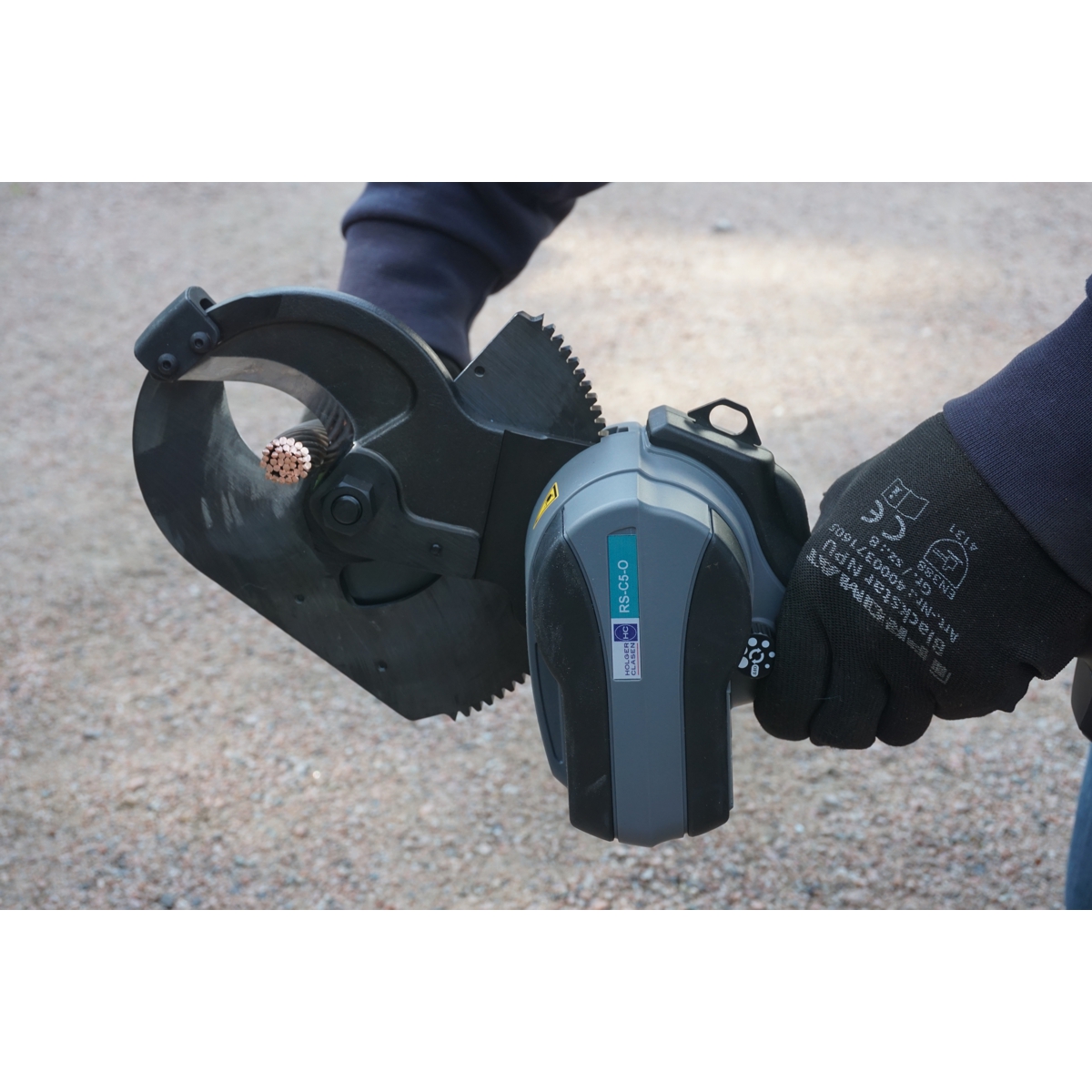

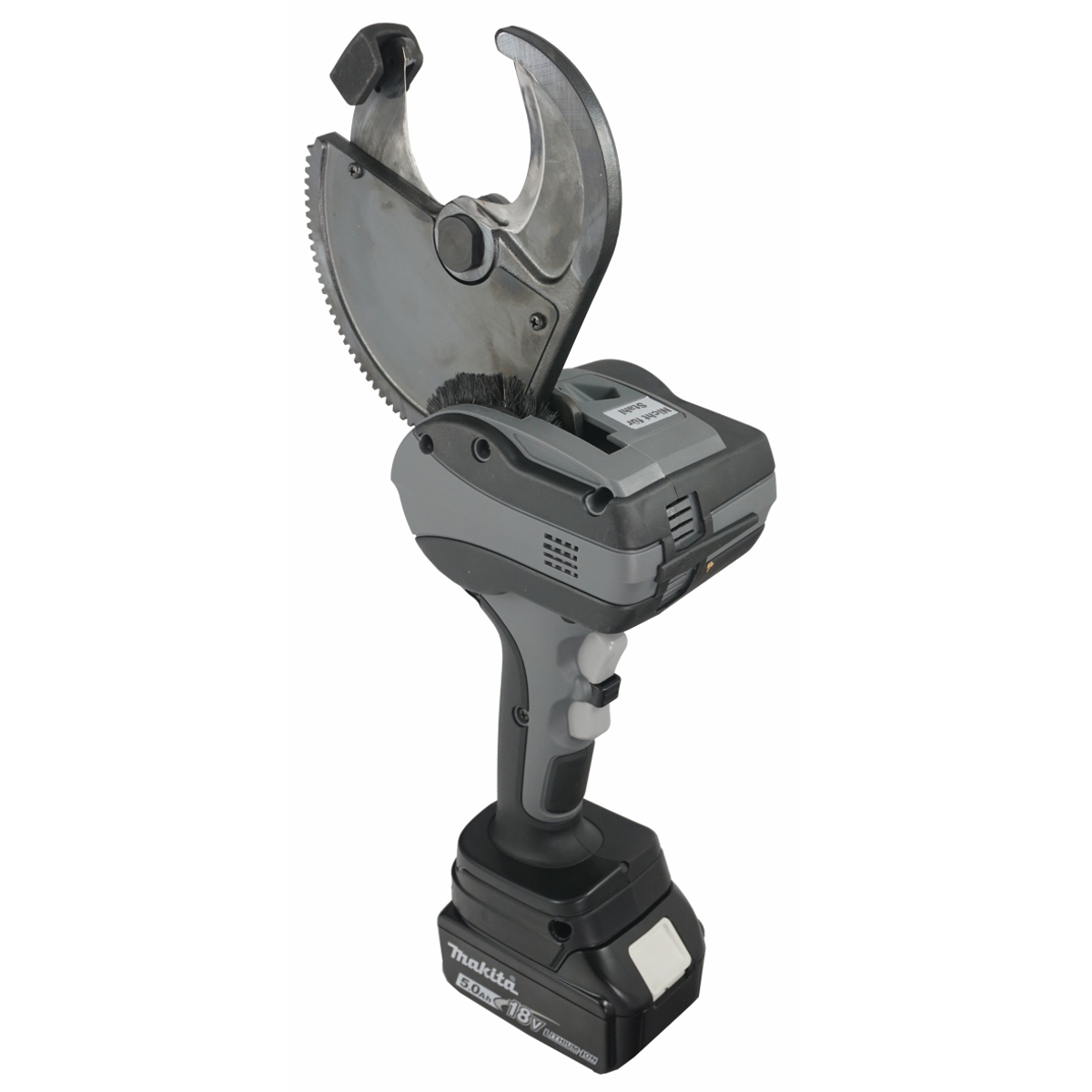

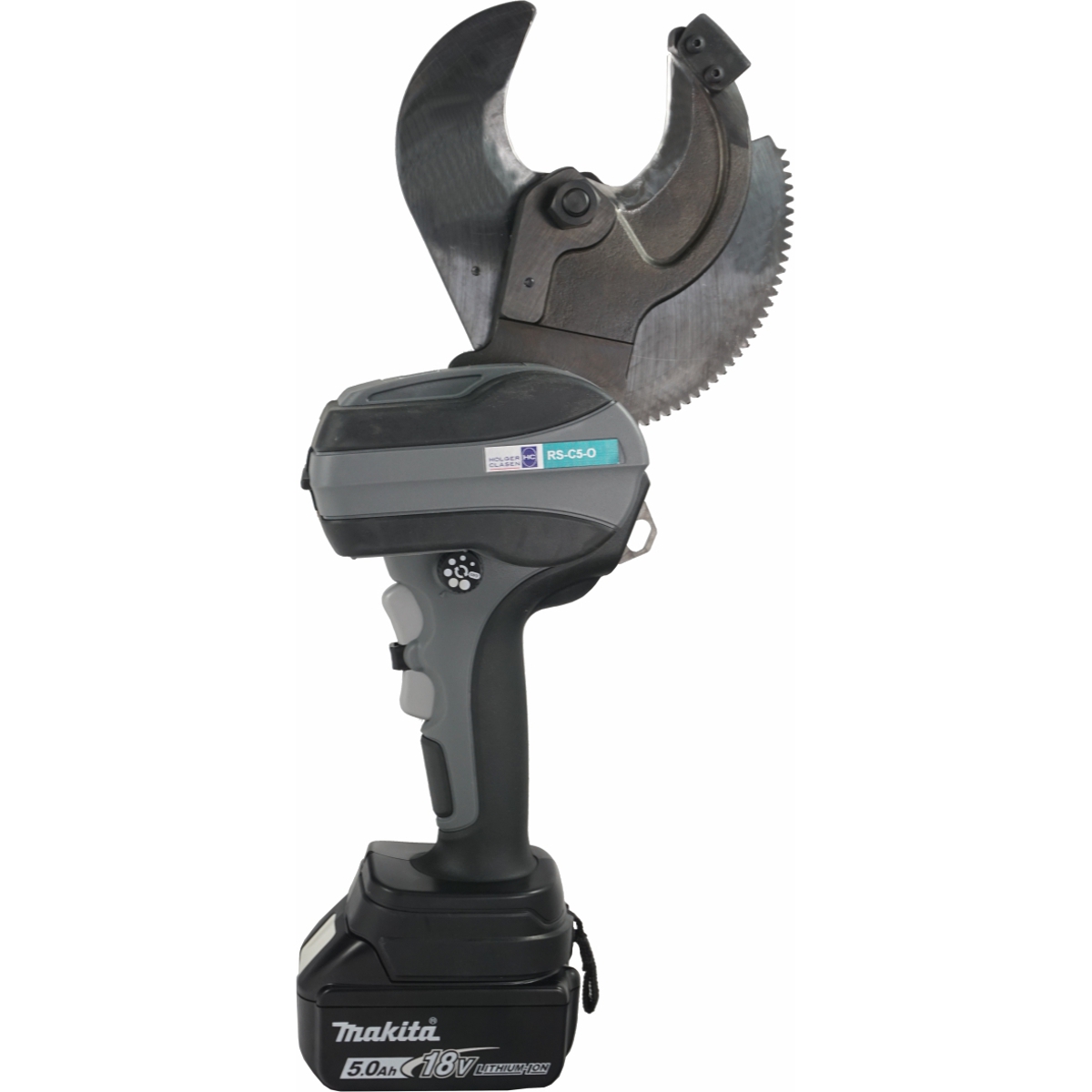

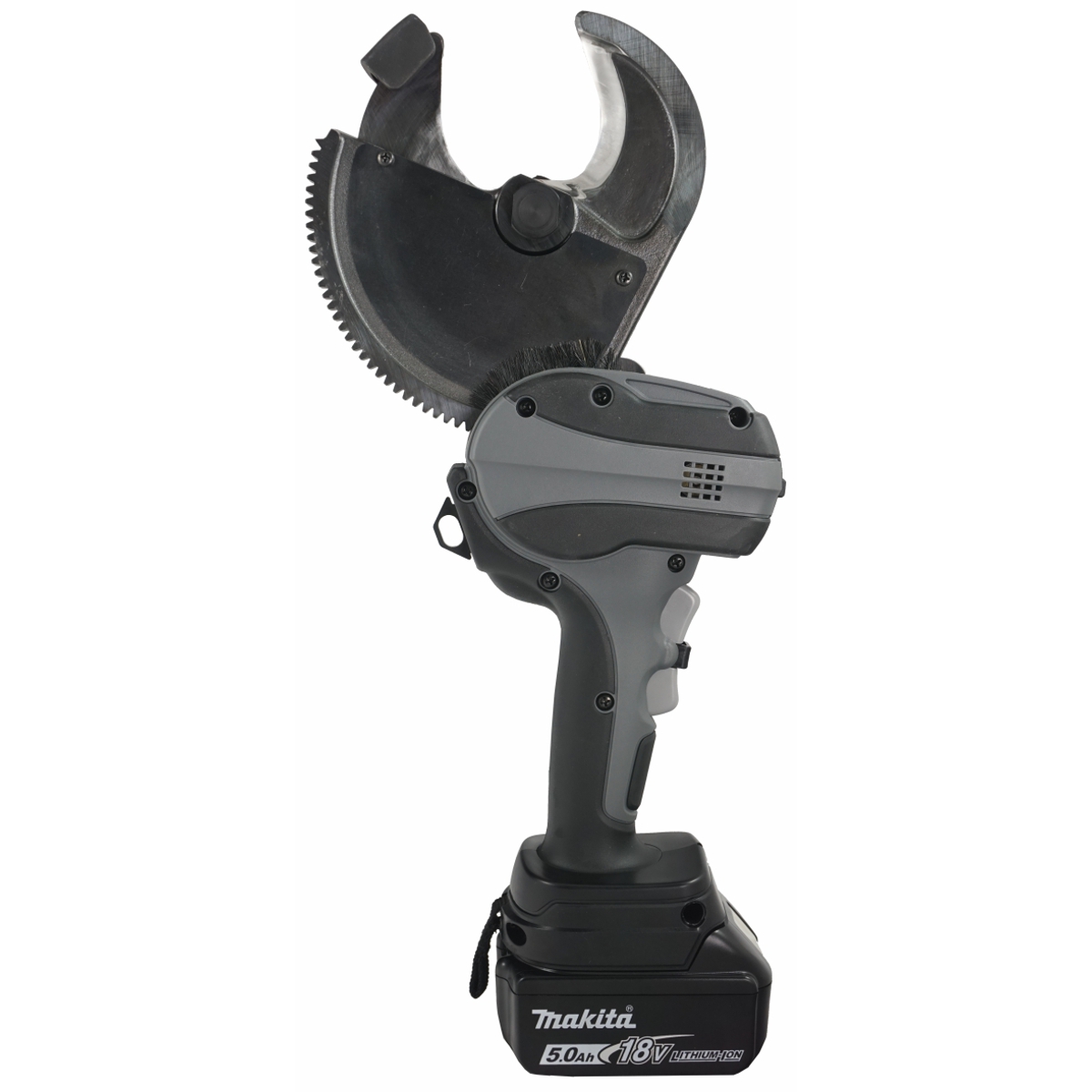

RS-C5-O Ma Battery-Operated Mechanical Cutter
The RS-C5-O cordless ratchet cutter is the ideal cutting tool for professionals in the energy sector, electrical industry, service sector, and civil engineering and building construction. With its straight design, light weight, and powerful cordless mechanical cutting technology, it ensures clean cuts—even in confined working areas.
Battery Ratchet Cutter RS-C5-O – Precise Cutting with Maximum Flexibility
Application Highlights:
-
Straight, slim design – perfect for positioning in tight spaces
-
Lightweight at only 2.9 kg – reduces operator fatigue
-
Open cutting geometry – facilitates precise placement on workpieces
-
Ratchet cutting principle – ensures powerful and controlled cuts
-
Large opening width up to 50 mm – ideal for copper and aluminum cables, e.g., NAYY 4x150 mm², Cu 1x500 mm² single conductor
-
Very clean cut surface – significantly reduces time-consuming rework
-
Rocker switch for forward and reverse, plus integrated lock – prevents accidental startup
-
Selectively adjustable return automation – enables efficient workflows
-
LED work area illumination – clear visibility even in poor lighting conditions
-
Adjustable opening width – optimally adaptable to various cable dimensions
-
Maintenance-free design – durable and reliable for continuous use

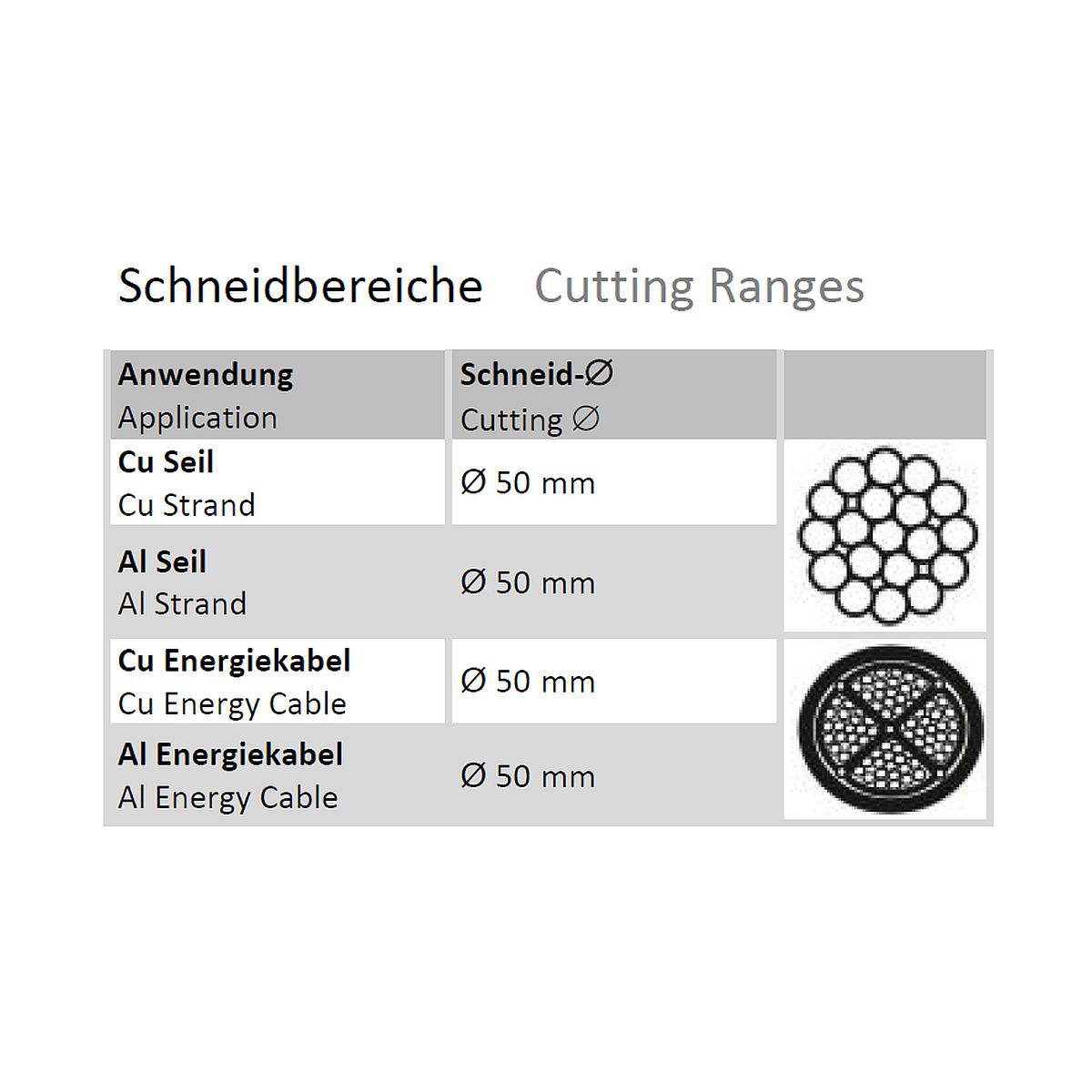

Cutting Applications:
-
Cu and Al cables class 1 and 2 (solid, stranded, sector conductor solid and stranded) up to Ø 50 mm
-
Power cables such as NAYY 4x150 mm², Cu 1x500 mm² single conductor
-
Note: Not suitable for steel-reinforced cables; usage under reservation.
Innovative MasterBase Technology:
Thanks to the MasterBase Technology, the RS-C5-O offers freely selectable battery compatibility and works with 18 V batteries from Makita, Bosch, Milwaukee, as well as 22 V Hilti (B22). This allows seamless integration into existing battery fleets, saving investment and storage costs.
Summary:
The Battery Ratchet Cutter RS-C5-O combines ergonomic design with powerful cutting performance, perfectly suited for professional users in energy, electrical, and construction sectors. Benefit from a low-maintenance, easy-to-use tool with a large cutting capacity and excellent cut quality—engineered for the highest demands.
Secure your RS-C5-O now and work precisely, safely, and efficiently!
| Opening width: | 50 mm |
|---|---|
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Weight without battery: | 2.9 kg |
| Dimensions LxWxH: | 117 x 197 x 392 mm |
| Construction form: | Straight |
| Head: | open |
