KombiMax-C5O/ILC6-C Battery-Combi-Set, Comfort series
| Opening width: | Cutting tool: 50 mm |
|---|---|
| Crimping force: | 60 kN |
| Crimping range DIN Cu: | 6 - 300 mm² |
| Crimping range DIN Al: | 10 - 300 mm² |
| Battery voltage: | Makita 18 V |
Product number:
75131600
With case
18 V Makita-kompatibel
6 t C-shell press inserts
KombiMax-C5O/ILC6-C Battery-Combi-Set, Comfort series
Applications
Well prepared for your cable assembly with the Comfort Series: a cordless cutter and a cordless crimper - compatible with 18 V Makita rechargeable batteries - stowed away in a case, ready to hand. The set includes the RS-C5-O battery-powered cutting tool, the InLiner® C6-C battery-powered crimping tool and a crimping die box, all compactly stored in the carrying case.
Battery cable cutting tool with open cutting blades RS-C5-O - lightweight, handy and powerful:
- Cuts Cu- And Al-stranded conductors up to Ø 50 mm and energy cable, e.g., Cu (1 x 500 mm2) or Al NAYY 4 x 150 mm2 (1 x 630 mm2)
- Particularly ergonomic, can be operated with one hand
- The open cutting geometry is particularly advantageous in confined spaces
- Only 2.9 kg tool weight
- Conversion of manual or automatic return for full tool control
- Freely selectable opening width setting
- with LED working area illumination
- Battery voltage: 18 V (compatible with Makita)

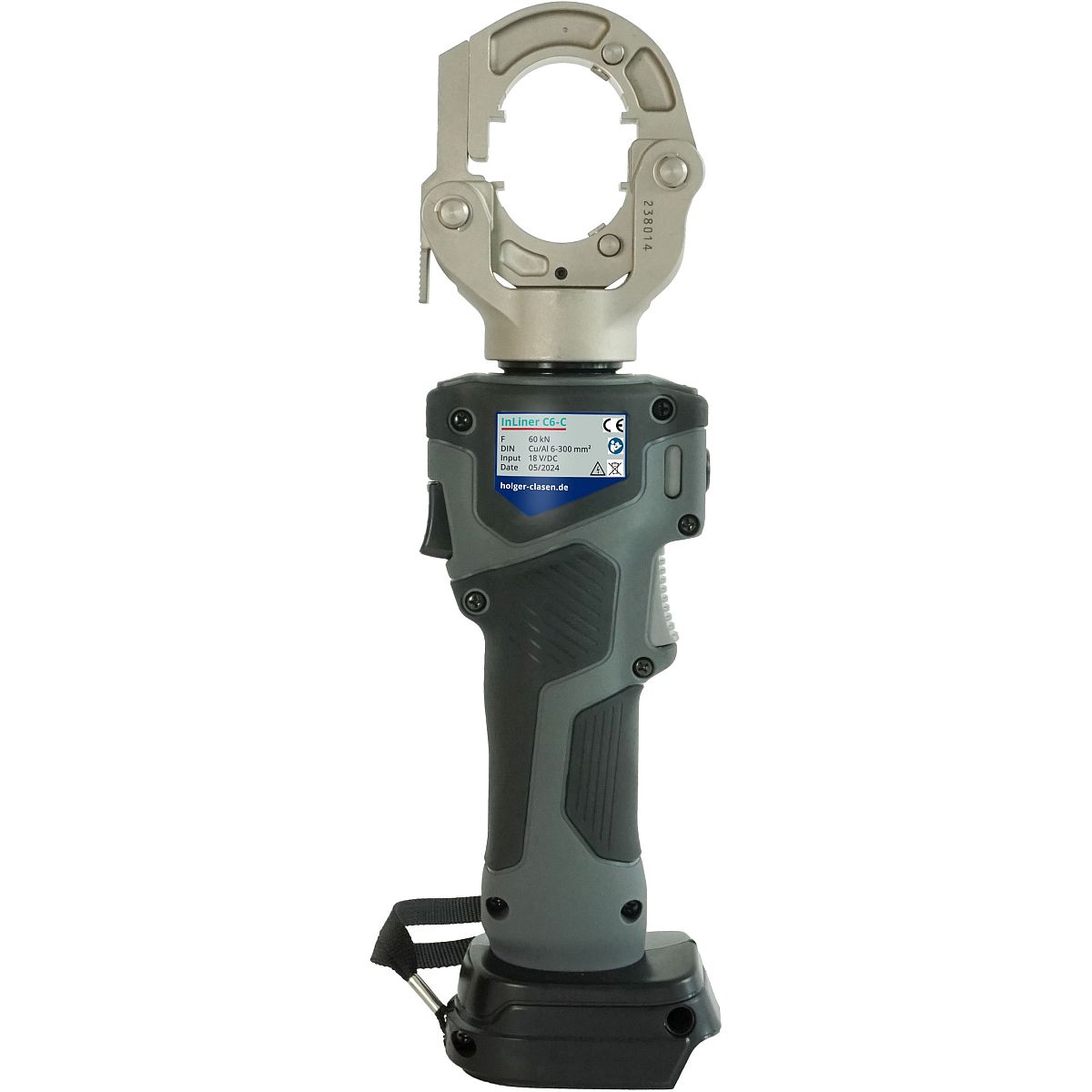

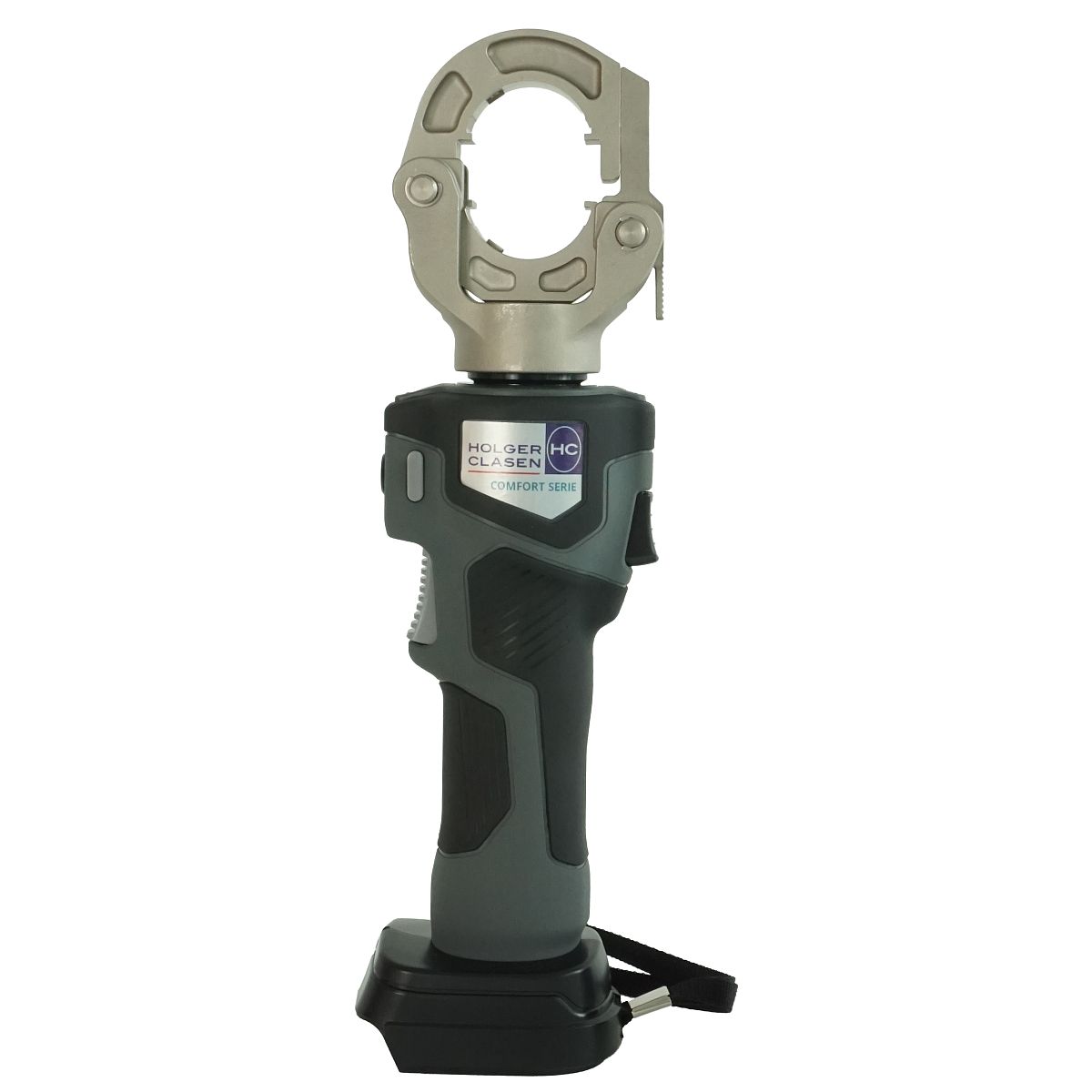

Battery-powered hydraulic press InLiner® C6-C – small, light-weight, powerful

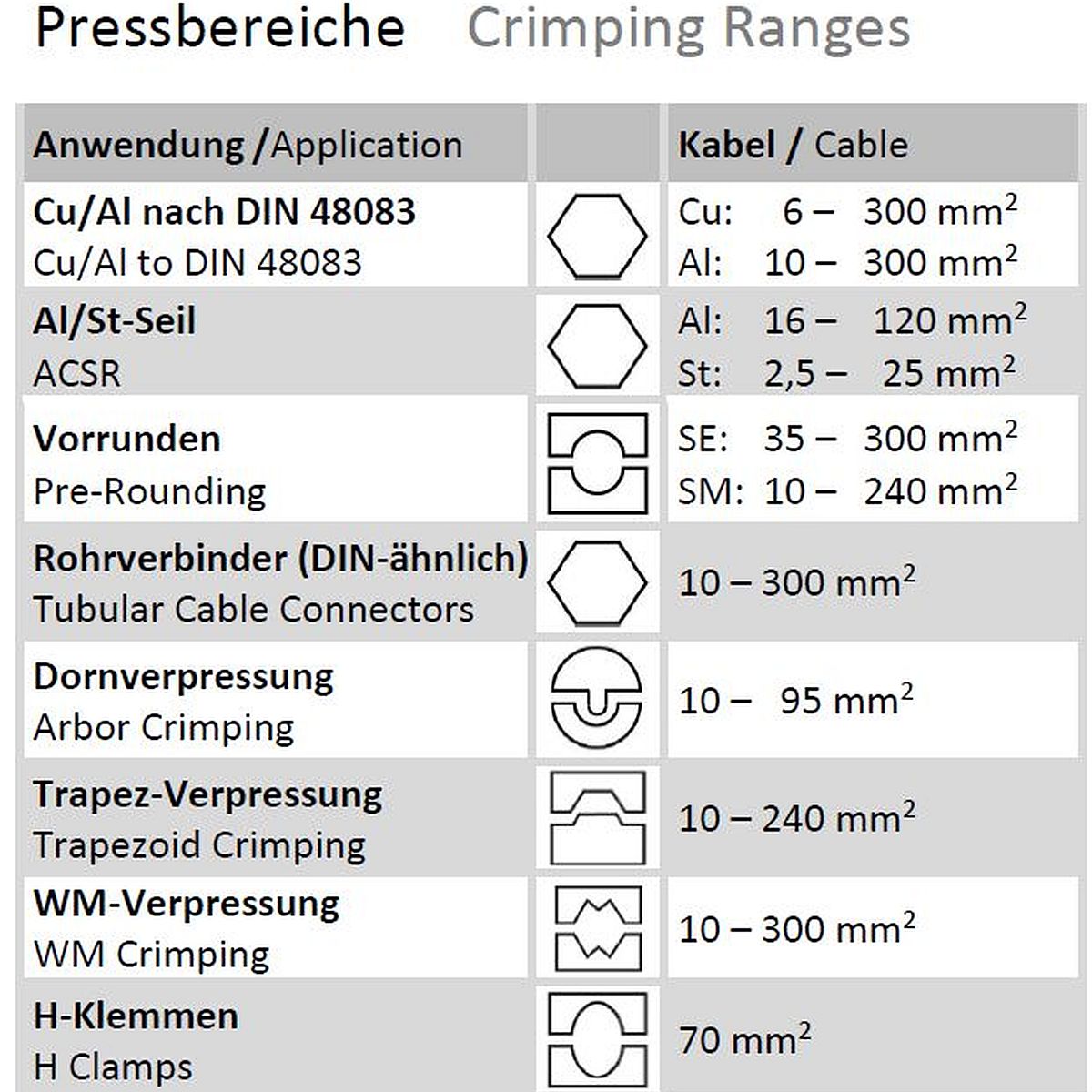

- Crimping force: 60 kN- Crimping range DIN hexagonal: Cu 6 - 300 mm2 / Al 10 - 300 mm2
- Weight: 2.7 kg
- Crimping Dies: small C-shaped (CS)
- Conversion of manual or automatic return for full tool control
- Lever lock return
- Battery voltage: 18 V (compatible with Makita)
- Slim, lightweight design for ideally working in narrow areas
- 180° rotatable crimping head
- Closed crimping head with hanger and latch offers high level of safety in crimping process
- Well-balanced, ergonomic design
- LED workfield illumination
Not included: Battery Makita BL1850B with 5 Ah, Makita Battery charger DC18RC
Optional: Even more compatibility with HC battery adapters for 18 V Bosch, Milwaukee or Dewalt batteries
Areas of application are subject to change. A sample processing is recommended.
| Opening width: | Cutting tool: 50 mm |
|---|---|
| Crimping force: | 60 kN |
| Crimping dies Series: | C-shaped slim (CS) |
| Crimping range DIN Cu: | 6 - 300 mm² |
| Crimping range DIN Al: | 10 - 300 mm² |
| Battery voltage: | Makita 18 V |
| Dimensions LxWxH: | Crimping tool: 365 x 75 x 95 mm - Cutting tool: 117 x 197 x 392 mm |
| Weight without battery: | Crimping tool: 2.7 kg - Cutting tool: 2.9 kg |
| Head: | Crimping tool: closed - Cutting tool: open |
Included in delivery:
Battery crimping tool InLiner® C6-C, battery cutting tool RS-C5-O and transportation case.
Battery and charger must be ordered separately.
