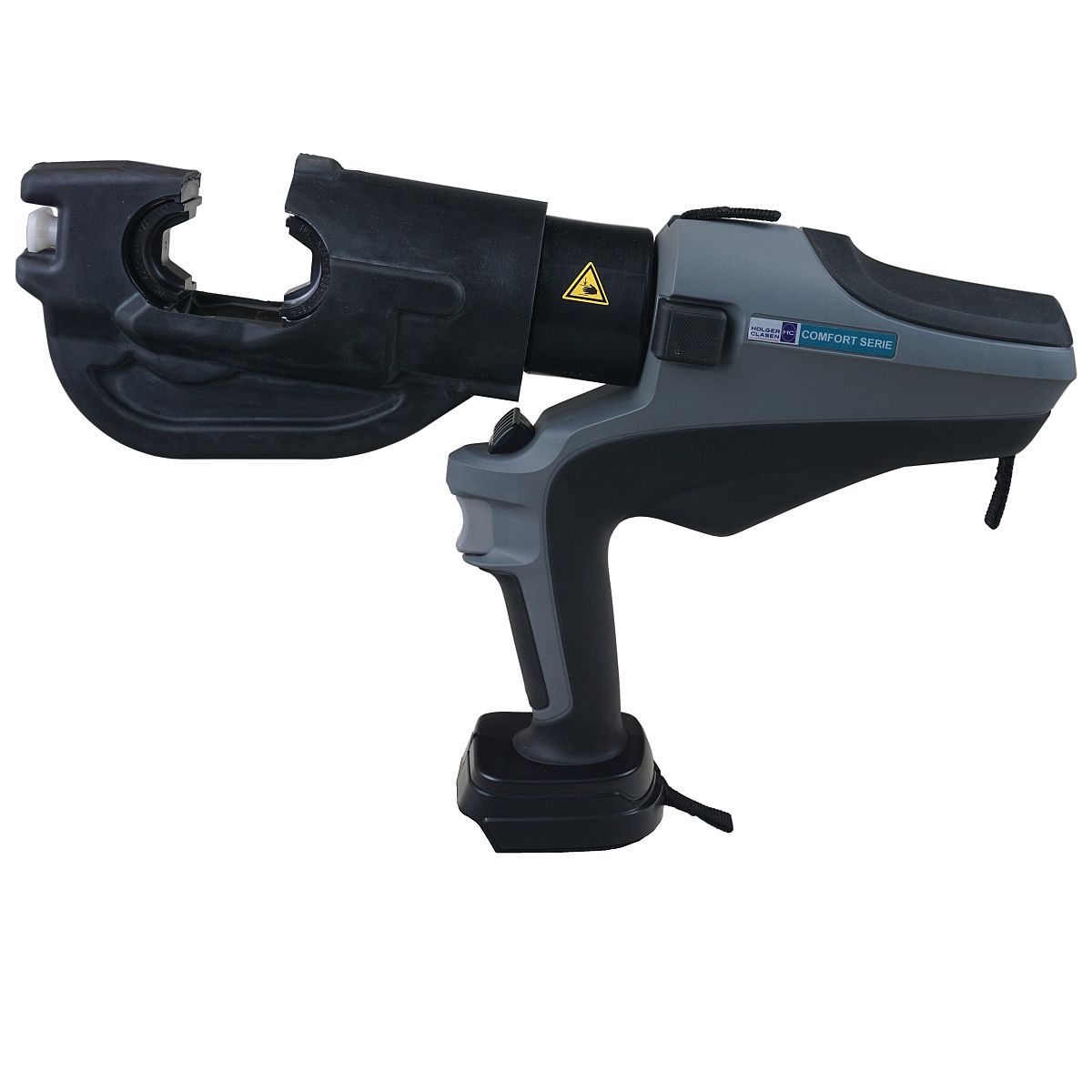

PressMax-C12 Ma Battery-Operated Hydraulic Crimper with MasterBase technology
| Crimping force: | 120 kN |
|---|---|
| Crimping range DIN Cu: | 10 - 300 mm² |
| Crimping range DIN Al: | 10 - 300 mm² |
| Information: | Compatible with 18 V Makita Batteries |
MasterBase-Technologie
LED lightend
Rotating Head
Tool control
2-step hydraulic
Battery Control
18 V Makita-kompatibel
C-shaped crimping dies
PressMax-C12 Ma Battery-Operated Hydraulic Crimper with MasterBase technology
- Equipped with MasterBase technology for flexible selection of the battery
- PressMax-C12 Ma - compatible with 18 V Makita Batteries
- Suitable for C-shaped crimping dies (C), DIN to 300 mm2
- Time saving due to more powerful crimping even of H-clamps
- Selectable automatic return simplifies the work process
- Fatigue-free working through ergonomic, balanced construction
- LED working field illumination
- Outstanding due to the large stroke of 42 mm
Battery press PressMax-C12 Ma - open crimper with 42 mm stroke
With 120 kN, the press is a powerful, versatile crimping tool. Thanks to its improved, balanced and ergonomic housing, it can also be handled with one hand. The narrow, 180° rotatable, open crimping head also allows crimping in hard-to-reach places. The LED for illumination of the working area supports this. The pressing tool is equipped with commercially available C-shell crimping dies (Form C), which are firmly locked in the crimping head via crimping insert safety devices for greater safety on the working site. You have full tool control via the feed and return buttons, with which you can control the crimping process at any time. New is the possibility to change the tool to automatic return. When the maximum crimping force is reached, the piston automatically returns to its starting position. However, you can stop the piston at the desired position by tapping the feed button - you always have full control over your tool. With 42 mm stroke and the corresponding force in optimally coordinated 2-step hydraulics, this battery pressing tool is even more powerful and versatile. The open crimping head and the large stroke enable many different applications, from DIN hexagonal crimping to H-clamps, arbor crimping and much more. Thanks to improved technology, this tool is even faster under load. You can use the battery pressing tool to crimp DIN hexagon Cu/Al cross-sections up to 300 mm2. The tool is compatible with 18 V lithium ion batteries from Makita.
Areas of application are subject to change.
| Crimping force: | 120 kN |
|---|---|
| Crimping dies Series: | C-shaped (C) |
| Crimping range DIN Cu: | 10 - 300 mm² |
| Crimping range DIN Al: | 10 - 300 mm² |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Stroke: | 42 mm |
| Weight without battery: | 6.9 kg |
| Dimensions LxWxH: | 436 x 92 x 286 mm |
| Construction form: | Pistol |
| Head: | open |
