PE-Set C-12 DIN Cu/Al Crimping Die set C-shaped, 120 kN Tool, DIN Cu/Al 10-300mm²
| Crimping dies Series: | C-shaped (C) |
|---|---|
| Crimping contour: | Hexagon to DIN 48083 |
| Suitable for: | PressMax-C12 |
| Suitable for: | InLineBox-C12 |
Product number:
79500146
C-shaped crimping dies
With case
PE-Set C-12 DIN Cu/Al Crimping Die set C-shaped, 120 kN Tool, DIN Cu/Al 10-300mm²
Applications
This crimping die set for Holger-Clasen cordless crimping tools offers technically precise solutions for hexagonal crimping of copper and aluminum conductors with C-shaped dies (C). It is matched to the appropriate tools according to the crimping force and includes DIN-compliant crimping dies. The dies offer high electrical and mechanical connection quality. The sets are compatible with our most popular crimping tools and enable quick use thanks to simple installation and a secure fit in the holders. Ideal for applications in energy supply companies, municipal utilities, switch cabinet construction, wind energy, or mobile cable installation services.
Crimping die set for maximum flexibility
Our crimping die set is designed to match your Holger-Clasen crimping tool. It offers the optimal solution for hexagonal crimping of cable lugs and connectors Cu / Al according to DIN 48083 with C-shaped dies (C).
Application highlights
- Suitable for PressMax-C12
- DIN crimping according to DIN 48083: For standard-compliant processing of DIN connectors and cable lugs
- Crimping ranges: 10–300 mm²
- Contents: 14 crimping dies
- The right crimping dies for the entire range
Your advantages at a glance:
- Comprehensive selection: The crimping die set offers you unlimited flexibility for every crimping task.
- Attractive price: Our set offers optimal value for money compared to purchasing the items individually.
- Wide crimping as standard: Where possible, we recommend wide crimping for greater efficiency.
- Immediate readiness for use: With our set, you are always optimally prepared – no waiting times due to additional procurement.
- Handy case: All inserts are delivered in a robust and clearly arranged case – ideal for transport and storage.
- Made in Germany: You can rely on tested quality and resilience that has proven itself in practice.
With our crimping die set for Holger-Clasen cordless crimping tools, you are technically well equipped to efficiently carry out standard-compliant and safe crimping in the electrical installation sector. Order now and benefit from long-lasting quality and maximum flexibility!
| Crimping dies Series: | C-shaped (C) |
|---|---|
| Crimping contour: | Hexagon to DIN 48083 |
| Crimping range DIN Cu: | 10 - 300 mm² |
| Crimping range DIN Al: | 10 - 300 mm² |
| Suitable for: | PressMax-C12 |
| Suitable for: | InLineBox-C12 |

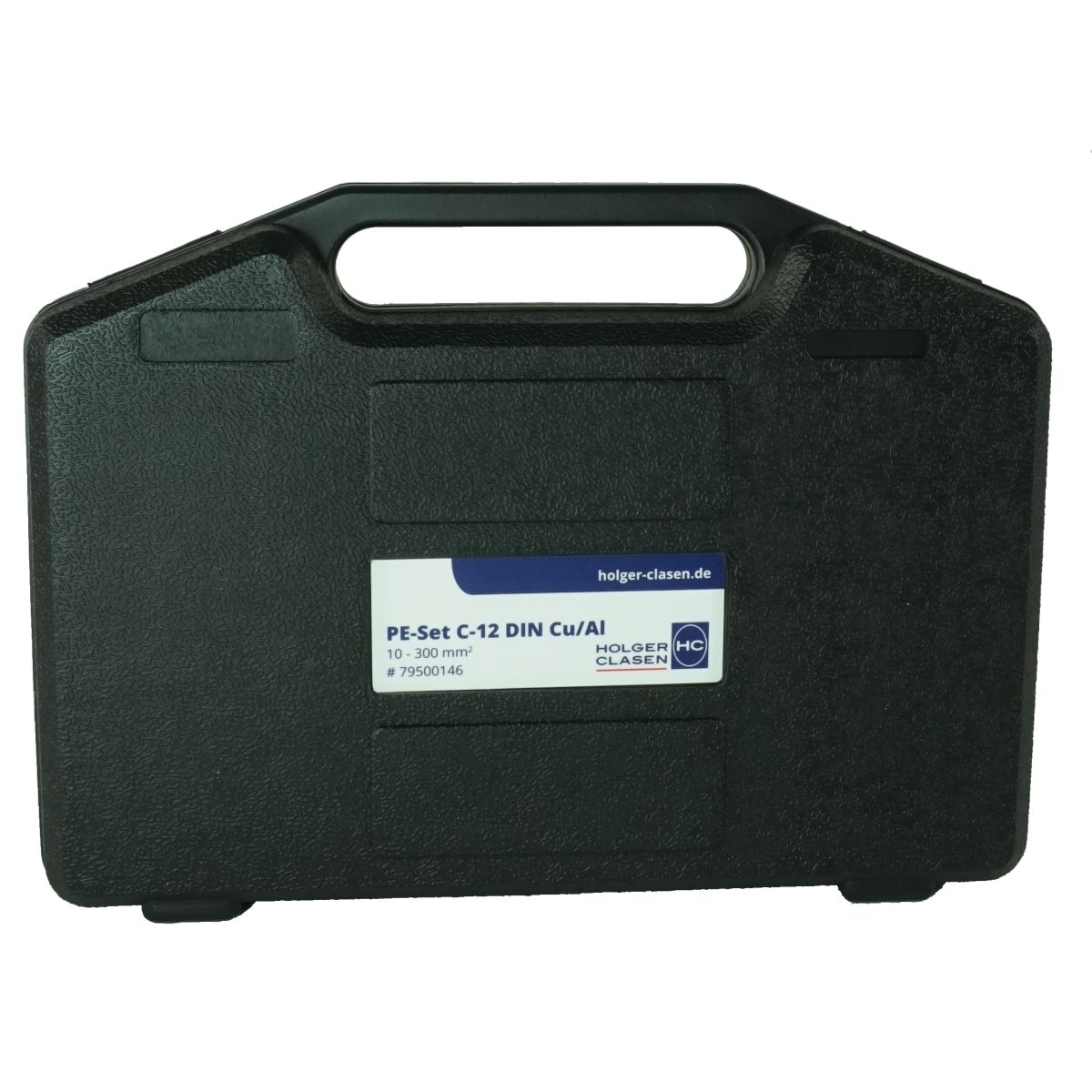

14 pairs of crimping-die in a plastic case
