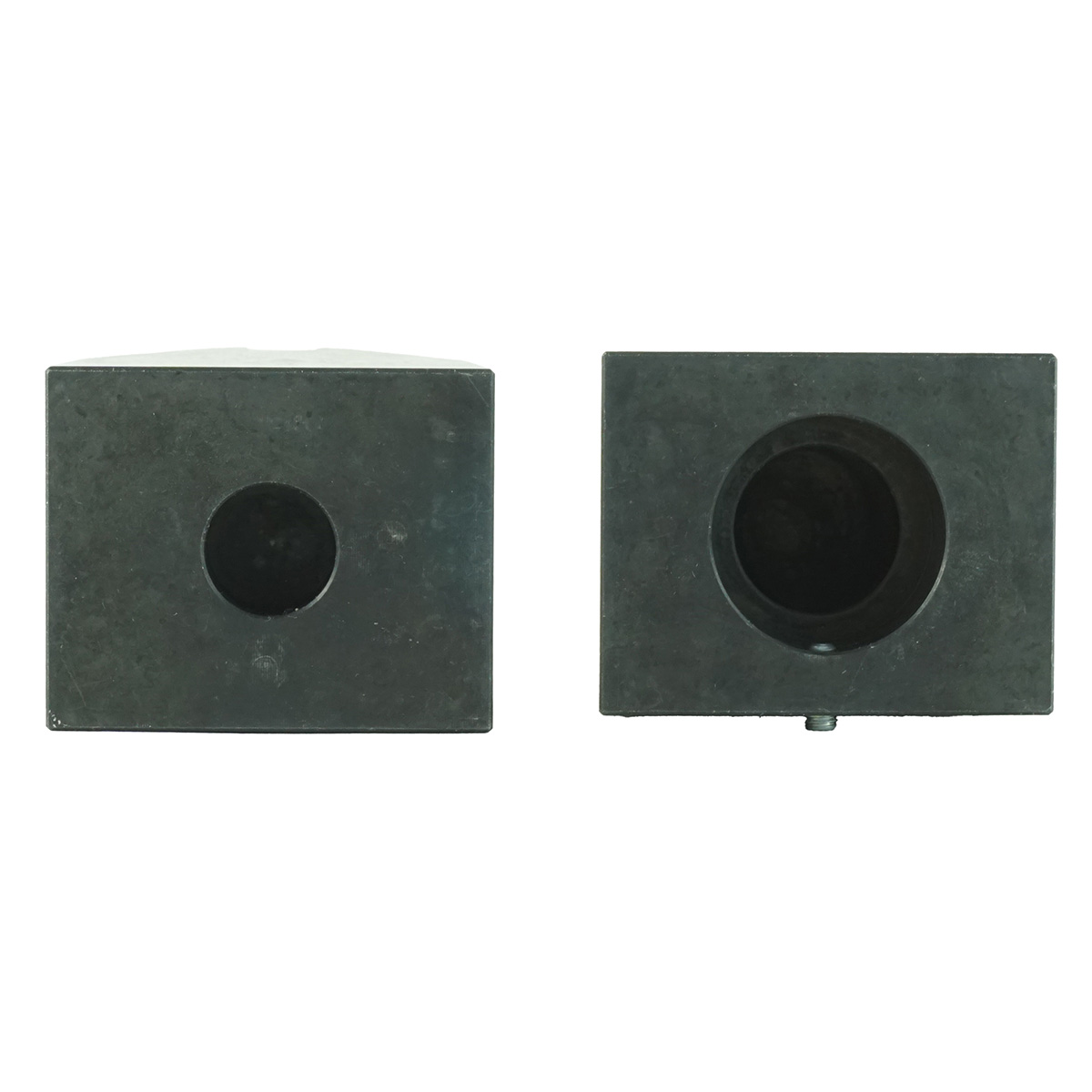

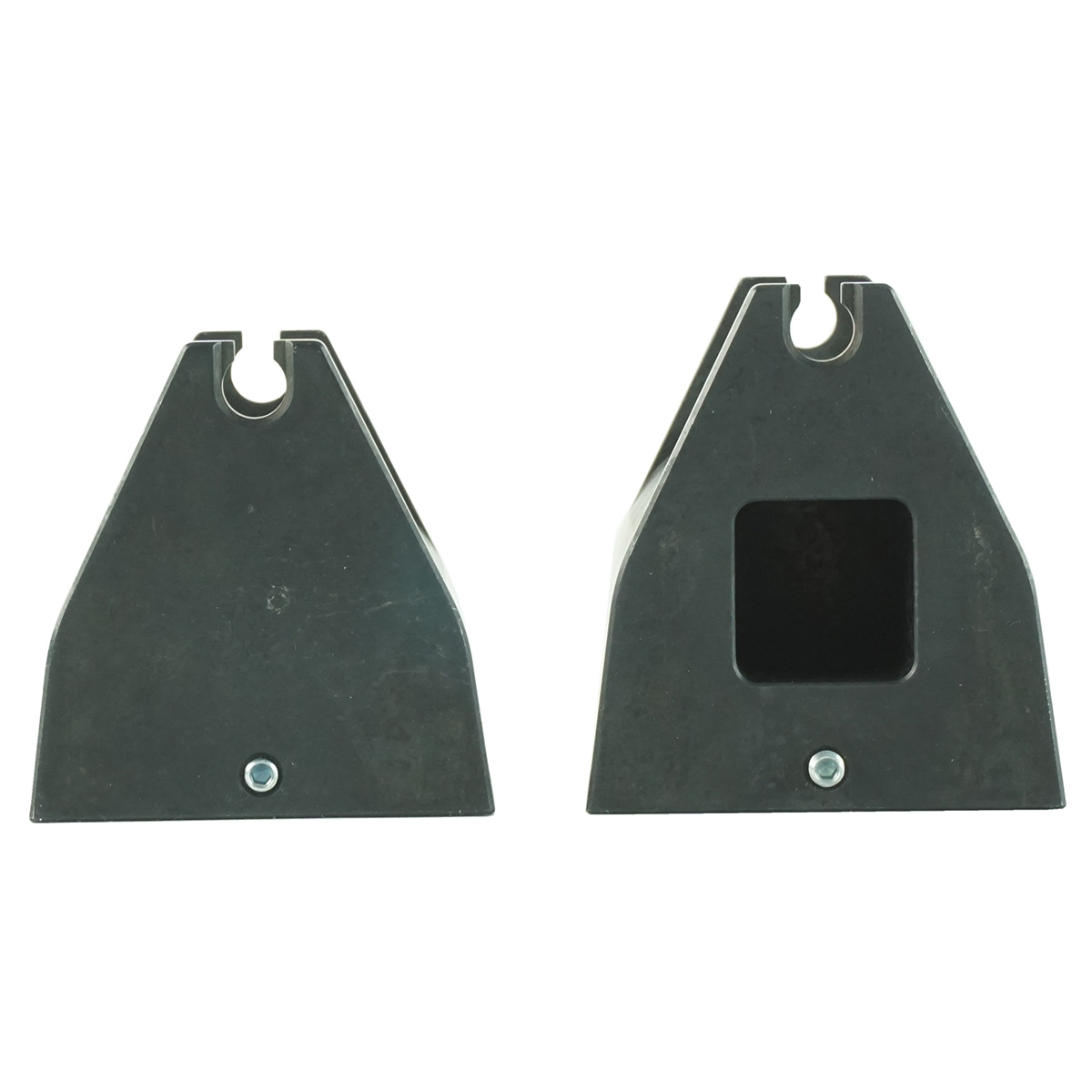

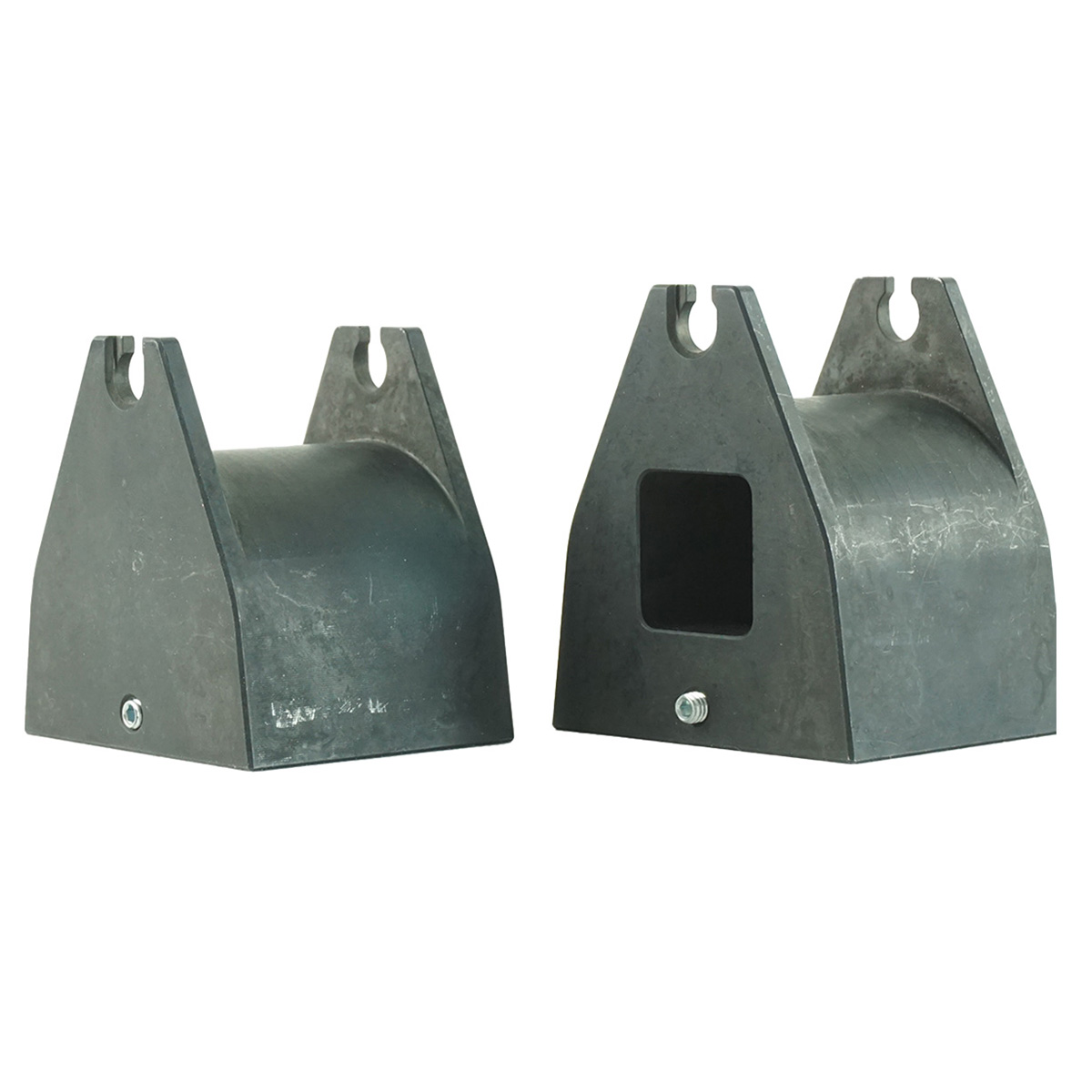

LAS15 Punch insert adapter
| Hole Ø: | 6.5 - 17 mm |
|---|
Set = 2 pieces
Product number:
79500205
LAS15 Punch insert adapter
Applications
Adapter for holding punching inserts, suitable for the InLineBox-C15 and InLineBox-C15-O tools thanks to the pin lock.

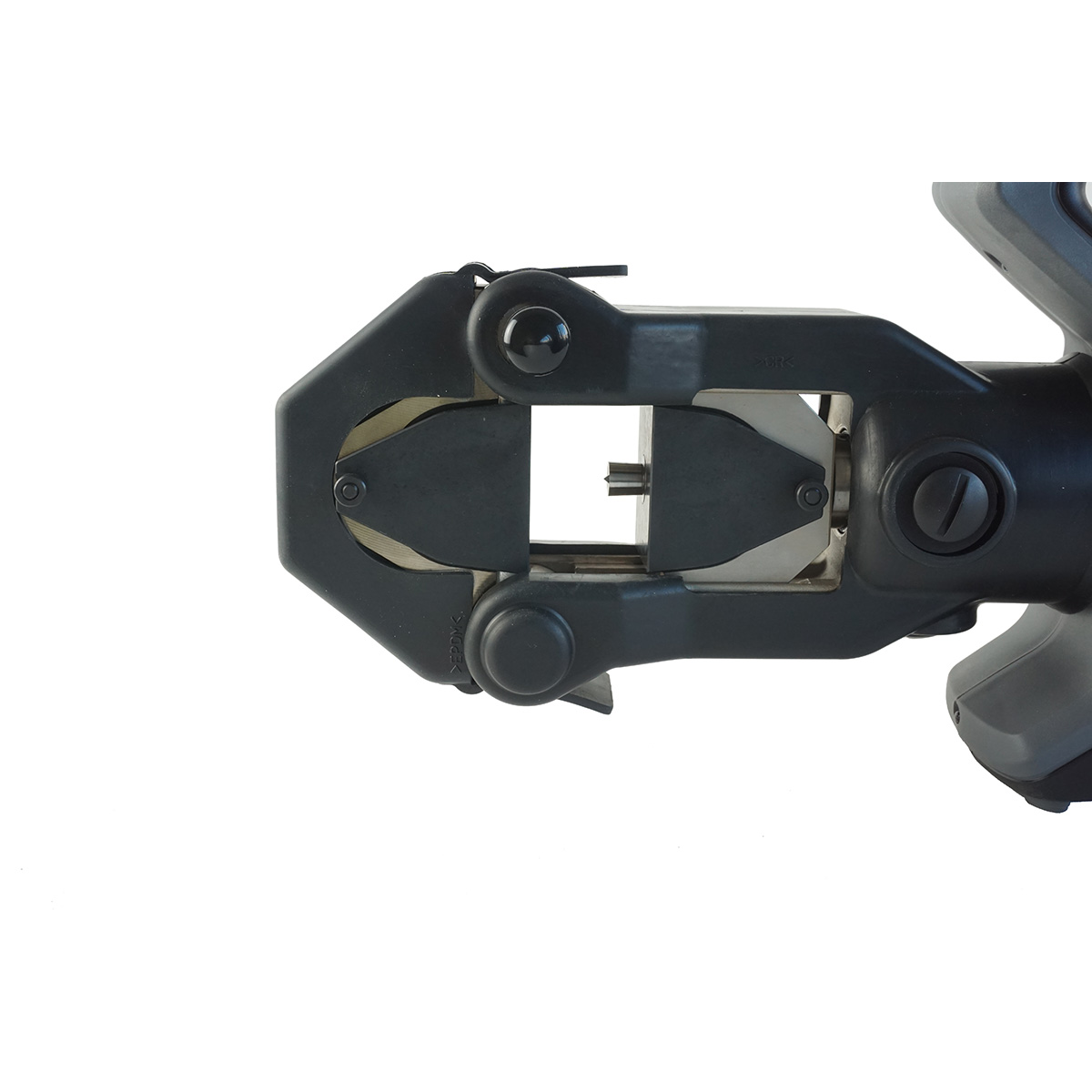

With this adapter for holding punching inserts (punch and die set), you can add hole punching to your crimping tool. They are suitable as pin locking inserts for the InLineBox-C15 and InLineBox-C15-O. The punching inserts must be ordered separately. They can also be used with the LSA12 (adapter in C-shaped die).
- Hole diameter 6.5 mm to 17 mm possible
- Central punching of sheets/rails up to 50 mm wide
- Material thicknesses: Cu/Al up to 10 mm, steel up to 5 mm
| Hole Ø: | 6.5 - 17 mm |
|---|---|
| Material thickness max.: | Cu/Al: 10 mm / steel: 5 mm |
Included in delivery:
Punching adapter for mounting punching inserts
