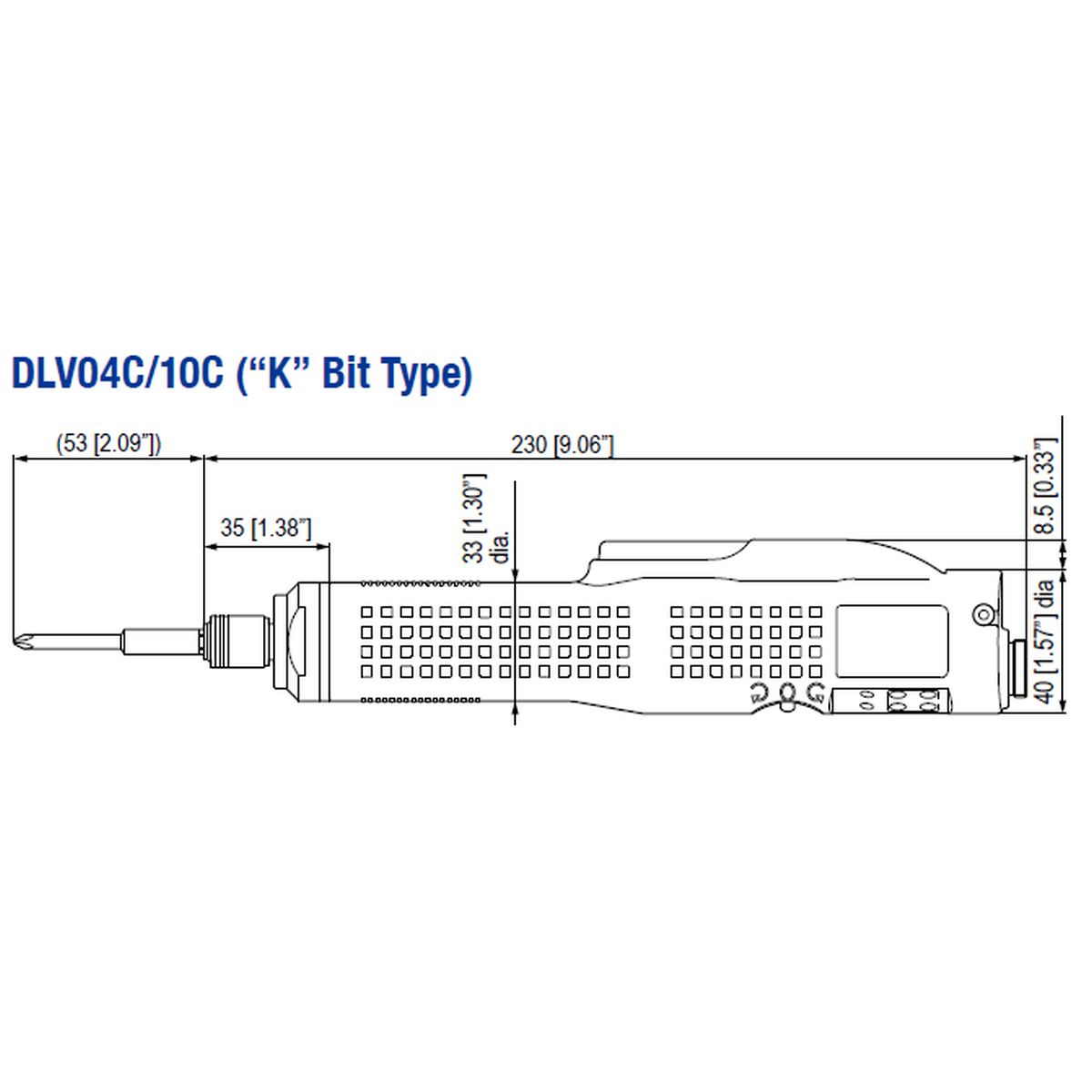

DLV04C 10L-AYM Delvo Electric Screw Driver
| Torque range: | 0.05 - 0.4 Nm |
|---|---|
| Useful speed: | 100 - 1000 min-1 |
| Start: | Lever start |
| Current: | Low Voltage (DC) |
Product number:
37040100
DLV04C 10L-AYM Delvo Electric Screw Driver
Applications
DLV 04C 10L-AYM Industrial electric screw driver for screws 0.05 - 3.5 mm for single station or serial production
C-Series - Current Controlled Torque System suitable for screw fastening work
- Low-voltage brushless motor- ESD (Electrostatic Discharge) protection structure
- For both hand-held / automatic machines
- Controller has built in counting function. Prevents human errors
- Nine speed settings available
- Automatic three step speed control function
- Two types of measuring methods (Time/Motor rotation signal)
- Seven color indication LED (At the tip of the screwdriver)
- Two external I/O signal connection ports (NPN ⇔ PNP switchable, RS-232C)
- Various settings can be configured via a PC (Free setting software available on Nitto Kohki website)
| Torque range: | 0.05 - 0.4 Nm |
|---|---|
| Useful speed: | 100 - 1000 min-1 |
| Power [W]: | 30 W |
| Start: | Lever start |
| Direction of rotation: | Reversible |
| Construction form: | Straight |
| Current: | Low Voltage (DC) |
| Voltage: | 24 V |
| Chuck: | Ø 4 mm |
| Weight: | 0.37 kg |
| Motor type: | Brushless |
| Grounded Bit: | yes |
| ESD Protection: | yes |
| Variable Speed: | yes |
| Counting function: | yes |
| Screw size: | 1.2 - 3.0 mm (metric)1.1 - 2.5 mm (self-forming) |
Included in delivery:
Tool, connection cable 2 m (DLW9075), hanger.
Options
