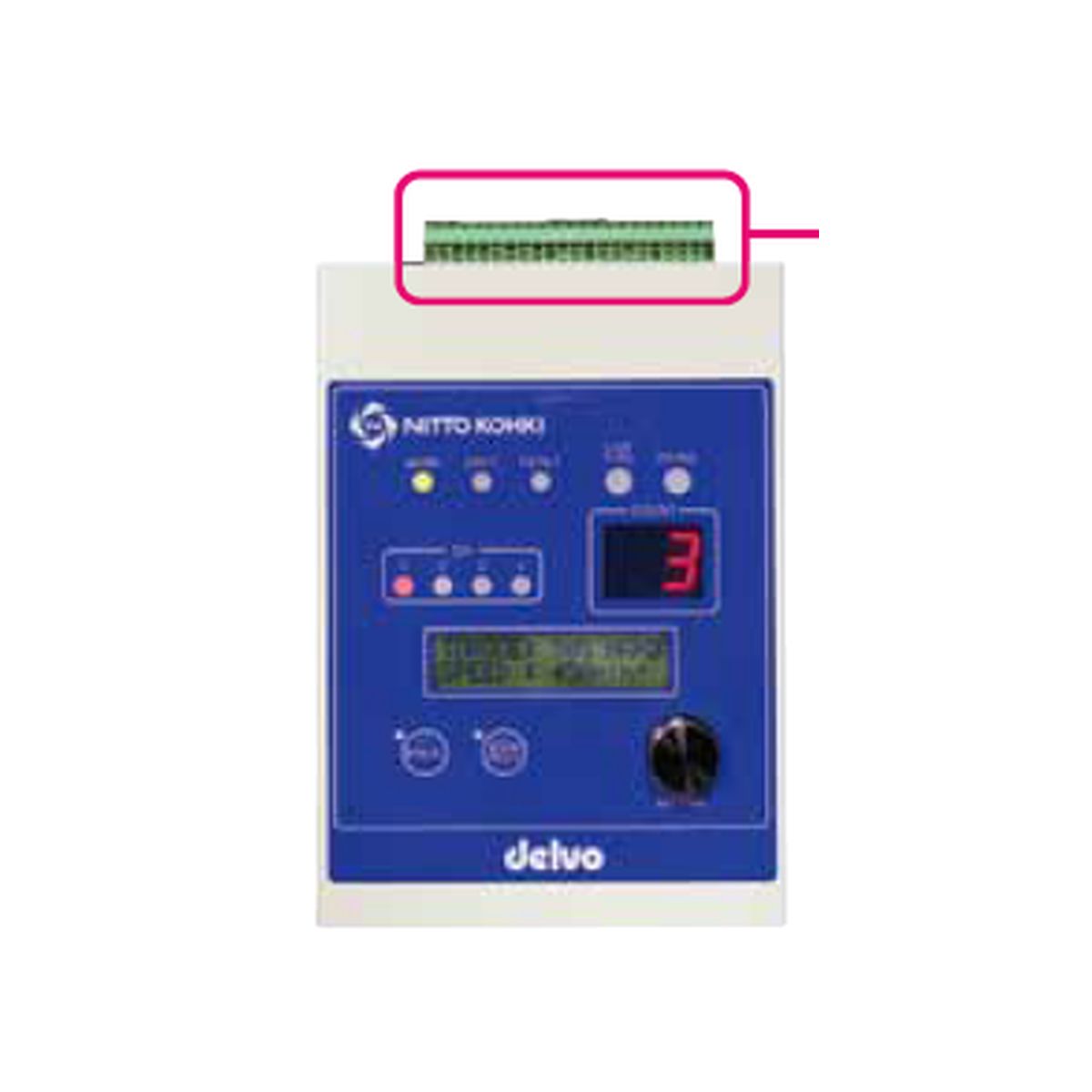

DCC 0101X-AZP Delvo Controler
| Voltage: | 100 - 240 V |
|---|---|
| Output voltage: | 24 V |
| ESD Protection: | yes |
| Variable Speed: | yes |
DCC 0101X-AZP Delvo Controler
Input Voltage: 100 - 240 V AC, 50/60 Hz
Operation Channel Function: Torque and speed setting in 4-channel memory. Can switch to any operation channel
Count Function: Tracks screws fastened, Workpiece detector can be incorporated
Start up Control Function: Start up control can be enabled by external input signal
Output Voltage: 24 V DC
Input Signal Method: Photocoupler input (24 V DC drive (5 mA/1 input), respond to PNP output)
Output Signal Method: Photocoupler output (30 V DC or less, 30 mA/1 output or less, PNP output method)
Service Power Source: 24 V DC (Maximum capacity 200 mA)
Power Consumption: When on standby: 20 W
During electric screwdriver rotation (rated): 30 W
ESD Protection: Adopted (IEC61340-5-1 compliant)

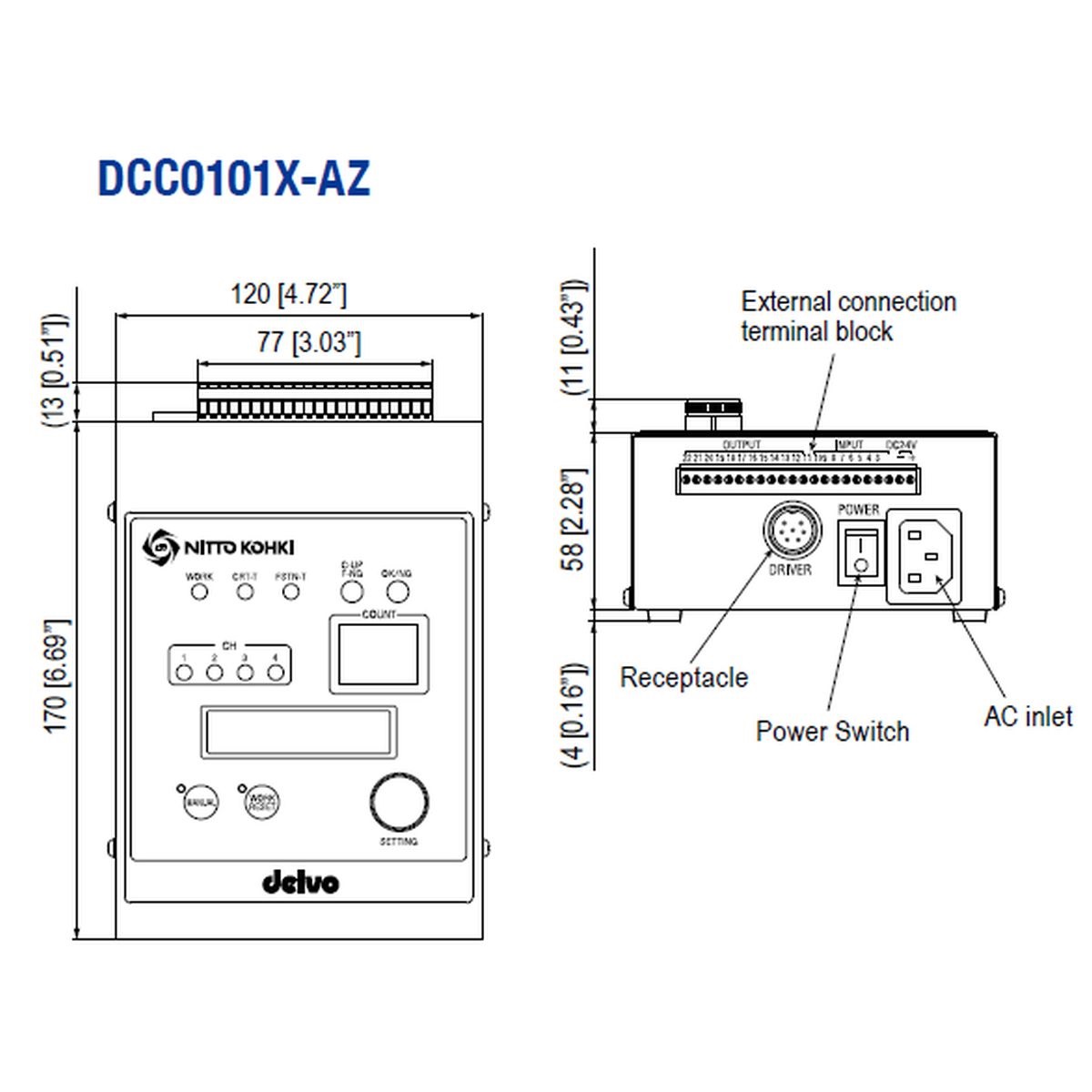

Dimensions L x W x H: 170 x 120 x 58 mm
Weight: 1.1 kg
| Voltage: | 100 - 240 V |
|---|---|
| Frequency: | 50/60 Hz |
| Output voltage: | 24 V |
| Weight: | 1.1 kg |
| ESD Protection: | yes |
| Variable Speed: | yes |
The power cord 2 m (DLW9240) is sold separately.
