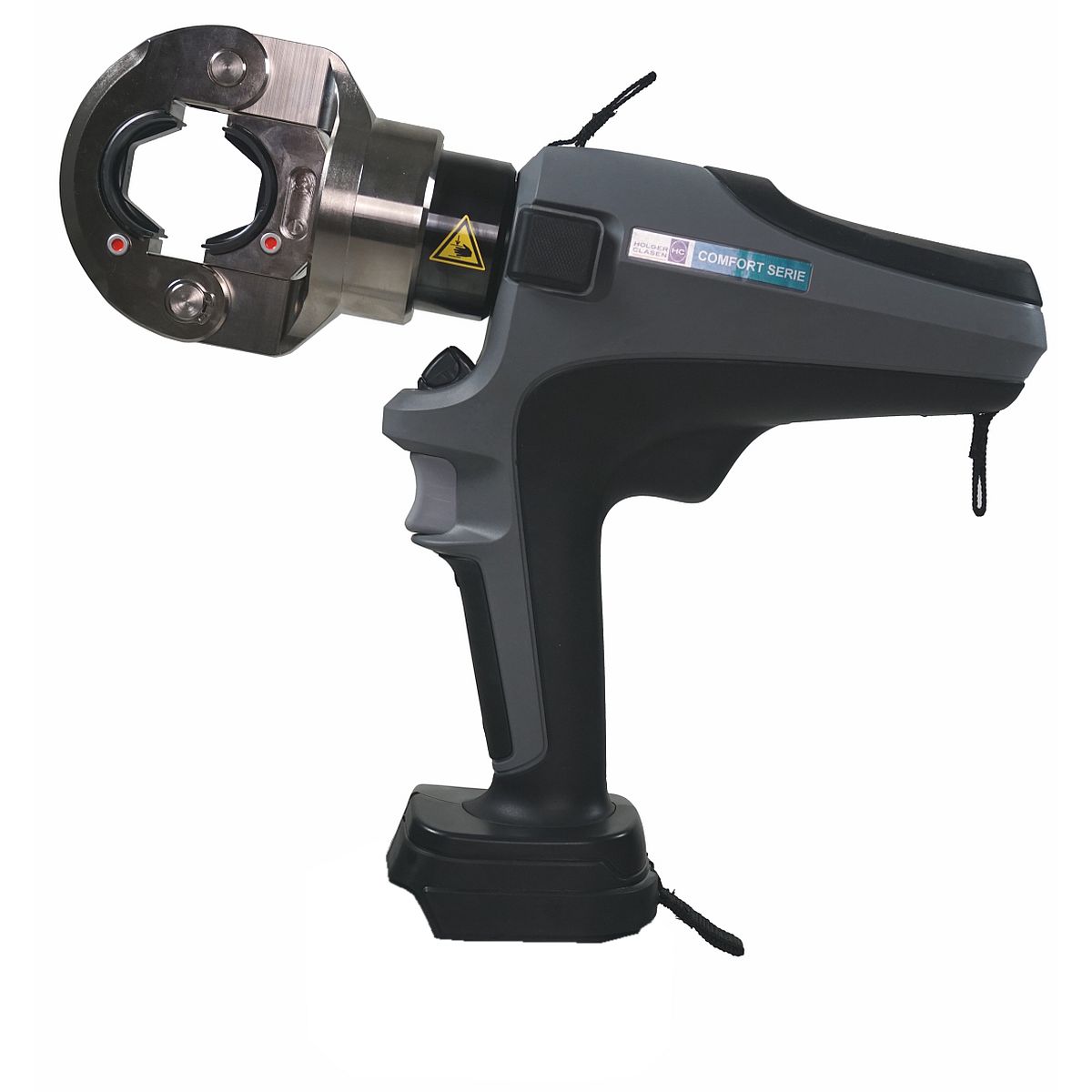

PressMax-C10 Ma Battery-Operated Hydraulic Crimper
| Crimping force: | 100 kN |
|---|---|
| Crimping range DIN Cu: | 10 - 300 mm² |
| Crimping range DIN Al: | 10 - 300 mm² |
| Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
76750000
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
Tool control
2-step hydraulic
Battery Control
Makita-compatible battery
C-shaped crimping dies
PressMax-C10 Ma Battery-Operated Hydraulic Crimper
Applications
The PressMax-C10 battery-powered hydraulic crimper is a high-performance crimping tool for professional applications in the energy sector, electrical industry, energy supply companies, municipal utilities, and service providers in industrial cable assembly. Designed for efficiency, safety, and versatility, the PressMax-C10 meets the highest technical standards in daily use.
PressMax-C10 battery-operated hydraulic crimper – The powerful crimping tool for industrial requirements
Application highlights of the PressMax-C10 hydraulic crimper:
- Powerful & precise: 100 kN crimping force and 17 mm stroke for safe and reliable crimping – suitable for Cu and Al cable lugs and connectors according to DIN (48083) up to 300 mm².
- Lightweight & ergonomic: Weighing only 4 kg, with a well-balanced pistol shape and ergonomic handle design, the tool enables fatigue-free and comfortable working, even during long shifts.
- One-handed operation possible: The compact design and optimized balance allow for safe guidance and crimping even in confined spaces.
- Flexible handling: The tool head can be rotated 180°, allowing efficient and precise positioning on the workpiece.
- Versatile application options: Compatible with C-shaped crimping dies (C) for numerous crimping geometries – ideal for a wide range of cable cross-sections and connection types.
- Maximum safety: Closed crimping head with safety lock and crimping die safety pins prevent accidental falling out – optimum work safety for all crimping operations.
- Efficient working: 2-step hydraulics guarantee fast crimping cycles. The selective automatic return optimizes work processes.
- Optimal visibility: An integrated LED ensures perfect illumination of the work area, even in poor lighting conditions.
Future-proof with MasterBase technology: Freely selectable battery holder – compatible with 18 V batteries from Makita, Bosch, Milwaukee, and 22 V batteries from Hilti (B22). This allows you to easily integrate the tool into your existing fleet and significantly reduce your investment and storage costs.

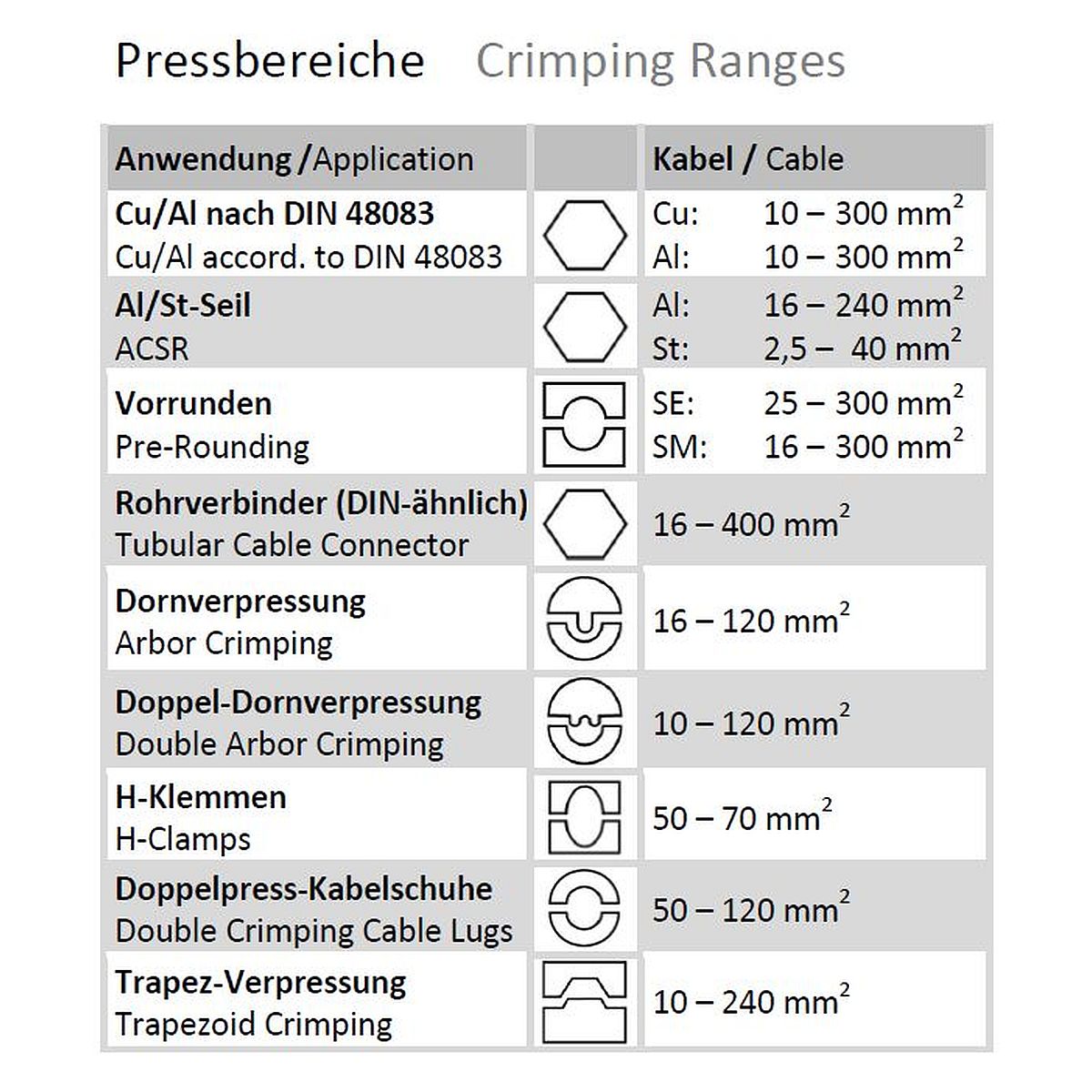

Technical crimping applications:
Cu hexagon DIN (48083): 10–300 mm²
Al hexagon DIN (48083): 10–300 mm²
ACSR: Al 16–240 mm², St 2.5–40 mm²
Pre-roundingcrimping of sector conductors: SE 35–300 mm² (single-wire), SM 16–300 mm² (multi-wire)
Arbor crimping: 16–120 mm²
Double arbor crimping: 10–120 mm²
Similar to DIN (tube & crimp cable lugs): 16–400 mm²
H-clamps: 50–70 mm²
Double crimp cable lugs: 50–120 mm²
Trapezoidal crimping: 10–240 mm²
Note: Areas of application subject to change. Trial processing is recommended.
Choose the PressMax-C10 cordless hydraulic crimper for a powerful, versatile, and safe crimping tool – ideal for professional cable installation and energy technology applications.
| Crimping force: | 100 kN |
|---|---|
| Crimping dies Series: | C-shaped (C) |
| Crimping range DIN Cu: | 10 - 300 mm² |
| Crimping range DIN Al: | 10 - 300 mm² |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Stroke: | 17 mm |
| Weight without battery: | 4.1 kg |
| Dimensions LxWxH: | 334 x 82 x 300 mm |
| Construction form: | Pistol |
| Head: | closed |
| Lock type: | Fork / safety lock pin |
