TriLiner C Battery drive for modular attachments
| Cutting force: | 70 kN |
|---|---|
| Opening width: | 30 mm |
| Crimping force: | 70 kN |
| Crimping range DIN Cu: | 6 - 240 mm² |
| Crimping range DIN Al: | 10 - 240 mm² |
| Information: | Compatible with 18 V Bosch Batteries |
| Head: | only available separately |
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
Tool control
Battery Control
With case
Bosch-compatible battery
6 t C-shell press inserts
TriLiner C Battery drive for modular attachments
The TriLiner C is the optimum solution for precise crimping, cutting and bending in demanding working environments. This modular battery-powered hydraulic bar tool has been specially developed for use in confined spaces and impresses with maximum flexibility, performance and ergonomics.
Attention: Please order tool attachments separately.
TriLiner C - compact, powerful, modular
Modular design*
- The drive unit TriLiner C can be equipped with various interchangeable heads - ideal for different applications on the construction site or in the workshop:
- Open crimping head for C-shell crimping up to 240 mm² (cable lugs and connectors) with narrow C-shells (CS)
- Cutting head for Cu/Al conductors up to 30 mm Ø
- Overhead cable cutter (Al/St) with St single conductors up to 20 mm Ø
- New bending attachment (SLCB-JAW-1) for cable diameters up to 30 mm (1,000 mm²)
- Double-piston hydraulics for particularly fast, powerful work processes even under high loads, with an outstanding crimping force of 70 kN.
* Please order tool attachments separately.
Maximum application flexibility
- The tool head can be rotated through 180°, enabling optimum alignment even in hard-to-reach areas.
- The open cutting geometry allows easy positioning in confined spaces.
- An integrated LED work light improves visibility of the working area in poor lighting conditions.
Simple operation
- Can be switched to automatic reverse mode
- Lightweight, well-balanced housing for fatigue-free working
What is MasterBase technology?
Freely selectable battery holder – compatible with 18 V batteries from Makita, Bosch, Milwaukee, and 22 V Hilti (B22 / Nuron). This allows you to flexibly integrate the tool into existing fleets and save on investment and storage costs.
Summary
The TriLiner C battery-powered tool is a versatile tool with interchangeable heads for crimping, cutting and bending various conductors. Thanks to its double-piston hydraulics, it achieves a crimping force of 70 kN and works quickly and reliably. The rotating head, LED light and lightweight housing make it easy to use, even in confined spaces.
Areas of application are subject to change. A sample processing is recommended.
| Cutting force: | 70 kN |
|---|---|
| Opening width: | 30 mm |
| Crimping force: | 70 kN |
| Crimping dies Series: | C-shaped slim (CS) |
| Crimping range DIN Cu: | 6 - 240 mm² |
| Crimping range DIN Al: | 10 - 240 mm² |
| Battery voltage: | Bosch 18 V |
| Information: | Compatible with 18 V Bosch Batteries |
| Stroke: | 21 mm |
| Weight without battery: | 2.1 kg |
| Dimensions LxWxH: | 375 x 75 x 95 mm |
| Construction form: | Bar-shaped Tool |
| Head: | only available separately |

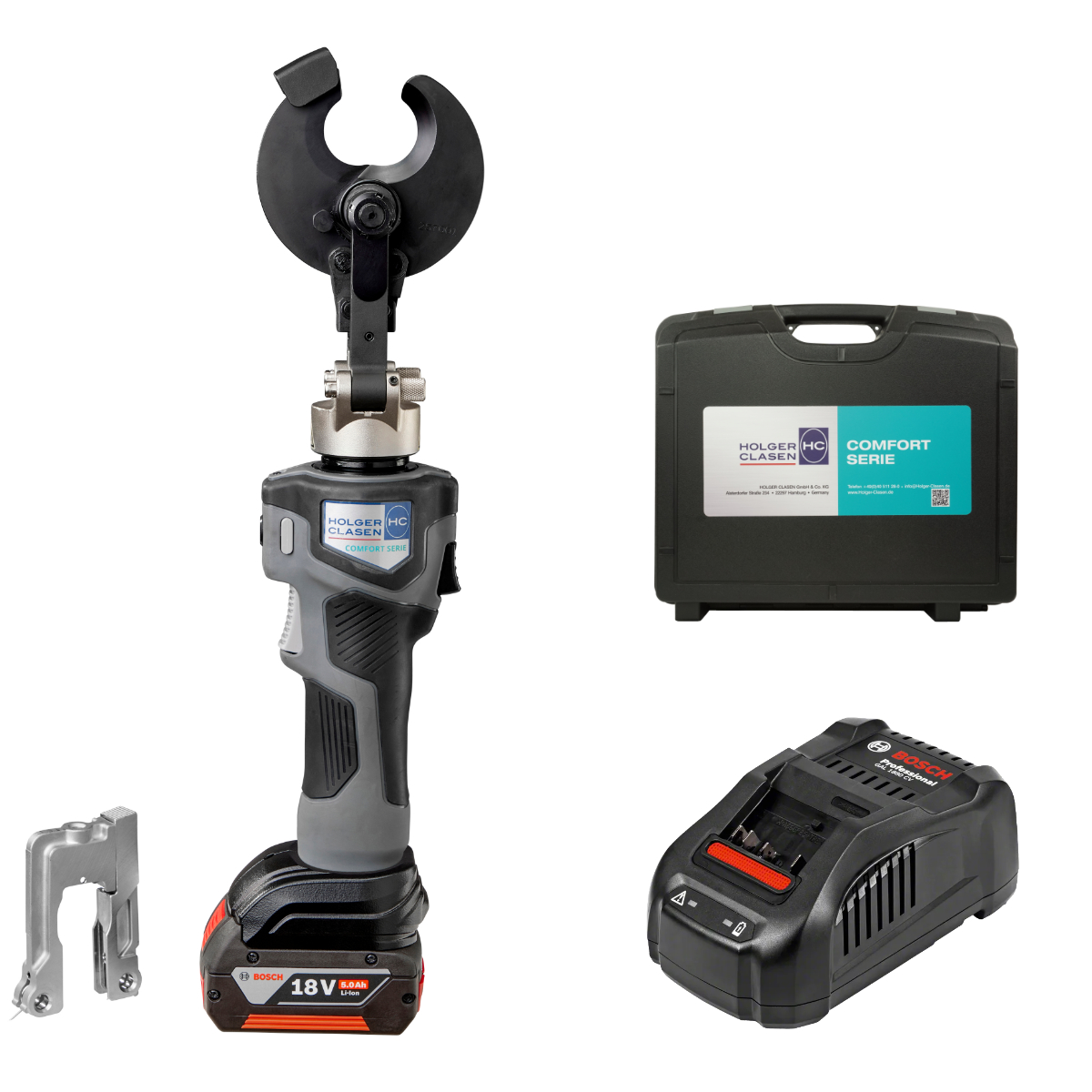

Tool with Bosch Li-Ion-Battery PRO GBA 18V 5,0 Ah, Bosch charger PRO GAL 1880CV and transportation case.
Attention: Please order tool attachments separately.
