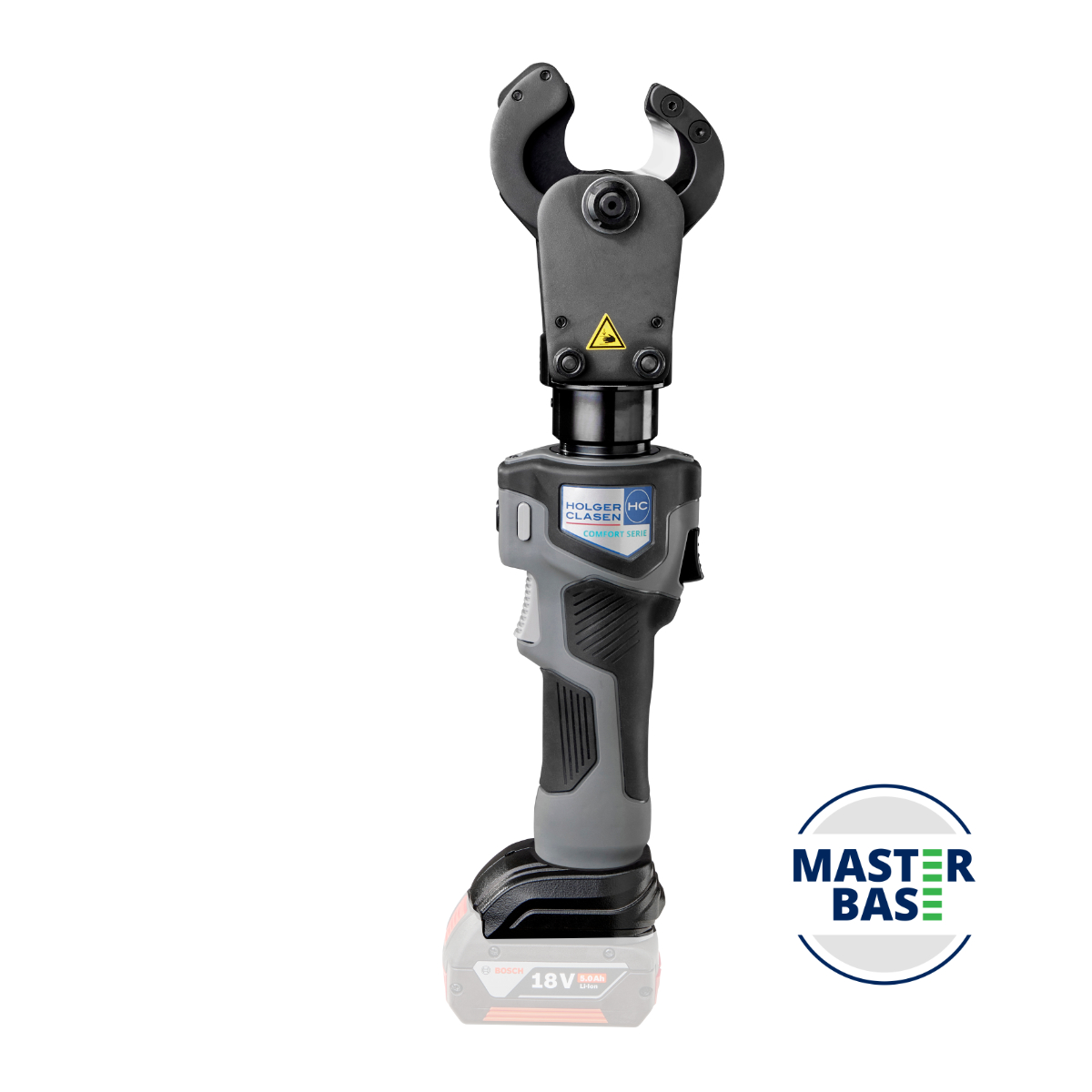

InLiner CS3 Battery-Operated Hydraulic Cutter Ø 30 mm
| Cutting force: | 60 kN |
|---|---|
| Opening width: | 30 mm |
| Information: | Compatible with 18 V Bosch Batteries |
The MasterBase technology offers the following battery options:
Product number:
72071300
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
Narrow design
Battery Control
With case
Bosch-compatible battery
InLiner CS3 Battery-Operated Hydraulic Cutter Ø 30 mm
Applications
The InLiner® CS3 cordless cutter is the professional solution for cutting applications in the energy supply, telecommunications, and civil engineering sectors. Developed for demanding applications, this battery-powered hydraulic rod tool impresses with its compact design, powerful performance, and intelligent features. Ideal for service providers, network operators, and service teams who need to work precisely and efficiently in confined spaces. Thanks to its robust double-piston hydraulics, ergonomically optimized bar shape, and high-quality workmanship, the InLiner® CS3 meets the highest requirements in terms of safety, handling, and cutting speed—even in overhead applications.
InLiner® CS3 cordless cutter – performance in confined spaces
Application highlight at a glance
- Cutting force of 60 kN for powerful cuts
- Opening width: 30 mm – suitable for numerous cable and rope types
- Open cutting geometry for clean cuts with high precision
- Head rotates 180° – maximum flexibility in every working position
- LED work area illumination for safe working even in poor lighting conditions
- Ergonomic design, well-balanced – ideal for longer periods of use
- Selectable automatic return function to optimize the workflow
- Double-piston hydraulics for fast feed under load – fast cutting cycles guaranteed
- MasterBase technology: Freely selectable battery holder for 18 V (Makita, Bosch, Milwaukee) or 22 V (Hilti B22 / Nuron) – compatibility with existing platforms
Cutting applications
- Copper and aluminum cables (class 1 & 2): single-wire, multi-wire, sector ladder – up to Ø 28 mm
- Telephone cables: up to Ø 20 mm
- Wire ropes (6x7): up to Ø 18 mm
- Wire ropes (6x12, 6x19): up to Ø 24 mm
- Guy wires (1x17, 1x19): up to Ø 20 mm
- Optional: Fine grinding of the blades for cutting fine and ultra-fine conductors (class 5 & 6)
Summary
With the InLiner® CS3 cordless cutter, you are investing in a powerful professional tool that has been specially designed for mobile use under real-world conditions – fast, safe, and compatible with your existing battery systems.
Areas of application are subject to change. A sample processing is recommended.
| Cutting force: | 60 kN |
|---|---|
| Opening width: | 30 mm |
| Battery voltage: | Bosch 18 V |
| Information: | Compatible with 18 V Bosch Batteries |
| Weight without battery: | 3.6 kg |
| Dimensions LxWxH: | 412 x 76 x 109 mm |
| Construction form: | Bar-shaped Tool |
| Head: | open |
Included in delivery:
Tool with Bosch Li-Ion-Battery PRO GBA 18V 5,0 Ah, Bosch charger PRO GAL 1880CV and transportation case.
