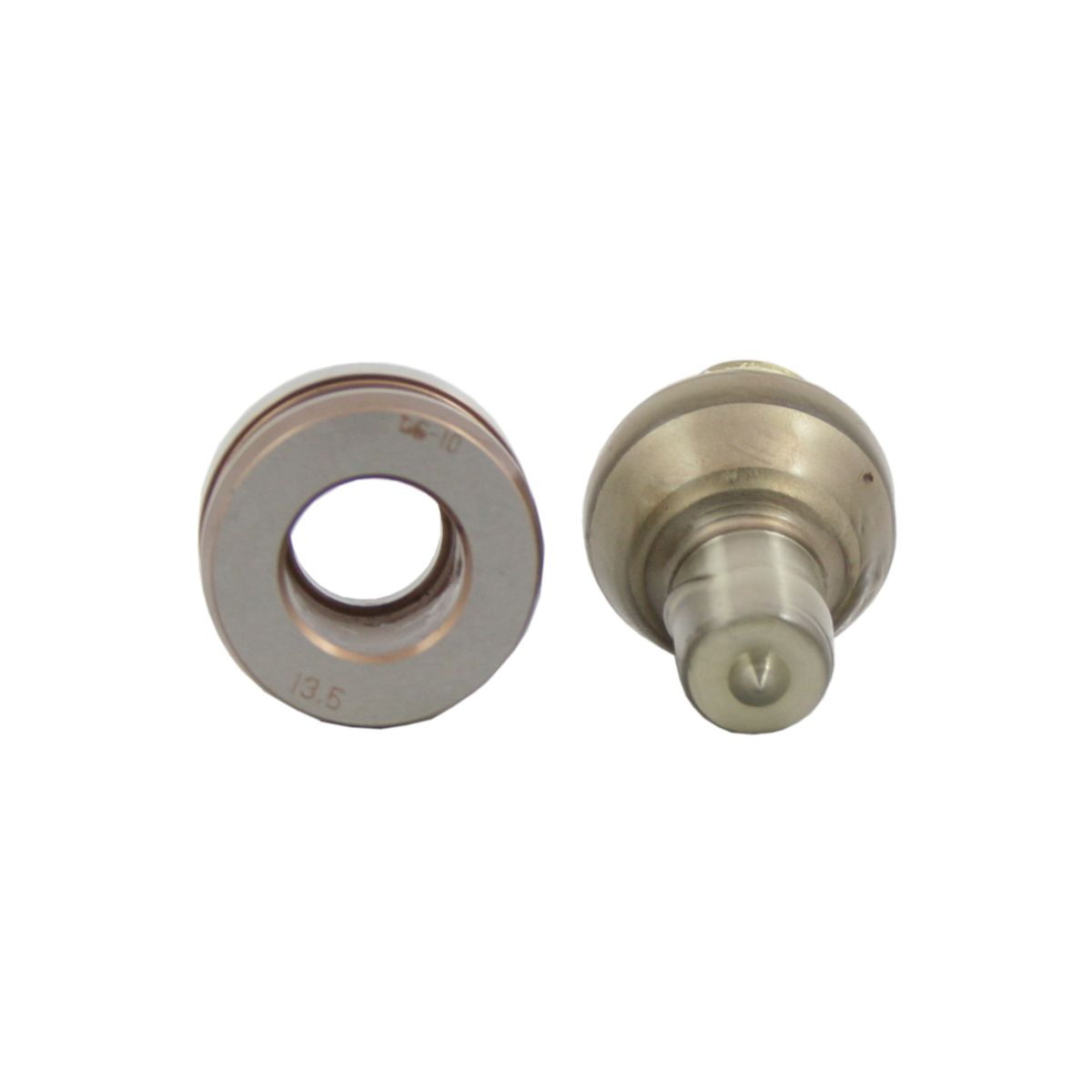

LE-CU-... Punch insert for LSK-300
| Hole Ø: | 11 mm |
|---|---|
| Material thickness max.: | Cu/Al/brass: 13 mm |
Product number:
78221016
LE-CU-... Punch insert for LSK-300
Applications
Punching insert for the LSK-300 punching head. Punches holes in Cu/Al sheet metal and conductor bars and is therefore used in power supply companies, utility companies and their service providers, but also frequently in switch cabinet and plant construction.
Hole diameter 11 mm.
Max. material thickness Cu/Al up to 13 mm.
Punches in the middle bar widths up to 40 mm.
Punch insert consists of punch and die.
Technical specifications
Max. material thickness Cu/Al up to 13 mm.
Punches in the middle bar widths up to 40 mm.
Punch insert consists of punch and die.
| Hole Ø: | 11 mm |
|---|---|
| Material thickness max.: | Cu/Al/brass: 13 mm |
Included in delivery:
Punch and die
