SD30/8PR
Screw driver % Action %

Applications

The air screwdriver with slip clutch SD30/8PR is an assembly tool for universal applications, especially for soft screw-joints and self-tapping screws in wood and plastics. The user can control the final torque. The air powered screw driver has a power of 300 Watt and It is designed for industrial applications.

Benefits

Torque range with white spring, wire Ø 2.5 mm: 1.5 - 6.0 Nm
Torque range with red spring, wire Ø 3.5 mm: 4.0 - 8.0 Nm
Quick-change chuck with easy and safe use
Speed 900 min^-1

SD30/8PR - reliable air screwdriver with slip clutch for industrial use

With the conversion of the clutch spring, the screwdriver has a wide torque range for a variety of applications.
The screwdriver has a slip clutch. When the torque is reached, the clutch engages and the classic ratcheting can be heard.
Thanks to the speed of 900 min^-1 short screwing cycles are guaranteed.

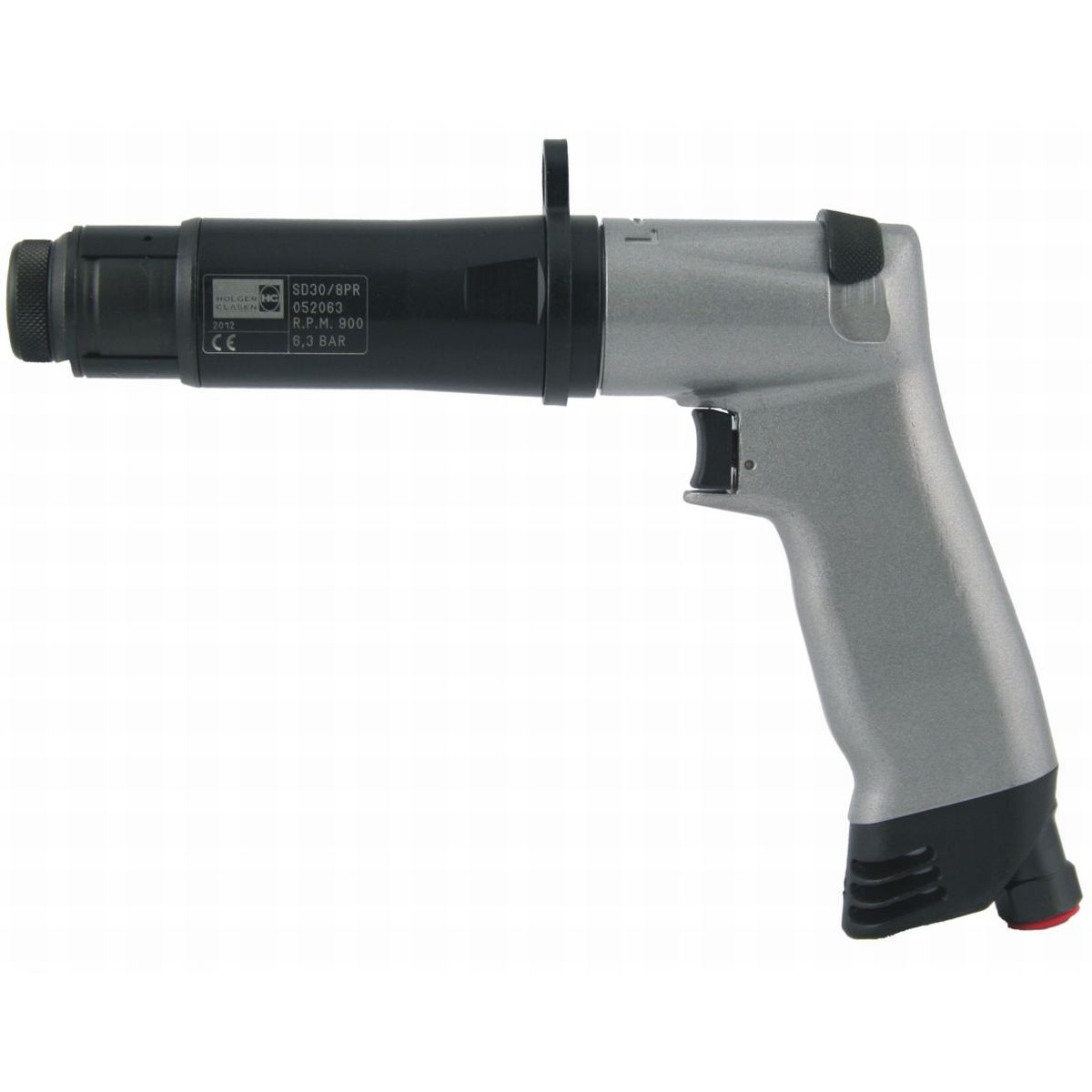

The pistol shape is ideal for applications where pressure is to be applied along the screwing axis.
With 0.98 kg the screwdriver is very light. The direction of rotation can easily be changed by a rotary switch.
The pneumatic screwdriver is started comfortably via the low effort button.
The reaction torque at shut-off is low, which relieves the operator of the burden of frequent screwing cycles.
Above 4 Nm shut-off torque we recommend a support, which relieves the operator of frequent screwing cycles.
Oil-free operation in sensitive areas is possible.

Technical specifications
