PH40-AG Hydraulic cutting head - Ø 42 mm
| Cutting force: | 77 kN |
|---|---|
| Opening width: | 42 mm |
| Suitable for: | overhead lines |
| Hydraulic connection: | Nipple CEJN series 115 |
Product number:
72551500
PH40-AG Hydraulic cutting head - Ø 42 mm
Applications

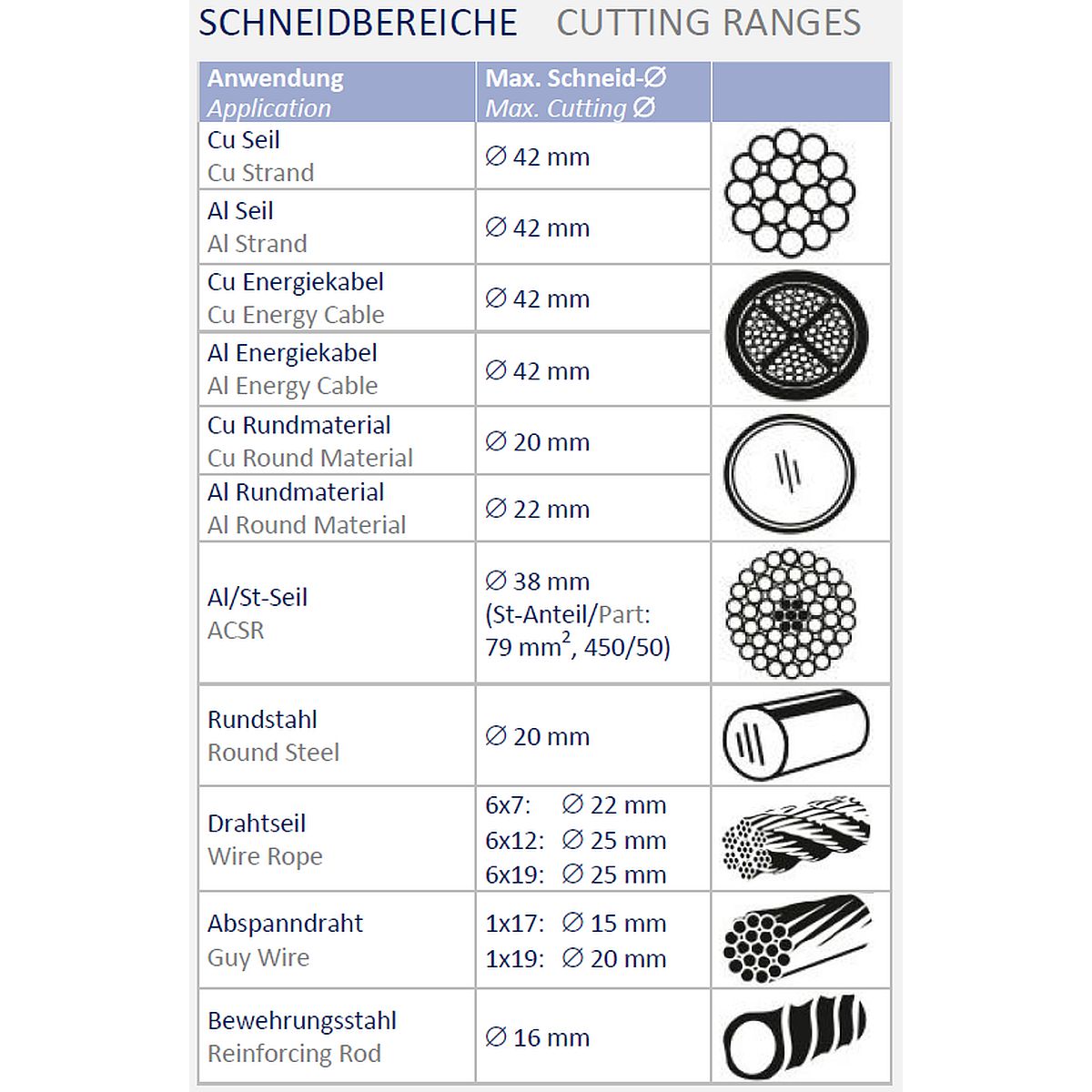

Hydraulic cutting head for connecting to a separate pump; For cutting varied materials, ideally solid material especially steel, of up to 41 mm diameter; for use by energy providers, utility companies and their service providers, power plants, transportation companies and in the area of passenger lifts and goods lifts.
The tool is easy to handle, safe and light-weight.
Particularly robust and low-maintenance design.
Thanks to optimized transmission of power (guillotine principle) the tool cuts even hard material (e.g. ACSR).
The pin retainer closes the cutting head securely.
Can be combined with usual hydraulic pumps.
Technical specifications
Particularly robust and low-maintenance design.
Thanks to optimized transmission of power (guillotine principle) the tool cuts even hard material (e.g. ACSR).
The pin retainer closes the cutting head securely.
Can be combined with usual hydraulic pumps.
| Cutting force: | 77 kN |
|---|---|
| Opening width: | 42 mm |
| Suitable for: | overhead lines |
| Weight: | 4.0 kg |
| Length: | 340 mm |
| Working pressure: | 700 bar |
| Hydraulic connection: | Nipple CEJN series 115 |
| Lock type: | Bolt safety |
| Head: | closed |
Included in delivery:
Tool with canvas bag.
