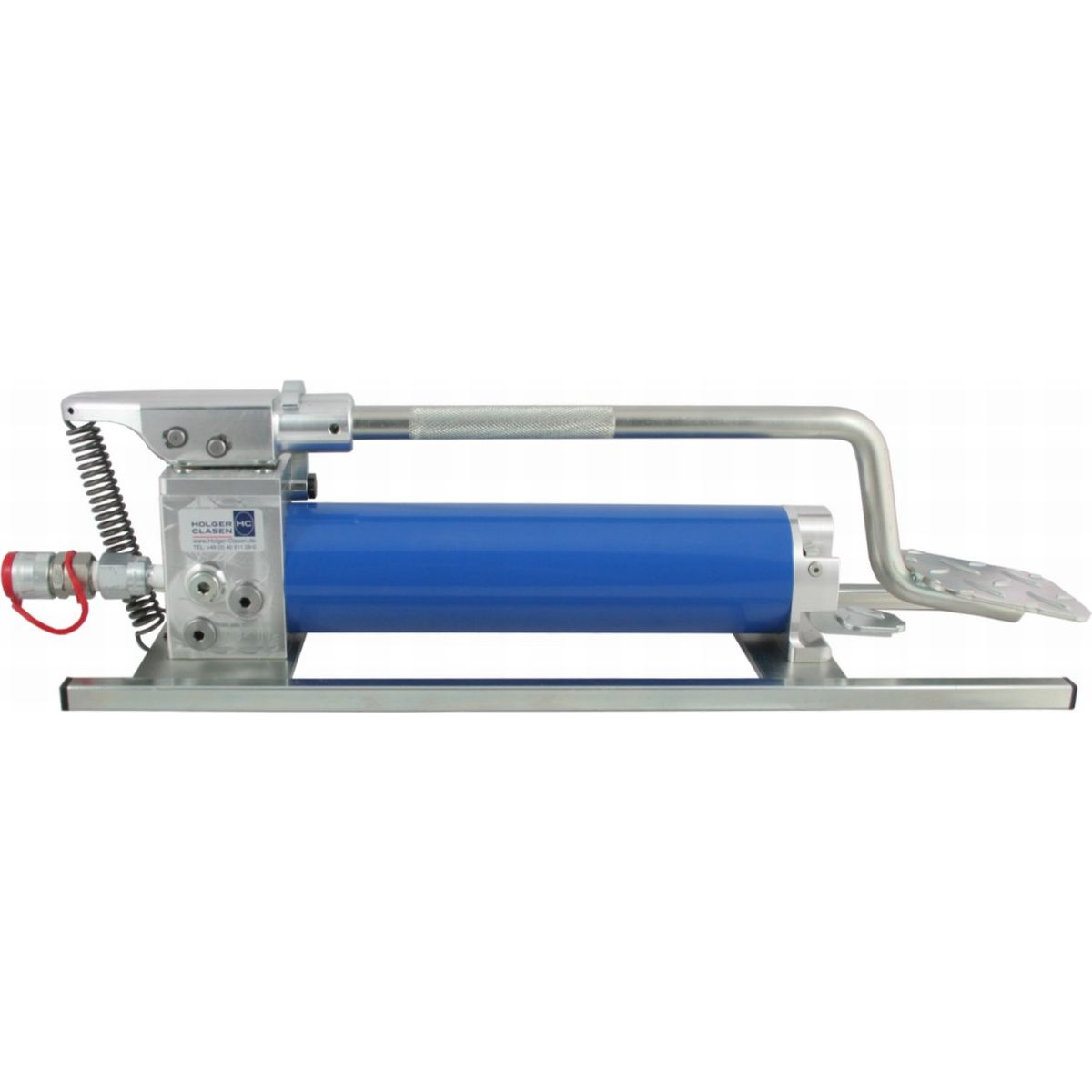

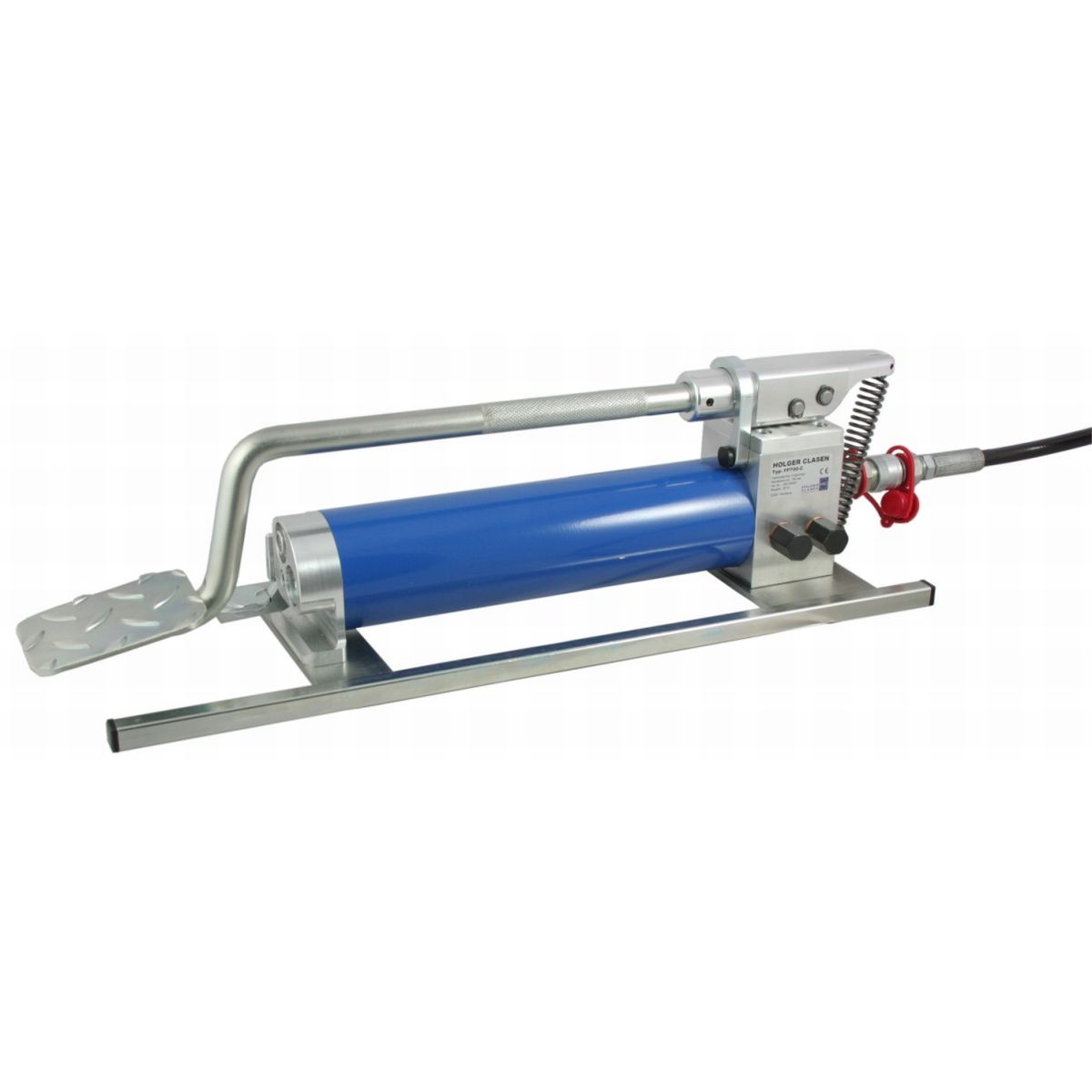

HOLGER CLASEN FP700-C Hydraulic foot pump 700 bar
| Oil delivery: | 12.9 / 1.9 ml/Hub |
|---|---|
| Working pressure: | 700 bar |
Product number:
74522200
2-step hydraulic
FP700-C Hydraulic foot pump 700 bar
Applications
The hydraulic foot pump FP700-C with two-step hydraulic is designed for connecting crimping, cutting or punching heads.The light-weight hydraulic foot pump is used by energy supply and utility companies, transportation companies, power stations and their service providers as well as in industrial cable assembly.
Sturdy structure.Two-step hydraulic rapid feed.Can be combined with standard cutting and crimping tools.
Technical specifications
| Oil delivery: | 12.9 / 1.9 ml/Hub |
|---|---|
| Oil fill: | 1.0 l |
| Current: | Foot operated |
| Weight: | 9.2 kg |
| Dimensions LxWxH: | 630 x 195 x 170 mm |
| Working pressure: | 700 bar |
| Start: | Foot pedal |
| Hydraulic connection: | Coupling CEJN series 115 |
Included in delivery:
Pump
