L-25B (GG26/270) Straight grinder
| Power [W]: | 260 W |
|---|---|
| Speed: | 27000 min-1 |
| Chuck: | Collet chuck (Ø 6 mm) |
| Current: | Pneumatic |
| IMPA: | 592092 |
Ergonomic
Low-vibration type
L-25B (GG26/270) Straight grinder

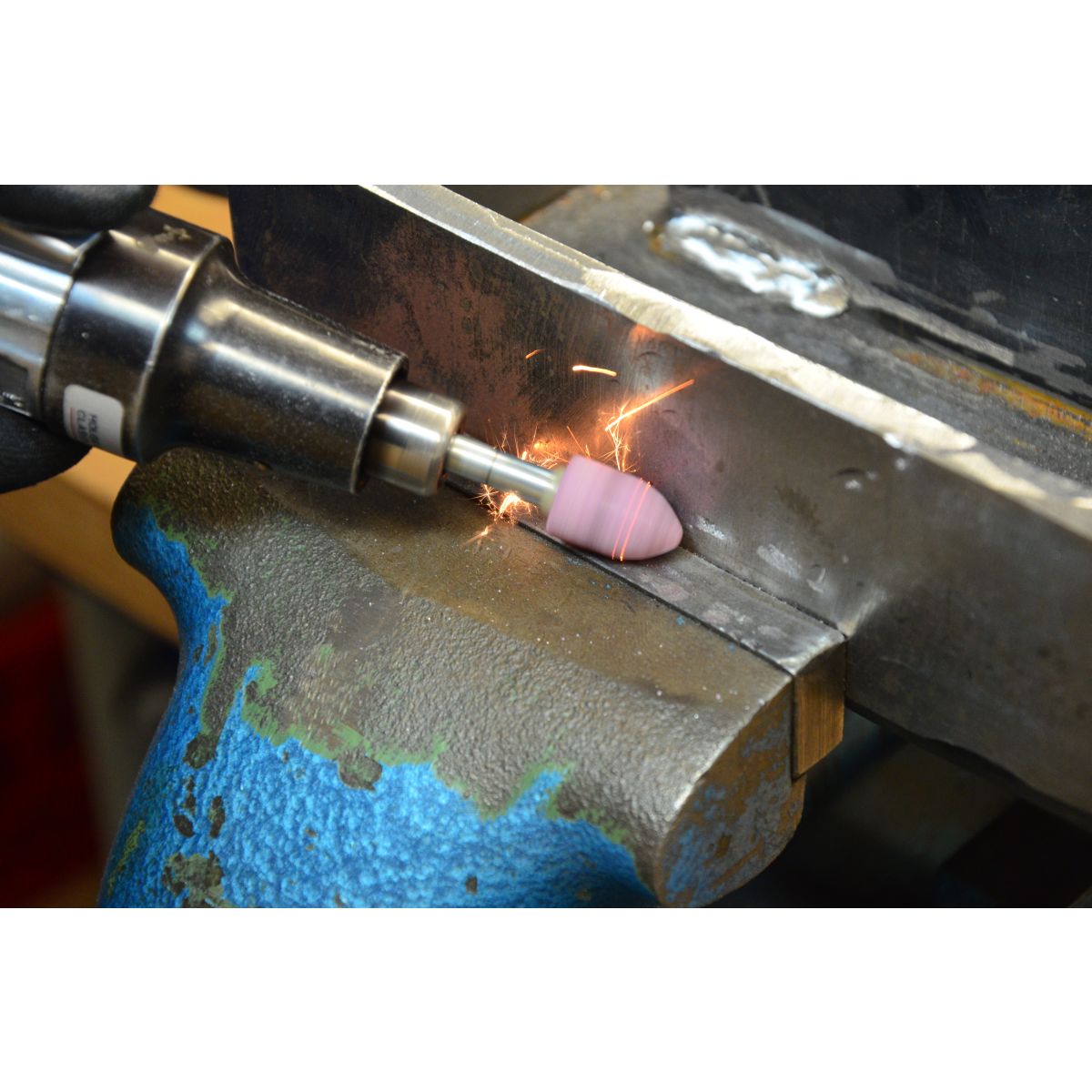

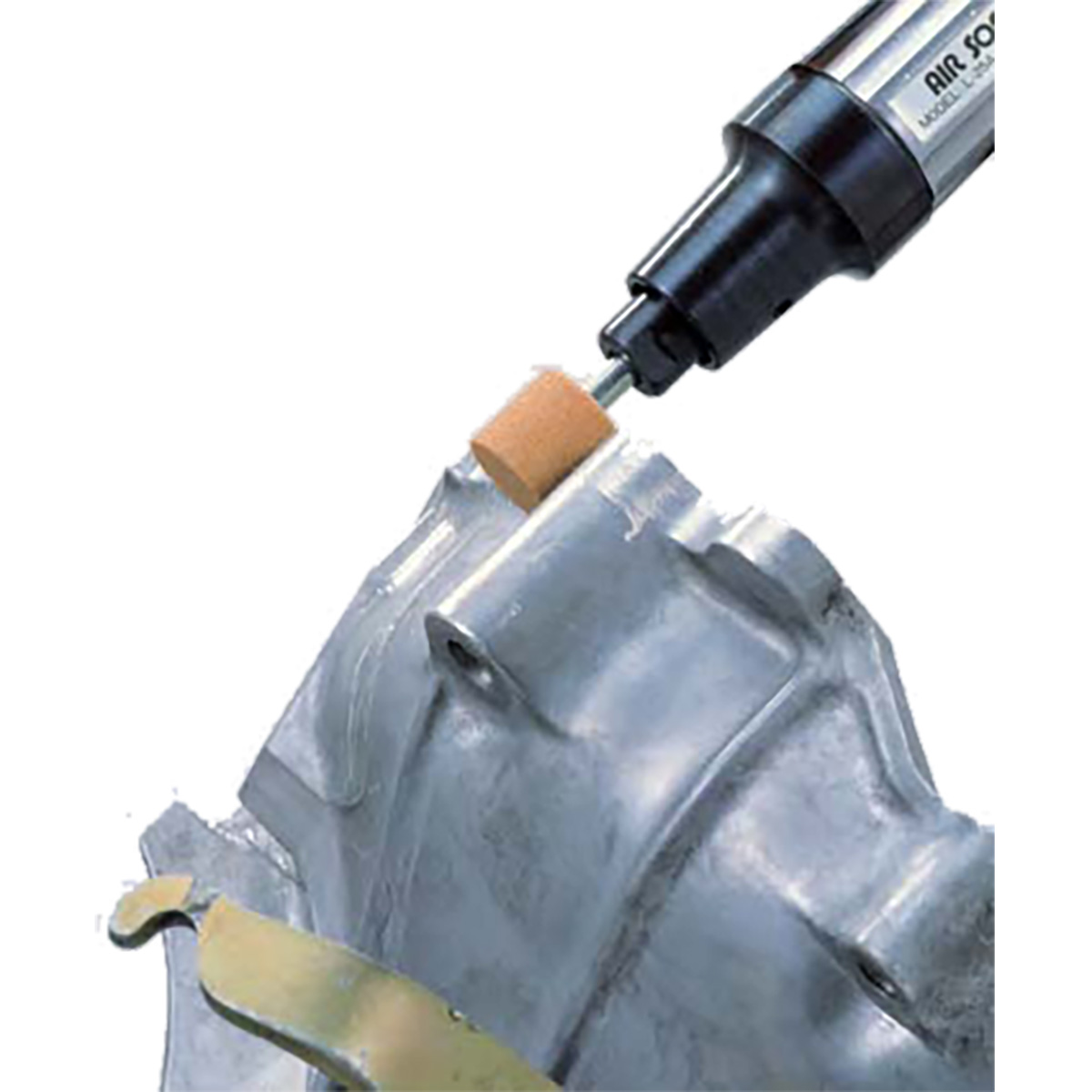

The air powered pencil grinder L-25B (GG26/270) is ideal for use of grinding pins. The small, compact design of the inline shaped pneumatic straight grinder can be used in confined spaces. For milling, grinding and deburring in modul making, machine building, container building, in foundries and in the plastics industry.
Air pencil grinder L-25B (GG26/270) - sturdy, compact, versatile
Very short (136 mm) and compact pencil grinder with standard collet chuck Ø 6 mm.
The air powered pencil grinder tool is equipped with an exhaust guide for workers protection.
Low-vibration and low-noise type.
The speed is optimized for grinding pin usage.
| Power [W]: | 260 W |
|---|---|
| Speed: | 27000 min-1 |
| Chuck: | Collet chuck (Ø 6 mm) |
| Clamping Range Ø: | 6 mm |
| Accessory max. Ø: | 19 mm |
| Start: | Valve lever |
| Construction form: | Straight |
| Length: | 136 mm |
| Housing Ø: | 38 mm |
| Weight: | without Hose 0.6 kg |
| Exhaust air: | back side |
| Sound pressure level: | 76 dB(A) |
| Sound power level: | 87 dB(A) |
| Vibration: | 7.2 (K 4.6) m/s² |
| Inlet air connection: | R 1/4" |
| Air consumption: | (0.4 m³/min) 6.67 l/s |
| Working pressure: | (0.6 MPa) 6.0 bar |
| Current: | Pneumatic |
| IMPA: | 592092 |
Tool with collet chuk Ø 6 mm, mounted grinding pin Ø 19 x 20 mm, inlet air and exhaust air hose,
pointed arch grinding pin Ø 17 x 32 mm, adapter R1/4" x NPT1/4", 14 mm open-end wrench and locking pin.
