L-35C (GG28/370) Straight grinder
| Power [W]: | 280 W |
|---|---|
| Speed: | 37500 min-1 |
| Chuck: | Collet chuck (Ø 6 mm) |
| Current: | Pneumatic |
| IMPA: | 592093 |
Product number:
10153000
Ergonomic
Low-vibration type
L-35C (GG28/370) Straight grinder
Applications
The air powered die grinder L-35C (GG28/370) is suited for use of burrs. The small, compact design of the grinder is ideally for use in confined spaces. Area of applications are milling, grinding and deburring in modul making, machine building, container building, in foundries and in the plastics industry.
Air powered die grinder L-35C (GG28/370) - small for narrow spaces
Short (171 mm) and compact air powered die grinder with standard collet chuck Ø 6 mm.
The pneumatic straight grinder is equipped with an exhaust guide for workers protection.
Low-vibration and low-noise type.
The speed is optimized for burr/rotary bar usage.
| Power [W]: | 280 W |
|---|---|
| Speed: | 37500 min-1 |
| Chuck: | Collet chuck (Ø 6 mm) |
| Clamping Range Ø: | 6 mm |
| Accessory max. Ø: | 16 mm |
| Start: | Valve lever |
| Construction form: | Straight |
| Length: | 171 mm |
| Housing Ø: | 35 mm |
| Weight: | without hose 0.45 kg |
| Exhaust air: | back side |
| Sound pressure level: | 76 dB(A) |
| Sound power level: | 87 dB(A) |
| Vibration: | 3.1 (K 0.8) m/s² |
| Inlet air connection: | R 1/4" |
| Air consumption: | (0.35 m³/min) 5.83 l/s |
| Working pressure: | (0.6 MPa) 6.0 bar |
| Current: | Pneumatic |
| IMPA: | 592093 |
Included in delivery:

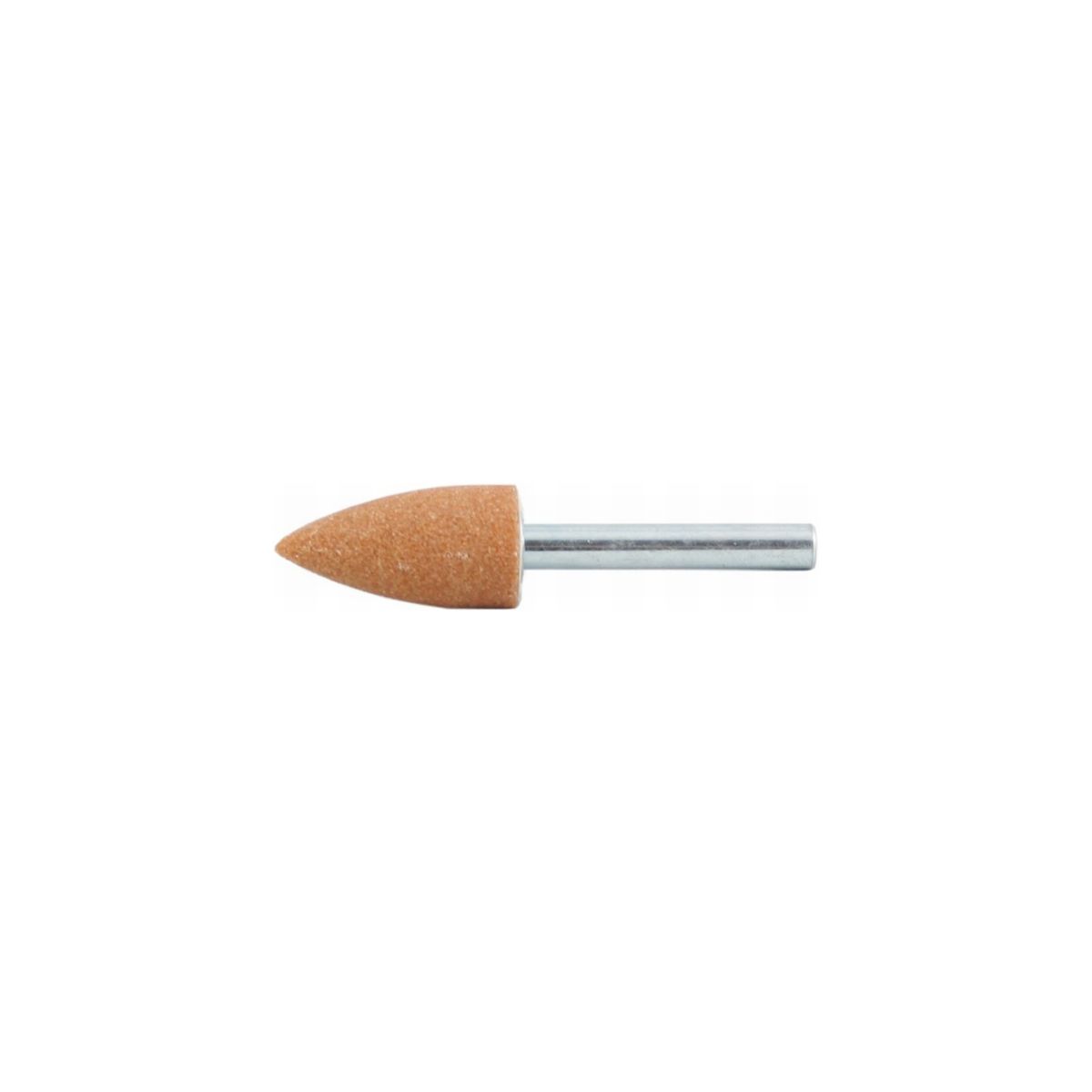

Tool with collet chuk Ø 6 mm, mounted grinding pin Ø 13 x 13 mm, inlet air and exhaust air hose, adapter R1/4" x NPT1/4" and two 14 mm open-end wrenches.
