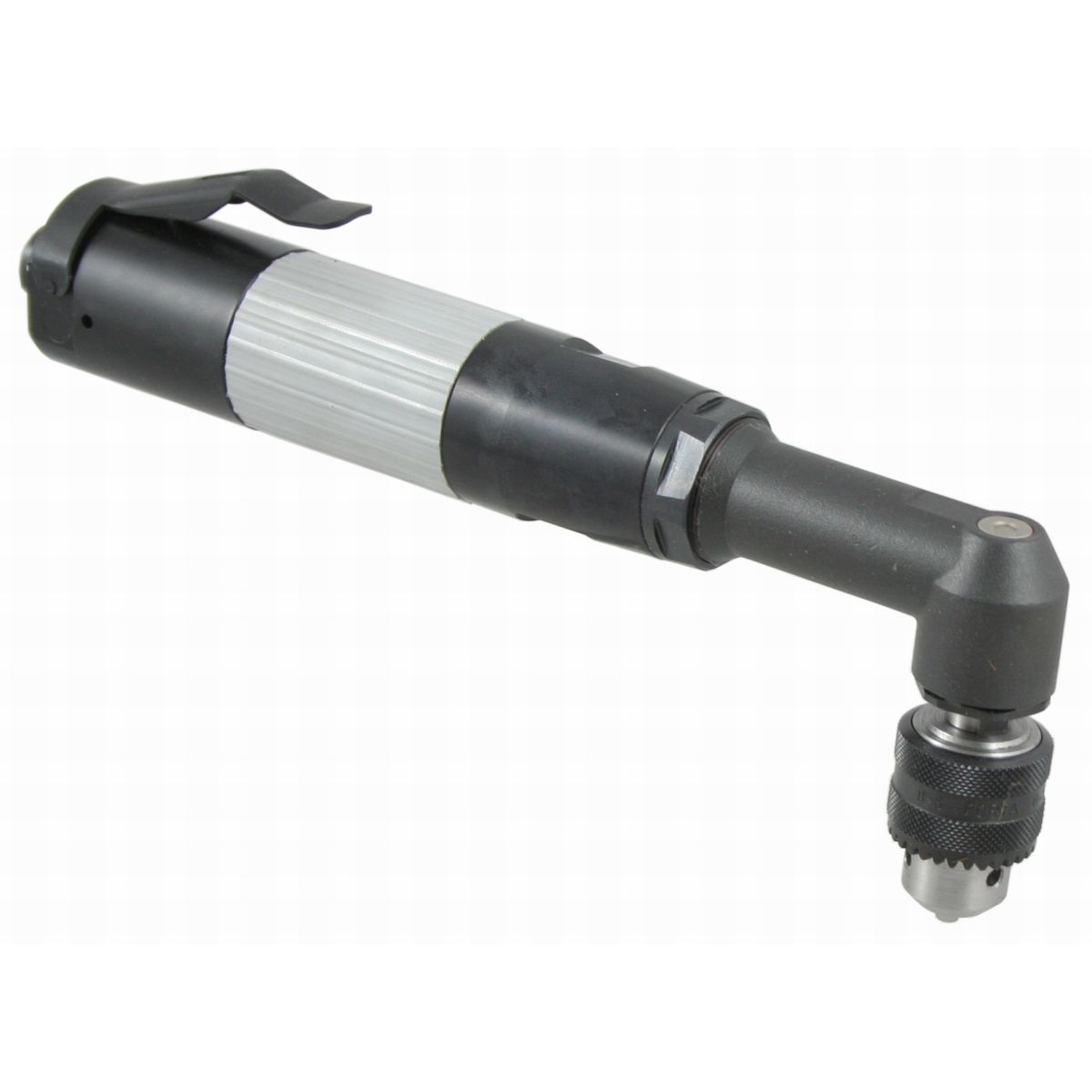

DW30/70 Angle drilling machine with Keyed chuck 1 - 10 mm
| Power [W]: | 300 W |
|---|---|
| Speed: | 700 min-1 |
| Chuck: | Keyed chuck (3/8" x 24 UNF) |
| Clamping Range Ø: | 1 - 10 mm |
| Current: | Pneumatic |
Product number:
44103400
Ölfreier Betrieb möglich
DW30/70 Angle drilling machine with Keyed chuck 1 - 10 mm
Applications
Pneumatic angle drilling machine for work in hard-to-reach places. The angle drilling machine is used in all industrial areas as well as workshops and plant repairs.
Pneumatic angle drilling machine - professional tool for the industry
Reliable pneumatic drilling machine with excellent power to weight ratio.Small head dimension allows working in narrow spaces.
Special chuck for pneumatic tools and high-precise collet chucks provide efficient use.
Long tool life at high power.
The angle drilling machine has a 90 degree angle head, suitable for your application.
| Power [W]: | 300 W |
|---|---|
| Speed: | 700 min-1 |
| Chuck: | Keyed chuck (3/8" x 24 UNF) |
| Clamping Range Ø: | 1 - 10 mm |
| Construction form: | Angle head 90° |
| Start: | Valve lever |
| Direction of rotation: | Right |
| Weight: | 1.3 kg |
| Housing Ø: | 40 mm |
| Length: | 285 mm |
| Height: | 90 mm |
| Inlet air connection: | G 1/4" |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 9 l/s |
| Vibration: | < 2.5 m/s² |
| Sound pressure level: | 76 dB(A) |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
Included in delivery:
Tool, quick-coupling nipple, assembly wrench.
