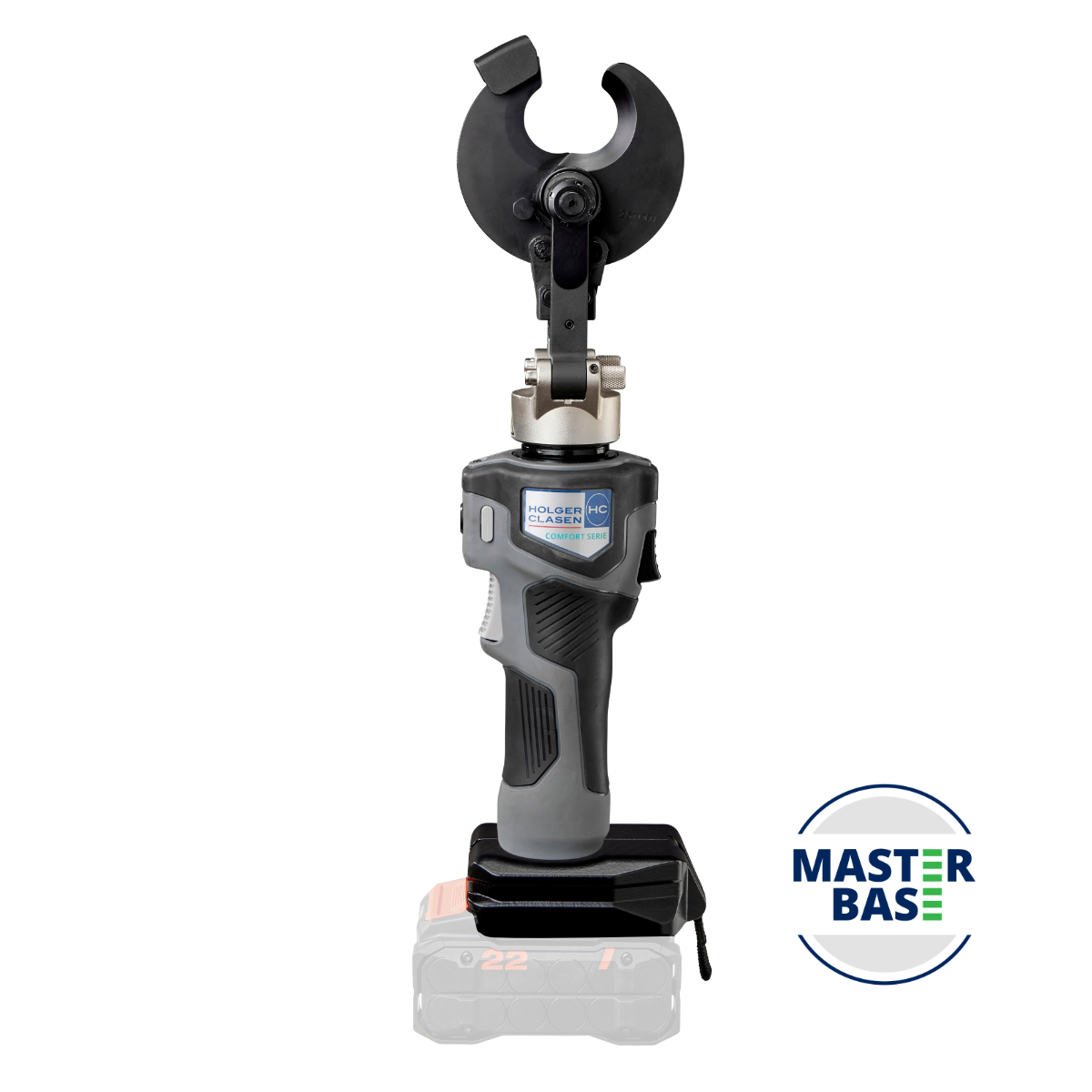

DuoLiner C Battery-tool for Cutting and Crimping
| Cutting force: | 58 kN |
|---|---|
| Opening width: | 30 mm |
| Crimping force: | 58 kN |
| Crimping range DIN Cu: | 6 - 185 mm² |
| Crimping range DIN Al: | 10 - 150 mm² |
| Information: | Compatible with 22 V Hilti Batteries (Nuron) |
The MasterBase technology offers the following battery options:
Product number:
78003200
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
Narrow design
Tool control
Battery Control
Hilti-compatible battery
Block press inserts
DuoLiner C Battery-tool for Cutting and Crimping
Applications
Your tool for crimping and cutting – the DuoLiner® C is a powerful, modular cordless tool for the most demanding installation and service applications. Whether in energy supply, network operators, or the construction industry, this system offers the ideal solution for professional cable processing in confined working environments.
DuoLiner® C - Cordless Tool for crimping and cutting
Application highlights at a glance:
- Modular design: DuoLiner C tool includes interchangeable heads
- Crimping head (closed): Safety bar and latch system for reliable crimping
- Mounting for block crimping dies
- Crimping of cable lugs and connectors up to 185 mm²
- Cutting head: Suitable for aluminum and copper cables up to 30 mm Ø, open cutting geometry – ideal for confined spaces, powerful and fast
- Crimping and cutting force of 58 kN
- Double piston hydraulics for high working speed even under load
- Ergonomic design: Lightweight rod shape, well-balanced for fatigue-free working
- One-handed operation for flexible use
- 180° rotatable tool head – perfect positioning on the workpiece
- LED work light: Optimal view of the work area even in poor lighting conditions
- Automatic return: Easy to switch for efficient workflows
Cutting applications:
- Aluminum and copper cables Ø up to 30 mm
- Aluminum and copper power cables Ø up to 30 mm
Crimping applications:
- Cu hexagonal (according to DIN 48083): 6–185 mm²
- Al hexagonal (according to DIN 48083): 10–150 mm²
- Al/St cables: Al 16–95 mm², St 2.5–25 mm²
- Pre-rounding: SE 35–240 mm², SM 25–185 mm²
- Arbor crimping: 6–70 mm²
What is MasterBase Technology?
Continue to use your existing batteries! The DuoLiner C unit is equipped with innovative MasterBase technology. This makes it compatible with 18 V batteries from Makita, Bosch, Milwaukee, and 22 V Hilti batteries (B22). Advantage: Flexible integration into existing battery fleets – reduction of investment and storage costs.
Summary
Choose a crimping and cutting tool that impresses not only with its technical precision but also with its maximum user-friendliness. DuoLiner® C – for professionals who value quality, versatility and efficiency. Take advantage of maximum flexibility and performance for your projects in the energy sector, electrical industry, telecommunications, building construction and infrastructure projects.
Areas of application are subject to change. A sample processing is recommended.
| Cutting force: | 58 kN |
|---|---|
| Opening width: | 30 mm |
| Crimping force: | 58 kN |
| Crimping dies Series: | Block (B) |
| Crimping range DIN Cu: | 6 - 185 mm² |
| Crimping range DIN Al: | 10 - 150 mm² |
| Battery voltage: | Hilti (B22) 22 V |
| Information: | Compatible with 22 V Hilti Batteries (Nuron) |
| Stroke: | 15 mm |
| Weight without battery: | Crimping tool: 2.3 kg - Cutting tool: 3.0 kg |
| Dimensions LxWxH: | Crimping tool: 365 x 75 x 95 mm - Cutting tool: 117 x 197 x 330 mm |
| Construction form: | Bar-shaped Tool |
| Head: | Crimping tool: closed - Cutting tool: open |
| Lock type: | Crimping tool: Latch / yoke |
Included in delivery:
Tool without further accessories.
