DN25/2 Needle scaler JEX-24 converted to 2-mm-needles
| Stroke: | 28 mm |
|---|---|
| Equipment: | Needles (Ø 2 x 180 mm) |
| Current: | Pneumatic |
| IMPA: | 590463 |
Product number:
82134000
Light-weight/small
Quick change of accessory

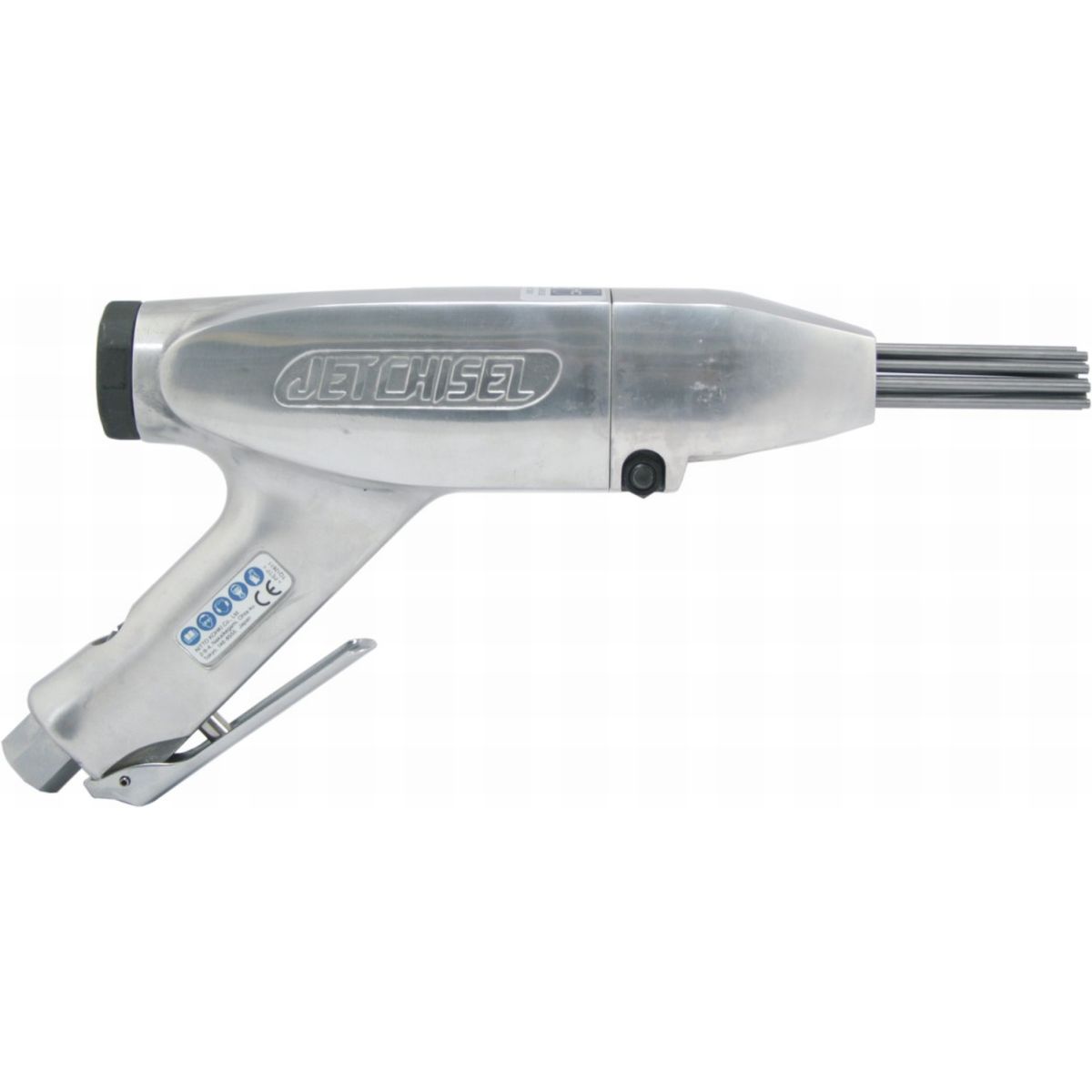

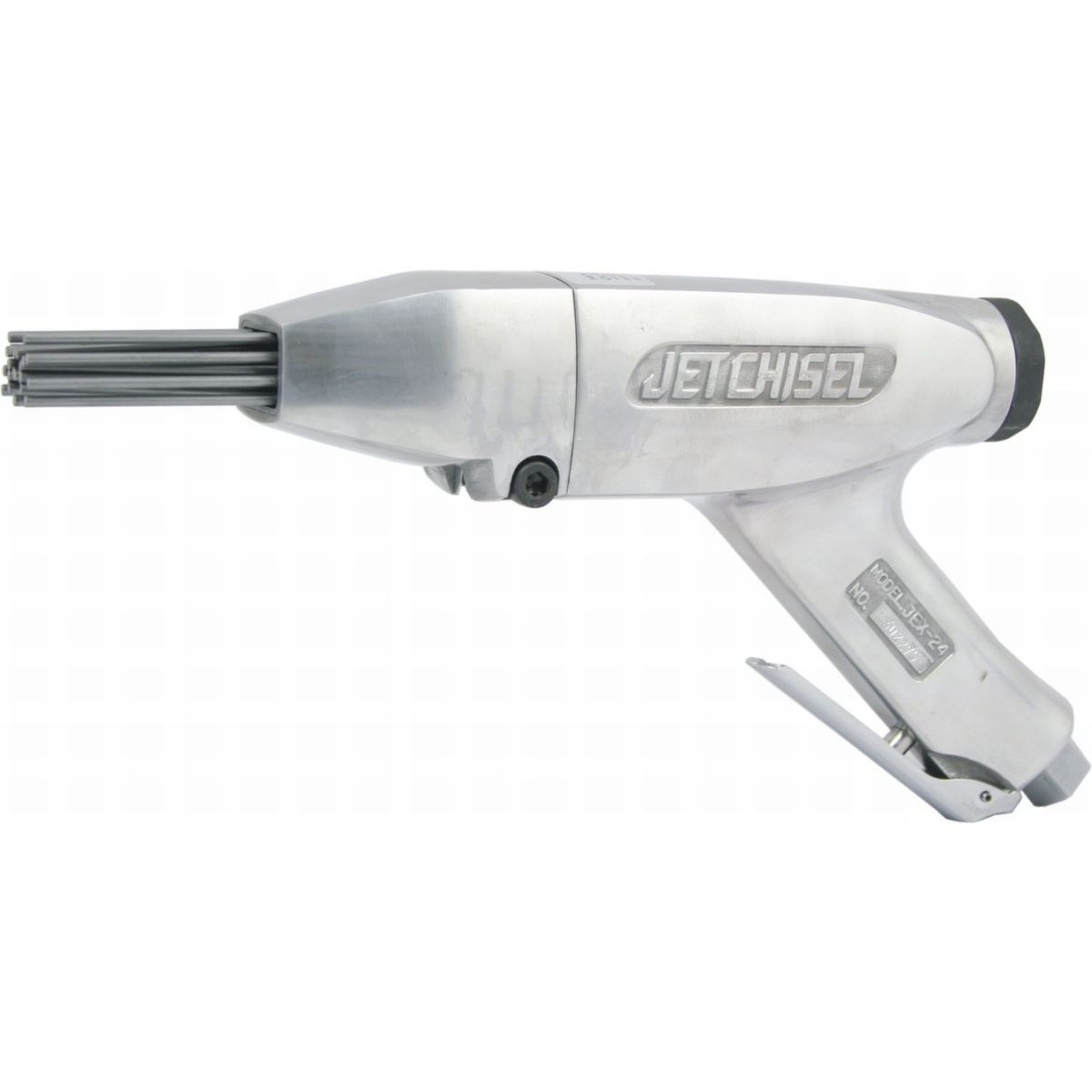

DN25/2 Needle scaler JEX-24 converted to 2-mm-needles
Applications

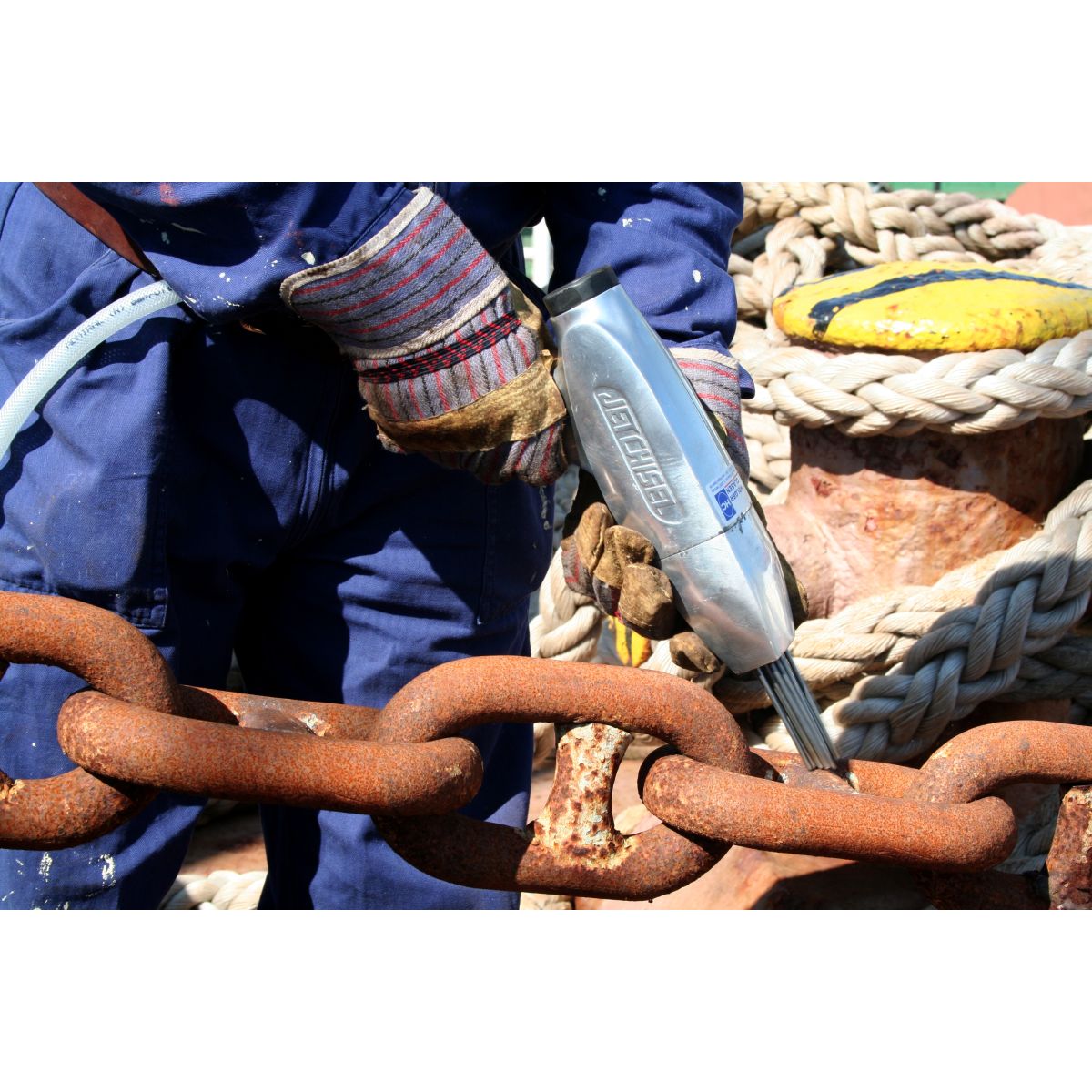

The pneumatic needle gun DN25/2 is the converted JEX-24 from Nitto Kohki with 2-mm-needles, it is a particularly durable and powerful pneumatic tool designed for heavy-duty continuous use in shipbuilding, shipyards, corrosion protection, concrete renovation, and repair shops. Thanks to its high impact force and precise surface adaptation, it reliably removes rust, paint layers, slag, or shell growth - even on heavily corroded metal or concrete surfaces.
DN25/2 air needle gun – powerful, versatile, and robust for professional use
Application highlights
- Effective removal of rust, paint, slag, and stubborn deposits
- Removal of shell and algae growth on ship hulls
- Surface preparation for painting, coating and sealing
- Renovation of concrete surfaces and removal of mortar residues
- Optimal performance for work in shipyards, on ships or construction sites
Technical features
- Manufacturer: Nitto Kohki – Premium quality for durable pneumatic tools
- Impact rate: 4,000 strokes/min
- Needle stroke: 28 mm – for maximum removal performance

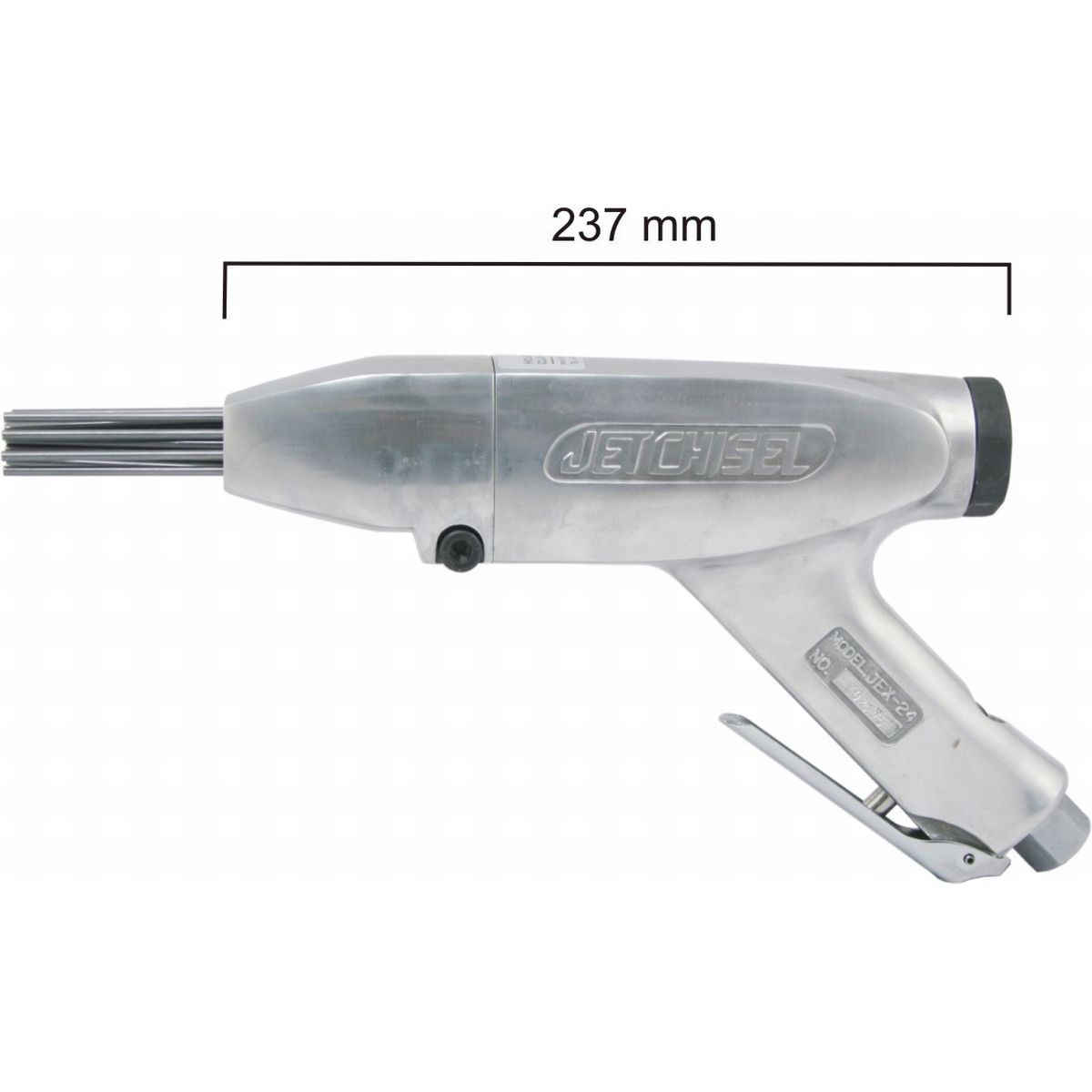

- Length: 237 mm – compact but powerful
- Weight: 2.7 kg – robust and perfectly balanced
- Vibrations: only 6.2 m/s² – ergonomic working over longer periods of time
- Air consumption: 4.5 l/s at operating pressure 6.3 bar
- Air connection: R 3/8"
- Recommended hose diameter: Ø 9 mm

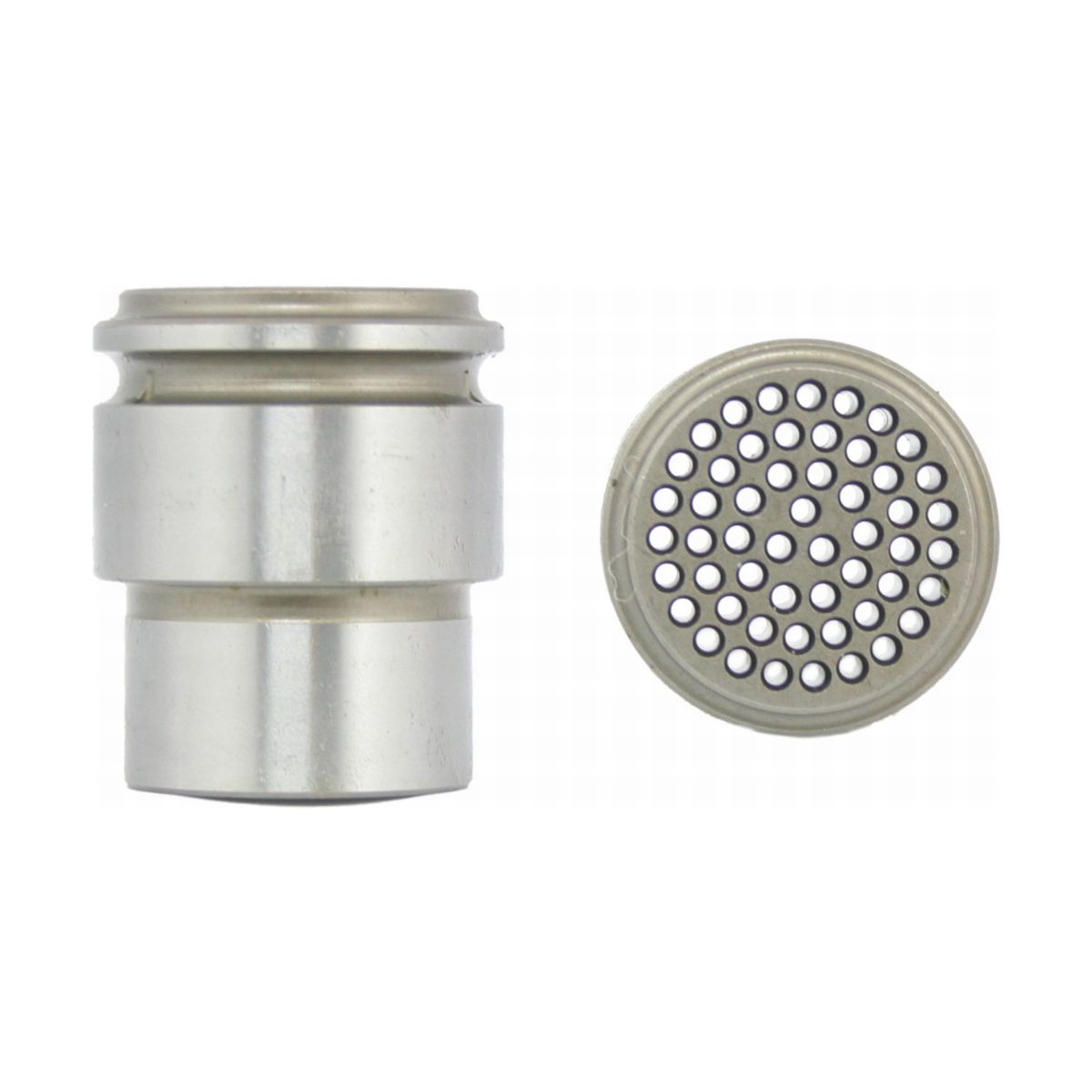

- Equipment: 53 needles (Ø 2 × 180 mm) with matching needle supporter
Optional:
- Needle supporter for 3 mm needles (23 pieces)
- Needles in lengths of 180, 300, 500, or 800 mm
- VA needles for machining stainless steel

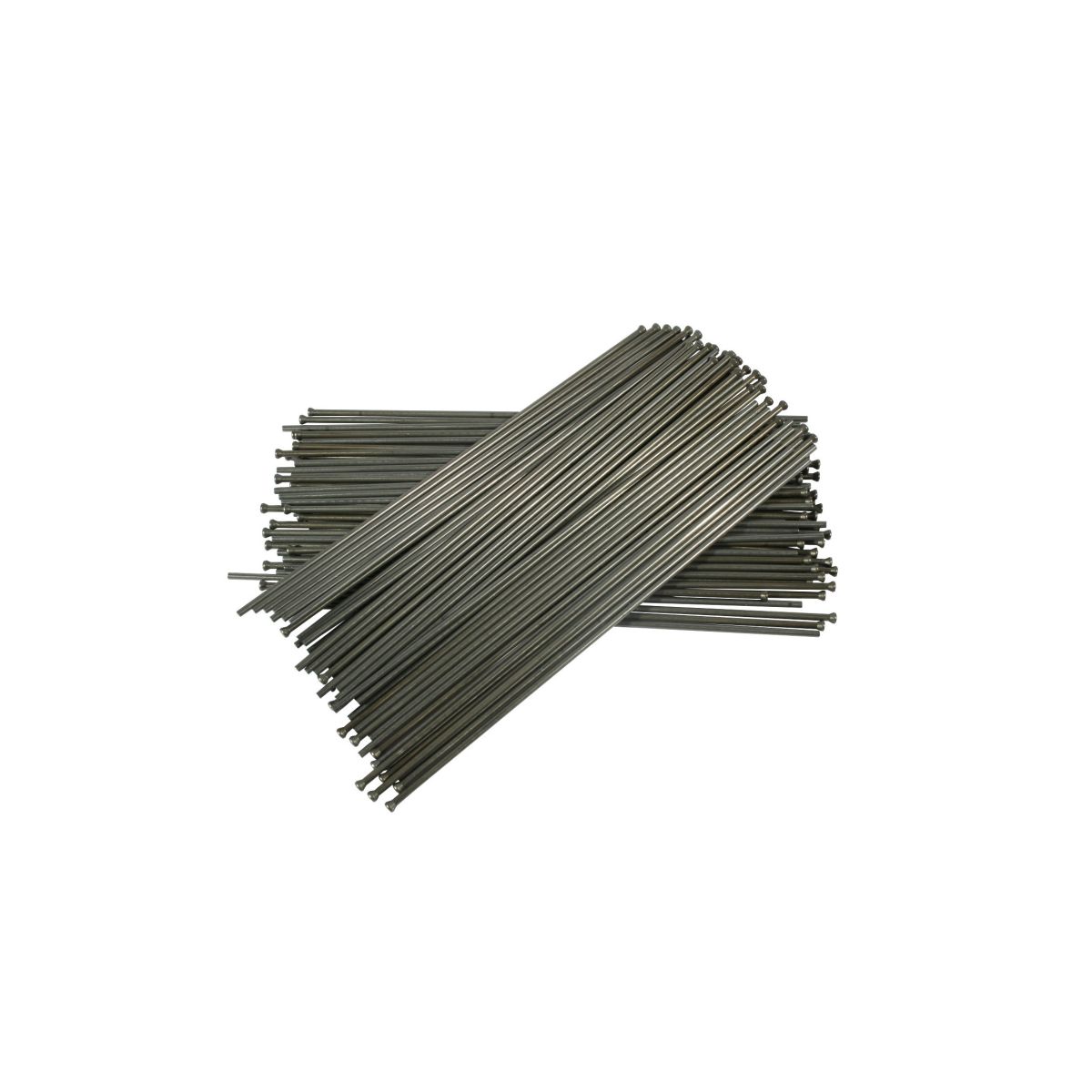

- Spark-free Cu-beryllium needles (Ø 3 × 180 mm)
- Quick needle change without special tools – minimizes downtime
- Perfect surface adaptation of the needles for consistent processing results
Application advantages
- Highest efficiency in surface cleaning even under extreme conditions
- Versatile application possibilities for metal and concrete substrates
- Low-maintenance design for minimal follow-up costs
- Ergonomically optimized for reduced effort
- Suitable for intensive industrial and marine use
With the converted DN25/2 air needle gun from Nitto Kohki, professionals are investing in a tool that is equally powerful, durable, and flexible – perfectly tailored to the high demands of maritime, industrial, and construction applications.
| Blows: | 4000 min-1 |
|---|---|
| Stroke: | 28 mm |
| Construction form: | Pistol |
| Start: | Valve lever |
| Equipment: | Needles (Ø 2 x 180 mm) |
| Length: | 237 mm |
| Weight: | 2.7 kg |
| Inlet air connection: | R 3/8" |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 4.5 l/s |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Information: | Length without Needles |
| IMPA: | 590463 |
