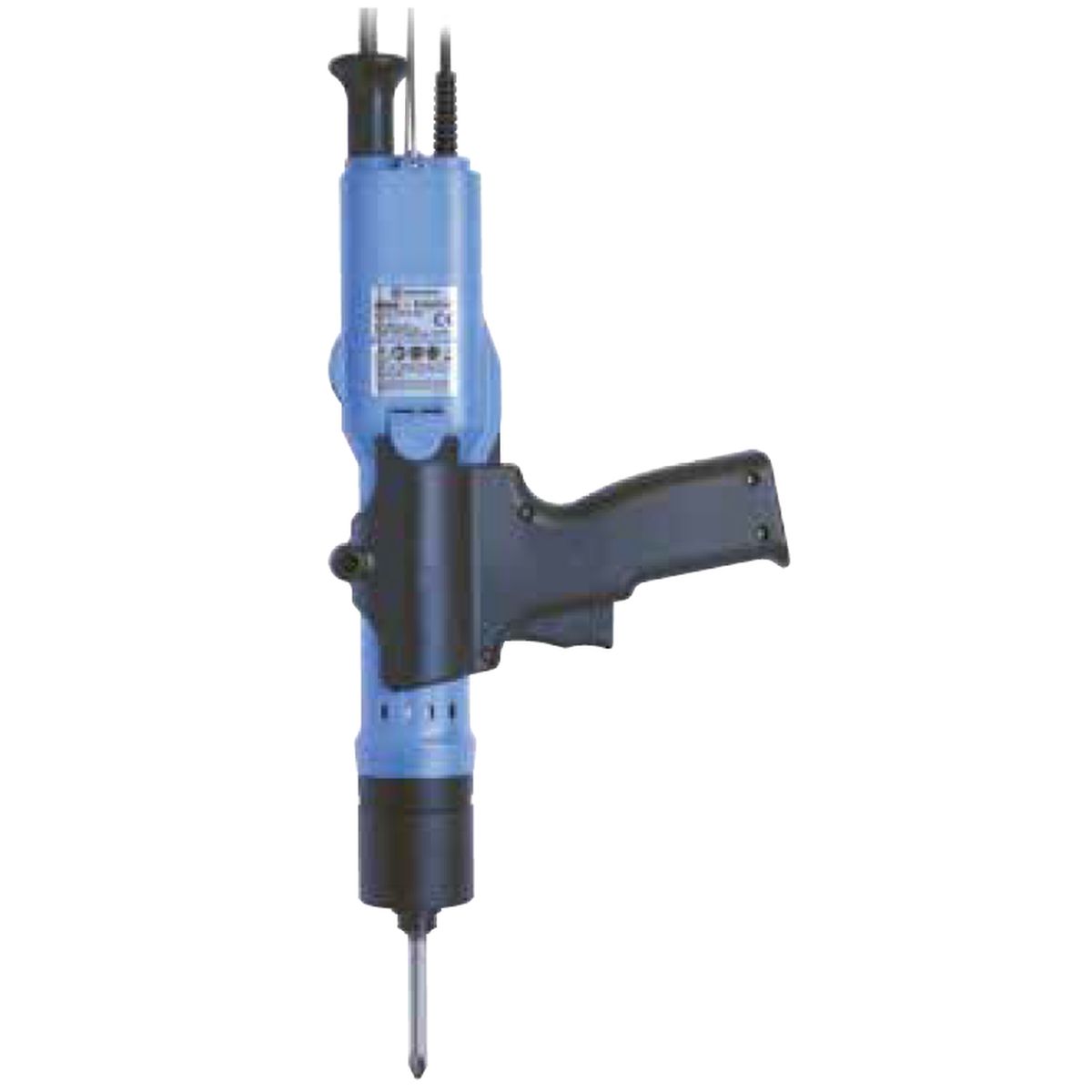

DLV45A 12L-SP(AB)K Delvo Electric Screw Driver
| Torque range: | 2.0 - 4.5 Nm |
|---|---|
| Speed: | 1200 min-1 |
| Start: | Lever start |
Product number:
37458200
DLV45A 12L-SP(AB)K Delvo Electric Screw Driver
Applications
DLV 45A 12L-SP(AB)K, industrial electric screwdriver for machine screws, transformerless type and can output a torque signal, for use in single station and series production
Eco-friendly electric screwdriver with built-in brushless motor in a transformerless profile
- Torque range from 0.4 - 7.0 Nm- Maximum free speed: 650 / 1200 / 2000 min-1
- Lever Start model / Push to Start
- Equipped with a torque adjustment ring cover
- Design conforms to the RoHS Directive and thus appeals to the environmentally conscious user
- with signal output at reached torque
- Easily detachable Pistol Grip DLW2300 (TD00335) comes with the unit as a standard accessory
| Torque range: | 2.0 - 4.5 Nm |
|---|---|
| Speed: | 1200 min-1 |
| Power [W]: | approx. 45 W |
| Start: | Lever start |
| Direction of rotation: | Reversible |
| Construction form: | Straight |
| Voltage: | 230 V |
| Frequency: | 50/60 Hz |
| Weight: | mit Pistolengriff 0.87 kg |
| Motor type: | Brushless |
| Grounded Bit: | yes |
| Cable Length: | 3 m |
| Information: | torque-up signal |
| Screw size: | 4.5 - 6.0 mm (metric)4.0 - 5.0 mm (self-forming) |
| Chuck: | Quick-changing chuck female hex. 1/4" (6.35 mm) |
| Current: | Transformerless (AC) |
Included in delivery:
Tool with torque adjustment ring cover (DLW5202), cable (3 m), hanger, pistol grip (DLW2300) and bit NK35(No.2 x 7 x 75).
Options
