RS-C7-F Ma Battery-Operated Mechanical Cutter
| Opening width: | 65 mm |
|---|---|
| Suitable for: | fine and very fine stranded cable |
| Information: | Compatible with 18 V Makita Batteries |
MasterBase-Technologie
Ergonomic
Narrow design
Battery Control
Makita-compatible battery

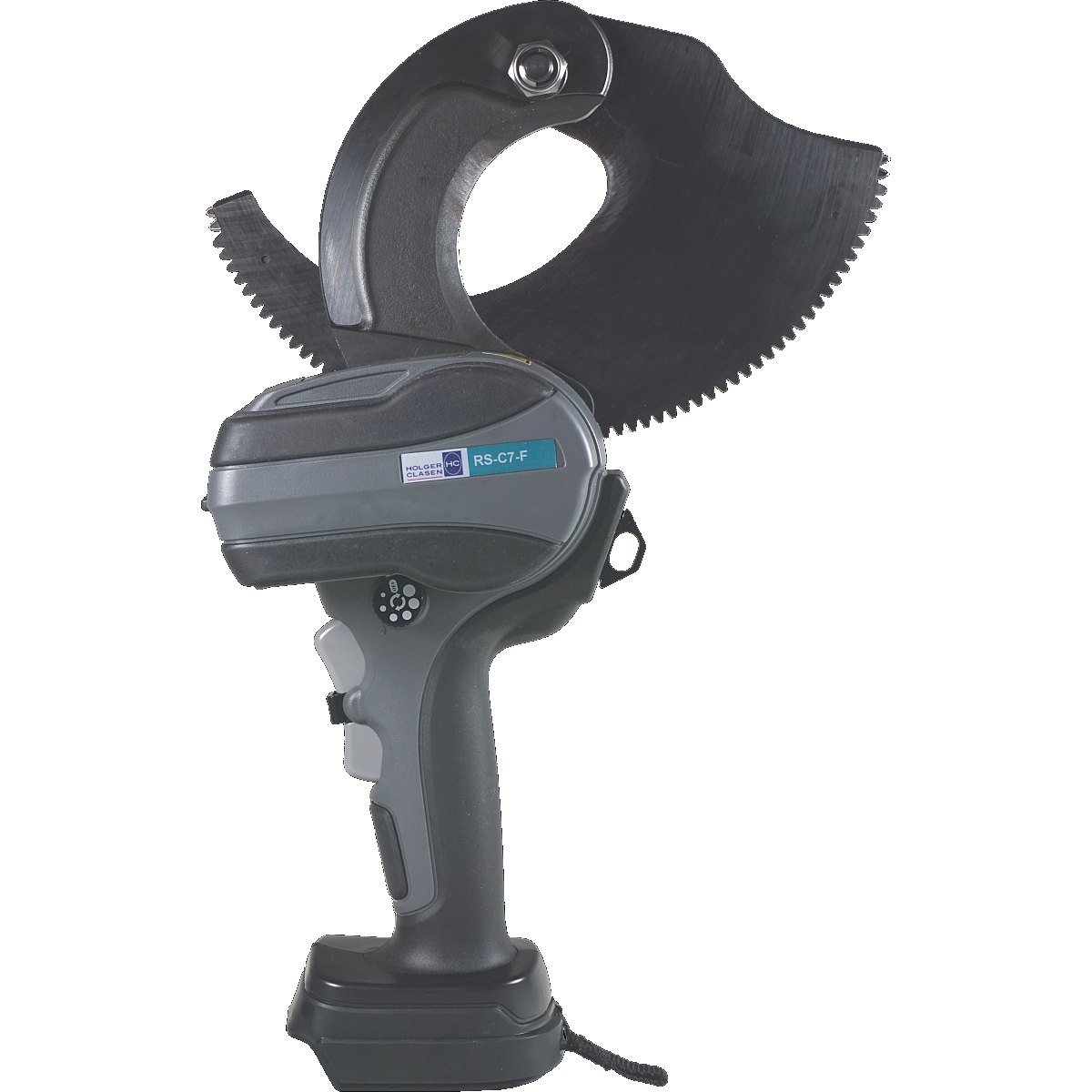

RS-C7-F Ma Battery-Operated Mechanical Cutter

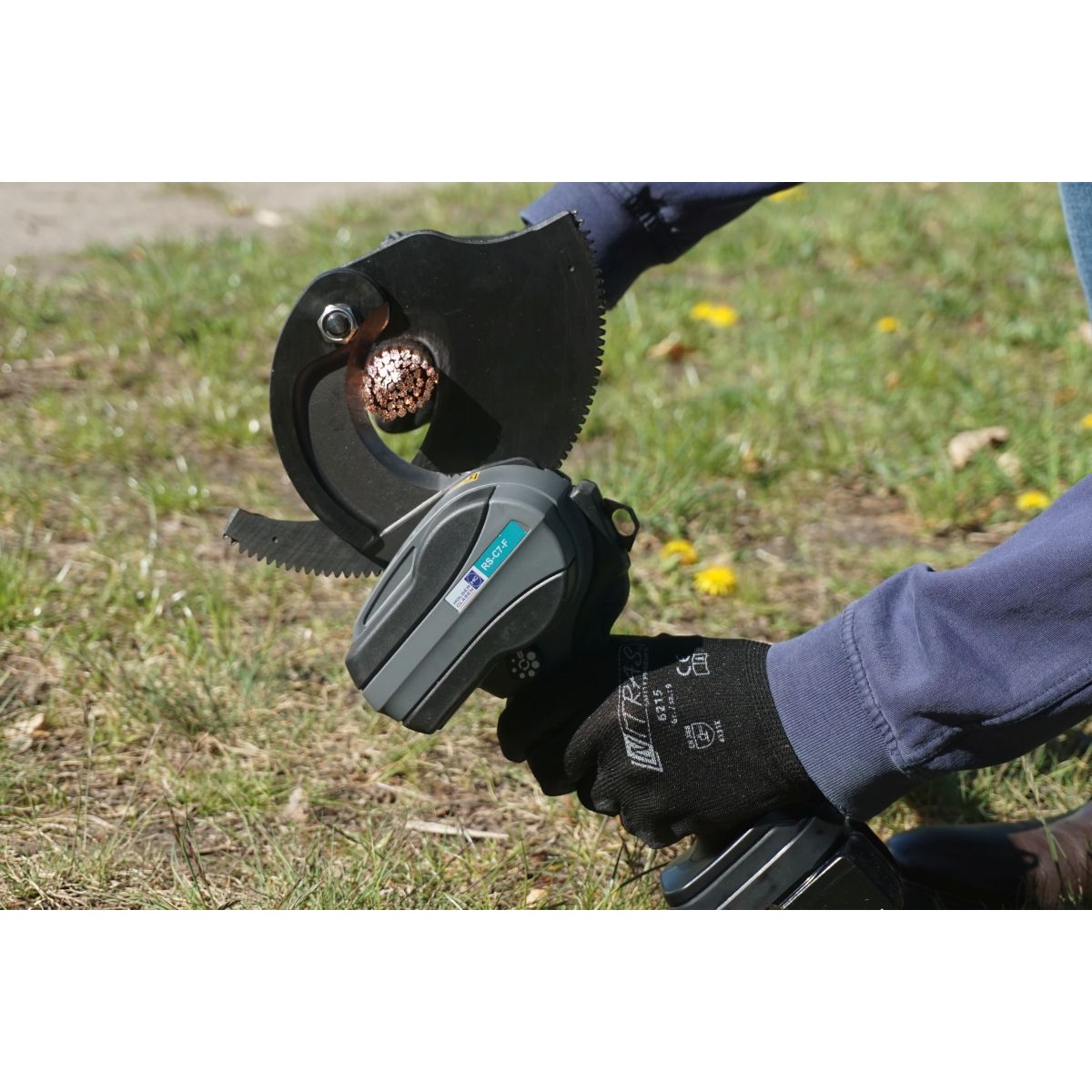

The Cordless Mechanical Cutting Tool RS-C7-F is engineered for professionals in the energy industry, electrical sector, service providers, civil engineering, and building construction. Combining a straight, ergonomic design with advanced cutting technology, this lightweight tool offers safe, efficient, and precise cutting of fine and very fine stranded copper and aluminum cables up to 65 mm in diameter.
RS-C7-F Battery Cable Shear for Cable Class 5 & 6 – Precise and Powerful Cutting for Fine-Stranded Cables
Application Highlights:
-
Straight design and lightweight at only 2.8 kg for fatigue-free operation in confined spaces
-

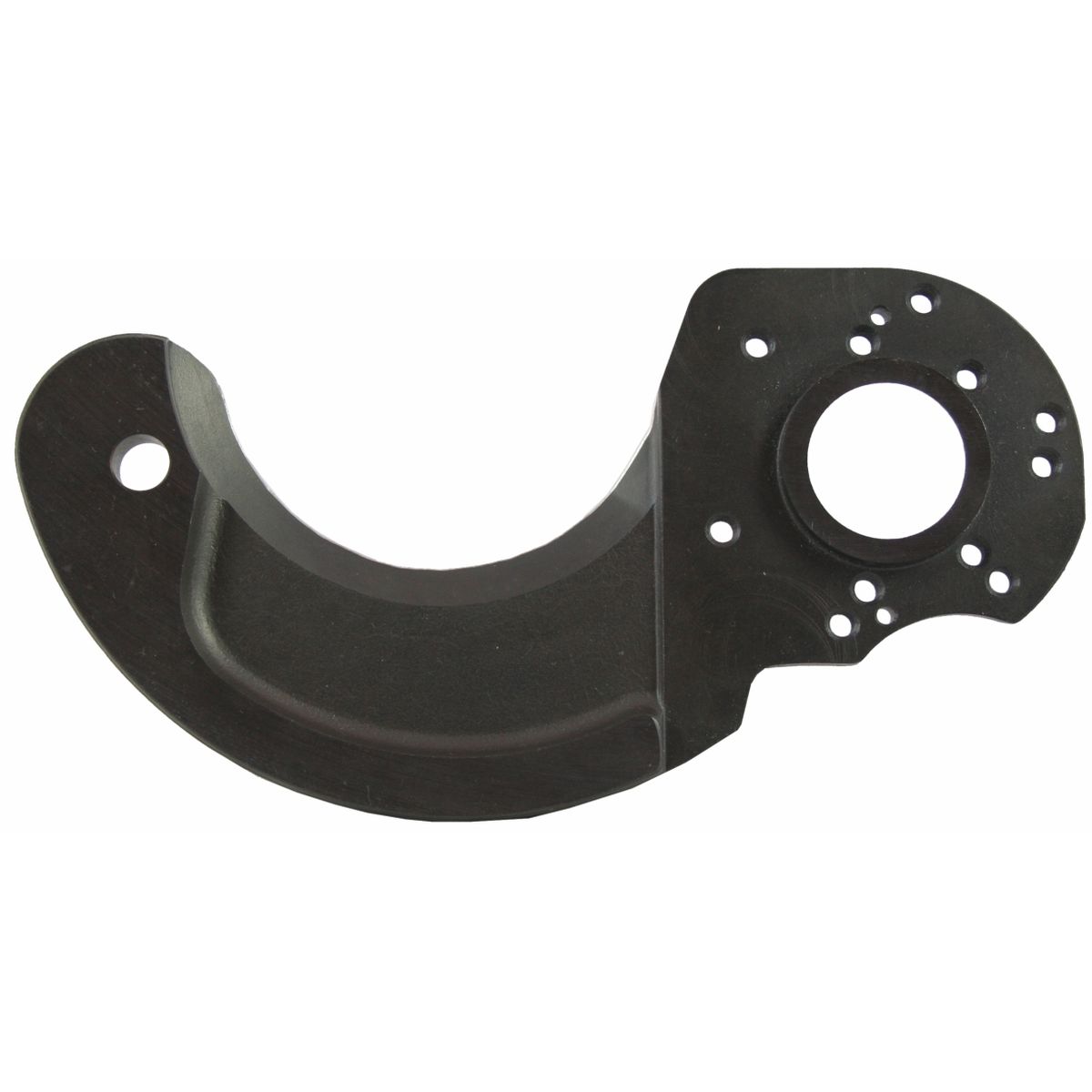

Closed cutting geometry ensures safe, jam-free cutting
-
Fine grinding on blades prevents jamming of delicate stranded conductors
-
Excellent handling and positioning capability in tight working environments
-
Powerful ratchet cutting principle for controlled, efficient cuts
-
Large opening width of 65 mm accommodates Cu and Al cables class 5 and 6 (fine and very fine stranded, DIN 60228)
-
Very clean cut surface minimizes rework and improves workflow
-
Rocker switch for both forward and reverse operations with integrated lock to prevent accidental start-up
-
LED work area illumination for enhanced visibility under low-light conditions
-
Selectively selectable automatic reverse function for optimized cutting cycles
-
Adjustable opening width for adaptable cable handling
-
Low maintenance design ensures long-lasting reliability and durability
Cutting Applications:
-

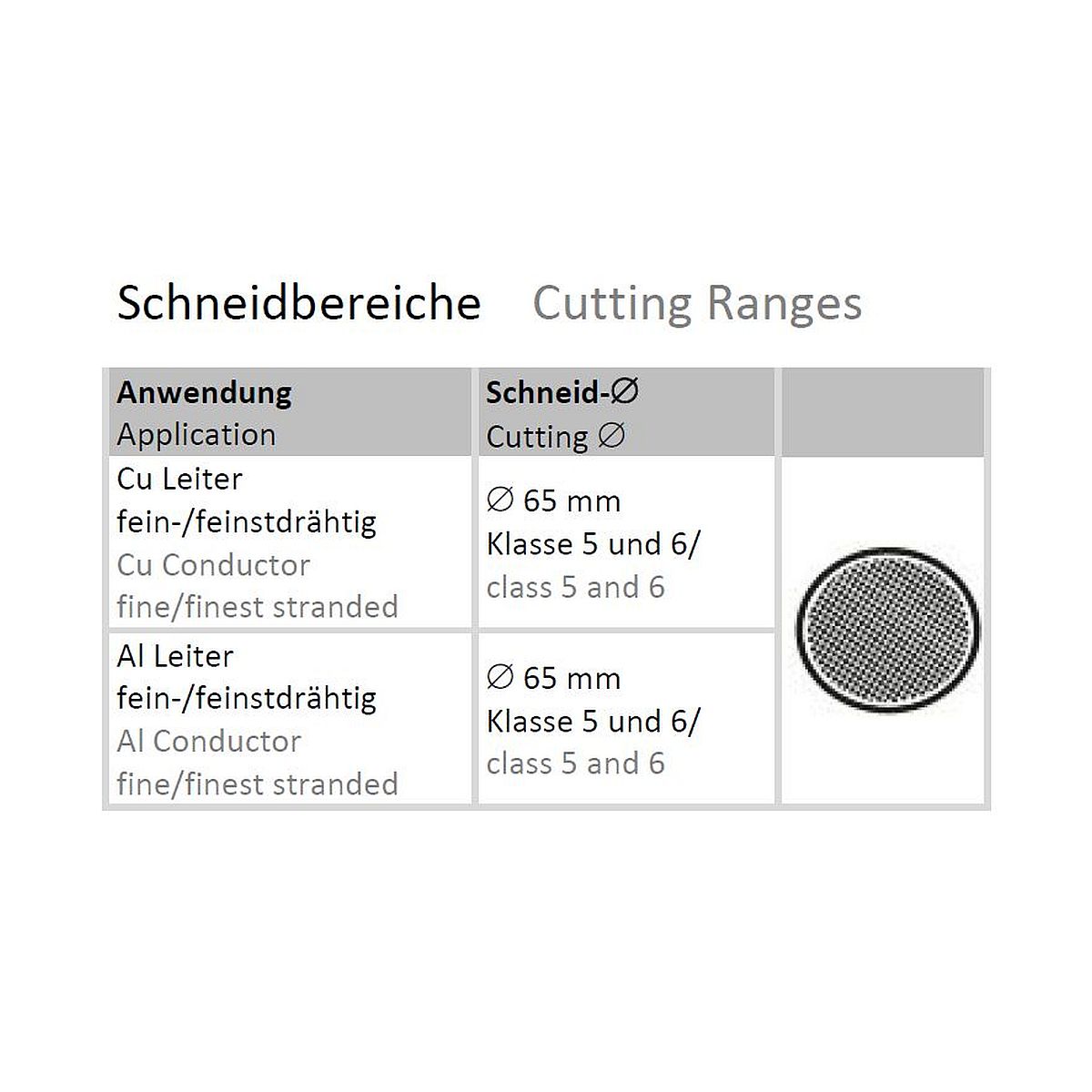

Copper and aluminum cables class 5 and 6 (fine and very fine stranded) up to 65 mm diameter
Note: Areas of application subject to change.
MasterBase Technology:
Featuring MasterBase technology, the RS-C7-F supports freely selectable battery holders compatible with 18 V batteries from Makita, Bosch, Milwaukee, and 22 V Hilti (B22). This flexibility allows seamless integration into existing battery fleets, reducing both investment and storage costs.
The RS-C7-F Battery Cable Shear offers ergonomic design paired with robust mechanical ratchet cutting technology, delivering precise, safe, and efficient cutting of fine and very fine stranded cables. Ideal for the demanding conditions of energy, electrical, and construction industries, it ensures clean cuts, reduced rework, and superior operator comfort.
Get the RS-C7-F now and cut fine-stranded cables quickly, cleanly, and reliably!
| Opening width: | 65 mm |
|---|---|
| Suitable for: | fine and very fine stranded cable |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Weight without battery: | 2.8 kg |
| Dimensions LxWxH: | 117 x 232 x 356 mm |
| Construction form: | Straight |
| Head: | closed |
Tool without further accessories.
