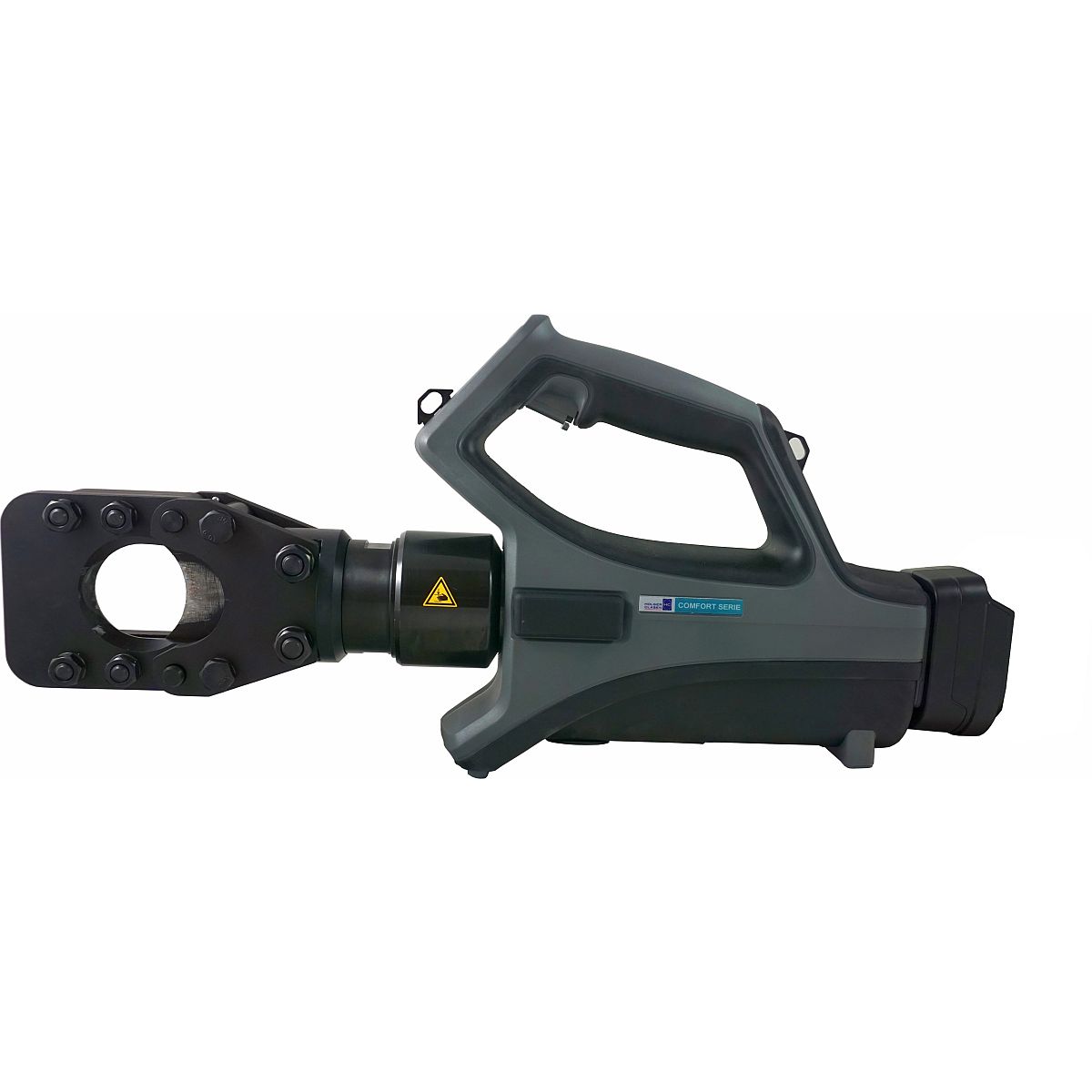

InLineBox-CS6 Ma Battery-Operated Hydraulic Cutter
| Cutting force: | 120 kN |
|---|---|
| Opening width: | 54 mm |
| Suitable for: | overhead lines |
| Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
72706000
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
2-step hydraulic
Battery Control
Makita-compatible battery
InLineBox-CS6 Ma Battery-Operated Hydraulic Cutter
Applications
The Battery-Powered Hydraulic Stand Cutter InLineBox-CS6 is the ideal cutting tool for the energy sector, electrical industry, service providers, civil and structural engineering, and maintenance companies. Equipped with state-of-the-art battery-hydraulic technology, excellent stability, and a well-designed ergonomic concept, this professional stand device handles even the most demanding cutting applications quickly, efficiently, and safely.
Battery-Powered Hydraulic Stand Cutter InLineBox-CS6 – Powerful, Versatile, and Safe for Demanding Cutting Tasks
Application Highlights:
- Versatile use: Operable as a stand unit or handheld tool – flexible for various workplace requirements
- Powerful: 120 kN cutting force delivers robust cuts even through heavy materials
- Weight 9.7 kg with a low center of gravity for fatigue-free working and excellent stability
- Closed cutting geometry for strong, safe cuts and precise positioning
- Maximum cutting capacity: 54 mm opening width – suitable for cables and materials of various dimensions
- Ergonomic design ensures comfortable and safe operation
- 2-stage hydraulics for fast and efficient cutting cycles
- 180° rotatable head – optimal alignment for all installation conditions
- LED work area illumination guarantees clear visibility, even in poor lighting
- Automatic return function speeds up workflows and increases efficiency
- Lockable start button for maximum work safety – prevents accidental start-up
- Low-maintenance, robust construction for daily heavy-duty use

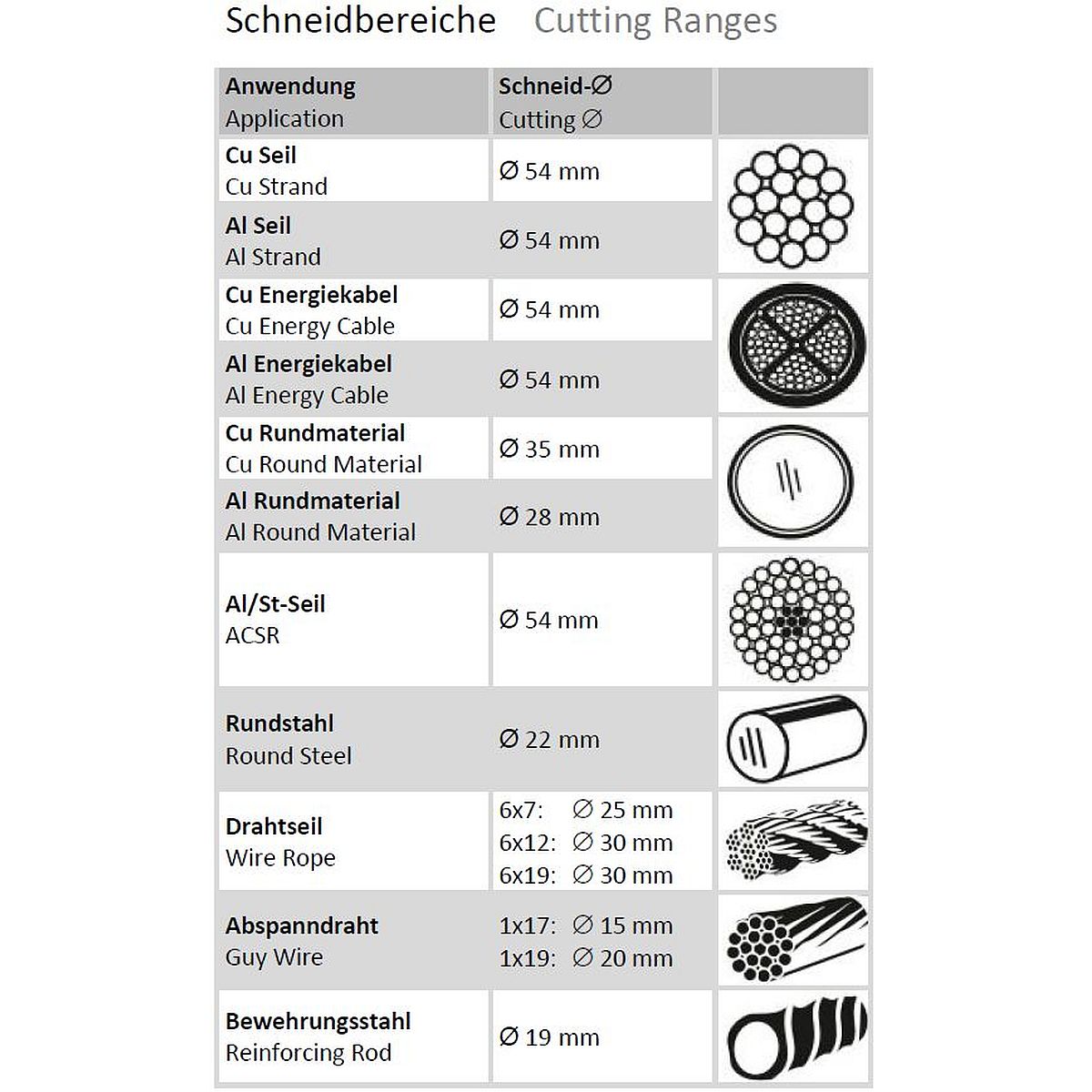

Cutting Applications:
- Copper and aluminum cables class 1 and 2 (solid, stranded, sector conductors) and power cables up to Ø 54 mm
- Copper round material up to Ø 35 mm
- Aluminum round material up to Ø 28 mm
- Round steel up to Ø 22 mm
- Aluminum/steel cables up to Ø 54 mm
- Wire rope (6x7) up to Ø 25 mm
- Wire rope (6x12, 6x19) up to Ø 30 mm
- Stay wire (1x17) up to Ø 15 mm, (1x19) up to Ø 20 mm
- Reinforcing steel up to Ø 19 mm
The Battery-Powered Hydraulic Stand Cutter InLineBox-CS6 impresses as a powerful, ergonomic, and versatile stand cutting tool for assembly, construction, energy, and service applications: maximum cutting force, precise operation, and flexible usability – perfect for professional use.
Choose the InLineBox-CS6 now and master even demanding cutting tasks effortlessly!
Areas of application are subject to change. A sample processing is recommended.
| Cutting force: | 120 kN |
|---|---|
| Opening width: | 54 mm |
| Suitable for: | overhead lines |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Weight without battery: | 9.7 kg |
| Dimensions LxWxH: | 566 x 92 x 263 mm |
| Construction form: | On-ground Tool |
| Head: | closed |
| Lock type: | Bolt safety |
