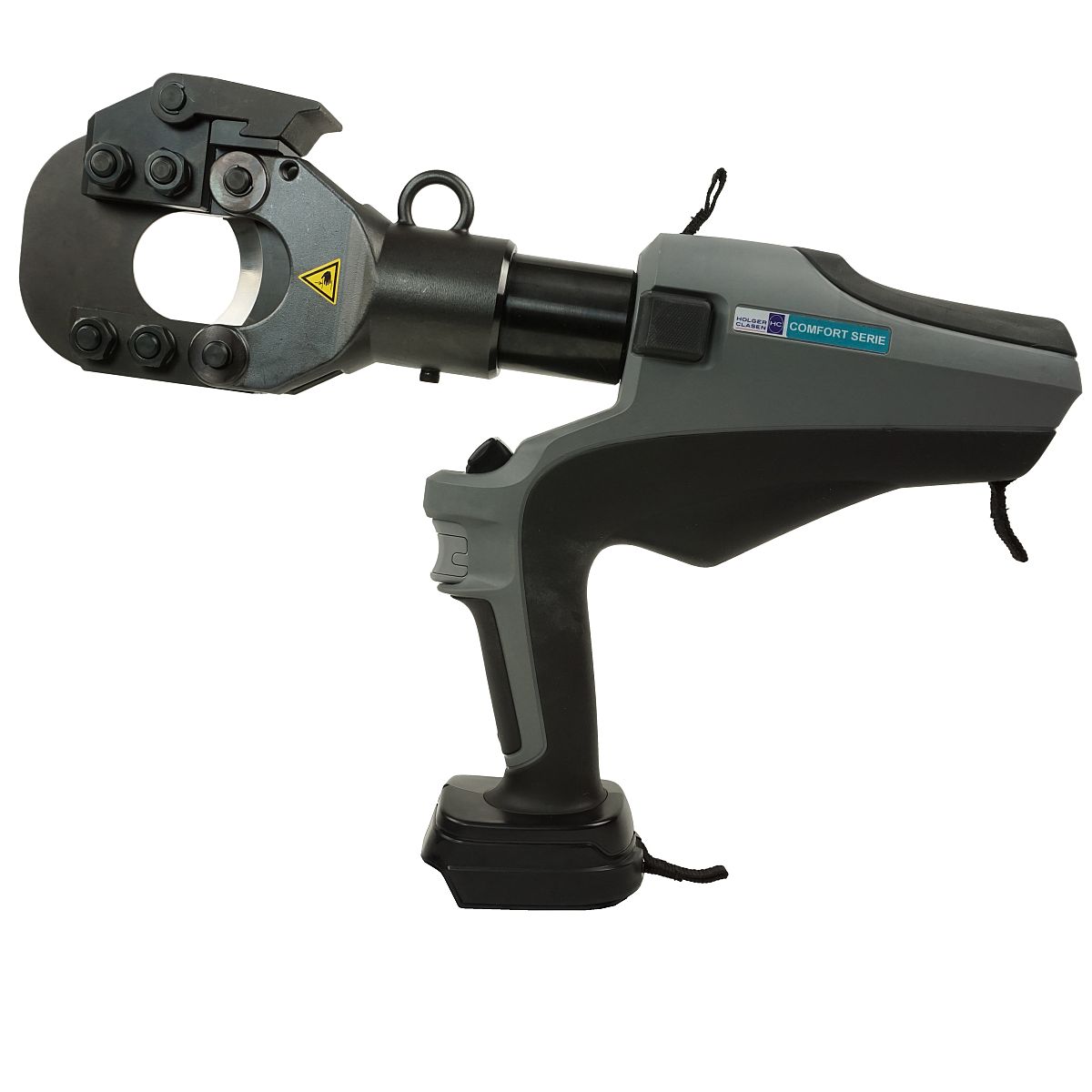

CutMax-C45 Bo Battery-Operated Hydraulic Cutter with MasterBase technology
| Cutting force: | 70 kN |
|---|---|
| Opening width: | 45 mm |
| Suitable for: | overhead lines |
| Information: | Compatible with 18 V Bosch Batteries |
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
2-step hydraulic
Battery Control
CutMax-C45 Bo Battery-Operated Hydraulic Cutter with MasterBase technology
The Cordless Wire Rope Cutter CutMax-C45 – powerful, ergonomic, and versatile for Demanding Cutting Tasks - is specially designed for professionals in the energy industry, electrical engineering, elevator construction, service, and civil engineering. With its robust yet ergonomic design, it reliably handles demanding and varying cutting tasks—even in tight working conditions. The pistol grip design ensures optimal balance and comfortable handling during long-lasting operations despite a weight of 6.1 kg.
Your Benefits with the Cordless Wire Rope Cutter CutMax-C45 – Powerful and Precise in Use
- High cutting force of 70 kN: Effective, standard-compliant cuts even with large diameters and thick strands
- Large opening width of 45 mm: Flexibly suited for diverse cutting applications including Cu and Al cables class 1 & 2 as well as power cables
- Closed cutting geometry: Optimal power transmission for clean, forceful cuts with minimal rework
- Ergonomic pistol design: Well balanced despite 6.1 kg weight, ideal for fatigue-reduced working even with changing work situations
- Double-piston hydraulics: Fast feed under load for efficient and rapid cutting cycles, even on tough materials
- 180° rotatable head: Maximum flexibility for use in tight or hard-to-reach locations
- Lockable start button & snap closure: Increasing operational comfort and safety during longer cutting jobs
- LED work area illumination: Ensures excellent visibility on the cutting area, especially under poor lighting conditions
- Selectively selectable automatic return: Adjustable to your individual workflow for enhanced efficiency
- MasterBase technology: Freely selectable battery interface compatible with 18 V batteries from Makita, Bosch, Milwaukee, as well as 22 V Hilti (B22) – maximum flexibility and seamless integration into existing battery systems
Typical Cutting Applications:
- Copper and aluminum cables class 1 and 2 (single-strand, multi-strand, single- and multi-strand sector conductors) up to Ø 45 mm
- Power cables and round material: Cu up to Ø 20 mm, Al up to Ø 22 mm
- Aluminum/steel cables up to Ø 45 mm (steel component up to 79 mm², e.g., 1045/45)
- Round steel up to Ø 20 mm
- Wire ropes 6x7 up to Ø 22 mm and 6x12, 6x19 up to Ø 25 mm
- Guy wires 1x17, 1x19 up to Ø 20 mm
- Reinforcement steel up to Ø 16 mm
The cordless wire rope cutter CutMax-C45 is your reliable partner for demanding cutting tasks in the energy sector, electrical industry, elevator construction, service, and civil engineering. Benefit from high cutting performance, excellent ergonomics, and maximum flexibility thanks to MasterBase technology. Perfect for professionals who require versatile and powerful solutions of the highest technical standard.
Order the CutMax-C45 cordless wire rope cutter today to ensure precise, fast cuts in every application!
Note: Areas of application subject to change. A trial processing is recommended.
| Cutting force: | 70 kN |
|---|---|
| Opening width: | 45 mm |
| Suitable for: | overhead lines |
| Battery voltage: | Bosch 18 V |
| Information: | Compatible with 18 V Bosch Batteries |
| Weight without battery: | 6.1 kg |
| Dimensions LxWxH: | 444 x 92 x 307 mm |
| Construction form: | Pistol |
| Head: | closed |
| Lock type: | Snap fit |
