PressMax-C14 Ma Battery-Operated Hydraulic Crimper
| Crimping force: | 140 kN |
|---|---|
| Crimping range DIN Cu: | 10 - 400 mm² |
| Crimping range DIN Al: | 10 - 400 mm² |
| Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
76754000
MasterBase-Technologie
LED lightend
Rotating Head
Tool control
2-step hydraulic
Battery Control
Makita-compatible battery
C-shaped crimping dies

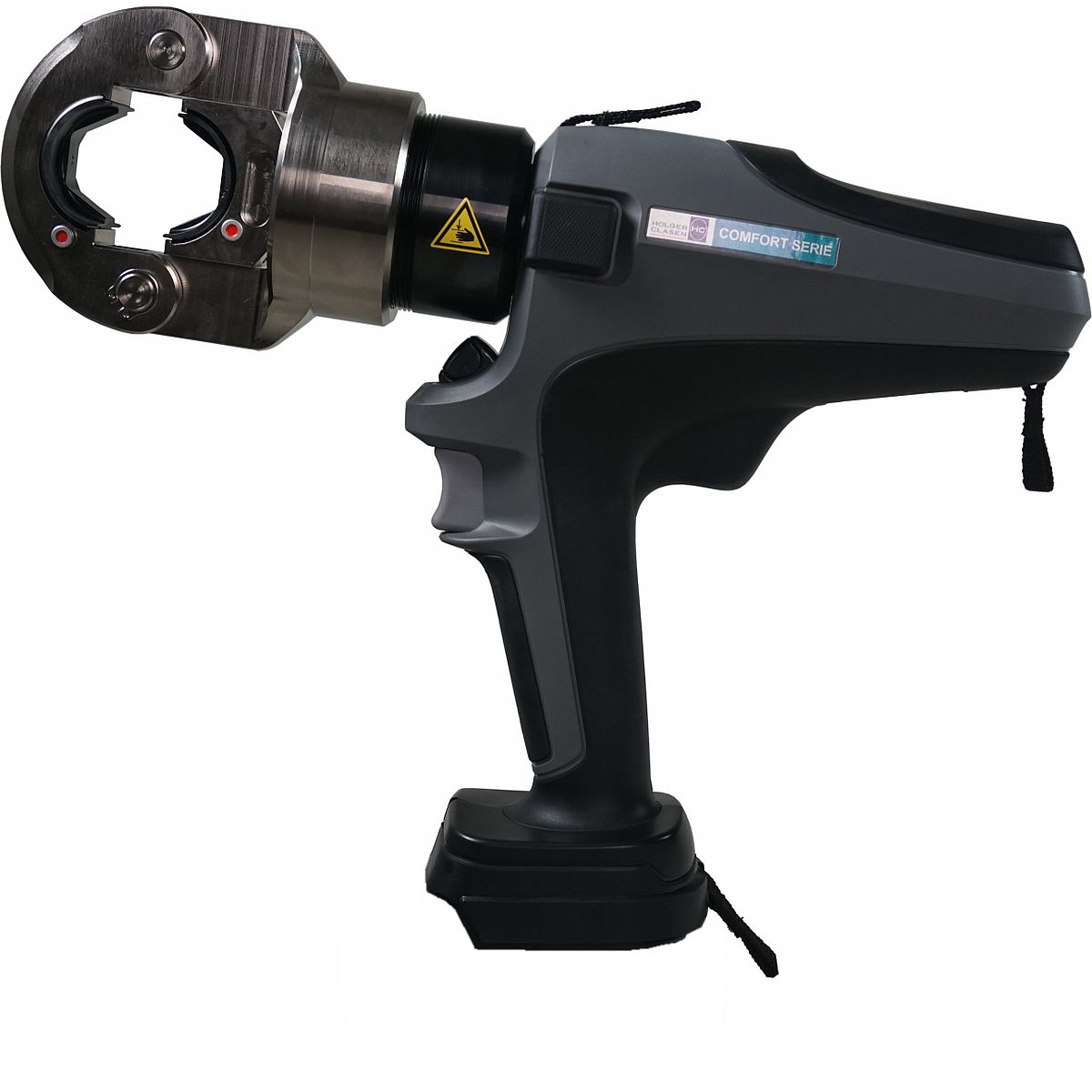

PressMax-C14 Ma Battery-Operated Hydraulic Crimper
Applications
The PressMax-C14 battery-powered hydraulic crimping tool offers maximum performance and precise handling for professional users in the energy sector, electrical industry, energy supply companies, municipal utilities, and industrial cable assembly. With a powerful 140 kN crimping force, sophisticated design, and innovative safety features, the PressMax-C14 enables time-saving and reliable wide crimping in the DIN range with optimum ease of use - even in unusual installation situations.
PressMax-C14 battery-powered hydraulic crimping tool – powerful professional tool for demanding cable crimping applications
Application highlights of the PressMax-C14 battery-powered hydraulic crimping tool:
- Extremely powerful: 140 kN crimping force and 22 mm stroke for secure, permanent connections with cable cross-sections up to 400 mm² according to DIN standards.
- Time-saving wide crimping: Specially designed for efficient processing of large conductor cross-sections in the DIN range.
- Lightweight & ergonomic: Weighing 4.8 kg, with a well-balanced pistol shape and ergonomic handle for fatigue-free working over long periods.
- One-handed operation: Compact design and optimal handling for precise, powerful crimping even in confined spaces.
- Maximum flexibility: 180° rotatable tool head facilitates precise positioning on the workpiece in any position.
- Safe application: Closed crimping head with patented safety lock and crimping insert locks prevent accidental falling out – maximum work safety guaranteed.
- Fast work cycles: 2-stage hydraulics ensure rapid pressing operations even under load, with easy switching to automatic return for process optimization.
- Optimal visibility: Integrated LED illuminates the work area perfectly – for precise control even in poor lighting conditions.
MasterBase technology: Freely selectable battery holder compatible with 18 V batteries from Makita, Bosch, Milwaukee, and 22 V batteries from Hilti (B22). This allows the tool to be flexibly integrated into existing battery fleets, reducing investment and storage costs.

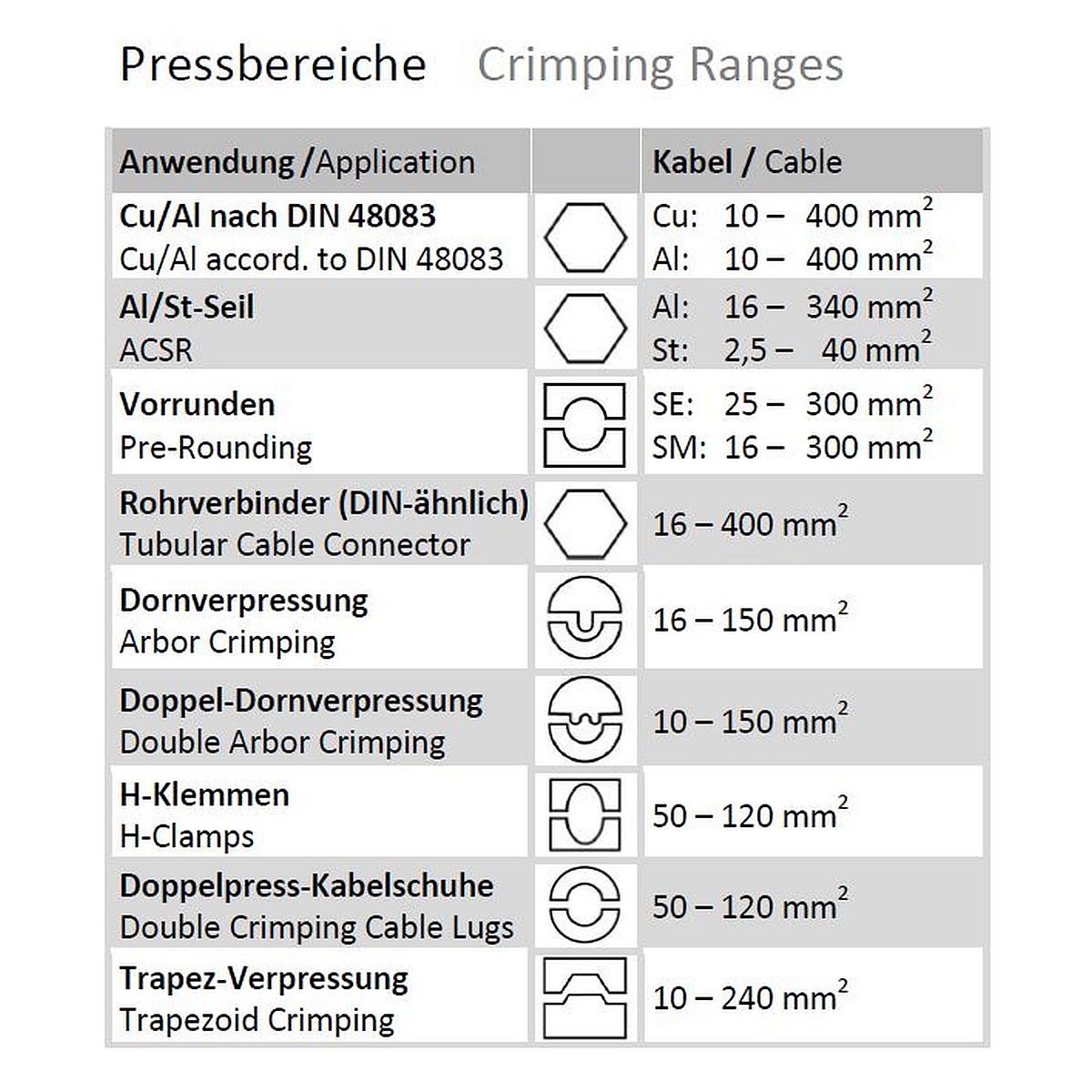

Technical crimping applications:
Cu hexagon DIN (48083): 10–400 mm²
Al hexagon DIN (48083): 10–400 mm²
ACSR cable: Al 16–340 mm², St 2.5–40 mm²
Pre-rounding of sector conductors: single-wire SE 25–300 mm², multi-wire SM 16–300 mm²
Similar to DIN (tube & crimp cable lugs): 16–400 mm²
Arbor crimping: 16–150 mm²
Double arbor crimping: 10–150 mm²
H-clamps: 50–120 mm²
Double crimp cable lugs: 50–120 mm²
Trapezoidal crimping: 10–240 mm²
Note: Areas of application subject to change. Trial processing is recommended.
With the PressMax-C14 battery-powered hydraulic crimping tool, you are investing in a powerful, versatile, and safe tool that meets the high demands of the modern energy and electrical industry and makes your cable installations more efficient.
| Crimping force: | 140 kN |
|---|---|
| Crimping dies Series: | C-shaped (C) |
| Crimping range DIN Cu: | 10 - 400 mm² |
| Crimping range DIN Al: | 10 - 400 mm² |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Stroke: | 22 mm |
| Weight without battery: | 4.8 kg |
| Dimensions LxWxH: | 356 x 82 x 300 mm |
| Construction form: | Pistol |
| Head: | closed |
| Lock type: | Fork / safety lock pin |
Tool without further accessories.
