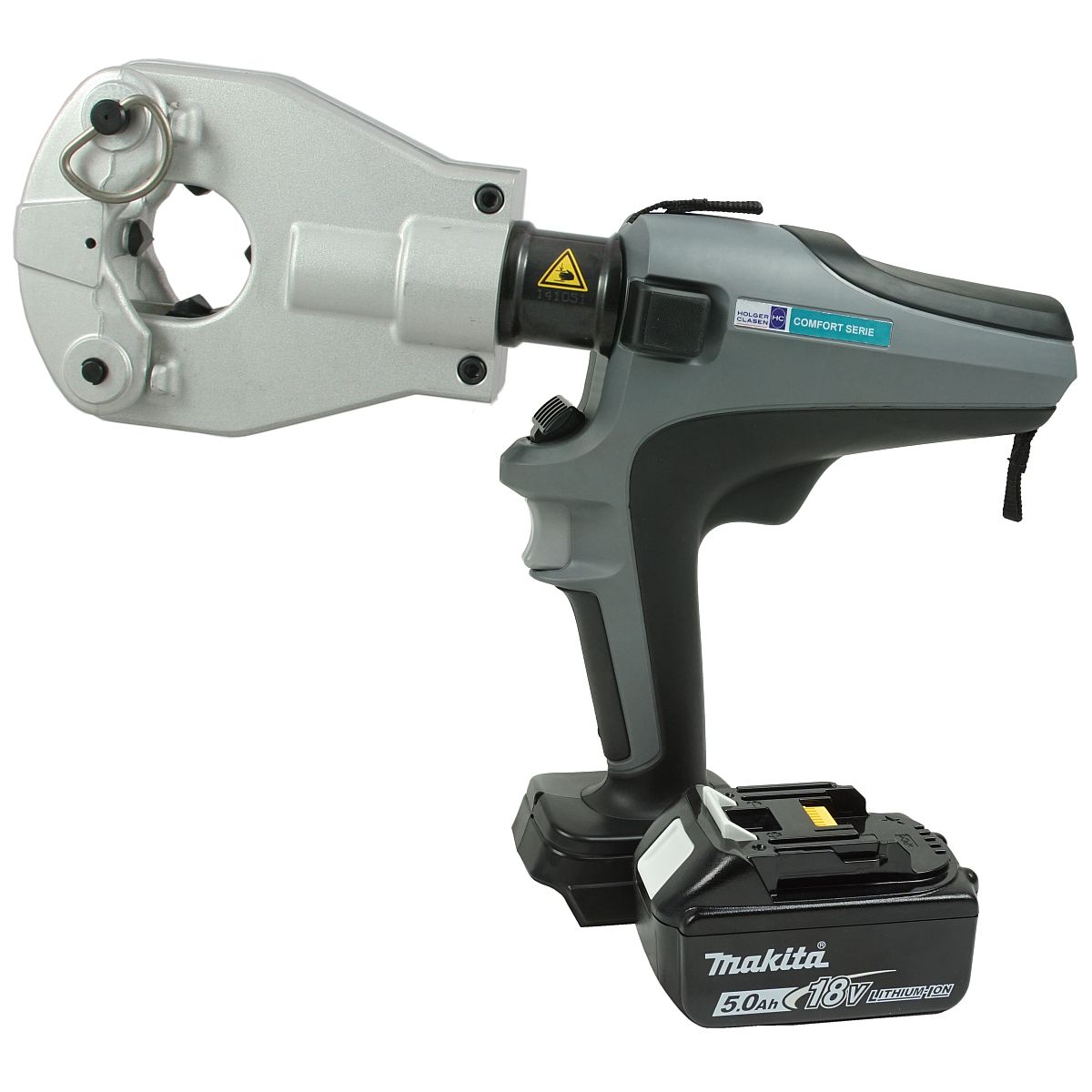

PressMax-C6-4D Ma Battery-Operated Hydraulic Crimper
| Crimping force: | 60 kN |
|---|---|
| Opening width: | 36 mm |
| Crimping range DIN 60228 Cu: | 16 - 300 mm² |
| Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
76746400
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
Tool control
2-step hydraulic
Battery Control
Makita-compatible battery
PressMax-C6-4D Ma Battery-Operated Hydraulic Crimper
Applications
The battery-powered hydraulic crimping tool PressMax-C6-4D sets new standards for crimping highly flexible, non-insulated copper conductors in cable lugs and connectors for switch cabinet construction, energy sector, electrical industry, and professional electrical installations. Utilizing innovative, self-centering 4-arbor crimping without the need for additional crimping dies, this press tool offers maximum efficiency, convenience, and process reliability for all standard and special applications involving flexible conductors according to DIN 60228, Class 2, 5, and 6.
Battery-operated Crimper for Highly Flexible Conductors PressMax-C6-4D – Efficient 4-arbor Technology for Modern Connection Solutions
Application Highlights of the Press Tool for Highly Flexible Conductors PressMax-C6-4D:
- Highly Flexible Application: Ideally suited for crimping non-insulated copper conductors according to DIN 60228 (Class 2, 5, 6) in cable lugs and connectors—especially for switchgear connections and fine-stranded conductors from 16 to 300 mm² (6 AWG – 750 MCM).
- Self-Centering 4-Arbor Crimping: Ensures perfect, secure, and standard-compliant connections—no need for tool or die changes.
- Fast & Convenient Workflow: 2-step hydraulics allows for rapid crimp cycles; automatic return switch ensures efficient, uninterrupted operation.
- Ergonomic & Well-Balanced: Pistol-grip, well-balanced design for fatigue-free work, including single-handed or overhead operations.
- Closed crimping head with 36 mm opening width: For maximum occupational safety and versatile positioning, even in hard-to-reach areas.
- Maximum Flexibility in Handling: 180° rotatable head for precise approach and optimal accessibility on the workpiece.
- Excellent Visibility: Integrated LED work light for precise operation even in low-light environments.
Versatile Integration & Cost Savings: MasterBase Technology - Freely selectable battery interface, compatible with 18 V batteries from Makita, Bosch, Milwaukee, and 22 V Hilti (B22). Continue using your existing battery fleets—reducing investment and storage costs.
Technical Crimp Applications (Selection):
Cable lugs and connectors for switchgear connections (Cu): 16–300 mm² (6 AWG – 750 MCM)
Cable lugs and connectors for fine-stranded Cu conductors: 16–300 mm²
Note: Areas of application are subject to change. A trial crimp is recommended.
With the PressMax-C6-4D press tool for highly flexible conductors, you rely on precise connections, efficient processes, and maximum safety—perfect for professionals needing technically advanced cable connections.
| Crimping force: | 60 kN |
|---|---|
| Opening width: | 36 mm |
| Crimping range DIN 60228 Cu: | 16 - 300 mm² |
| Crimping dies Series: | 4 Arbor |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Weight without battery: | 5.1 kg |
| Dimensions LxWxH: | 401 x 82 x 297 mm |
| Construction form: | Pistol |
| Head: | closed |
| Lock type: | Fork / safety lock pin |
