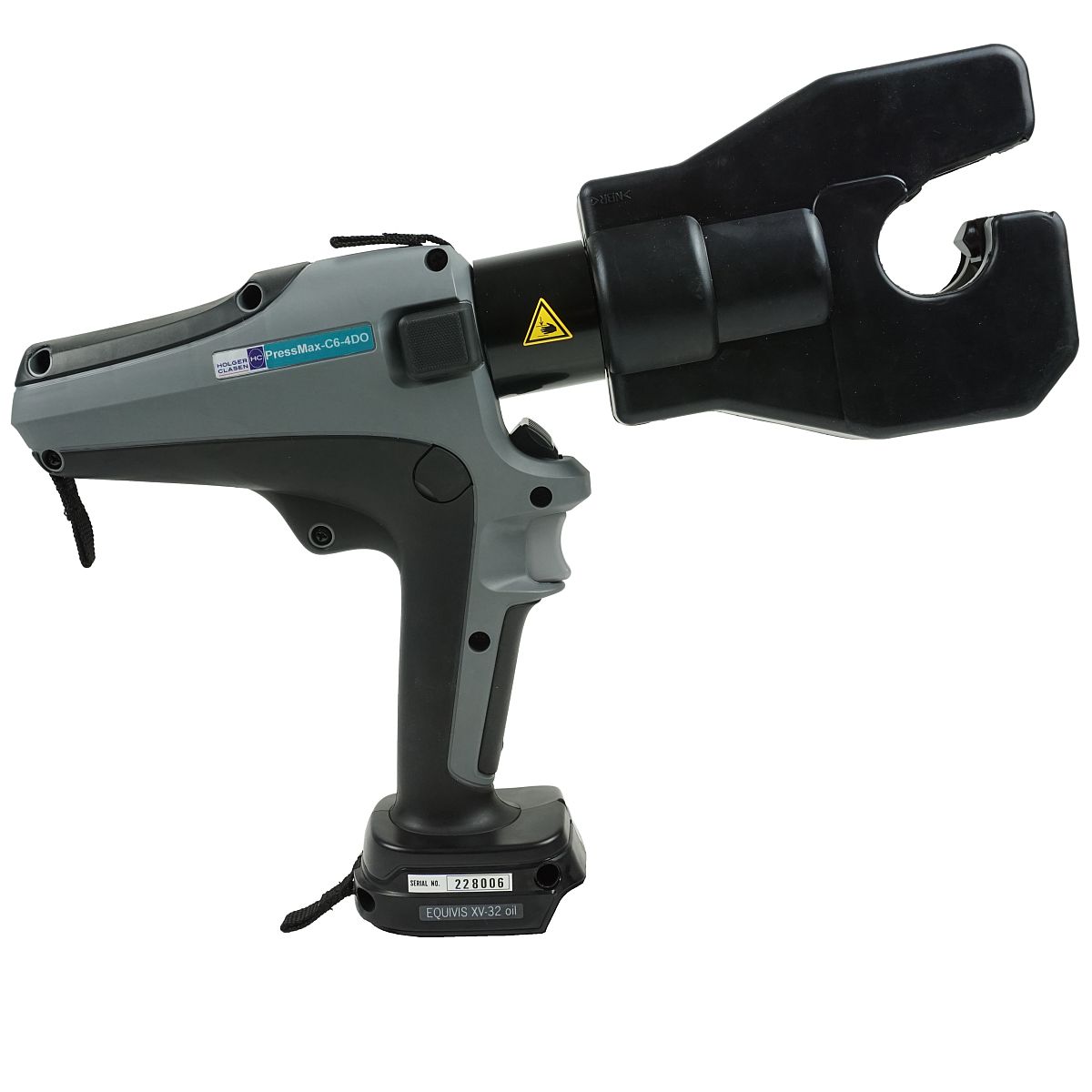

PressMax-C6-4DO Ma Battery-Operated Hydraulic Crimper
| Crimping force: | 60 kN |
|---|---|
| Opening width: | 32 mm |
| Crimping range DIN 60228 Cu: | 10 - 240 mm² |
| Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
76746300
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
Tool control
2-step hydraulic
Battery Control
Makita-compatible battery
PressMax-C6-4DO Ma Battery-Operated Hydraulic Crimper
Applications
The PressMax-C6-4DO battery crimping machine was developed to meet the highest demands in the energy sector, electrical industry, switch cabinet construction, and service providers. It is particularly suitable for the safe and standard-compliant crimping of non-insulated copper conductors in accordance with DIN 60228 in cable lugs and connectors – with powerful 4-arbor technology, simple operation, and maximum flexibility.
PressMax-C6-4DO battery powered crimping machine – Efficient 4-arbor crimping for professional electrical installations
Application highlights of the PressMax-C6-4DO battery powered crimping machine:
- Innovative 4-arbor crimping: Self-centering and reliable – works without additional press inserts for precise crimping of class 2, 5, and 6 copper conductors.
- Powerful and flexible: 60 kN crimping force and 32 mm opening width, ideal for a wide range of applications in switch cabinet connections and electrical installations.
- Ergonomic pistol shape: Well-balanced design for comfortable, fatigue-free working – even with one-handed operation and prolonged use.

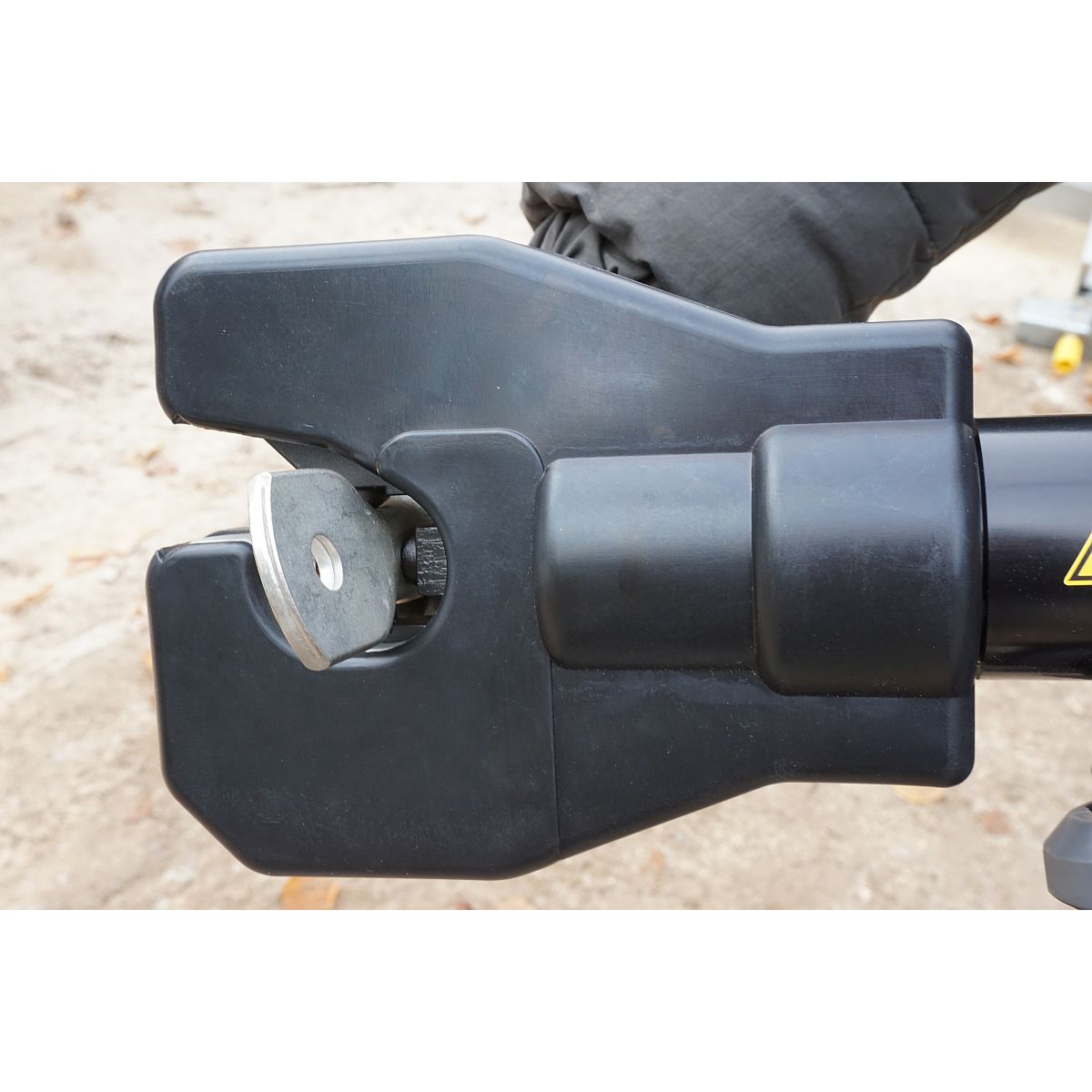

- Open, rotatable crimping head: Tool head can be rotated 180° and is open – for easy, precise positioning on the workpiece, even in hard-to-reach places.
- Fast work cycles: 2-stage hydraulics for rapid crimping; automatic return mechanism speeds up the work process.
- Optimal illumination: Powerful LED for perfect visibility in the work area – particularly advantageous in confined or poorly lit installation locations.
Maximum integration: MasterBase technology: Freely selectable battery holder – compatible with 18 V batteries from Makita, Bosch, Milwaukee, and 22 V Hilti (B22). The machine can thus be easily integrated into existing fleets, reducing your investment and storage costs.

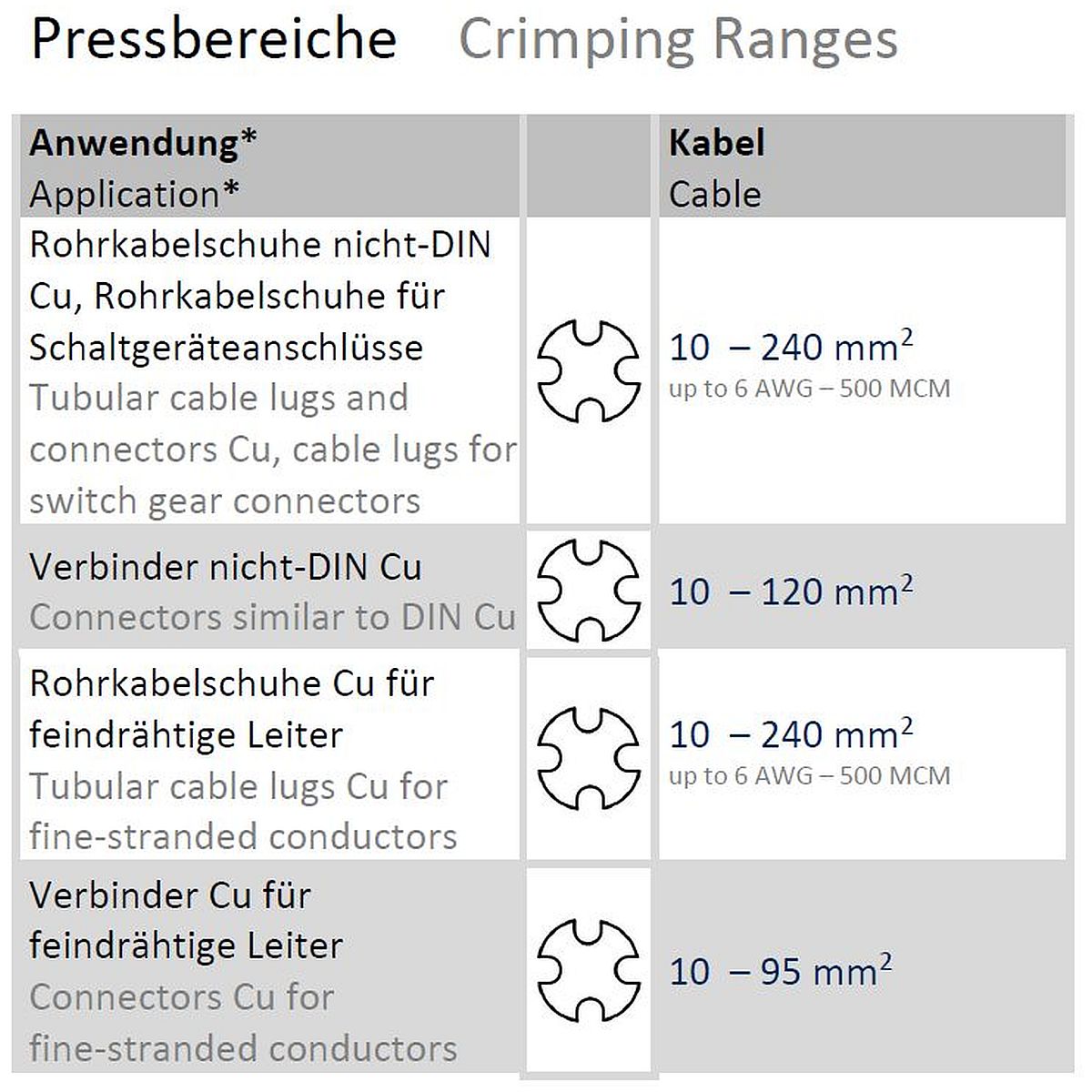

Technical crimping applications:
Similar to DIN Cu (tubular cable lugs, switch cabinet connections): 10–240 mm² (6 AWG – 500 MCM)
Similar to DIN connectors: 10–120 mm²
Cu tubular cable lugs for fine-stranded conductors: 10–240 mm²
Cu connectors for fine-stranded conductors: 10–95 mm²
Note: Areas of application subject to change. Trial processing is recommended.
Choose the PressMax-C6-4DO cordless crimping machine – the technically precise, convenient, and future-proof choice for demanding crimping tasks in control cabinets, installations, and industrial applications.
| Crimping force: | 60 kN |
|---|---|
| Opening width: | 32 mm |
| Crimping range DIN 60228 Cu: | 10 - 240 mm² |
| Crimping dies Series: | 4 Arbor |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Weight without battery: | 5.0 kg |
| Dimensions LxWxH: | 401 x 82 x 298 mm |
| Construction form: | Pistol |
| Head: | open |
