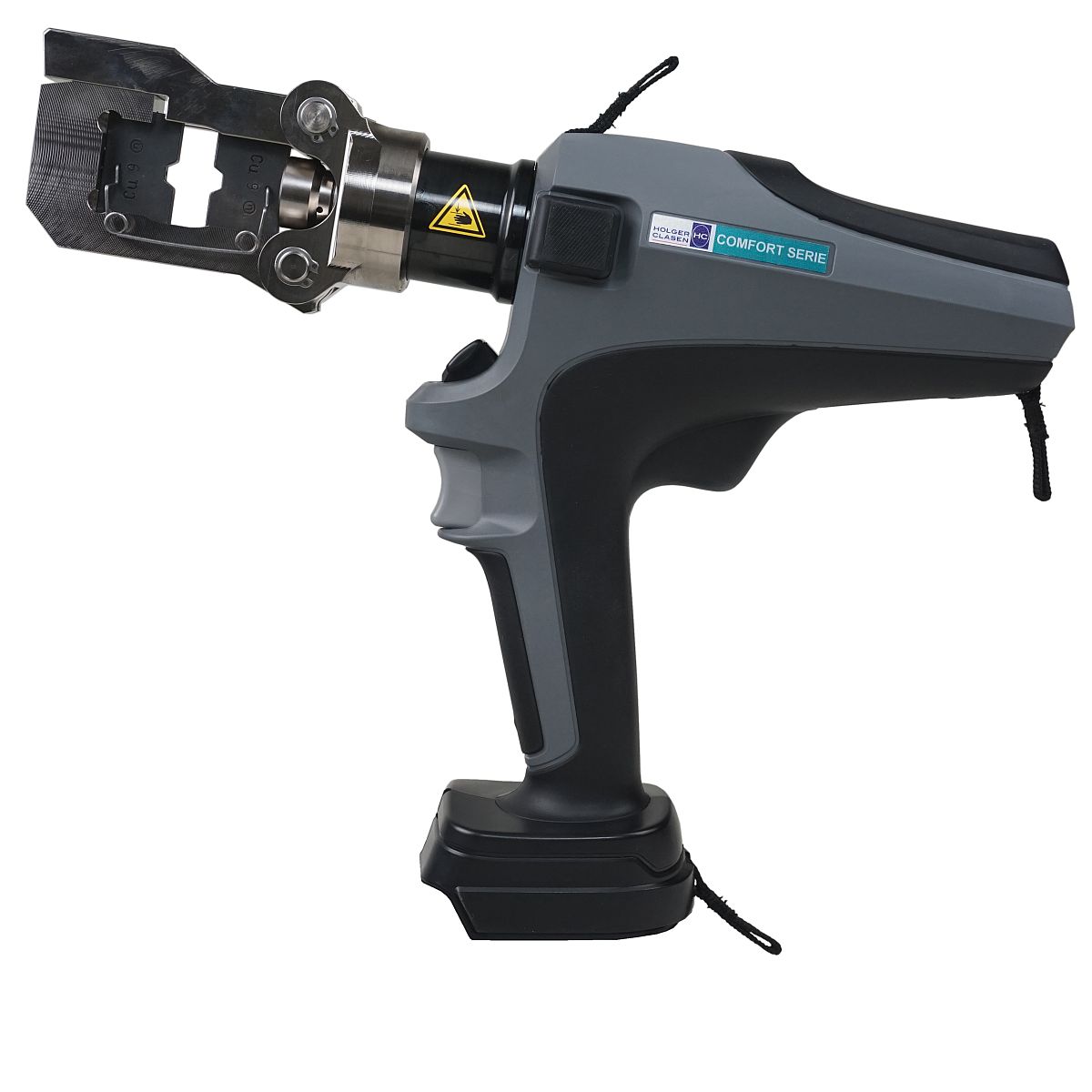

PressMax-C6 Ma Battery-Operated Hydraulic Crimper
| Crimping force: | 60 kN |
|---|---|
| Crimping range DIN Cu: | 10 - 240 mm² |
| Crimping range DIN Al: | 10 - 240 mm² |
| Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
76746000
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
Narrow design
Tool control
2-step hydraulic
Battery Control
Makita-compatible battery
Spring clip press inserts
Trunnion press inserts
PressMax-C6 Ma Battery-Operated Hydraulic Crimper
Applications
Discover the technically advanced PressMax-C6 battery-operated hydraulic crimping tool – the ideal cordless tool for professionals in the energy sector, electrical industry, infrastructure, switch cabinet and transformer construction, as well as for service providers and electricians. Designed for demanding crimping of cable lugs and connectors, the PressMax-C6 impresses with its innovative features, safe handling, and reliability.
PressMax-C6 battery-operated hydraulic crimping tool – your powerful tool for precise crimping
Application highlights of the PressMax-C6 battery-operated hydraulic crimping tool:
- Strong crimping performance: 60 kN crimping force and 15 mm stroke for reliable connections in a wide range of cable applications.
- Lightweight and handy: Weighs only 3.2 kg, pistol-shaped design and well-balanced – for fatigue-free working and high operating comfort.
- Ergonomically optimized: Can be operated with one hand, particularly suitable for confined spaces.
- Flexible application options: Suitable for block (B) and pin (Z) crimping dies; ideal for a wide range of applications.
- Safe application: Closed crimping head with bracket and latch offers maximum safety during crimping.
- Compact and maneuverable: Tool head can be rotated 180° – for perfect alignment with the workpiece, even in hard-to-reach places.
- Efficient & fast: 2-stage hydraulics for fast pressing cycles, even under high loads.
- Better working conditions: Integrated LED for optimal illumination of the work area.
- Convenient operation: Easy switching to automatic return speeds up the workflow.
MasterBase technology: Freely selectable battery holder – compatible with 18 V batteries from Makita, Bosch, Milwaukee, and 22 V batteries from Hilti (B22). This allows you to flexibly integrate the tool into your equipment inventory and save on investment and storage costs.

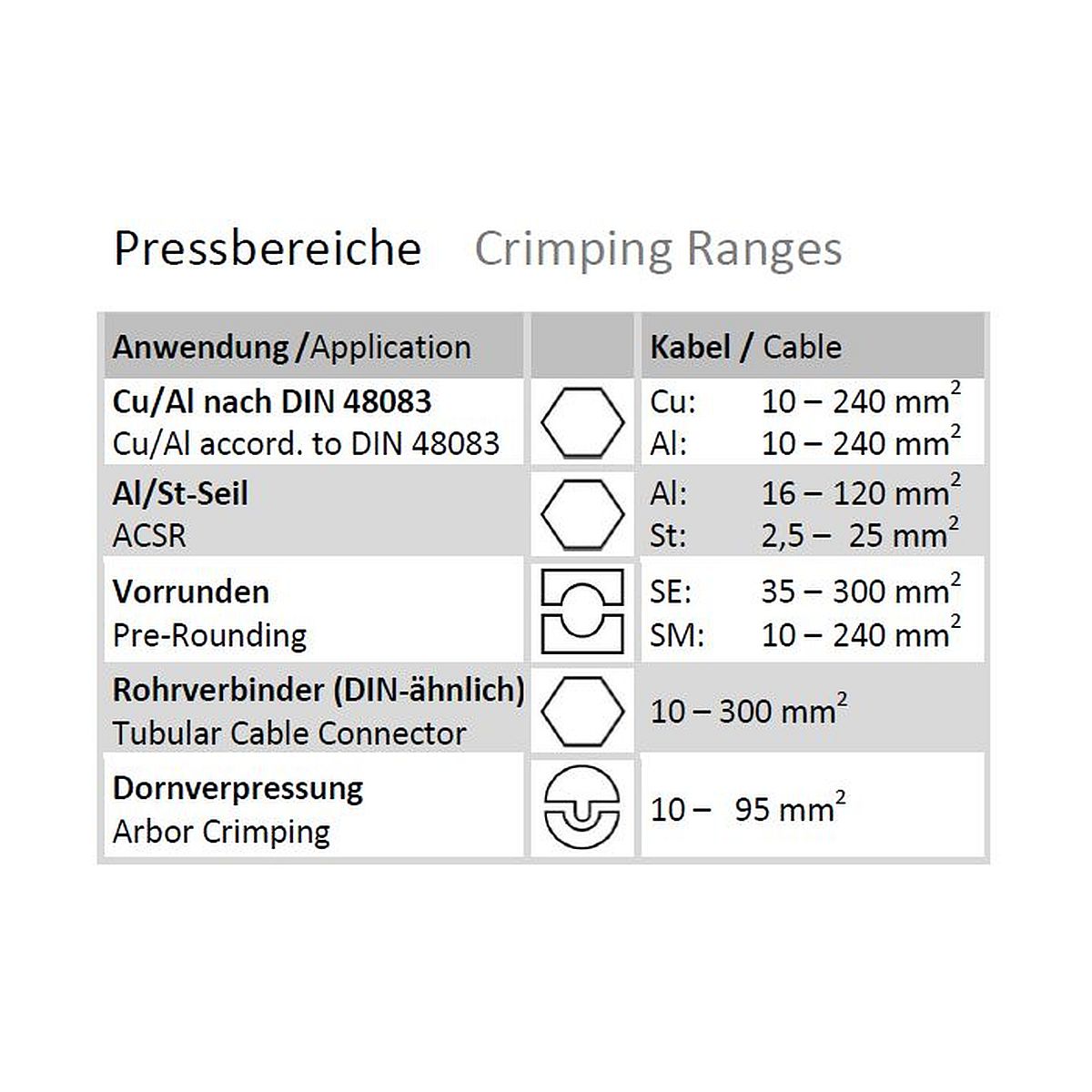

Technical pressing applications:
Cu hexagon DIN (48083): 10–240 mm²
Al hexagon DIN (48083): 10–240 mm²
Al/St cable: Al 16–120 mm², St 2.5–25 mm²
Pre-forming of sector conductors: SE 35–300 mm² (single-wire), SM 10–240 mm² (multi-wire)
Mandrel crimping: 10–95 mm²
DIN-like (tube & crimp cable lugs): 10–300 mm²
Note: Areas of application subject to change. Trial processing is recommended.
With the PressMax-C6 battery-operated hydraulic crimping tool, you are choosing a powerful, versatile, and safe tool - tailored precisely to the daily requirements of the energy and electrical industry.
| Crimping force: | 60 kN |
|---|---|
| Crimping dies Series: | Spring (F) and Pin (ZA) |
| Crimping range DIN Cu: | 10 - 240 mm² |
| Crimping range DIN Al: | 10 - 240 mm² |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Stroke: | 15 mm |
| Weight without battery: | 3.2 kg |
| Dimensions LxWxH: | 334 x 82 x 296 mm |
| Construction form: | Pistol |
| Head: | closed |
| Lock type: | Latch / yoke |
