TriLiner C Ma Battery drive for modular attachments

TriLiner C Ma - technology that inspires - compact, powerful, modular

Modular design*

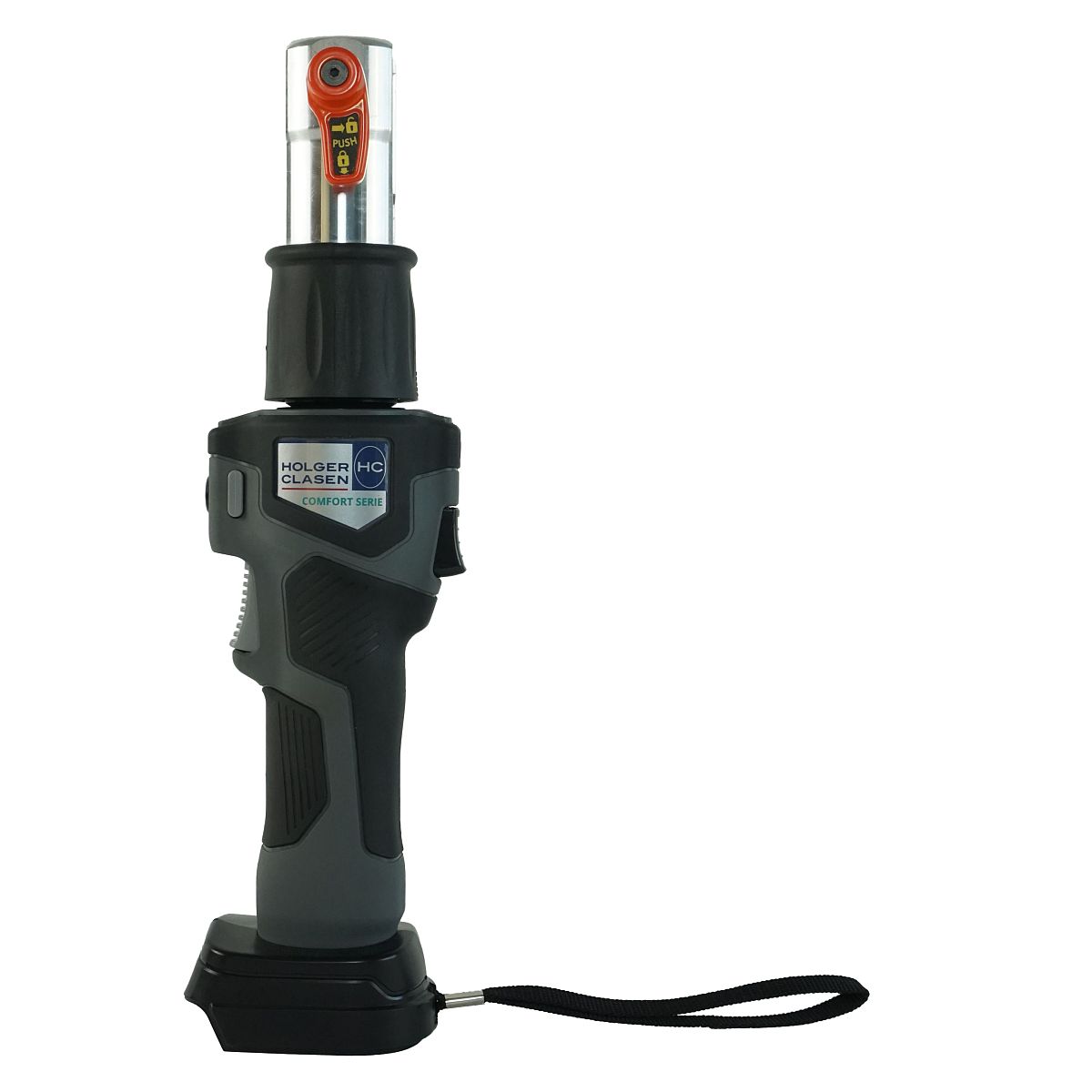

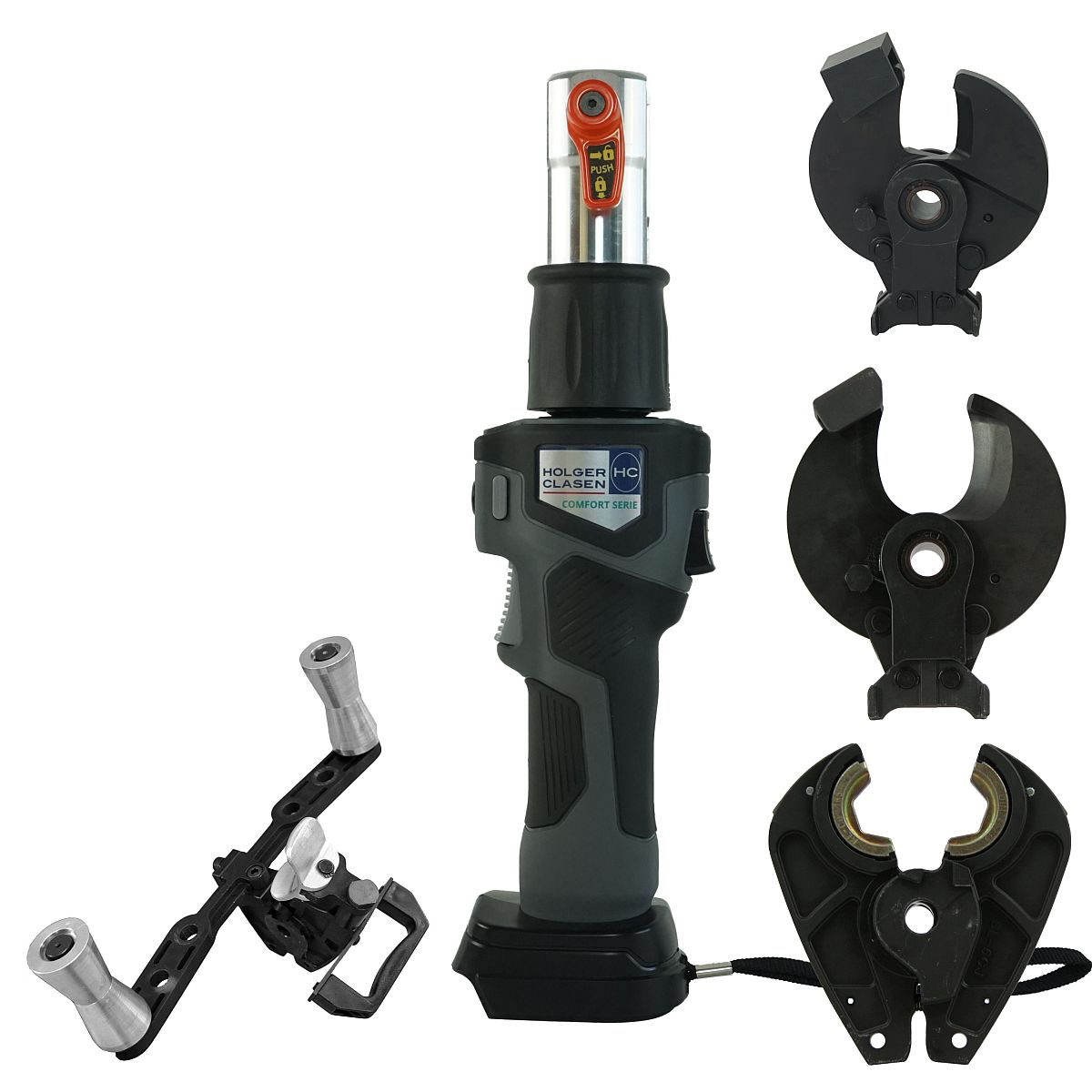

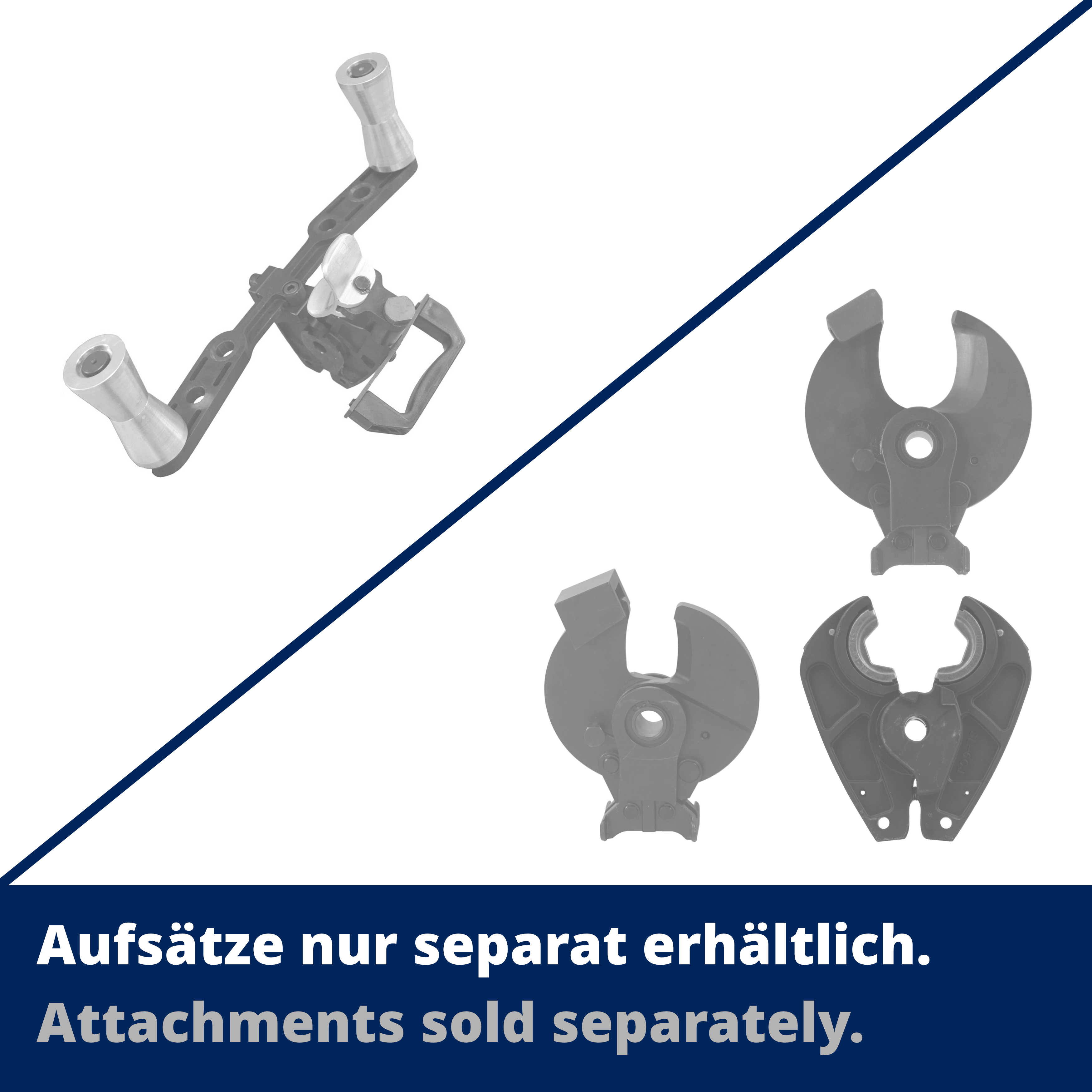

• The drive unit of the TriLiner C can be equipped with various interchangeable heads - ideal for different applications on the construction site or in the workshop:

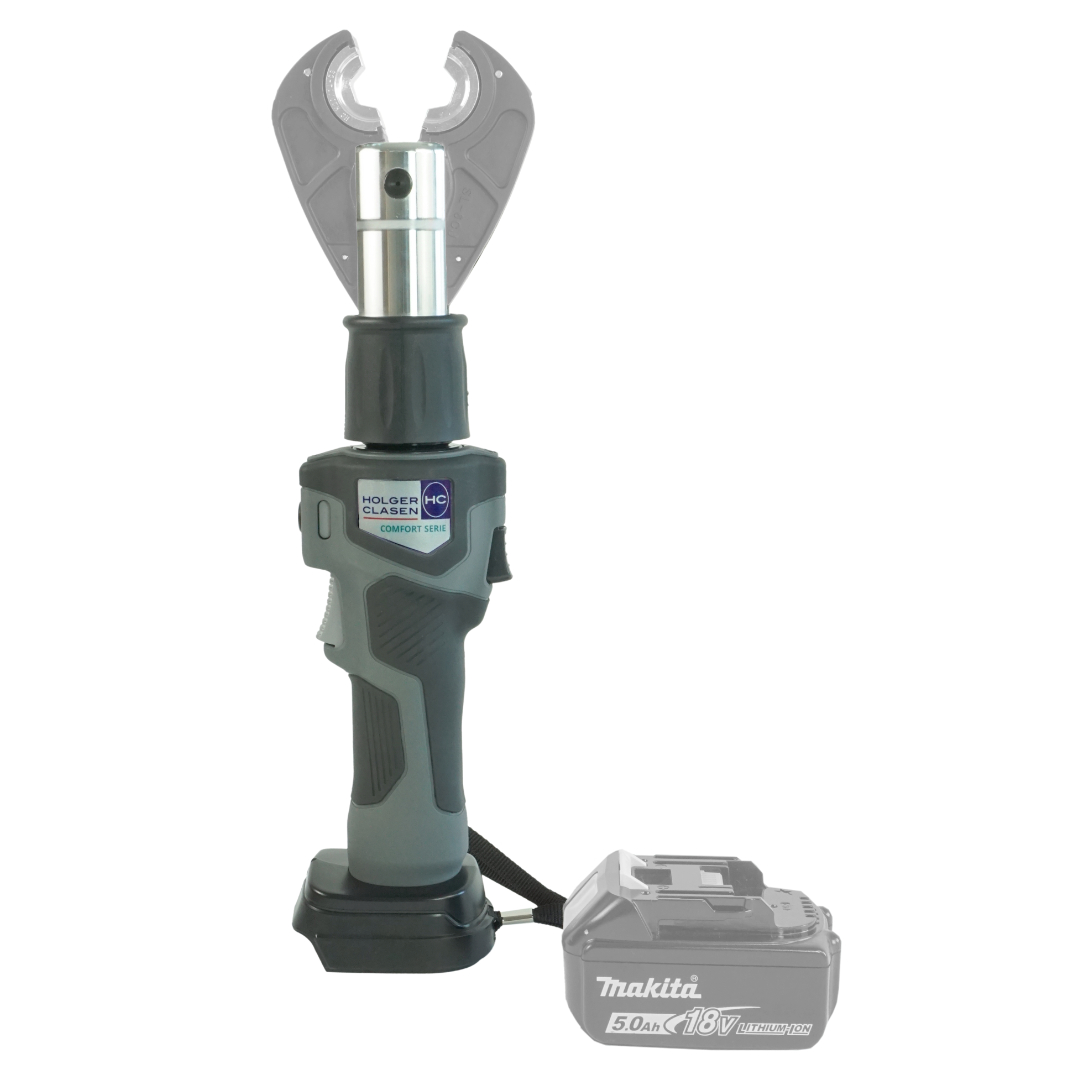

• Open crimping head for C-shell crimping up to 240 mm² (cable lugs and connectors) with narrow C-shells (CS)

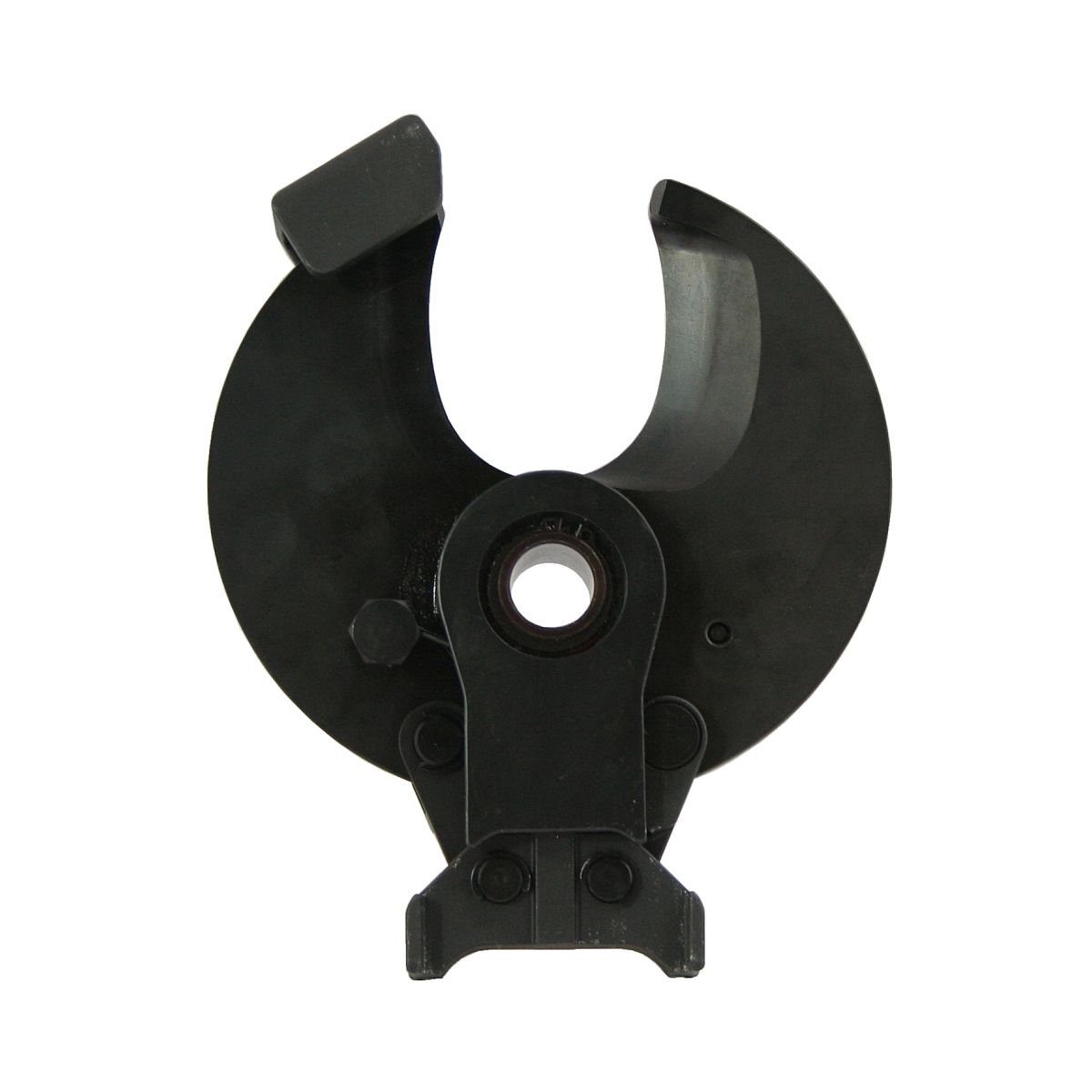

• Cutting head for Cu/Al conductors up to 30 mm Ø

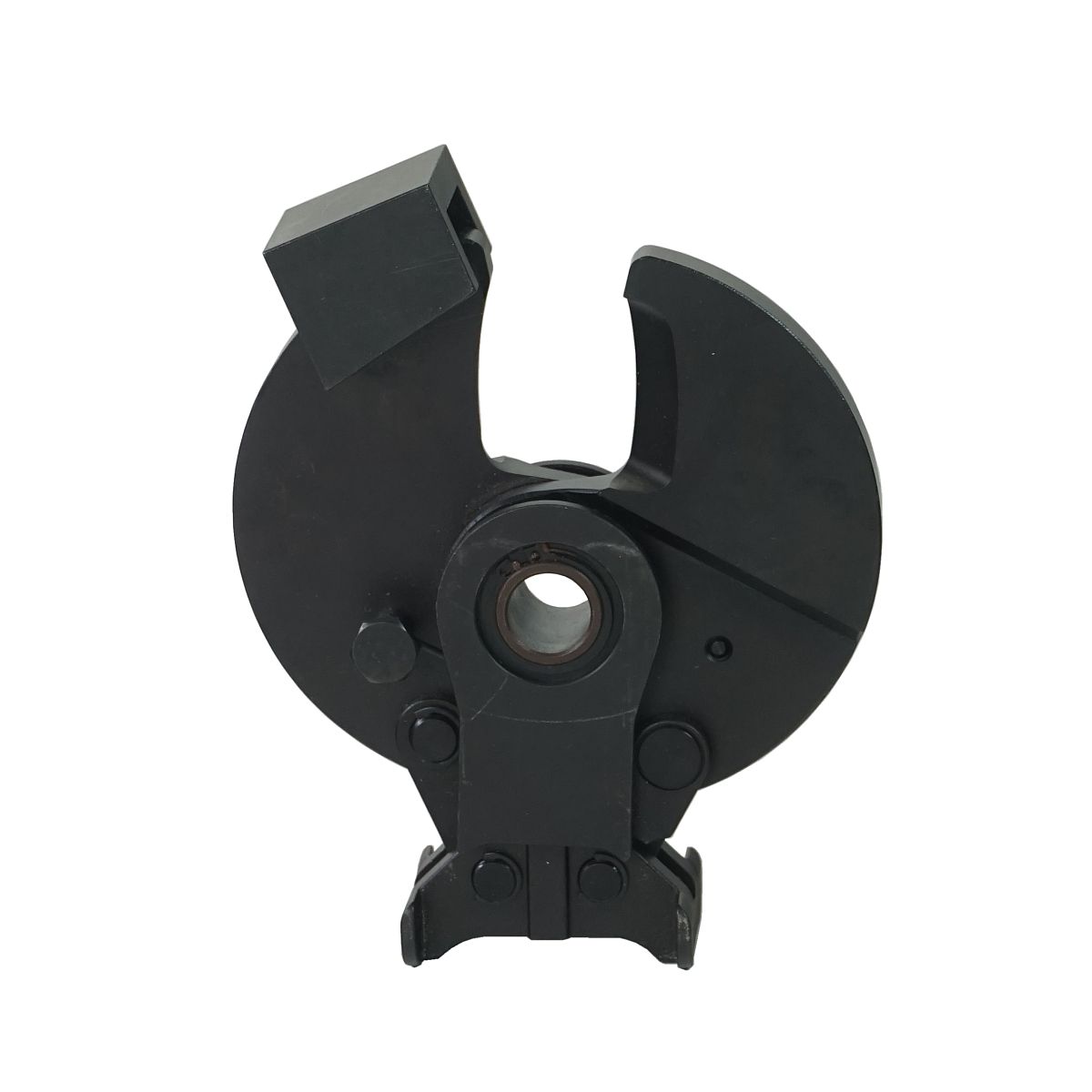

• Overhead cable cutter (Al/St) with St single conductors up to 20 mm Ø
• New bending attachment (SLCB-JAW-1) for cable diameters up to 30 mm (1,000 mm²)

Double-piston hydraulics for particularly fast, powerful work processes even under high loads, with an outstanding crimping force of 70 kN.

Maximum application flexibility

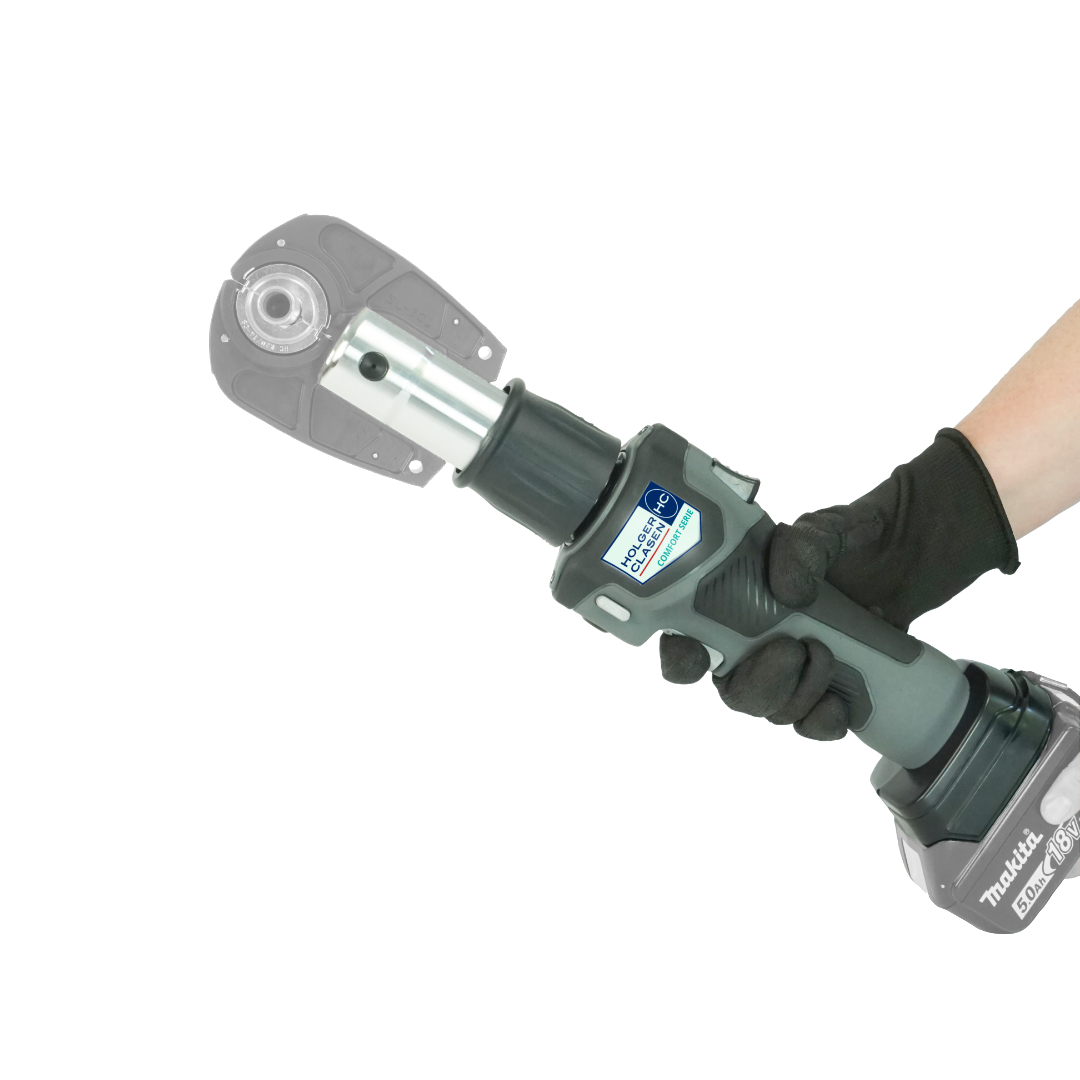

• The tool head can be rotated through 180°, enabling optimum alignment even in hard-to-reach areas.
• The open cutting geometry allows easy positioning in confined spaces.
• An integrated LED work light improves visibility of the working area in poor lighting conditions.

Simple operation

• Can be switched to automatic reverse mode
• Lightweight, well-balanced housing for fatigue-free working

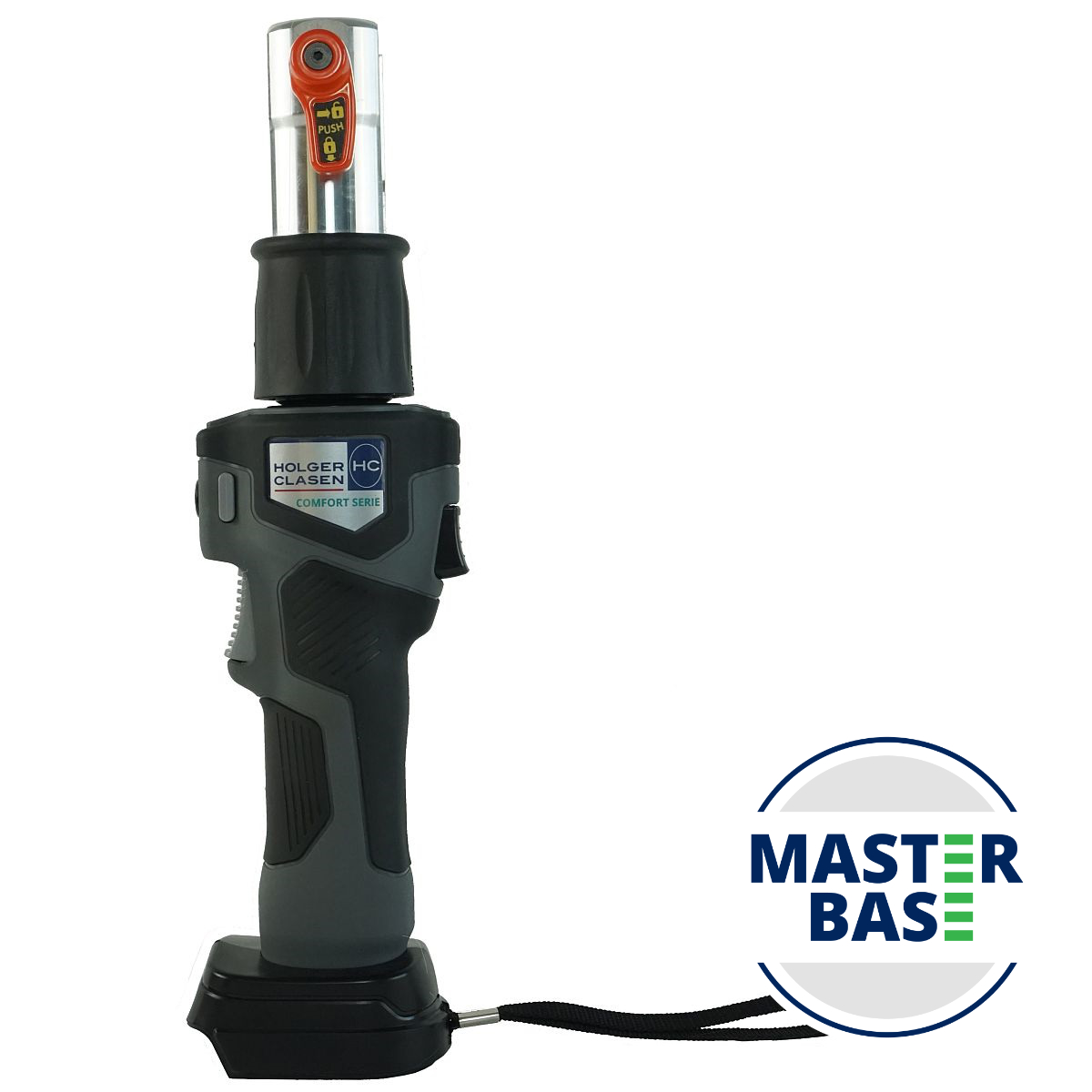

Thanks to the integrated MasterBase technology, you can select the desired battery platform. This reduces additional costs and storage requirements: compatible with 18 V Makita rechargeable batteries.

*Areas of application are subject to change. A sample processing is recommended.

C-shaped Crimping Dies small CS

The TriLiner C battery-powered hydraulic bar tool is ideal for use in various industries thanks to its high level of flexibility, compatibility and compactness. Here are three typical areas of work:

1. Energy and utilities industry: grid construction & maintenance
Task: cutting, crimping and bending energy, control and overhead cables during new installations, maintenance and repair work on medium and low-voltage grids.
Justification: The combination of interchangeable heads (e.g. cutting head for CU/AL, bending attachment) makes the tool ideal for the flexible processing of a wide range of cable cross-sections in confined spaces, such as in transformer stations or cable distribution cabinets.

2. Control cabinet & control system construction: Industrial electrical engineering
Task: Precise crimping of cable lugs and connectors in tight control cabinets, cutting cables to size.
Justification: The compact bar shape, the rotatable tool head and the open cutting geometry enable efficient work even in limited installation space. The tool speeds up installation and ensures reliable connections.

3. Cable installation in building construction
Task: Cutting, laying and professional connection of power and control cables in building shells, installation of cable routes and crimping of cable lugs and connectors for the electrical development of larger buildings. Also precise bending of cables for installation in false ceilings or supply ducts.
Reason: In building construction, space is often limited, for example in installation shafts, suspended ceilings or supply ducts. Battery-powered hydraulic rod tools such as the TriLiner C are compact, lightweight and ready for immediate use independently of the mains supply. The rotating tool head and open geometry enable efficient work even in difficult installation situations. By simply changing different heads (pressing, cutting, bending head), it is possible to react flexibly to changing installation requirements with just one device. This saves set-up time, saves space and increases work safety and productivity on the construction site

These examples show that the TriLiner C is not only indispensable on construction sites, but also in industry, building construction and for energy suppliers - wherever precise, powerful and flexible work is required. Invest in a powerful cordless hydraulic tool that adapts flexibly to your requirements - combinable, efficient and compact.
