Vitolon VB4-AM-S Battery drive 4/1 for tool attachments
| Cutting force: | 60 kN |
|---|---|
| Crimping force: | 60 kN |
| Battery voltage: | 18 V |
| Battery system: | Compatible with Makita LXT |
| Head: | only available separately |
18 V Makita-kompatibel
Vitolon VB4-AM-S Battery drive 4/1 for tool attachments

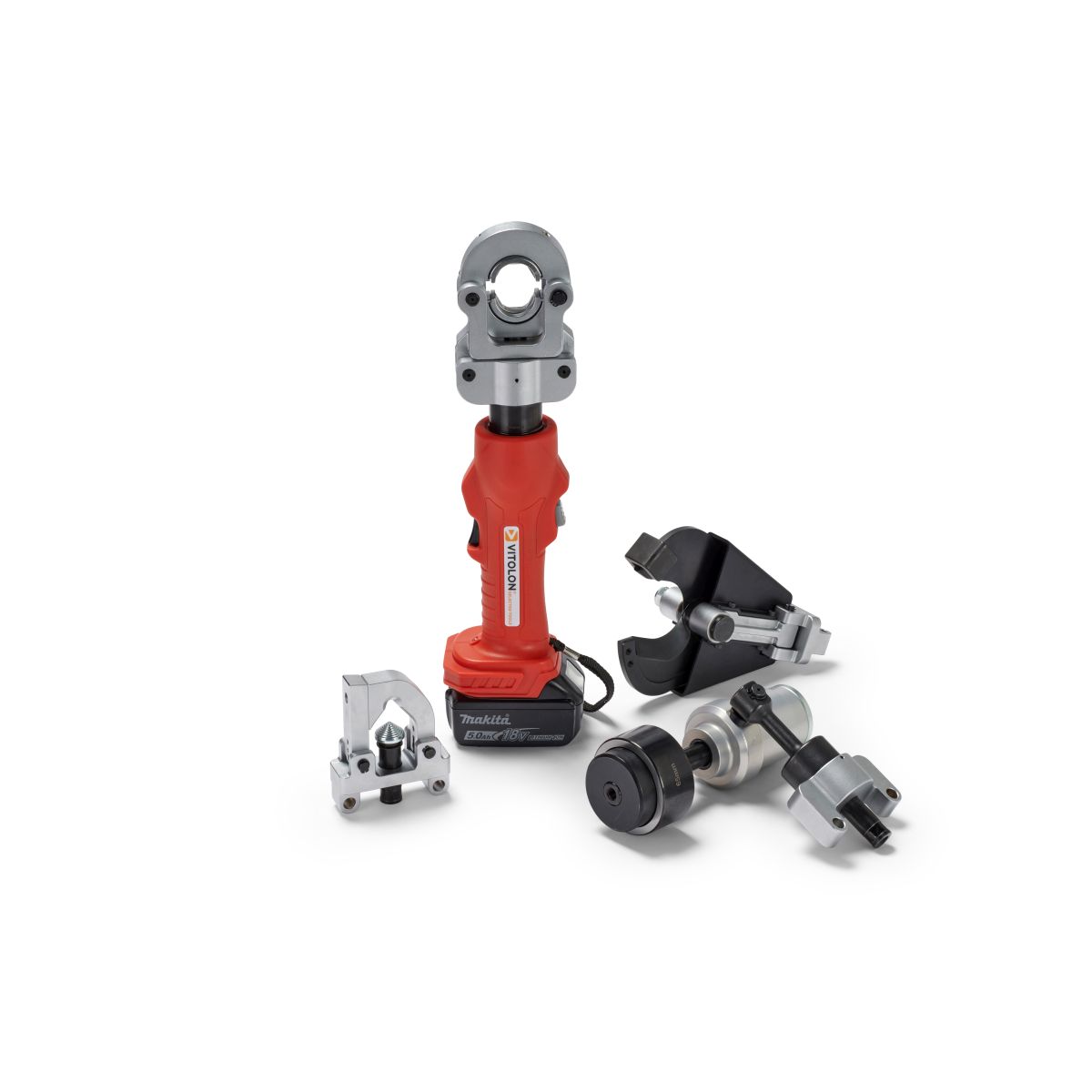

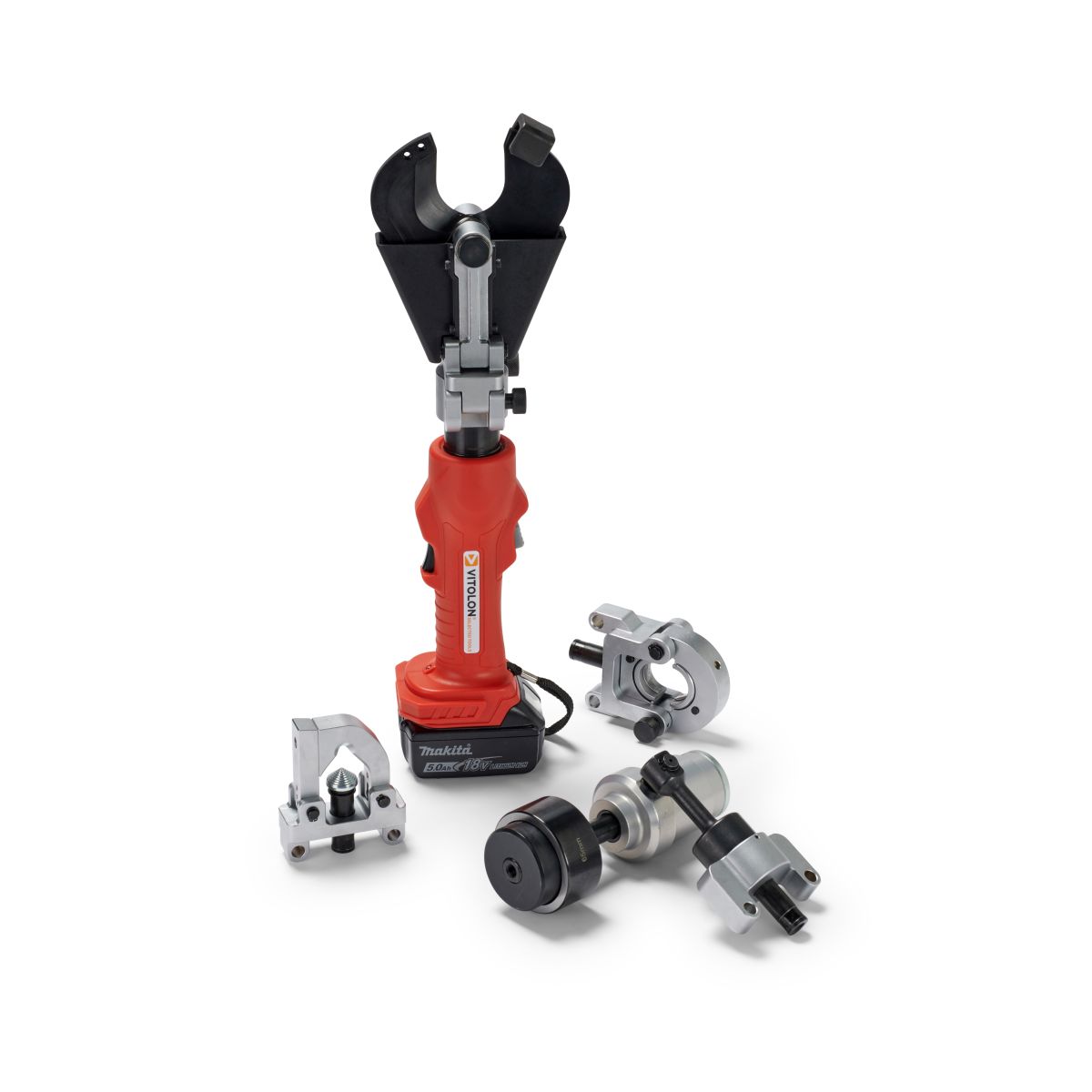

A powerful multi-tool featuring a quick change-head system for cutting, crimping, punching, and bolt cutting applications. Crimps Al/Cu up to 300 mm² (CS-die)/240 mm² (single-indent), cuts Al/Cu cables (Class 1, 2) up to Ø 49 mm, hole punching up to Ø 60.5 mm, and up to Ø 115 mm on request. Bolt cutting up to Ø 10 mm. Can be purchased in pre-configured kits.
Please note: Quick-change heads and inserts are not included in the price and must be ordered separately.
Hexagonal and single-indent crimping (DIN / non-DIN), cutting, punching, and bolt cutting.
Material / Conductor size and Diameter
Aluminium
Crimping (CS dies): 6-300 mm² (DIN / non-DIN)
Single-Indent Crimping: 50-240 mm²
Cutting (class 1, 2): up to Ø 49 mm (max. 4x150 rm/se, 1x630 mm²)
Copper
Crimping (CS dies): 6-300 mm² (DIN / non-DIN)
Single-Indent Crimping: 16-240 mm²
Cutting (class 1, 2, 5): up to Ø 49 mm (max. 4x150 rm/sm, 1x500 mm²)
Standard Punching
(other sizes / shapes on request)
up to 2“ (Ø 21.8 mm / 27.6 mm / 34.1 mm / 42.7 mm / 48.7 mm / 60.5 mm)
Material: ST37 3.2 mm / V2A 2.5-3 mm
Bolt cutting
Bolts, mild steel Ø 8-10 mm
| Cutting force: | 60 kN |
|---|---|
| Crimping force: | 60 kN |
| Battery voltage: | 18 V |
| Battery system: | Compatible with Makita LXT |
| Weight without battery: | 2.2 kg |
| Dimensions LxWxH: | 315 x 76 x 122 mm |
| Head: | 180° rotable |
| Head: | only available separately |
| Construction form: | Bar-shaped Tool |
Tool with transportation case.
Tool attachments, Battery and charger must be ordered separately.
