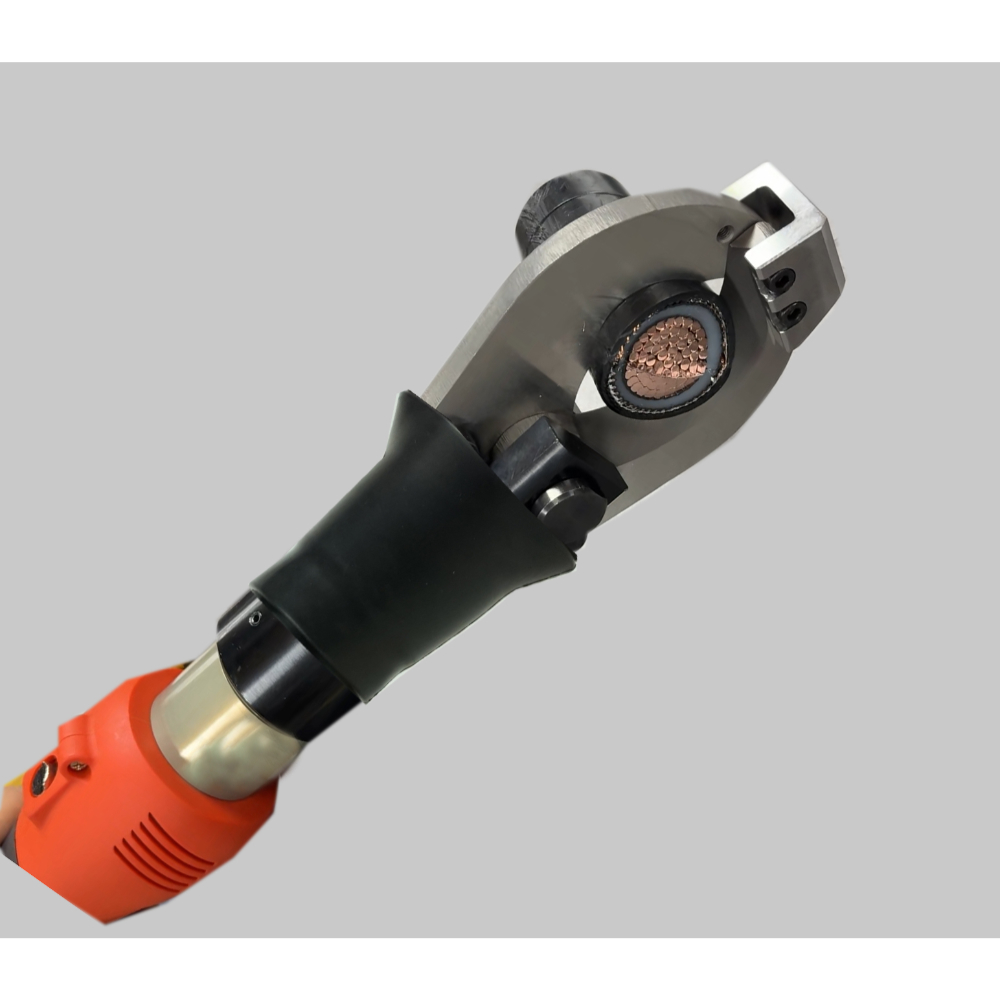

VITOLON V55O-AS-S Battery-Powered Hydraulic Cutter
| Cutting force: | 60 kN |
|---|---|
| Opening width: | 55 mm |
| Battery voltage: | 18 V |
| Battery system: | Compatible with Makita LXT |
Product number:
72102500
Makita-compatible battery
V55O-AS-S Battery-Powered Hydraulic Cutter
Applications
Cutting of power cables and underground cables as well as round material.
A compact, inline-shaped cutter with an open cutting head for the dependable cutting of copper/aluminium power and earth cables max. Ø 32 mm. For use with aluminium (Class 1, 2) and copper (Class 1, 2), Class 5 up to Ø 27 mm, rope up to Ø 22 mm, plus solid material up to Ø 15 mm.
Material / Conductor size and Diameter
Aluminium
- Cutting (class 1, 2)
max. Ø 50 mm up to 4x150 mm² se (0.6/1 kV)
Ø 47 mm 3x150/150 mm² sm (0.6/1 kV)
Ø 37 mm 1x185/25 mm² rm (0.6/1 kV)
Ø 46 mm 1x630/35 mm² rm (6/10 kV)
Copper
- Cutting (class 1, 2)
max. Ø 43 mm 4x150 mm² rm (0.6/1 kV)
Ø 46 mm 3x240 mm² rm (6/10 kV)
Ø 40 mm 1x300/25 mm² rm (6/10 kV) - Cutting (class 5**)
Ø 34 mm 1x300 mm² frm (0.75 kV)
Ø 32 mm 1x240 mm² frm (0.6 kV), insulated (yellow)
** Cutting H07V-K cable is only permitted to a limited extent or is not intended.
| Cutting force: | 60 kN |
|---|---|
| Opening width: | 55 mm |
| Battery voltage: | 18 V |
| Battery system: | Compatible with Makita LXT |
| Weight without battery: | 3.9 kg |
| Dimensions LxWxH: | 560 x 80 x 116 mm |
| Construction form: | Bar-shaped Tool |
| Head: | open, 180° rotable |
Included in delivery:
Tool with transportation case.
Battery and charger must be ordered separately.
