Crimping Heads

These tools are low-maintenance and powerful. They are designed for connection to a hydraulic pump. Individual crimping heads work double-acting for correspondingly large crimps (up to 2500mm²). By changing the tool attachment, you can quickly adapt to changing requirements.

Here you will find an overview of the crimping ranges of all Holger Clasen crimping tools: Crimping ranges

Crimping Dies

Galery

List

Sorting

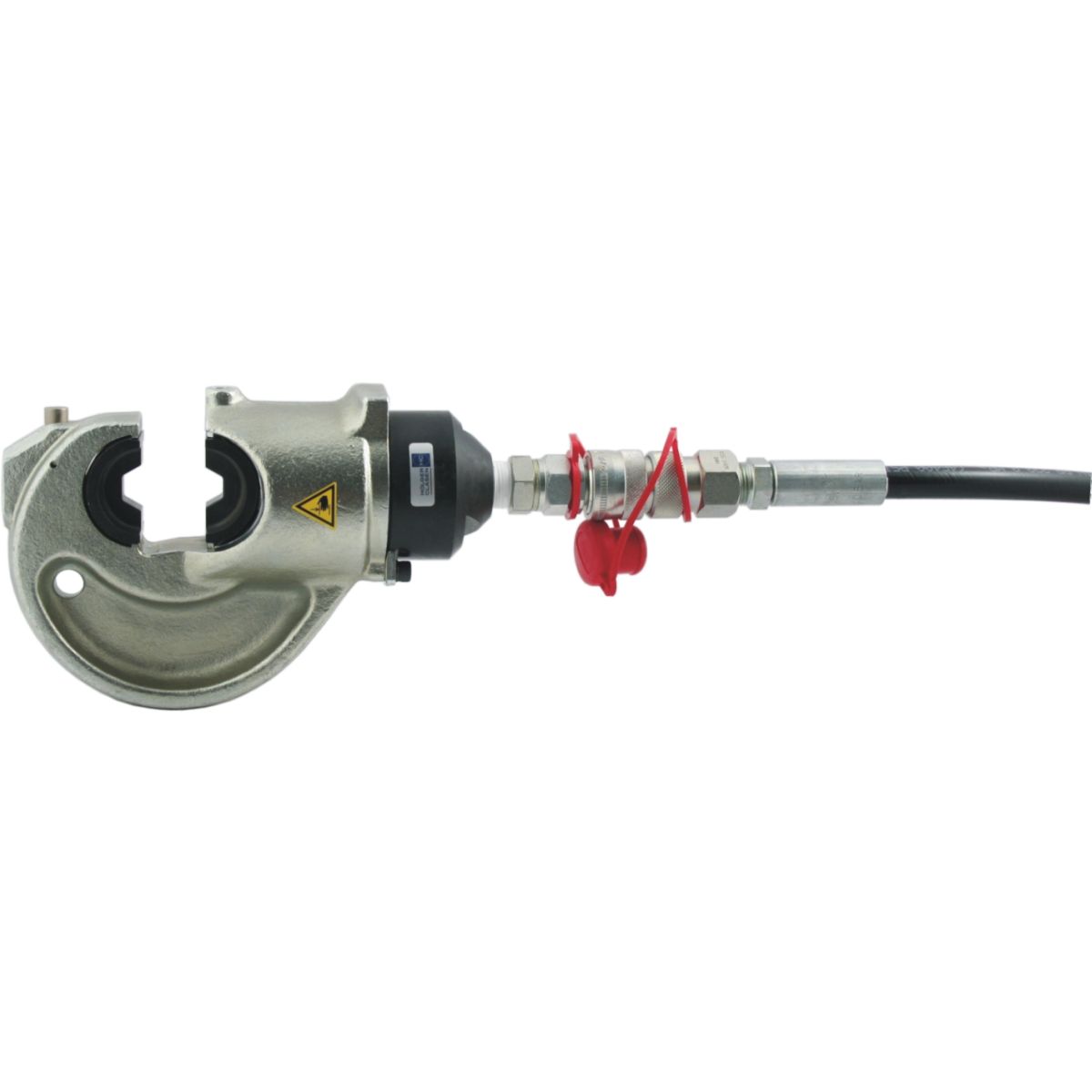

EPC410-H Hydraulic crimping head

Crimping force:

108 kN

Crimping range DIN Cu:

10 - 300 mm²

Crimping range DIN Al:

10 - 300 mm²

€9,999.00*

EPC450-HA Hydraulic crimping head

Crimping force:

450 kN

Crimping range DIN Cu:

50 - 1000 mm²

Crimping range DIN Al:

35 - 1000 mm²

€9,999.00*

EPC1000-H Hydraulic crimping head

Crimping force:

980 kN

Crimping range DIN Cu:

300 - 1600 mm²

Crimping range DIN Al:

300 - 1000 mm²

Equipment:

double-acting

€9,999.00*

EPC2000-H Hydraulic crimping head

Crimping force:

1960 kN

Crimping range DIN Cu:

300 - 2500 mm²

Crimping range DIN Al:

300 - 1000 mm²

Equipment:

double-acting

€9,999.00*

EPC250-HB Hydraulic crimping head

Crimping force:

700 bar: 225 kN - 850 bar: 270 kN

Crimping range DIN Cu:

10 - 630 mm²

Crimping range DIN Al:

10 - 500 mm²

€9,999.00*

EPC510-HC Hydraulic crimping head

Crimping force:

118 kN

Crimping range DIN Cu:

10 - 300 mm²

Crimping range DIN Al:

10 - 300 mm²

€9,999.00*

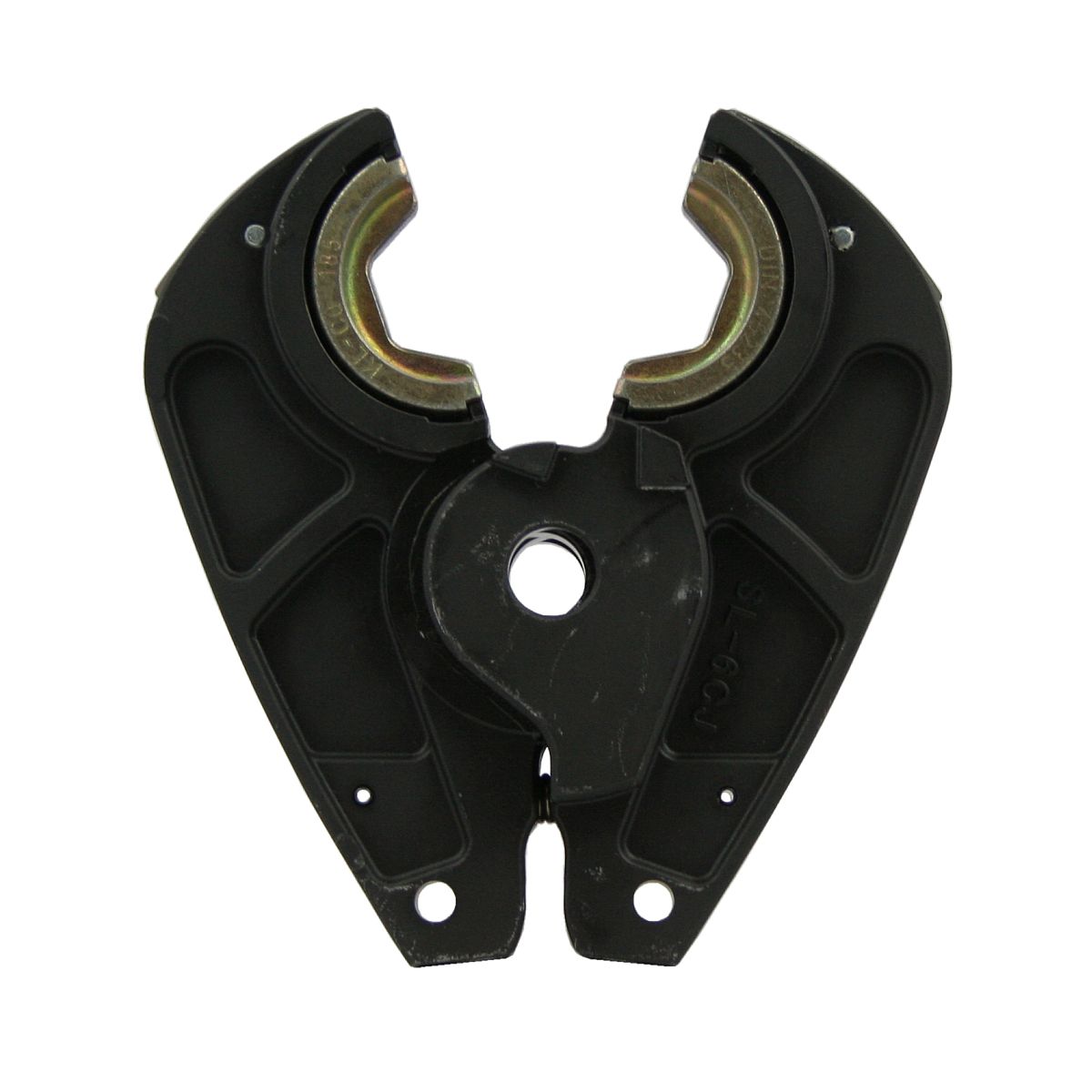

SL-6CJ Crimping Head tool attachments for TriLiner C

Crimping range DIN Cu:

6 - 240 mm²

Crimping range DIN Al:

10 - 240 mm²

€9,999.00*

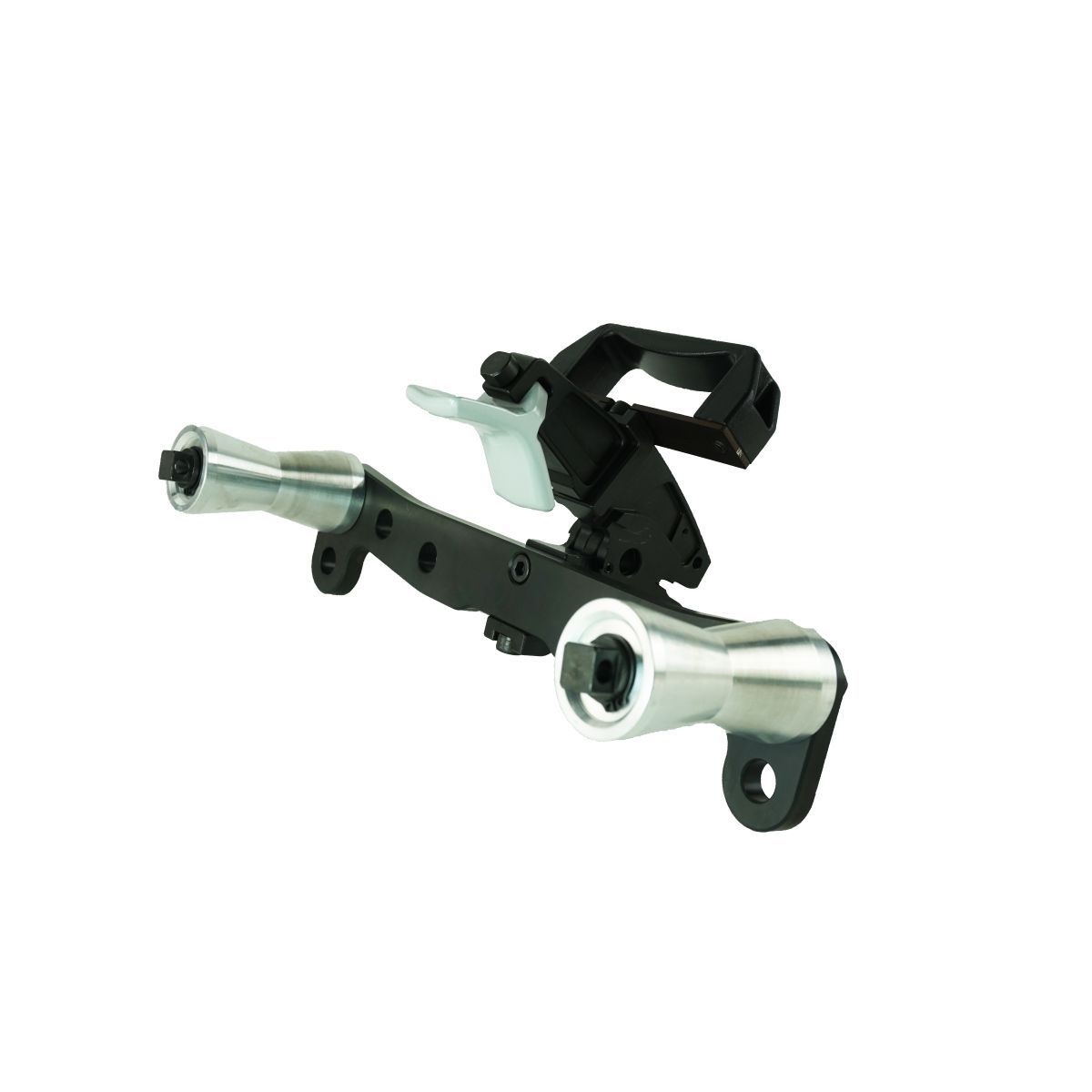

SLCB-JAW Cable Bender, tool attachments for TriLiner C

€9,999.00*
