MD500/300-LK115 Double rotor air motor
| Power [kW]: | 5.00 kW |
|---|---|
| Useful speed: | 0 - 3000 min-1 |
| Direction of rotation: | Reversible |
| Chuck: | Shaft-hub-connection Ø 28 j6 |
| Current: | Pneumatic |
Product number:
54333400
High tool life
MD500/300-LK115 Double rotor air motor
Applications
Air motors with double rotors (gear wheels) - drive technology intended to be assembled into other machines. These air motors are high operating safe, sturdy and direction of rotation is returnable.
Double rotor motor Atex (optional) with 5.0 kW power
Useful Speed: 0 - 3,000 min-1Convincing through easy control and high starting safety
Operation in clockwise/counterclockwise rotation
Flexibility through optimum speed range
The motor with double rotors impresses with its very long service life.
High starting torque
ATEX models II 2 GDcT4 - T6 or other special versions are available on request.

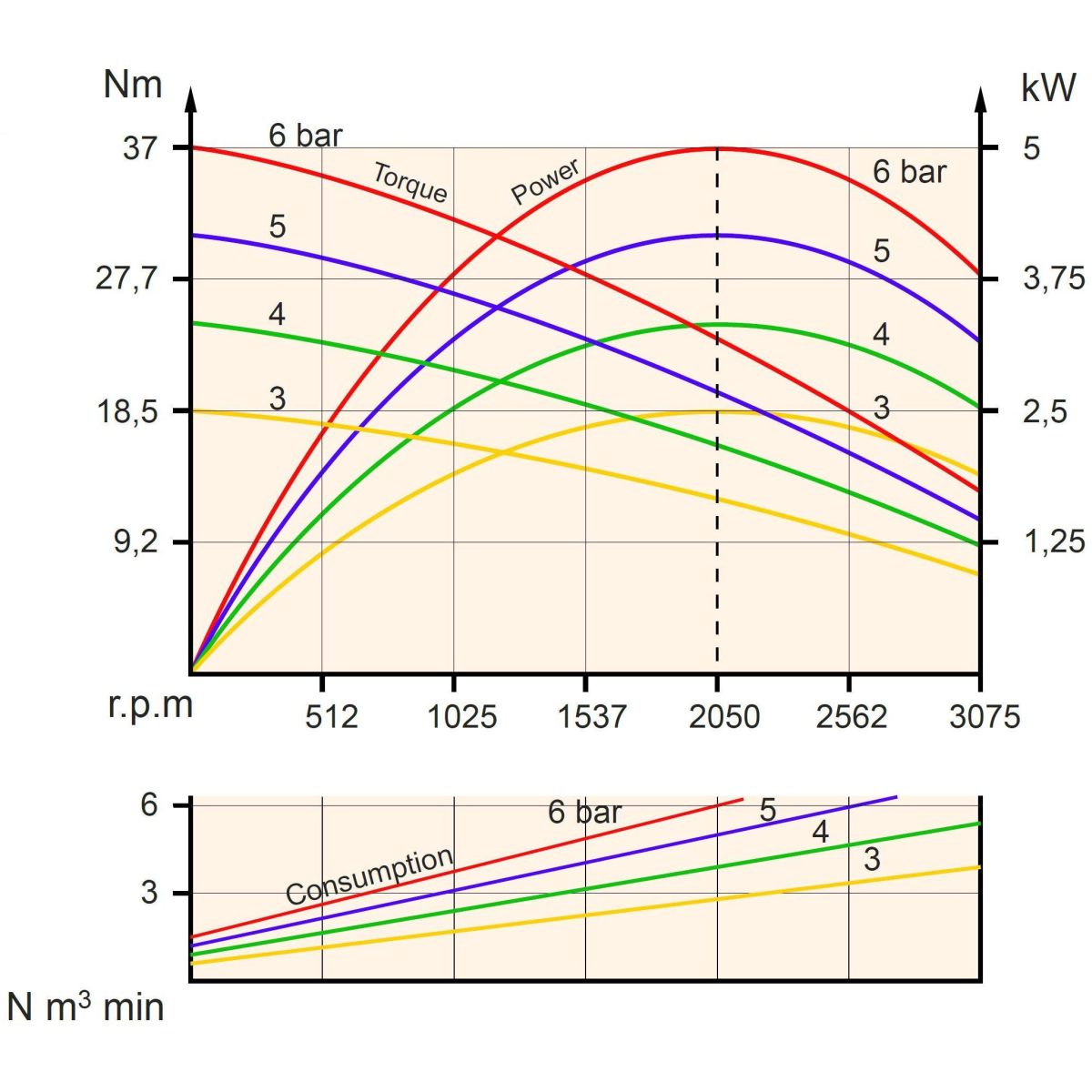

| Power [kW]: | 5.00 kW |
|---|---|
| Useful speed: | 0 - 3000 min-1 |
| Optimal speed: | 400 - 1900 min-1 |
| Starting Torque: | 35 Nm |
| Direction of rotation: | Reversible |
| Chuck: | Shaft-hub-connection Ø 28 j6 |

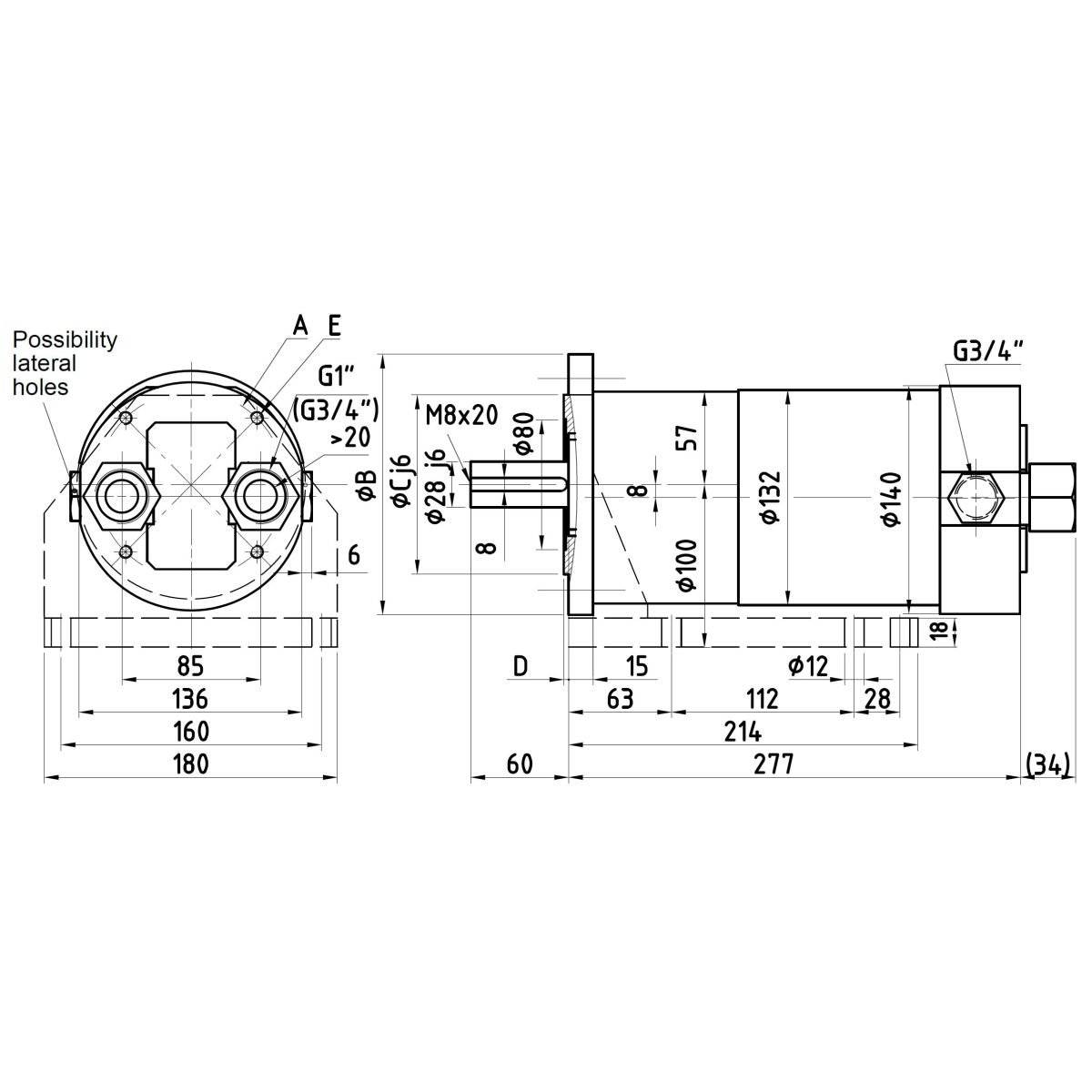

| Construction form: | IEC-flange pitch circle 115 mm |
| Weight: | 14.50 kg |
| Length: | 277 mm |
| Shaft length: | 60 mm |
| Dimension A: | 115 mm |
| Dimension B: | 140 mm |
| Housing Ø: | 140 mm |
| Dimension C: | 95 mm |
| Dimension D: | 3 mm |
| Dimension E: | M8 |
| Min. Ø Inlet Air Motor / Pipe: | 21 / 25 mm |
| Min. Ø Exhaust Air Motor / Pipe: | 24 / 27 mm |
| Current: | Pneumatic |
| Max. Working pressure: | 6.0 bar |
| Inlet air connection: | G 1" (G 3/4") |
Included in delivery:
Doppelrotormotor
Options
- Special Doppelrotormotors and ATEX II 2 GD c T4 – T6 Doppelrotormotors available on request.
