HOLGER CLASEN LS100 Linear sander

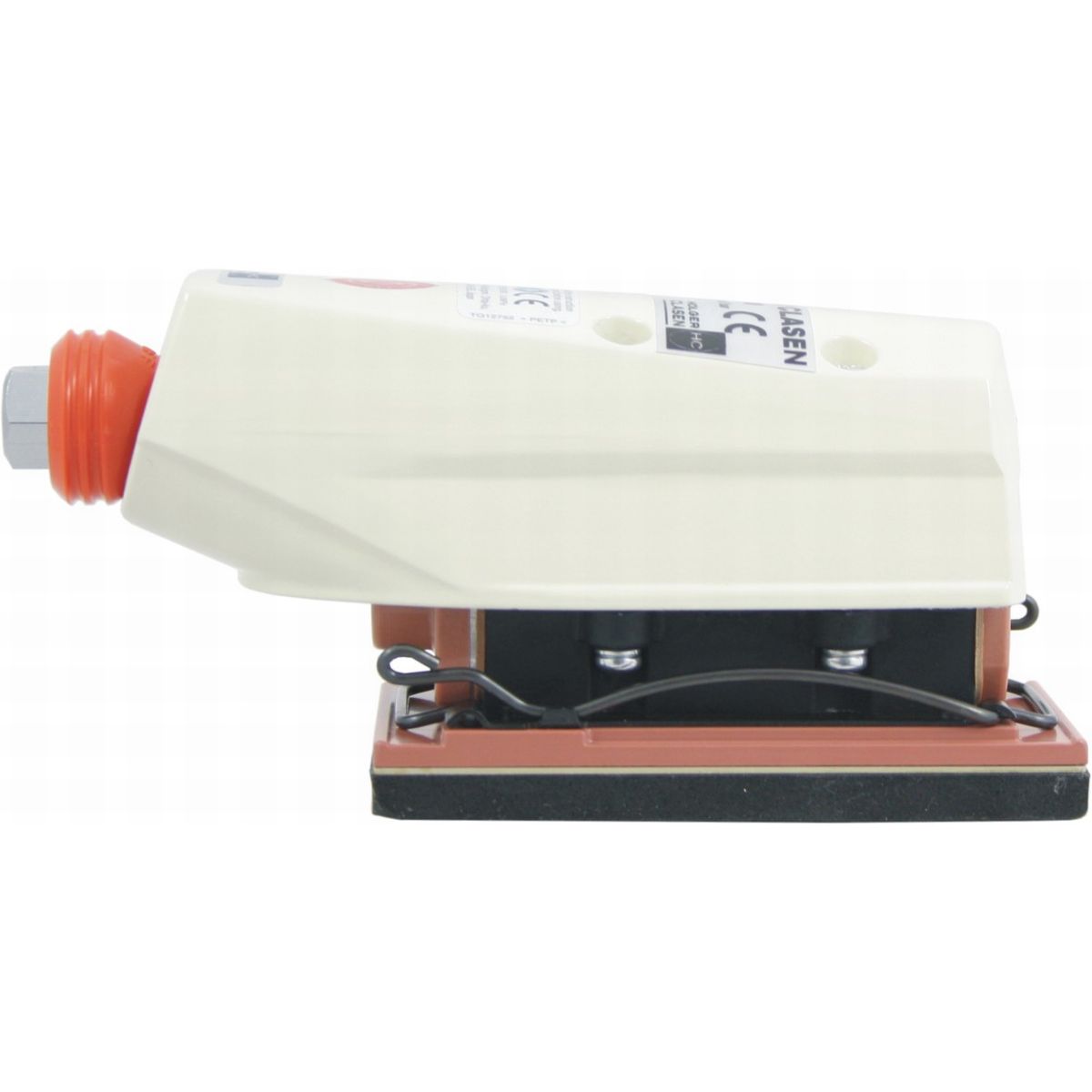

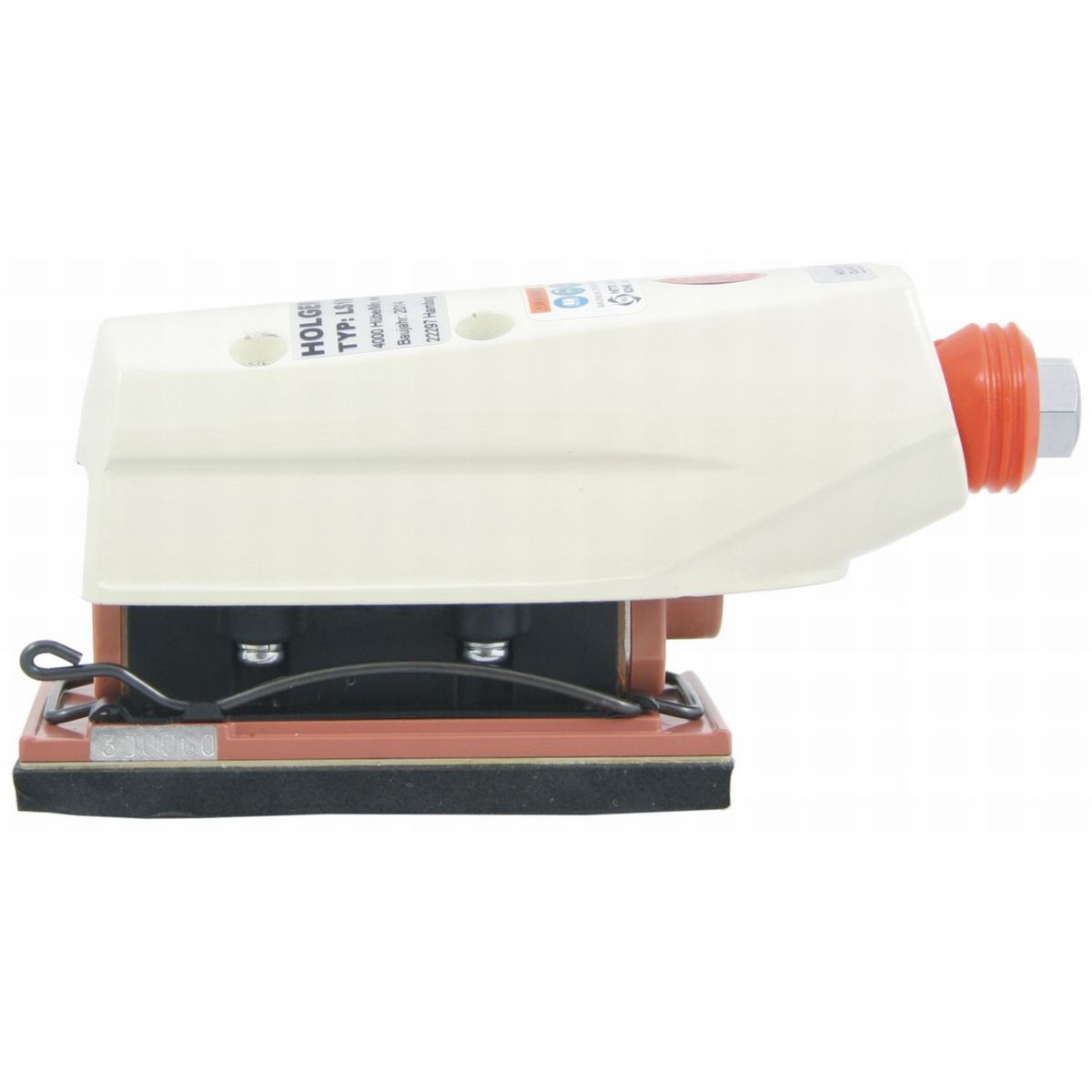

LS100 Linear sander

Applications The air powered linear sander LS100 is the ideal tool for grinding, deburring and structuring surfaces. The linear sander can process wood, metal, glass or plastic. A clamping mechanism allows the use of any standard abrasive sheet material.

Pneumatic linear sander - handy and cost-efficient surface processing

Small, handy linear sander, which is particularly suitable for working out surface structures.
The ergonomic grip surface ensures optimum tool guidance and fatigue-free working.
The start is via a slide valve.
Any standard abrasive sheet material can be clamped, which ensures considerable cost efficiency.
The clamping mechanism is easy to operate.

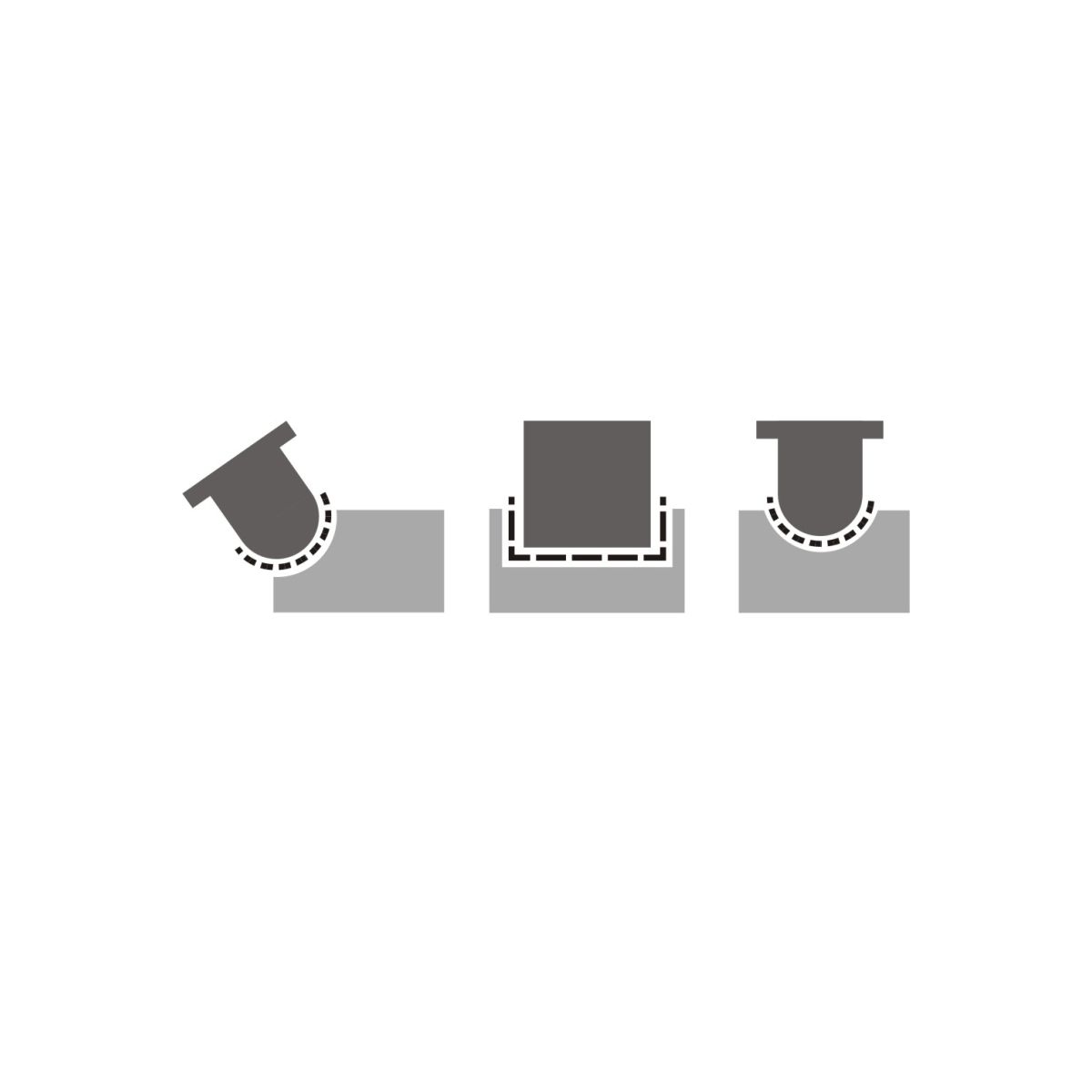

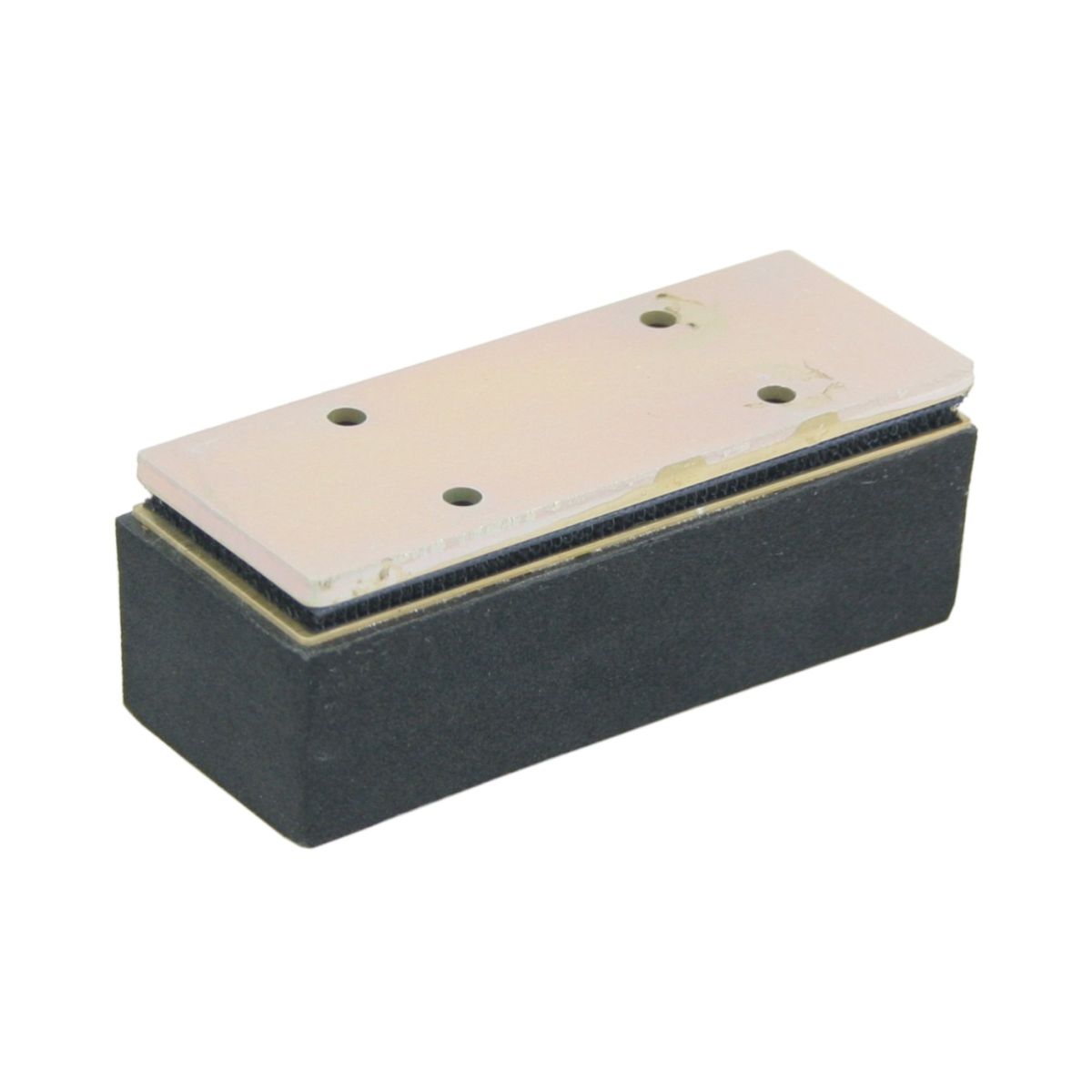

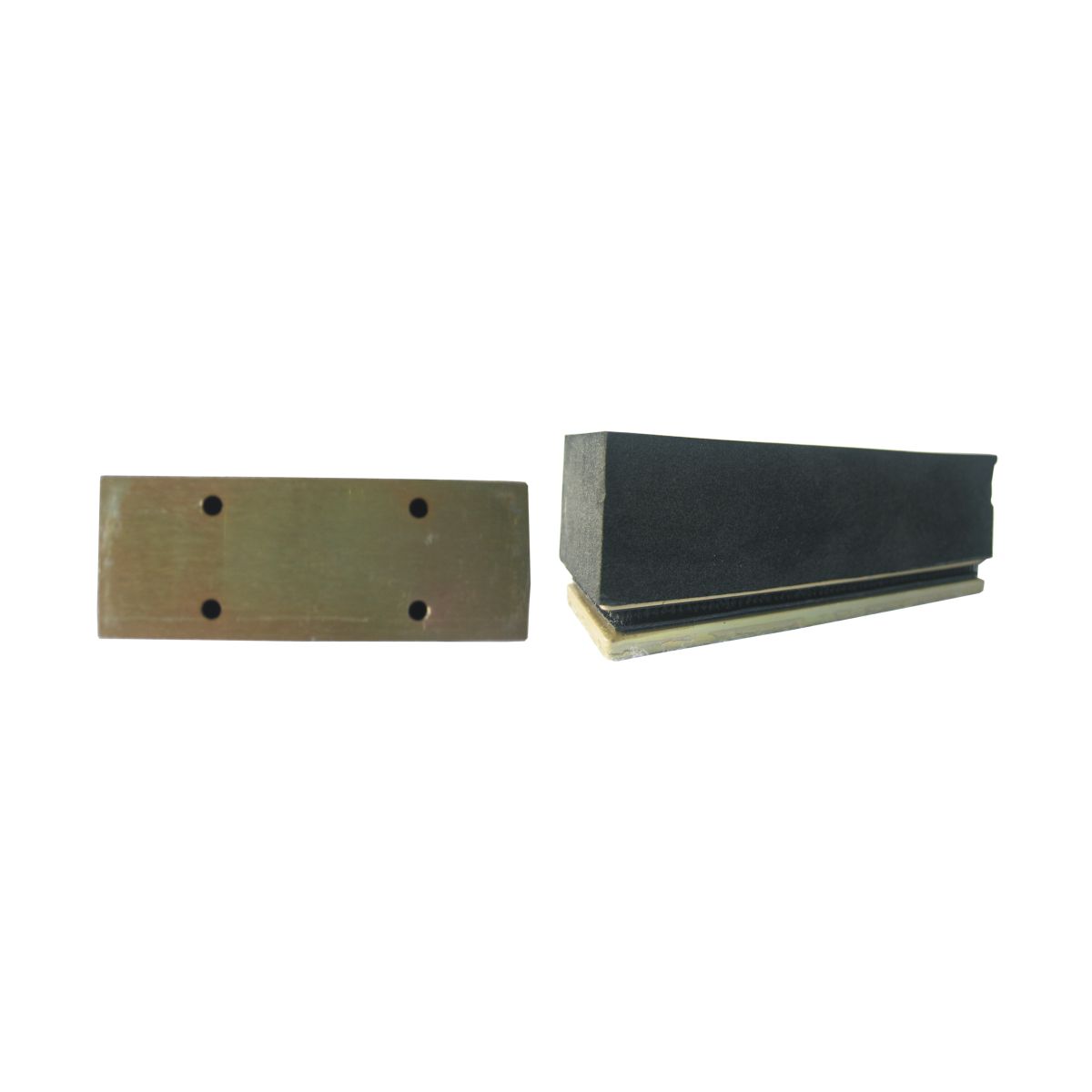

The optional profile sanding block can be adapted to the desired surface contour (contour grinder) and thus opens up an even wider range of applications.
Technical specifications
Strokes: 4000 min-1
Stroke length: 4 mm
Grinding plate WxLxH: 55 x 103 x 8 mm
Dust extraction: without
Start: Slide valve
Handling: One-hand operation
Weight: 0.8 kg
Recommended hose Ø: 6 mm
Air consumption: 1.8 l/s
Sound pressure level: 87 dB(A)
Sound power level: 89 dB(A)
Vibration: 8.4 m/s²
Current: Pneumatic
Working pressure: 6.3 bar
Inlet air connection: Tool R1/8"IG, Hose R1/4"IG
Included in delivery:

Tool with grinding plate type 96A665, quick-coupling nipple, adapter R 1/4 x NPT 1/4, inlet air hose.

Options
Skip product gallery

Extras

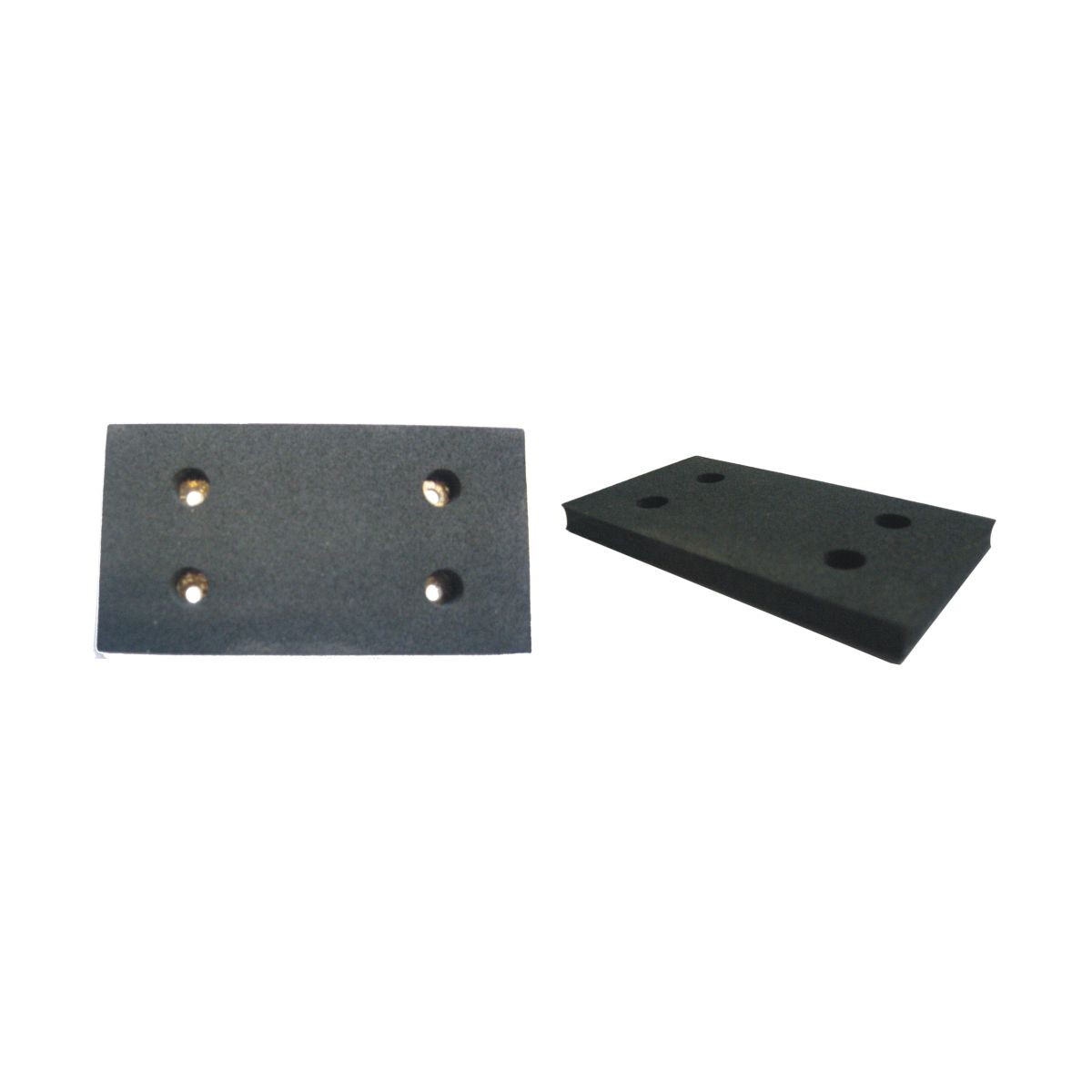

Grinding plate

€9,999.00*

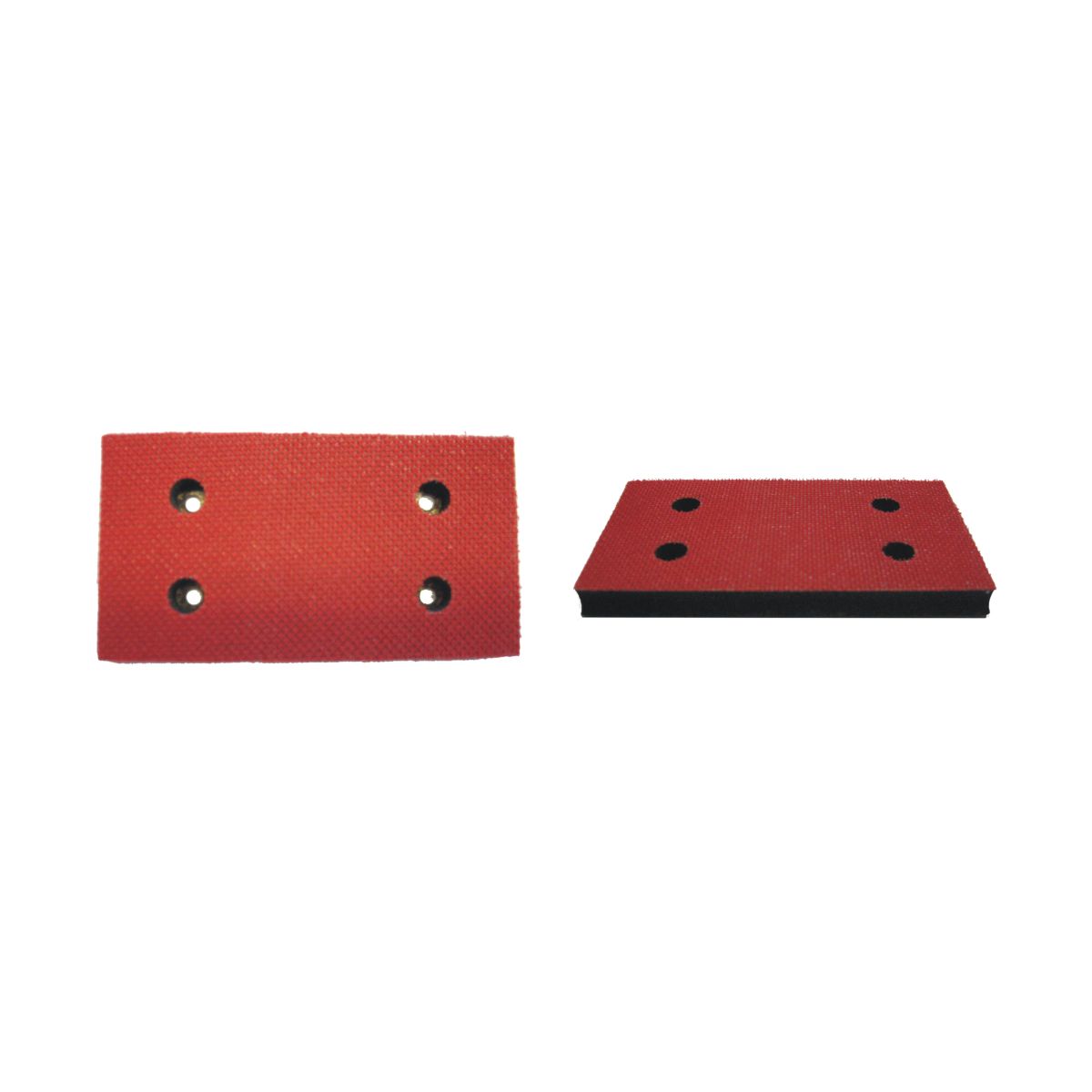

Grinding plate, velcro
