HOLGER CLASEN DG30/2000 Drilling machine with Keyed chuck 0 - 6 mm
| Power [W]: | 300 W |
|---|---|
| Speed: | 20000 min-1 |
| Chuck: | Keyed chuck (3/8" x 24 UNF) |
| Clamping Range Ø: | 0 - 6 mm |
| Current: | Pneumatic |
Product number:
42111000
Ölfreier Betrieb möglich

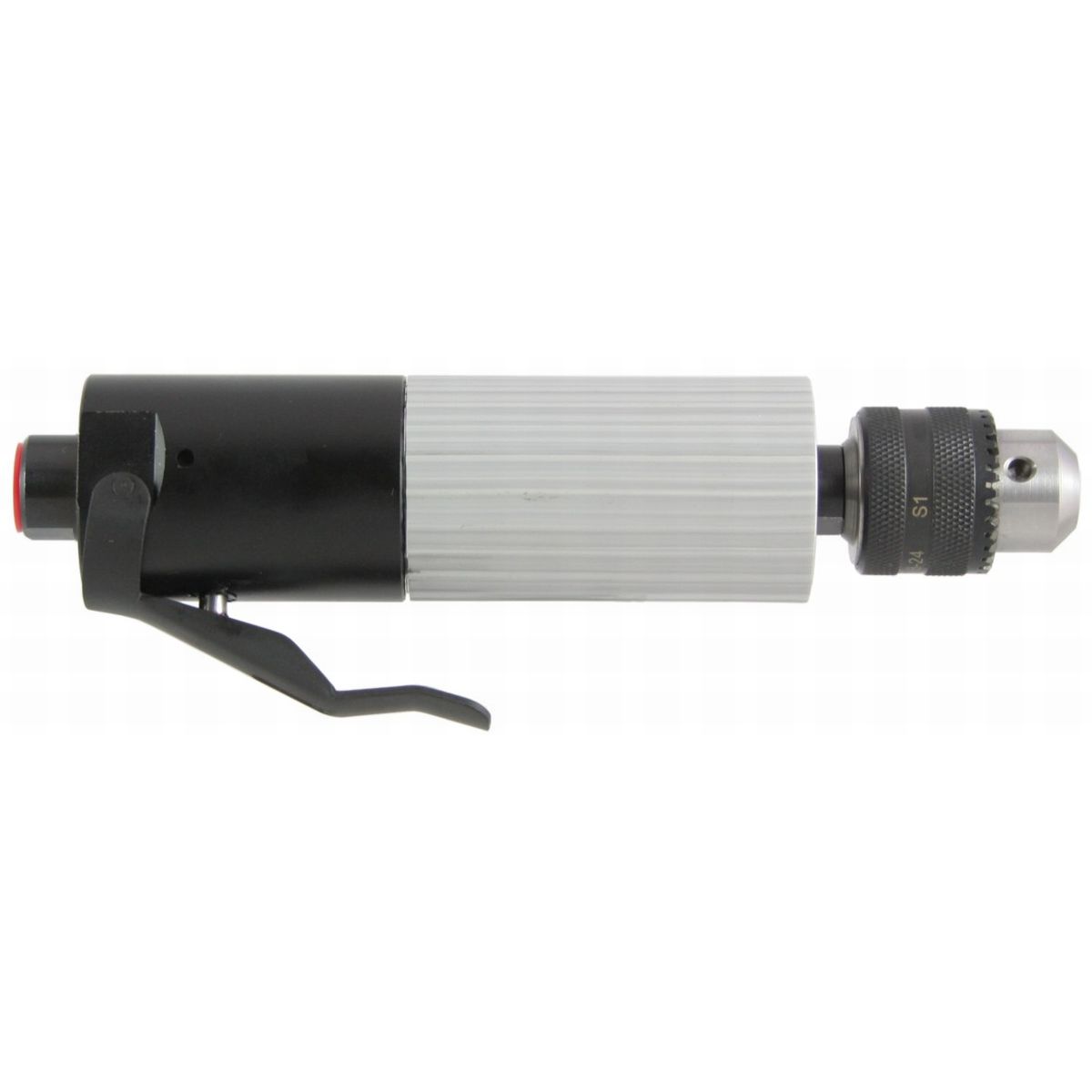

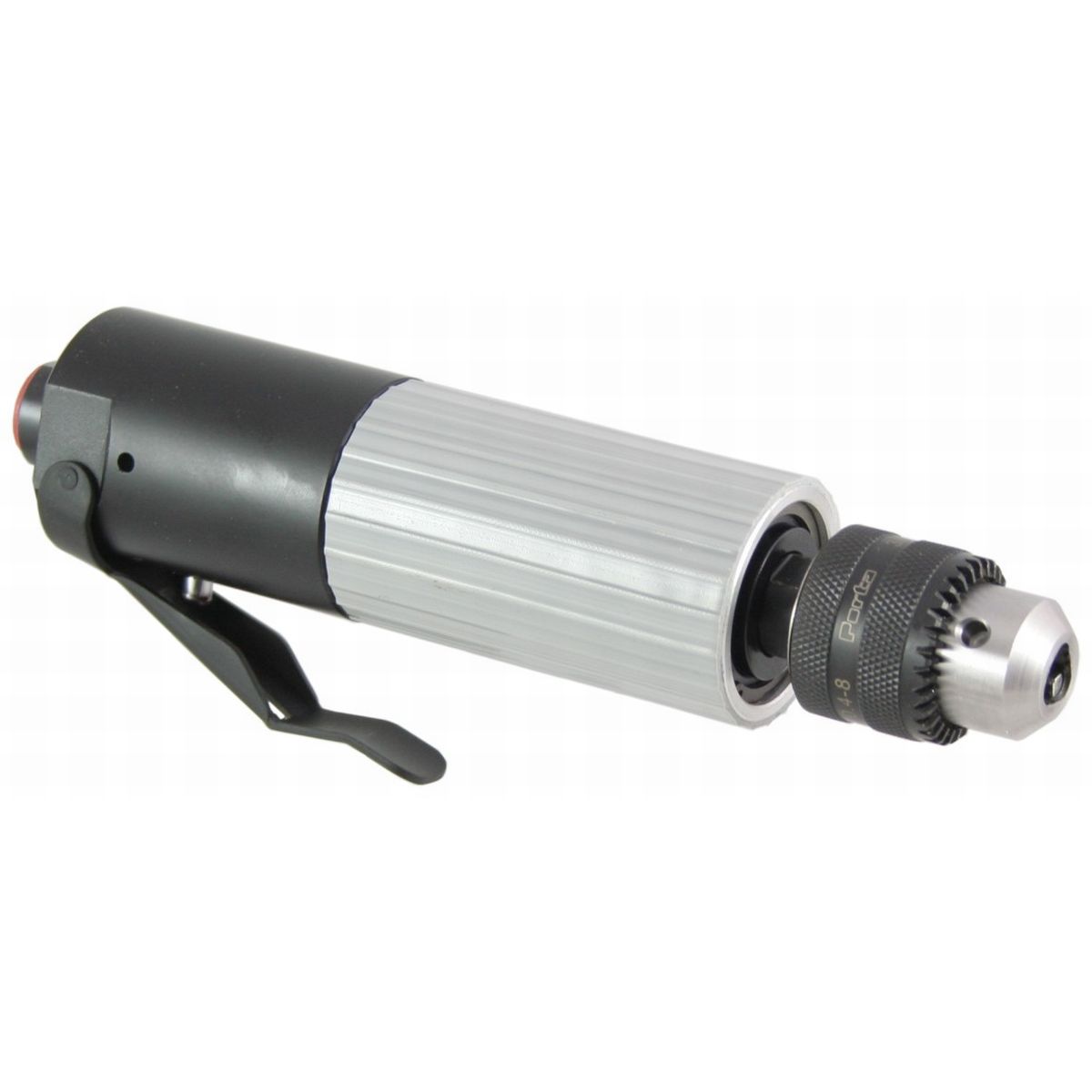

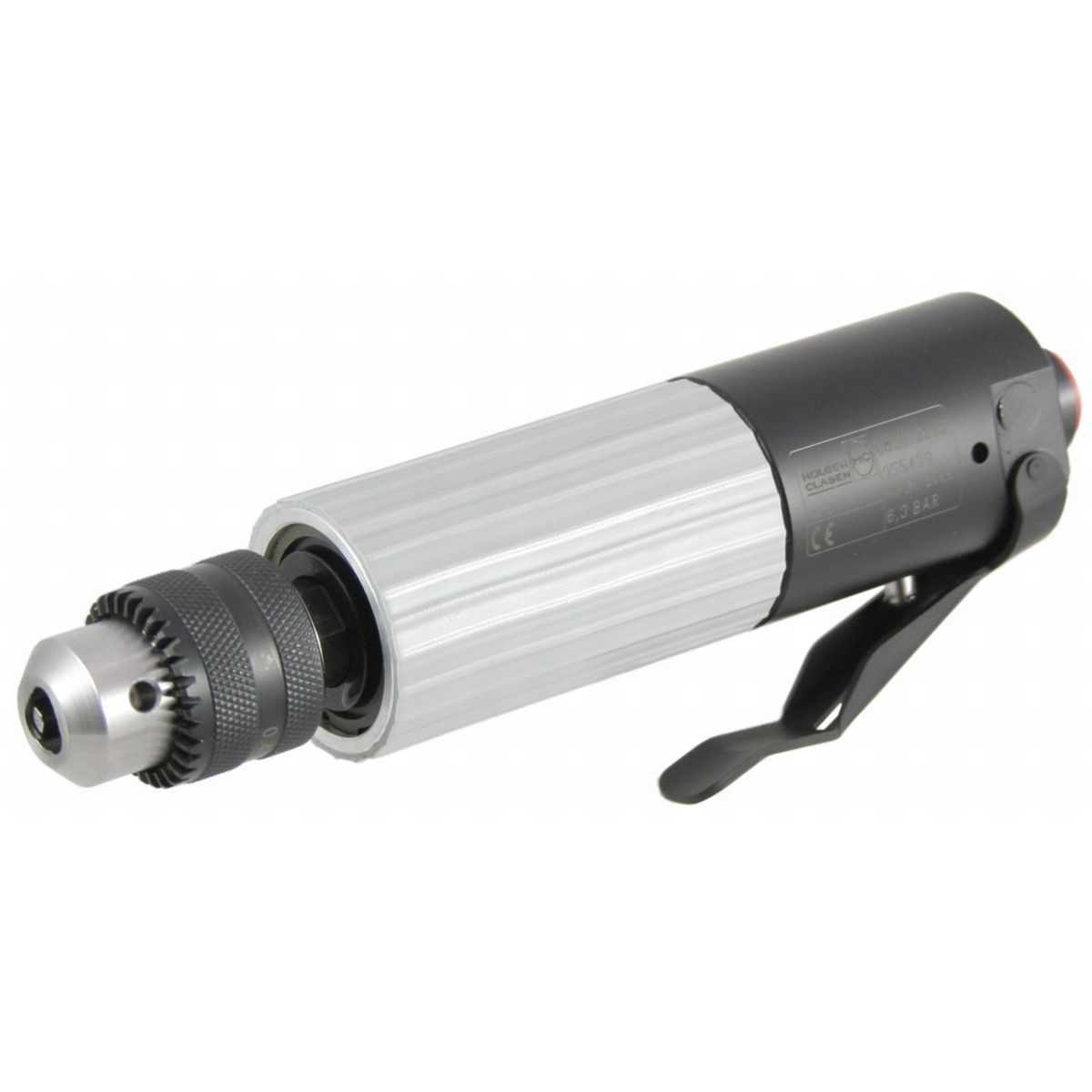

DG30/2000 Drilling machine with Keyed chuck 0 - 6 mm
Applications
The pneumatic drilling machines DG are inline shaped, air powered drilling tools for axial drilling applications. They are used in any type of industrial company as well as in workshops and for maintenance.
Pneumatic drilling machine - professional tool for the industry
Reliable drilling machine with a favourable weight/performance ratio.The drill chuck is interchangeable for different applications.
The low speed start is best suited for better drill placement.
The drills have a long service life with constantly high performance.
Pneumatic drills in bar form are recommended for vertical drilling.
| Power [W]: | 300 W |
|---|---|
| Speed: | 20000 min-1 |
| Chuck: | Keyed chuck (3/8" x 24 UNF) |
| Clamping Range Ø: | 0 - 6 mm |
| Construction form: | Straight |
| Start: | Valve lever |
| Direction of rotation: | Right |
| Weight: | 0.63 kg |
| Housing Ø: | 40 mm |
| Length: | 190 mm |
| Inlet air connection: | G 1/4" |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 9 l/s |
| Sound pressure level: | 76 dB(A) |
| Vibration: | < 2.5 m/s² |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
Included in delivery:
Tool, chuck key, hanger, quick-coupling nipple.
