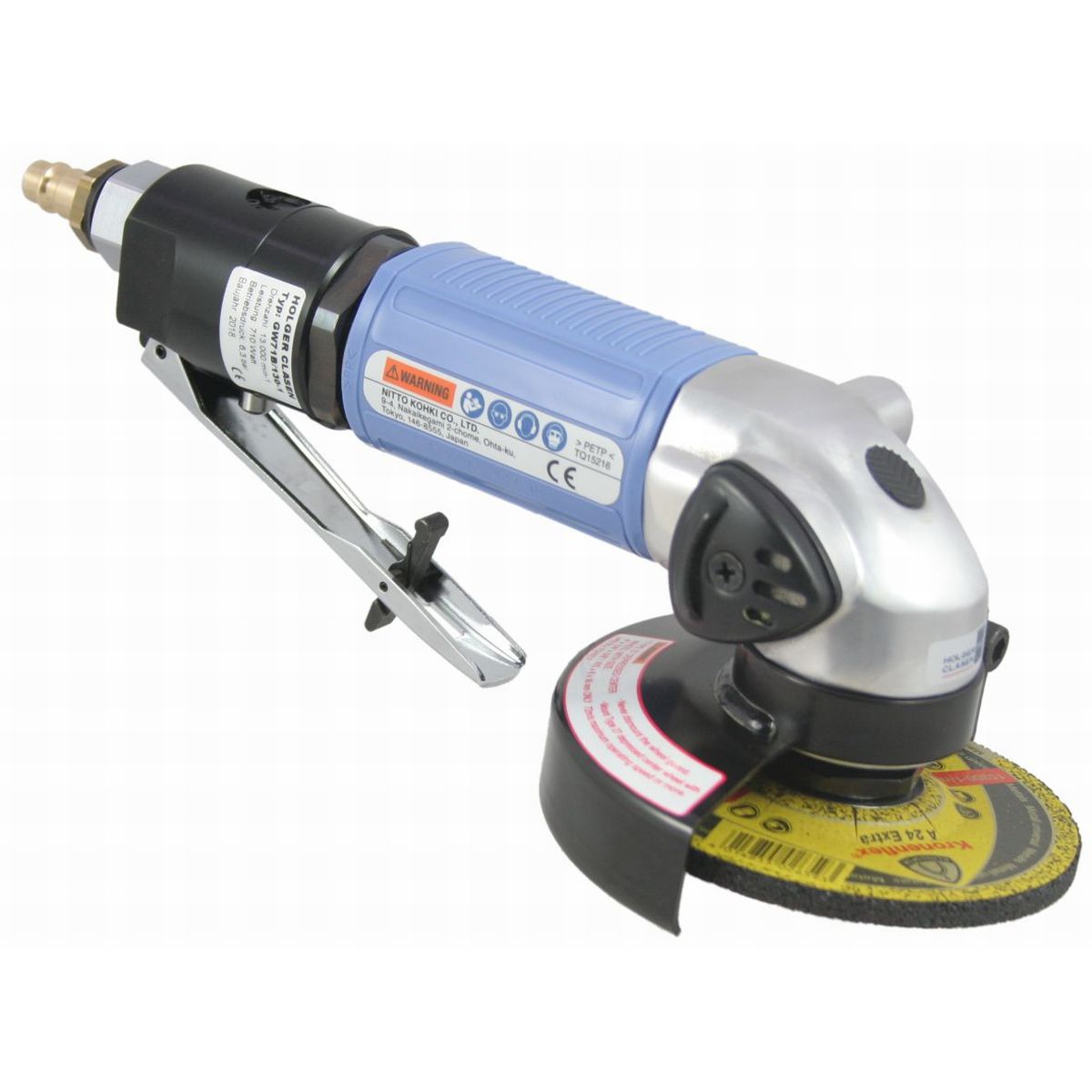

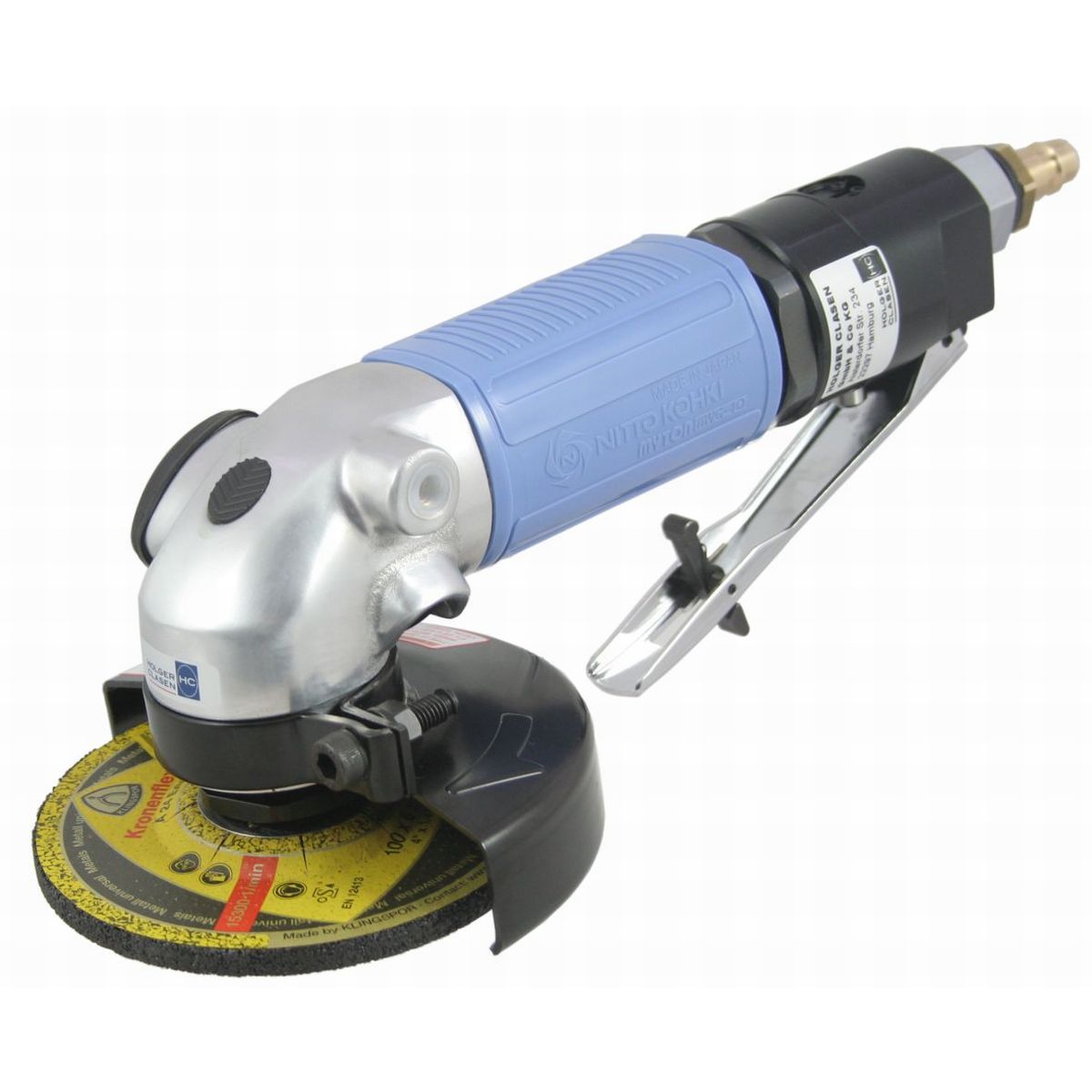

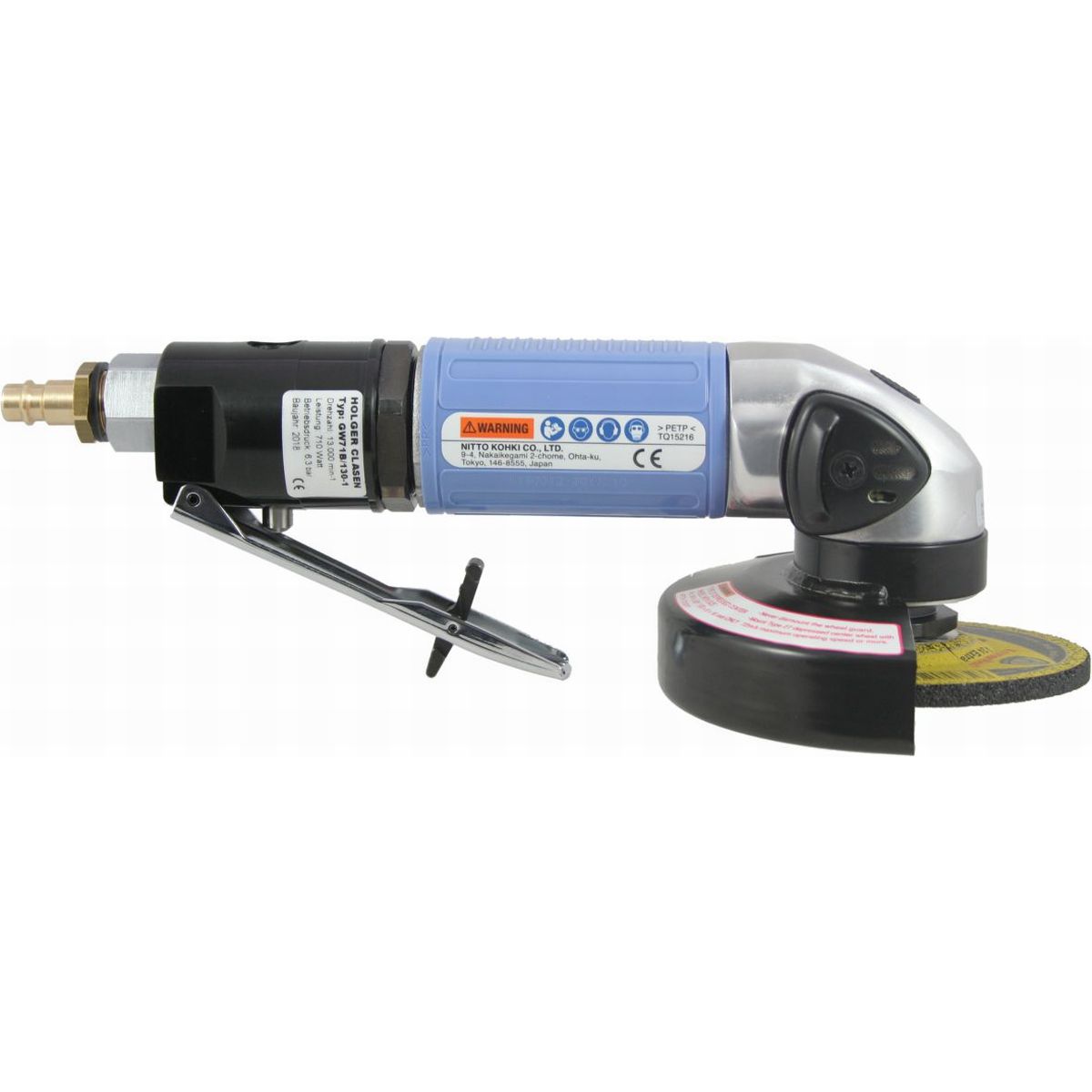

GW71B/130-1 Universal pneumatic angle grinder Ø 100
| Power [W]: | 710 W |
|---|---|
| Speed: | 13000 min-1 |
| Wheel Ø: | 100 mm |
| Chuck: | Clamping chuck Ø 22 mm |
| Current: | Pneumatic |
Product number:
12161100
Quick change of accessory
GW71B/130-1 Universal pneumatic angle grinder Ø 100
Applications
The pneumatic angle grinder GW71B/130-1 is a versatile air angle grinder for scrubbing, grinding, cutting and brushing jobs. The small angle head and grinding discs Ø 100 mm are ideally for works in confined spaces.This air angle grinder is used in machine building, garages, craft sector, ship yards and automobile industry.
This small-sized air angle grinder is ideally for work in confined spaces thanks to flat angle head.
Excellent weight-power ratio.
The centrifugal governor provides consistent speed under load.
The pneumatic angle grinder with its standardized chuck Ø 16 mm is useable for versatile applications, e.g. scrubbing, brushing, grinding and cutting.
The spindle lock ensures quick and easy replacement of accessories.
The air angle grinder is equipped with a stepless adjustable protective cover and can be optimized to your application.
Technical specifications
Excellent weight-power ratio.
The centrifugal governor provides consistent speed under load.
The pneumatic angle grinder with its standardized chuck Ø 16 mm is useable for versatile applications, e.g. scrubbing, brushing, grinding and cutting.
The spindle lock ensures quick and easy replacement of accessories.
The air angle grinder is equipped with a stepless adjustable protective cover and can be optimized to your application.
| Power [W]: | 710 W |
|---|---|
| Speed: | 13000 min-1 |
| Wheel Ø: | 100 mm |
| Chuck: | Clamping chuck Ø 22 mm |
| Equipment: | Centrifugal governor,spindle lock |
| Start: | Valve lever down |
| Connection handle: | M8 |

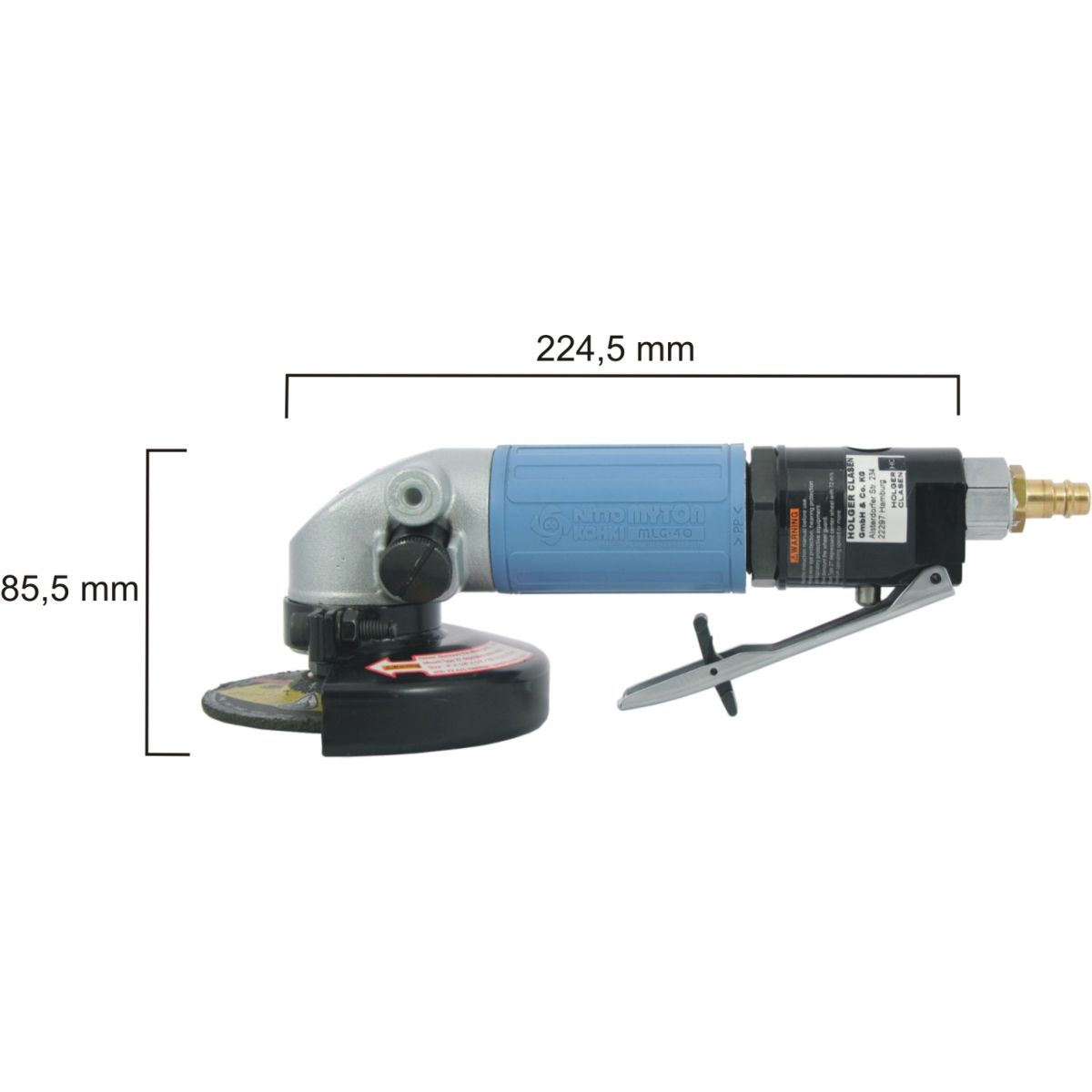

| Length: | 224.5 mm |
| Height: | 85.5 mm |
| Weight: | 1.4 kg |
| Inlet air connection: | G 3/8" |
| Recommended hose Ø: | 13 mm |
| Air consumption: | 7.5 / 15.2 l/s |
| Sound pressure level: | 88 dB(A) |
| Sound power level: | 99 dB(A) |
| Vibration: | 0.91 m/s² |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
Included in delivery:
Tool with protective cover, quick-coupling nipple, adapter PT 3/8 x NPT 3/8 and assembly wrench.
