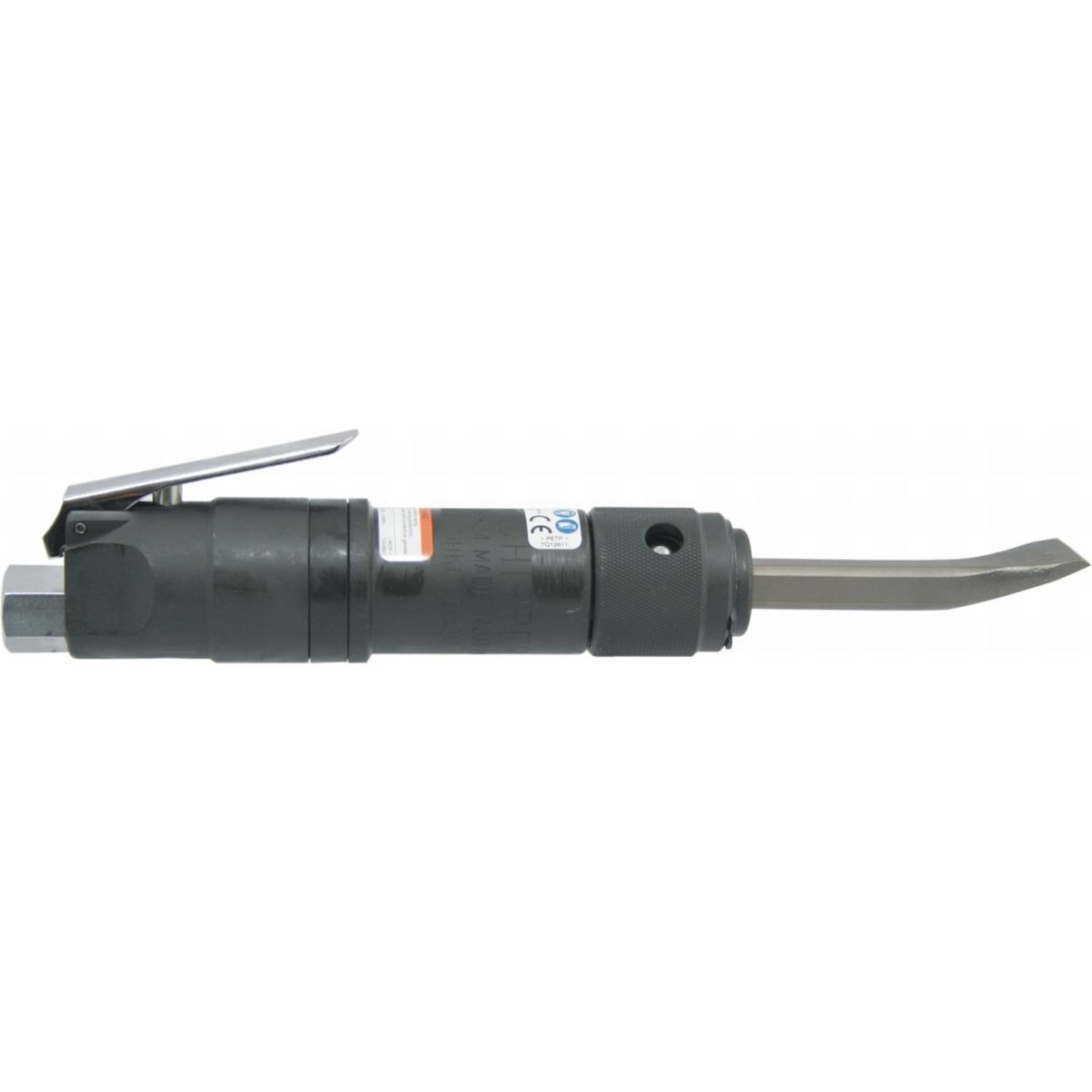

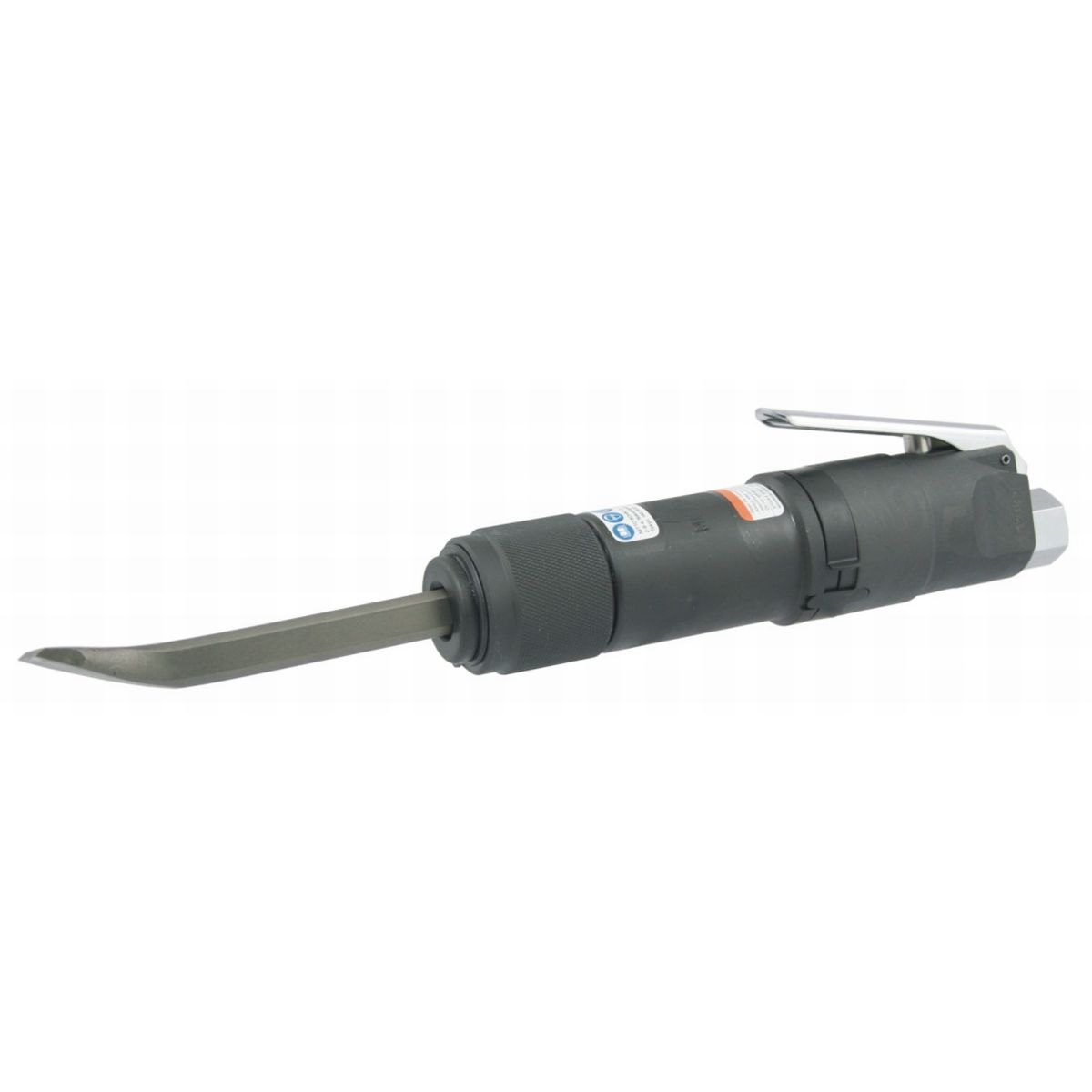

CH-24 Chisel hammer
Product number:
81126200
Light-weight/small
Quick change of accessory
CH-24 Chisel hammer
Applications
A pneumatic chisel hammer for removing rust and cleaning jobs, removing welding spots and for deburring; the air powered chisel hammer is used in machine building industry, ship yards, foundries as well as for concrete repair and refurbishment.
Quick changing chuck for easy and quick accessory change.
Square shaft with twist lock.
Powerful, small air chisel hammer for long-term working.
Straight design suitable for work in narrow and hard-to-reach areas.
Low vibration housing.
Technical specifications
Square shaft with twist lock.
Powerful, small air chisel hammer for long-term working.
Straight design suitable for work in narrow and hard-to-reach areas.
Low vibration housing.
| Blows: | 4000 min-1 |
|---|---|
| Chuck: | Square 12.7 mm |
| Start: | Valve lever |
| Construction form: | Straight |
| Length: | 184 mm |
| Weight: | 1.6 kg |
| Sound pressure level: | 88 dB(A) |
| Sound power level: | 99 dB(A) |
| Vibration: | 16.2 (K = 2.1) m/s² |
| Air consumption: | (0.2 m³/min) 3.3 l/s |
| Inlet air connection: | R 3/8" |
| Recommended hose Ø: | (3/8") 9.5 mm |
| Working pressure: | (0.6 MPa) 6.0 bar |
| Current: | Pneumatic |
Included in delivery:
Tool with chisel TP15166, hose nipple and adapter PT 3/8 x NPT 3/8.
