CB02 Edge milling tool
The Pneumatic Edge Milling Tool CB02 is a one-handed professional tool for internal and external chamfering as well as for milling workpieces with indexable inserts. The industrial tool is used in machine, plant and apparatus construction, in special machine construction as well as container and ship building.

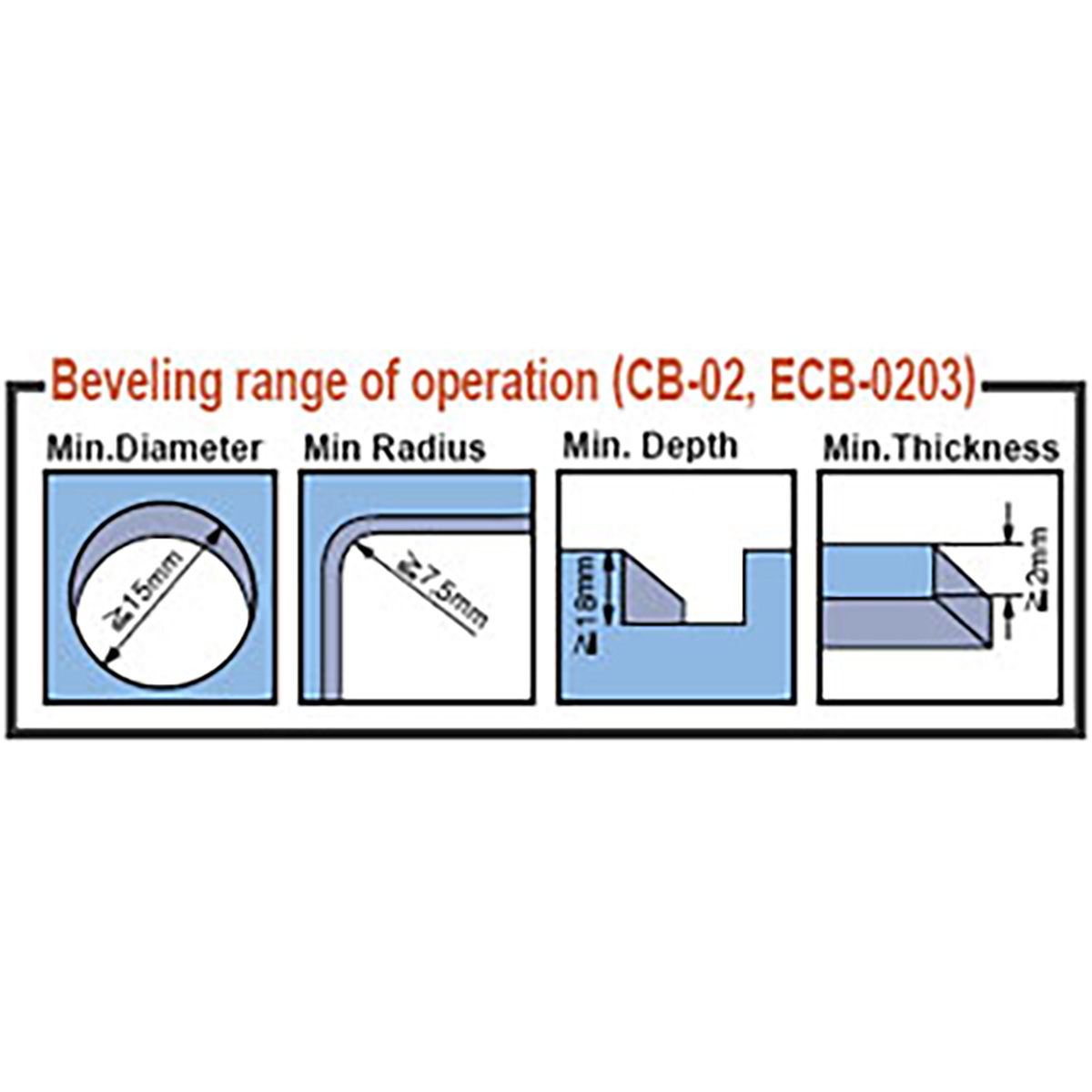

Optionally the edge milling tool can be equipped with an adapter to process thin sheets with less than 2mm thickness. As a finished conversion it is available as CB02-BL.
Pneumatic Edge Milling Tool - for professional chamfering and milling
Particularly usable pneumatic tool for inside and outside chamfering of curve-lines.
Continuously positioning of chamfer angle.
Precisely adjust chamfer dimensions with accessory adjust gauge.
Secure working thanks to finger protection and safety valve.
| Speed: | 13000 min-1 |
|---|---|
| Start: | Valve lever |
| Chamfering width max.: | ≥ 2 mm |
| Radius: | 2 mm |
| Dimensions LxWxH: | 150 x 120 x 110 mm |
| Weight: | 1.8 kg |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 6.7 l/s |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Chamfer angle: | 45° |
| Inlet air connection: | G 1/4" |
Tool with two indexable insert type TA9A386-N (one mounted), quick-coupling nipple, adapter PT 1/4 x NPT 1/4", inlet and exhaust air hose, adjust gauge, assembly wrenches.
