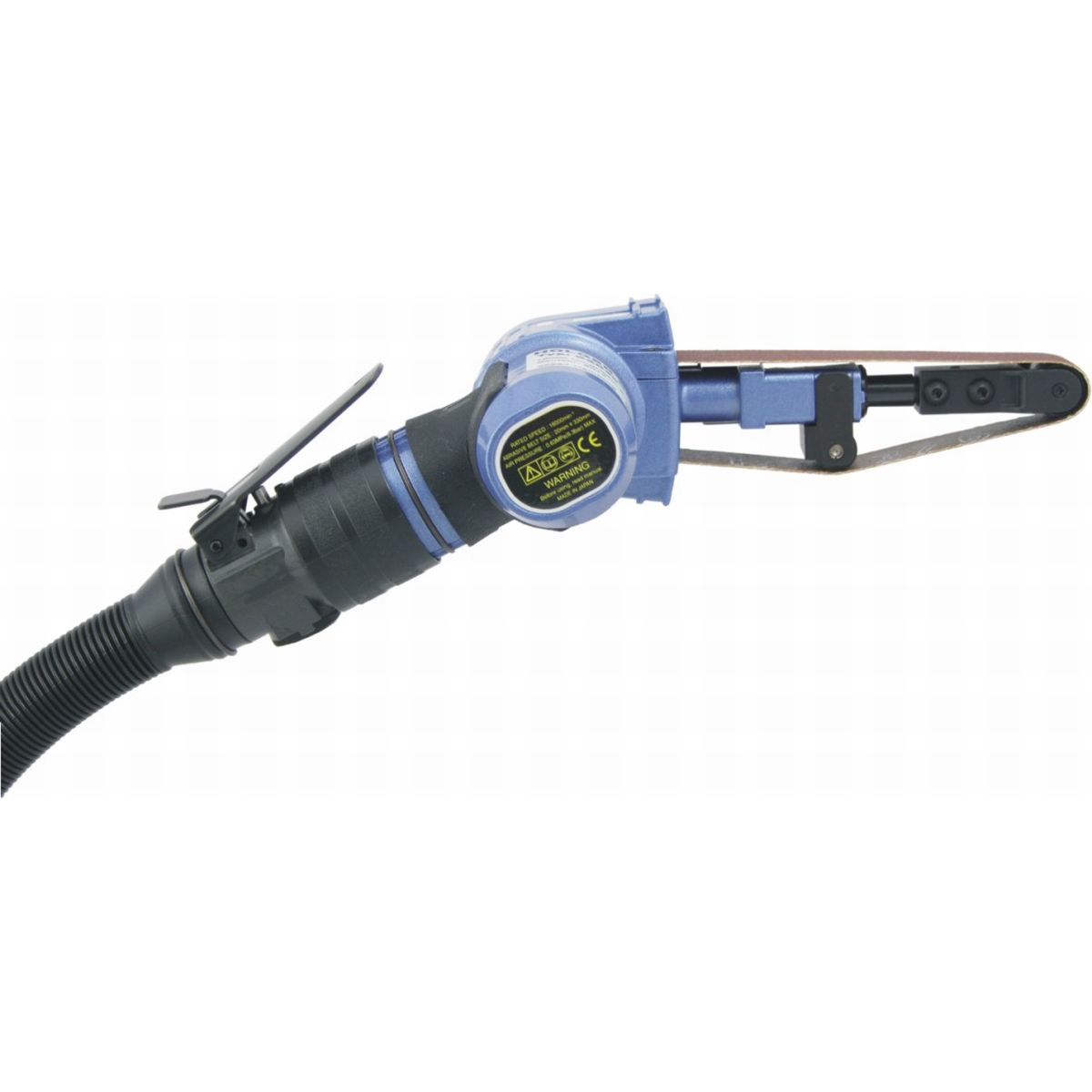

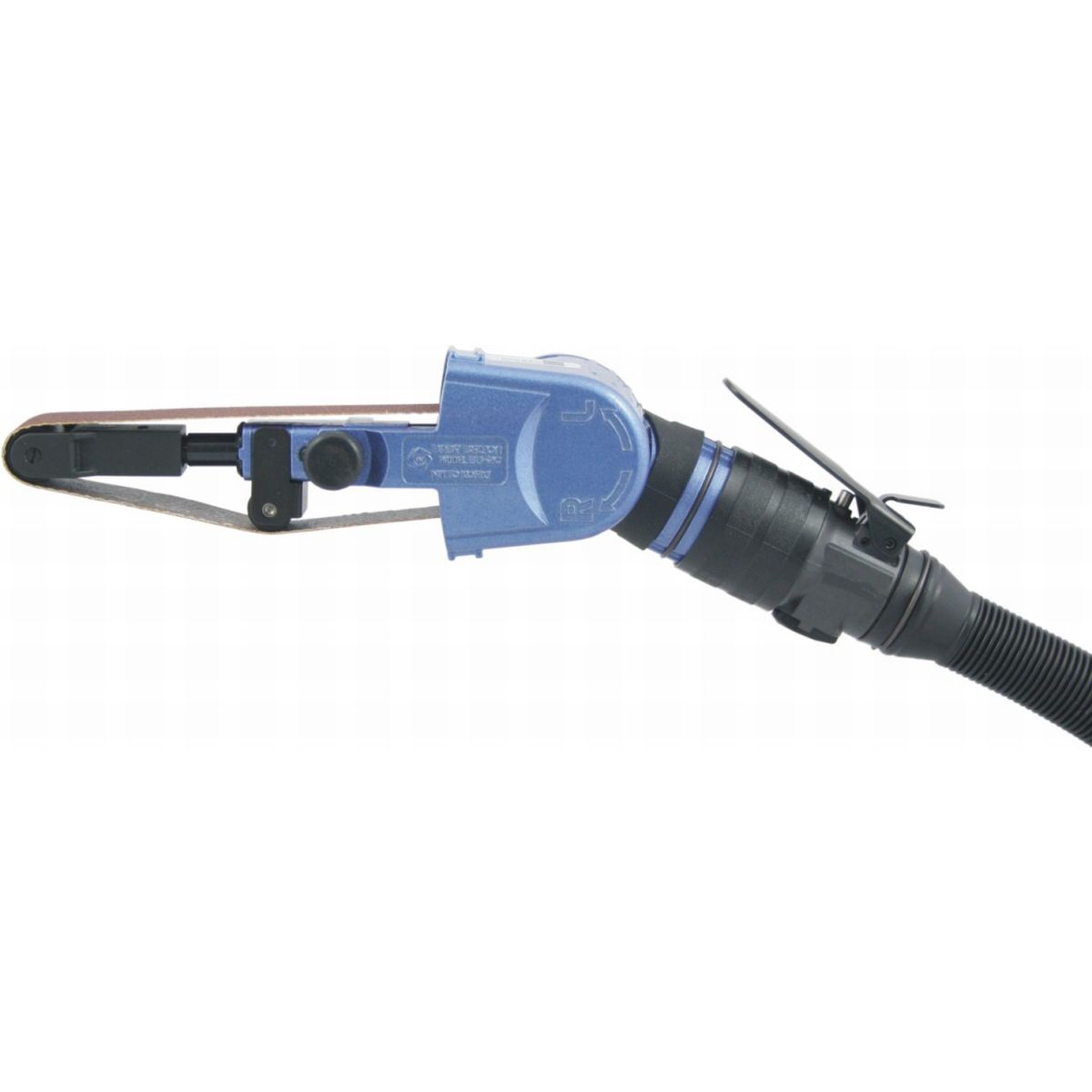

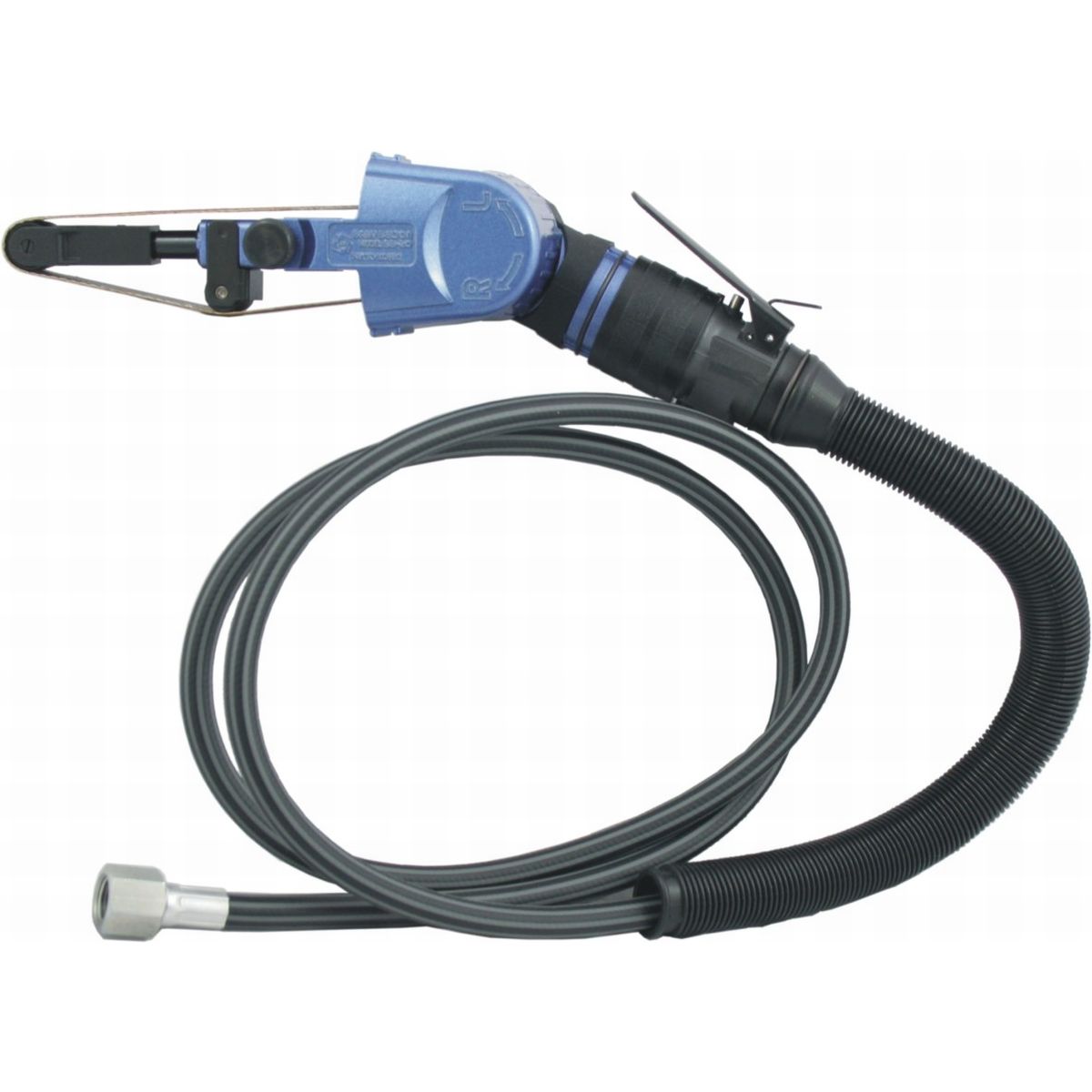

BSR20 Belt Sander
| Belt size W x L: | 20 x 330 mm |
|---|---|
| Direction of rotation: | Reversible |
| Equipment: | both-sided idle pulley |
| Current: | Pneumatic |
Product number:
13134000
Ergonomic
Light-weight/small
Quick change of accessory
BSR20 Belt Sander
Applications
The reversible air file belt sander is an adaptable, lightweight grinding device with 20 mm grinding belt width for surface grinding, pre-grinding, fine grinding or rounding of workpieces made of wood, metal, glass, plastic. The belt sander is used in tool, mould and machine construction, the automotive industry, interior fittings, plastics production and the woodworking industry.
Versatile use
Additional guide roller for rounding work
Fast grinding belt change
Rotating grinding arm
Reversible from right to left rotation, adaptable for right-handed and left-handed users
Technical specifications
Additional guide roller for rounding work
Fast grinding belt change
Rotating grinding arm
Reversible from right to left rotation, adaptable for right-handed and left-handed users
Compressed air belt grinder BSR20 - powerful and manoeuvrable flyweight
The compressed air belt grinder BSR20 is a versatile professional device with a bandwidth of 20 mm that provides a good stock removal rate, but the belt grinder is flexible in handling and can be adapted to the desired application by simple conversions. The basic version of the BSR20 is equipped with a flat sanding shoe for surface processing. The additional guide roller can be quickly and easily attached to the grinding arm if you want to machine crowned surfaces. The grinding belt has more room for manoeuvre for a better adaptation to the workpiece. The grinding arm can be rotated through 360° and thus has perfect contact with the workpiece in any position. If you need to change the grinding belt, you can do this quickly and easily without additional tools thanks to the grinding arm lock. The dust collector protects you from swirling abrasive particles. You can change the speed on a rotary knob. The belt grinder runs in both clockwise and counterclockwise rotation - this has the advantage that you can influence the sparking or turn a right-handed tool into a left-handed tool. Thanks to its ergonomic design, low weight and low vibration values, this professional belt grinder is a high-quality, durable industrial tool for daily use, with which you can work fatigue-free. In the accessories you will also find high-quality grinding belts for best grinding results. You can choose between corundum, zirconium corundum and non-woven abrasive belts.| Speed: | 16000 min-1 |
|---|---|
| Belt speed: | 18.3 m/s |
| Belt size W x L: | 20 x 330 mm |
| Direction of rotation: | Reversible |
| Start: | Valve lever |
| Equipment: | both-sided idle pulley |
| Weight: | 0.9 kg |
| Recommended hose Ø: | 9 mm |
| Air consumption: | 7.17 l/s |
| Sound pressure level: | 86 dB(A) |
| Sound power level: | 97 dB(A) |
| Vibration: | 0.6 m/s² |
| Current: | Pneumatic |
| Working pressure: | 6.3 bar |
| Inlet air connection: | G 1/4" |
Included in delivery:
BSR20 with assembled abrasive belt, Flat grinding shoe, Dust collector, Additional offset bracket, Inlet and exhaust air hose, Assembly wrench, Adapter R1/4 x NPT1/4", Quick-coupling nipple
