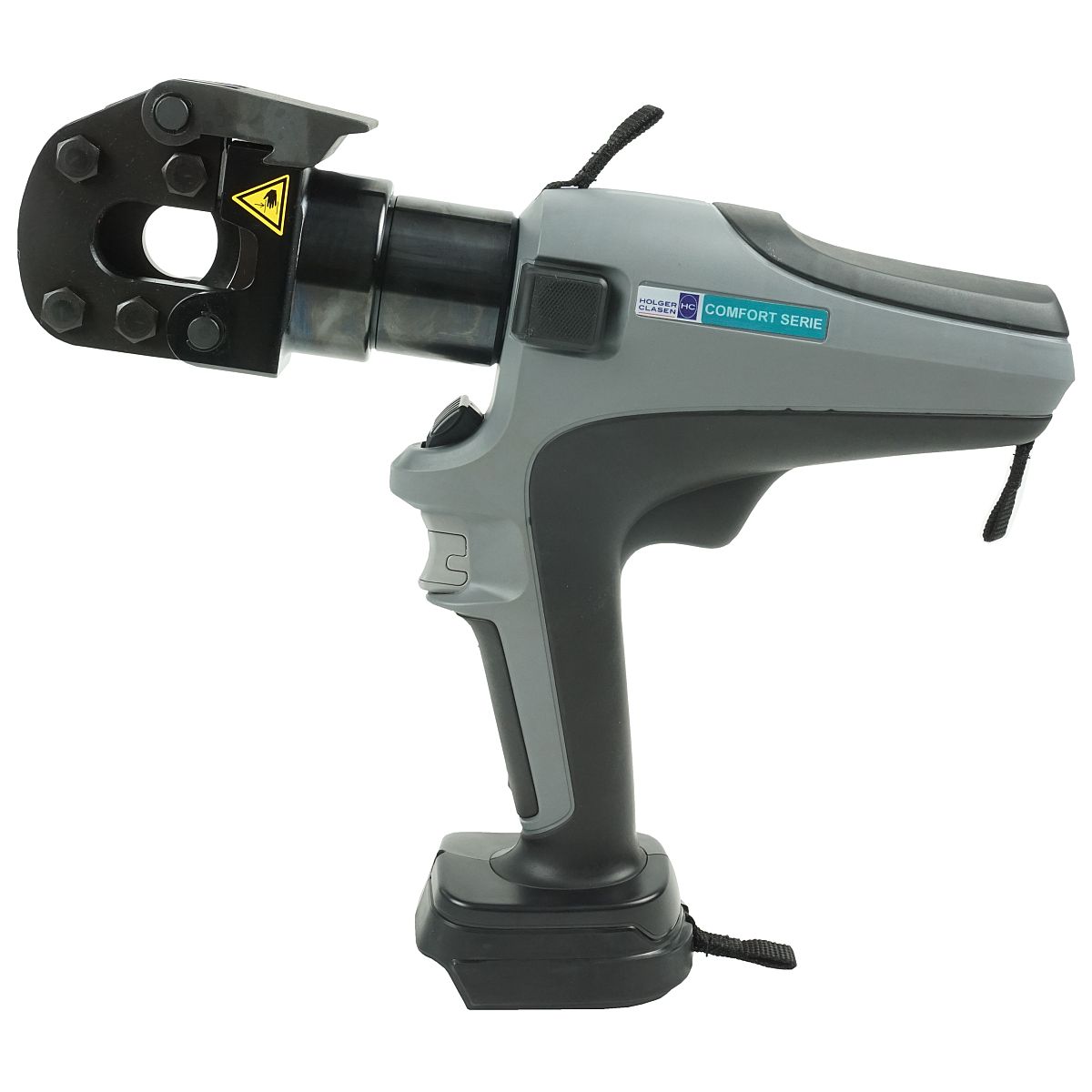

CutMax-C2 Bo Battery-Operated Hydraulic Cutter with MasterBase technology
| Cutting force: | 84 kN |
|---|---|
| Opening width: | 24 mm |
| Suitable for: | overhead lines |
| Information: | Compatible with 18 V Bosch Batteries |
The MasterBase technology offers the following battery options:
Product number:
72672100
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
2-step hydraulic
Battery Control
CutMax-C2 Bo Battery-Operated Hydraulic Cutter with MasterBase technology
Applications
Rely on state-of-the-art cutting technology for demanding applications: The CutMax-C2 cordless wire rope cutter has been specially developed for the high demands of the energy industry, electrical industry, service providers, lift construction, service applications, civil engineering and building construction. With its powerful battery-powered hydraulic drive and a host of innovative features, the CutMax-C2 delivers efficiency and precision where it is needed most.
CutMax-C2 cordless wire rope cutter – maximum performance for professionals in the energy and construction industries
Application highlights and advantages:
- Pistol shape and ergonomic design: optimal handling, even during long periods of use – well balanced despite weighing 4.2 kg.
- Extremely powerful: 84 kN cutting force, 24 mm opening width – ensures fast, clean cuts.
- Closed cutting geometry: Particularly robust – ideal for powerful cuts and demanding applications.
- Snap lock: Quick insertion and fixing of the material – increased work safety.
- LED work area illumination: Perfect view of your workpiece, even in poor lighting conditions.
- Selectable automatic return: Fast and safe working with repeated cuts.
- 2-step hydraulics: Fast feed for shorter cutting cycles.
- Rotatable cutting head (180°): Flexible use in any position.
- Lockable start button: Prevents accidental start-up for safe handling.
- MasterBase technology: Freely selectable battery holder – compatible with 18 V batteries from Makita, Bosch, Milwaukee and 22 V Hilti (B22). Use existing fleets, save investment and storage costs!

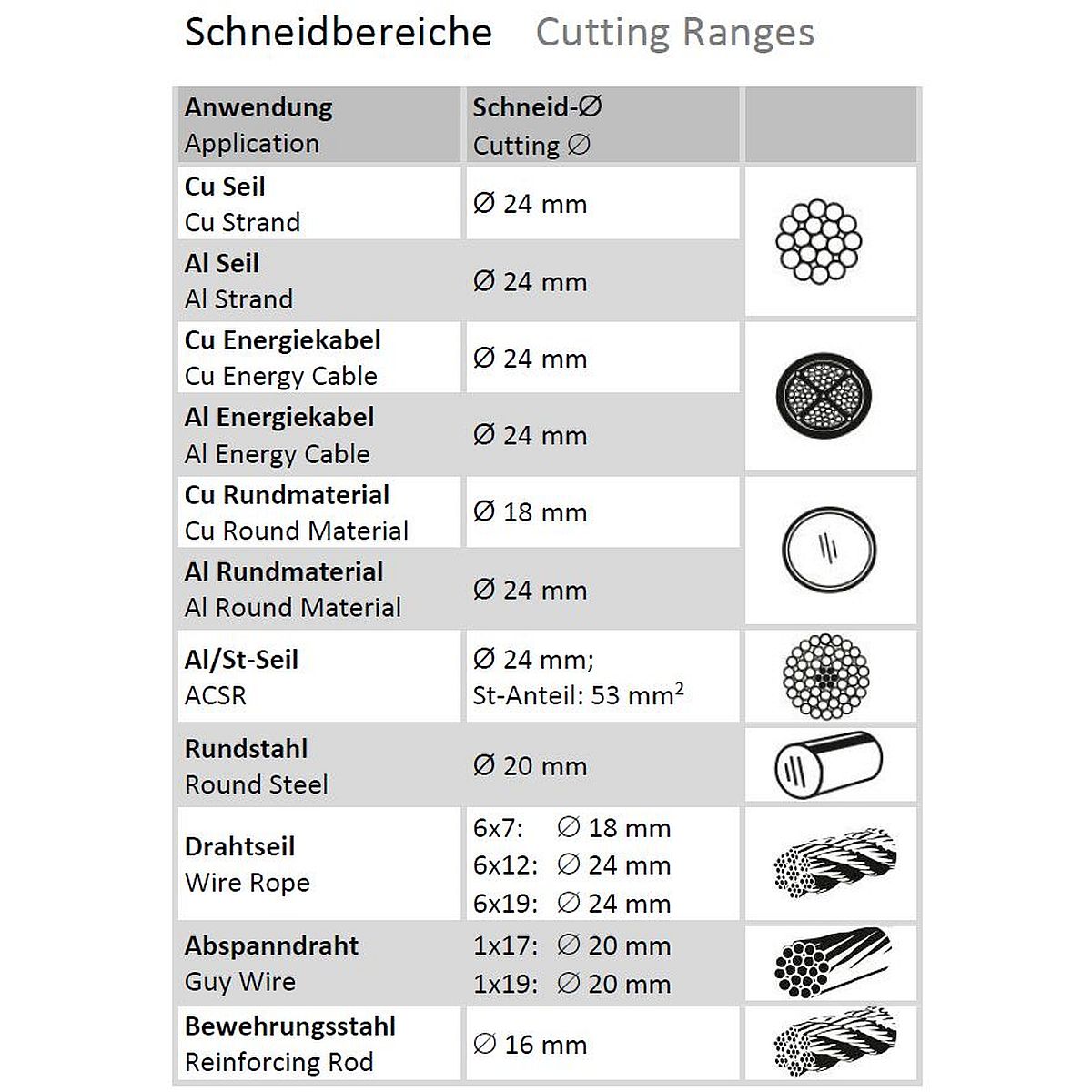

Cutting applications – Flexible & versatile
- Copper and aluminium cables: Class 1 & 2 (single-stranded, multi-stranded, sector conductors, power cables) up to Ø 24 mm
- Copper round material: Up to Ø 18 mm
- Aluminium round material: Up to Ø 24 mm
- Aluminium round material: Up to Ø 24 mm
- ACSR cables (overhead lines): Up to Ø 24 mm (steel content 53 mm², e.g. 240/40)
- Round steel: up to Ø 20 mm
- Wire rope: (6x7) up to Ø 22 mm; (6x12, 6x19) up to Ø 25 mm
- Guy wire: (1x17, 1x19) up to Ø 20 mm
- Reinforcing steel: up to Ø 16 mm
With the CutMax-C2 cordless wire rope cutter, you are investing in a high-quality, technically impressive professional tool that is perfectly tailored to the requirements of the energy industry, construction, service and industry. Maximum flexibility, maximum cutting power and future-proof battery technology – for your productivity in daily use.
Configure your CutMax-C2 now and revolutionise your work processes!
Areas of application subject to change. A test run is recommended.
| Cutting force: | 84 kN |
|---|---|
| Opening width: | 24 mm |
| Suitable for: | overhead lines |
| Battery voltage: | Bosch 18 V |
| Information: | Compatible with 18 V Bosch Batteries |
| Weight without battery: | 4.2 kg |
| Dimensions LxWxH: | 335 x 85 x 268 mm |
| Construction form: | Pistol |
| Head: | closed |
| Lock type: | Snap fit |
