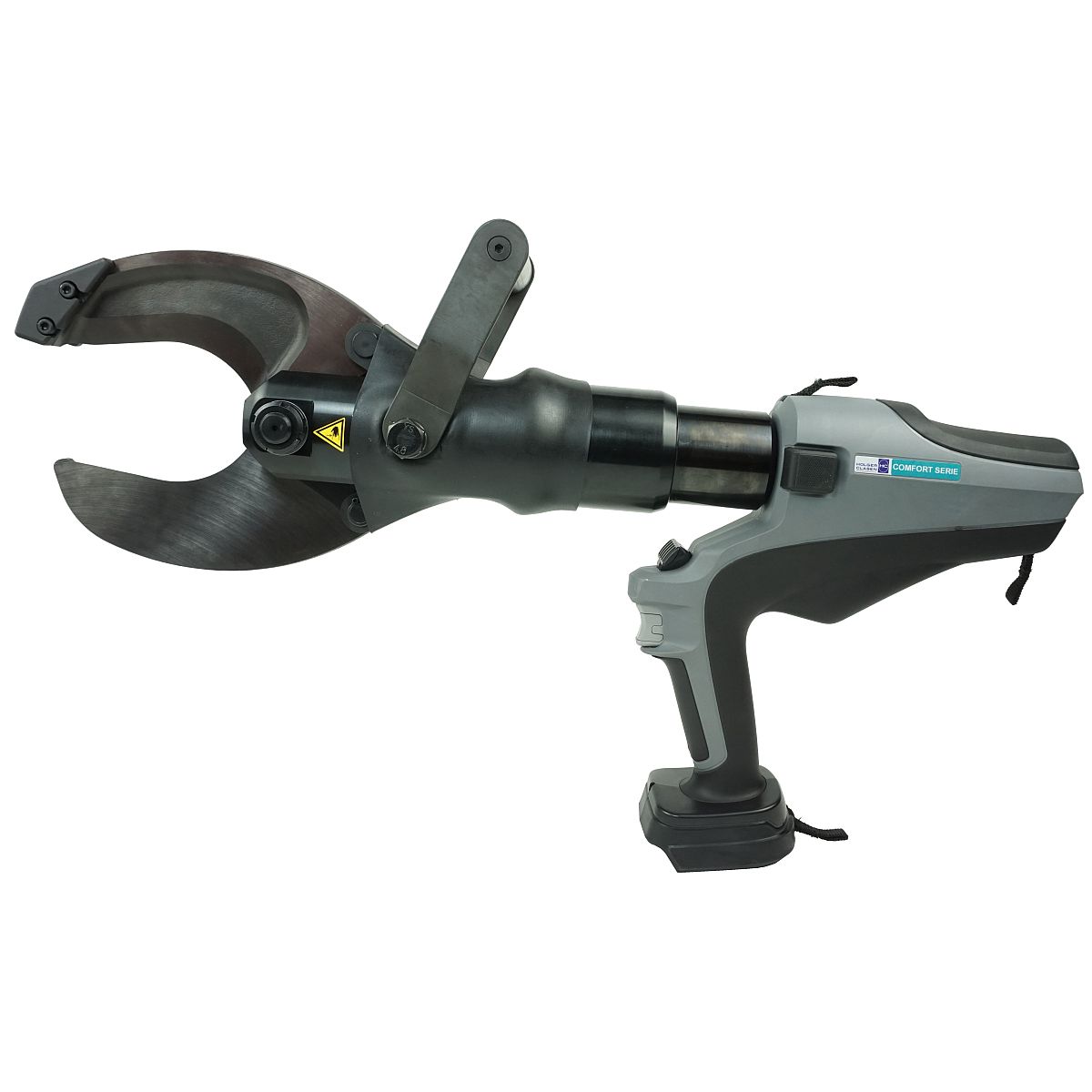

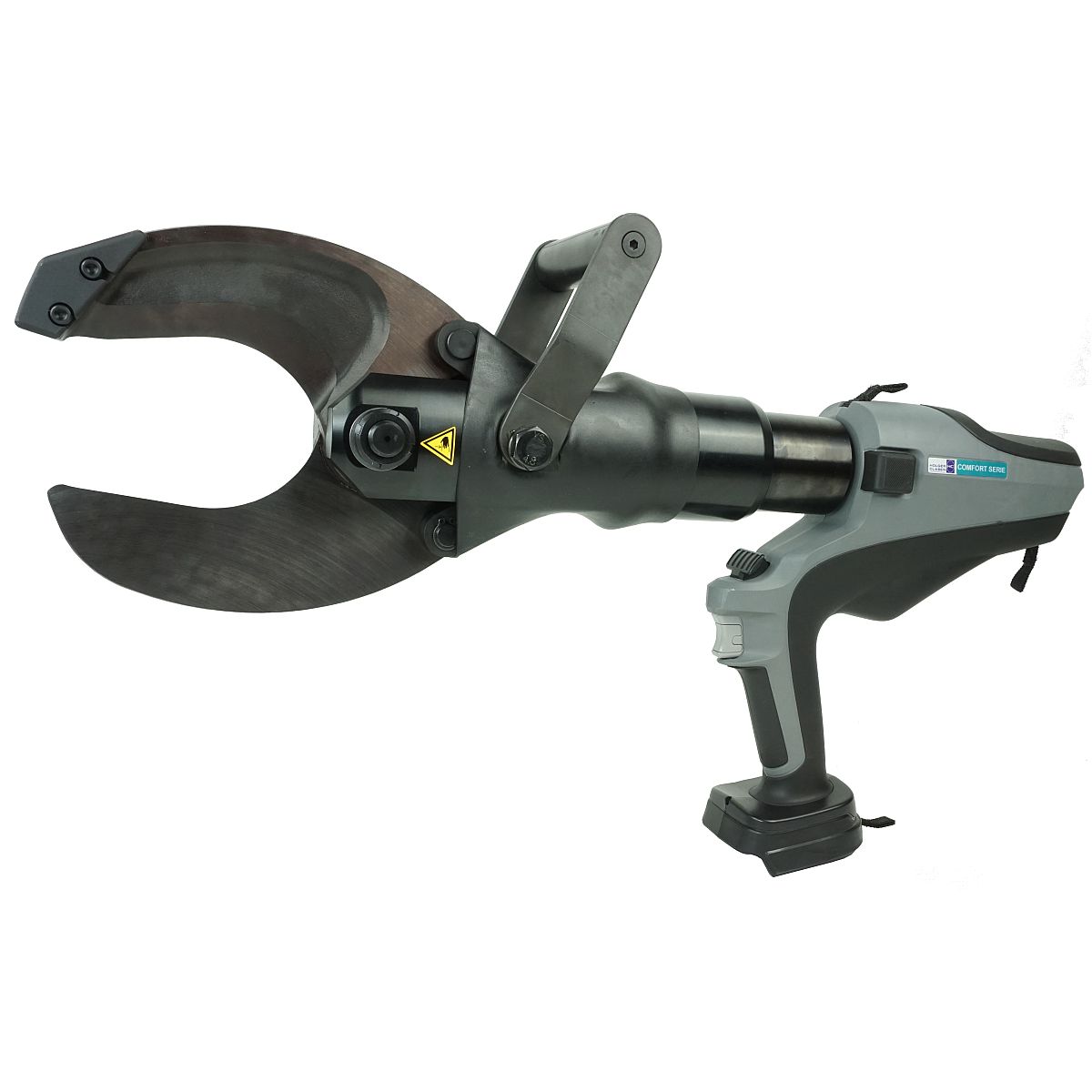

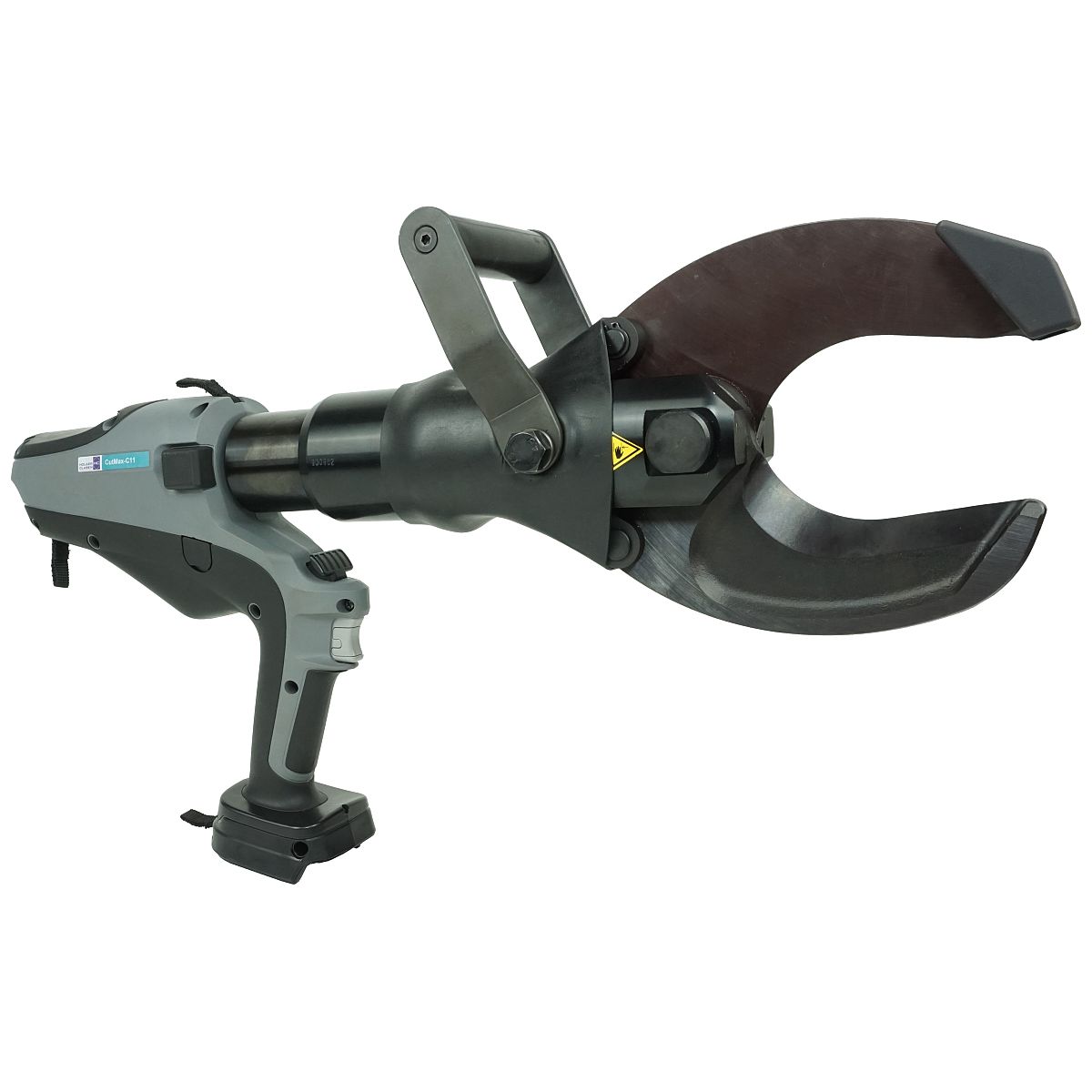

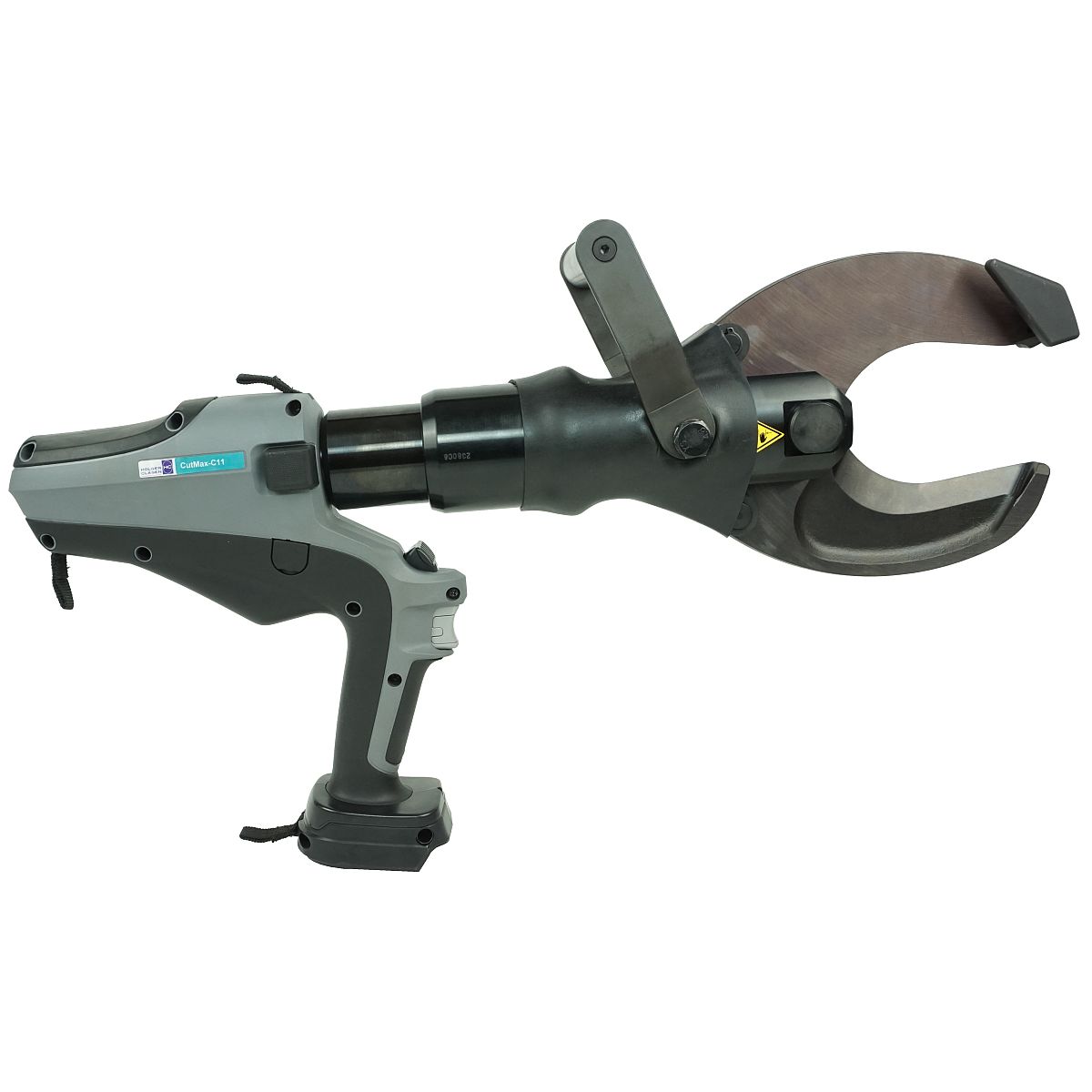

CutMax-C11 Ma Battery-Operated Hydraulic Cutter Ø 105 mm
| Cutting force: | 124 kN |
|---|---|
| Opening width: | 105 mm |
| Information: | Compatible with 18 V Makita Batteries |
The MasterBase technology offers the following battery options:
Product number:
72631100
MasterBase-Technologie
LED lightend
Rotating Head
2-step hydraulic
Battery Control
Makita-compatible battery
CutMax-C11 Ma Battery-Operated Hydraulic Cutter Ø 105 mm
Applications

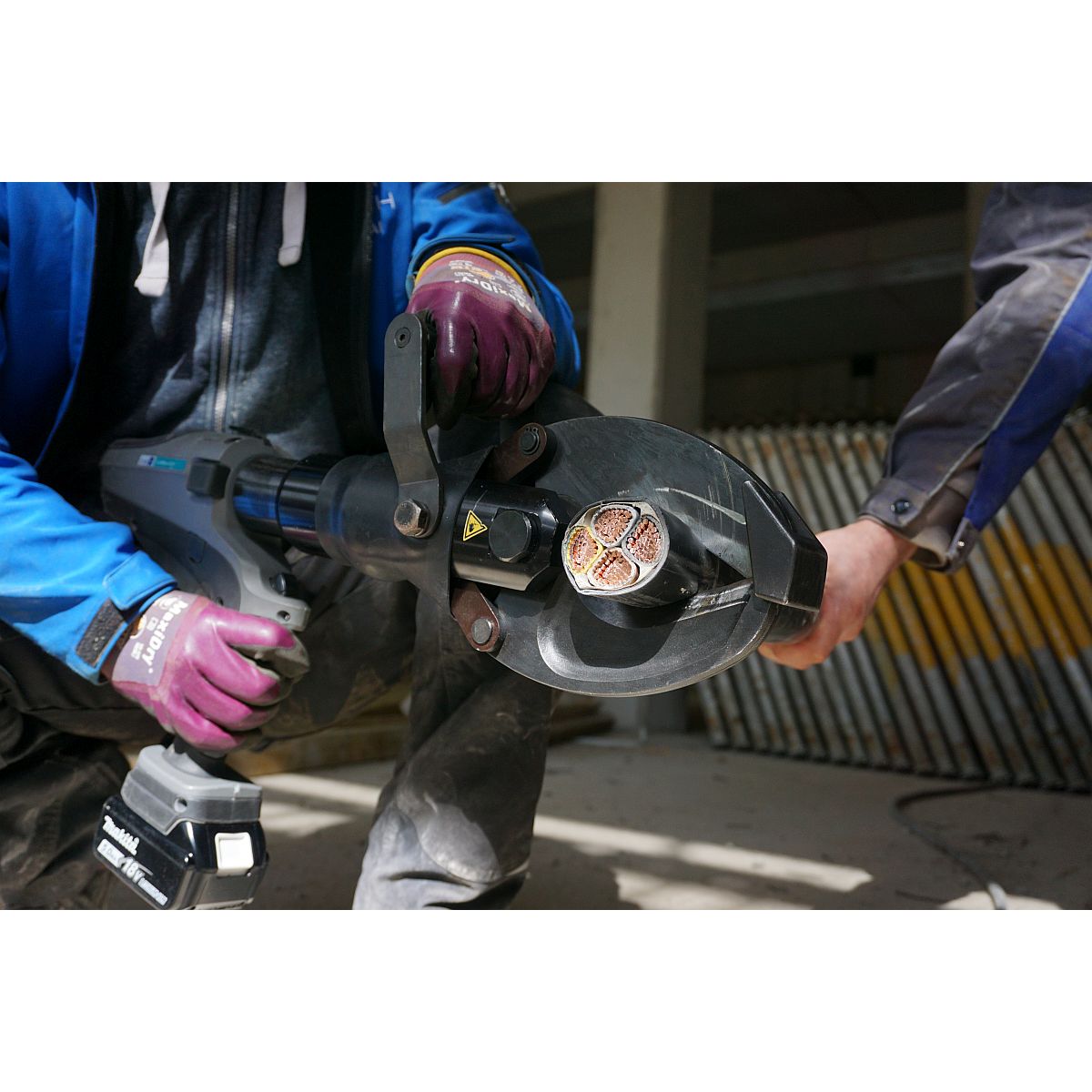

Powerful cutting of large diameters in the field - The CutMax-C11 hydraulic battery-powered cable cutting tool is ideal for electrical and network construction professionals, service teams, and energy suppliers who need to cut large-diameter cables and lines precisely and safely. Particularly suitable for demanding cutting tasks in the field – whether during installation, maintenance, or dismantling of energy and telecommunications infrastructure – the CutMax-C11 guarantees maximum efficiency and reliability.
Maximum performance and flexibility with battery-powered cable cutter CutMax-C11
Application Highlights at a Glance:
- Extremely high cutting force: 124 kN enables effortless cutting of even very large cable cross-sections.
- Large opening width: Open cutting geometry with 105 mm cutting opening for maximum versatility and good positioning on the cable.
- Versatile cutting applications: Perfect for class 1 and 2 copper and aluminum cables (single-stranded, multi-stranded, sector conductor/power cables) up to Ø 105 mm, e.g., NYY 4x240mm², armored cable, telephone cable up to Ø 105 mm, and submarine cable up to Ø 80 mm.

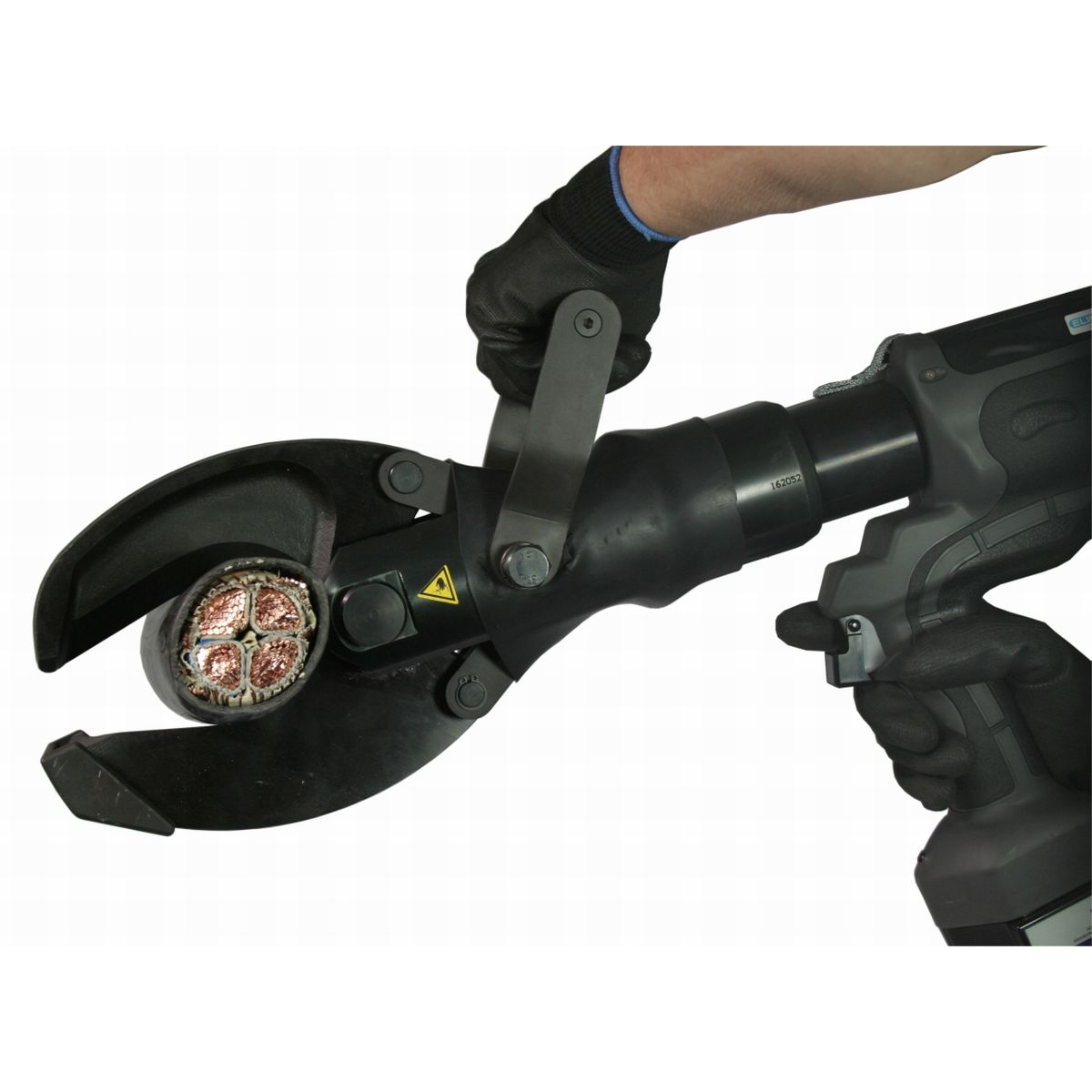

- Pistol shape for optimum handling: Balanced ergonomics and additional ergonomic handle option for controlled and fatigue-free working, even with large workpieces.
- Start button with lock: For safe handling.
- LED work area illumination: For precise working even in poor lighting conditions.
- 180° rotatable cutting head: Flexible working even with hard-to-reach cable routing.
- 2-step hydraulics: Turbo feed under load enables fast cutting cycles.
- Selectively selectable automatic return: Individually adjustable for efficient workflows.

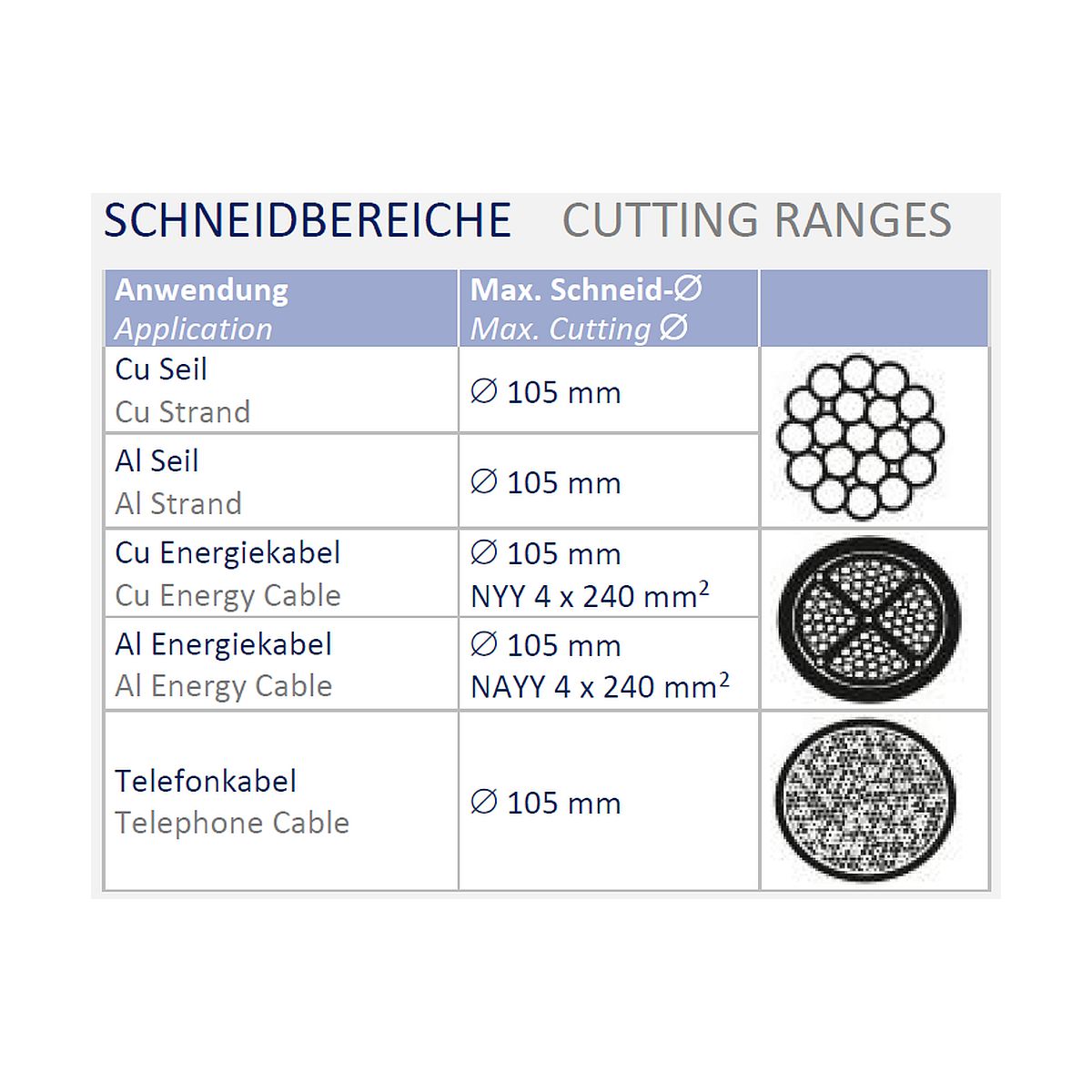

Typical cutting applications:
- Copper and aluminum cables up to Ø 105 mm
- High-voltage cables, power cables (including armored) and underground cables (NYY 4x240mm²)
- Large-diameter telephone cables up to 105 mm
- Submarine cables up to Ø 80 mm
What is MasterBase Technology?
Freely selectable battery holder – compatible with 18 V batteries from Makita, Bosch, Milwaukee, and 22 V Hilti (B22). This allows you to flexibly integrate the tool into existing fleets and save on investment and storage costs.
Summary
Choose the CutMax-C11 battery-powered cutter for demanding, mobile cutting applications – powerful, flexible, user-friendly, and perfect for professional use on the go!
Note
The CutMax-C11 is the ideal solution for occasional cuts in the field. For serial cuts and maximum efficiency, we recommend combining a battery pump, e.g. AP500-05, with a PH105 hydraulic cutting head, which covers the same cutting range as the CutMax-C11.
Areas of application subject to change. A trial processing is recommended.
| Cutting force: | 124 kN |
|---|---|
| Opening width: | 105 mm |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Weight without battery: | 8.5 kg |
| Dimensions LxWxH: | 601 x 92 x 346 mm |
| Construction form: | Pistol |
| Head: | open |
Included in delivery:
Tool without further accessories.
