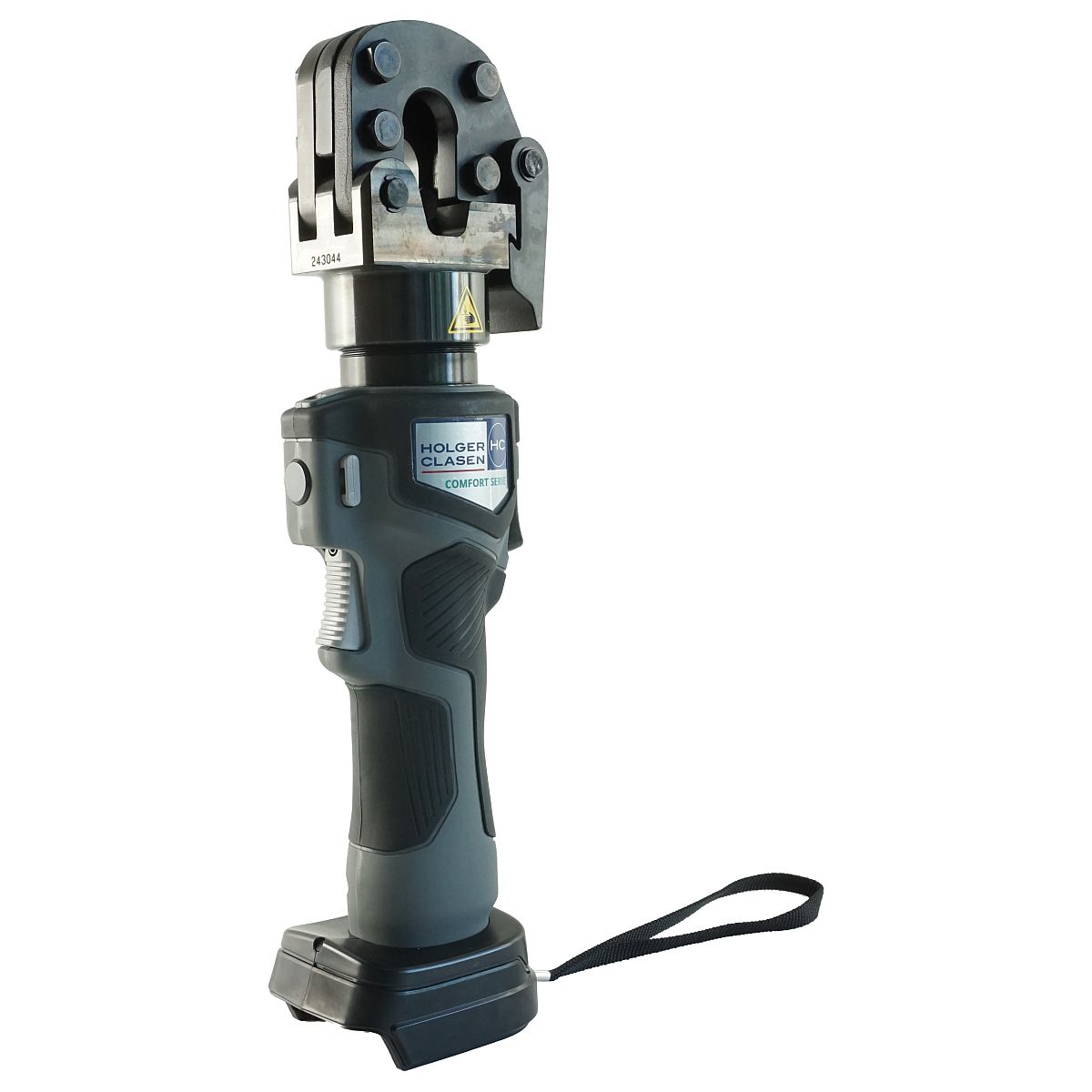

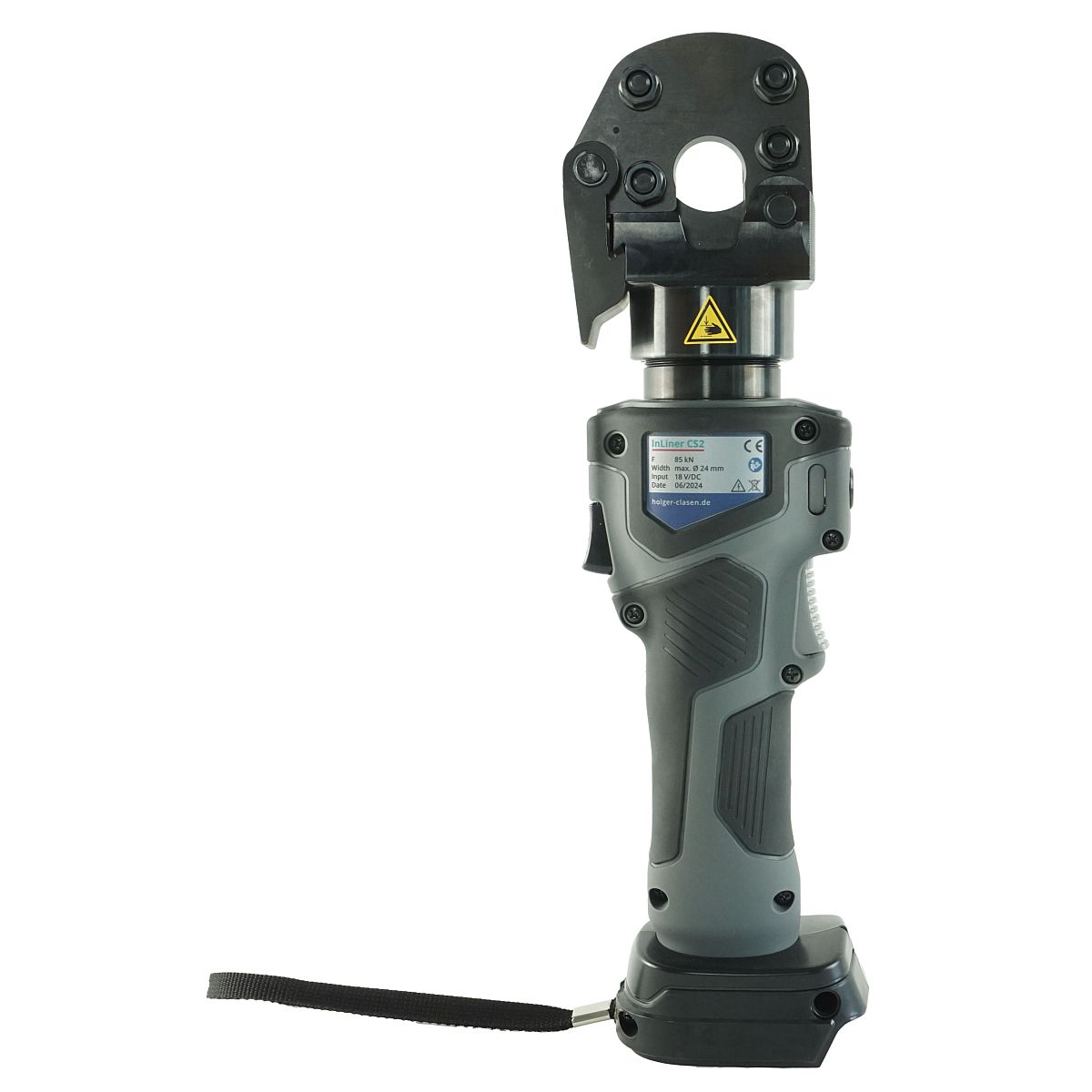

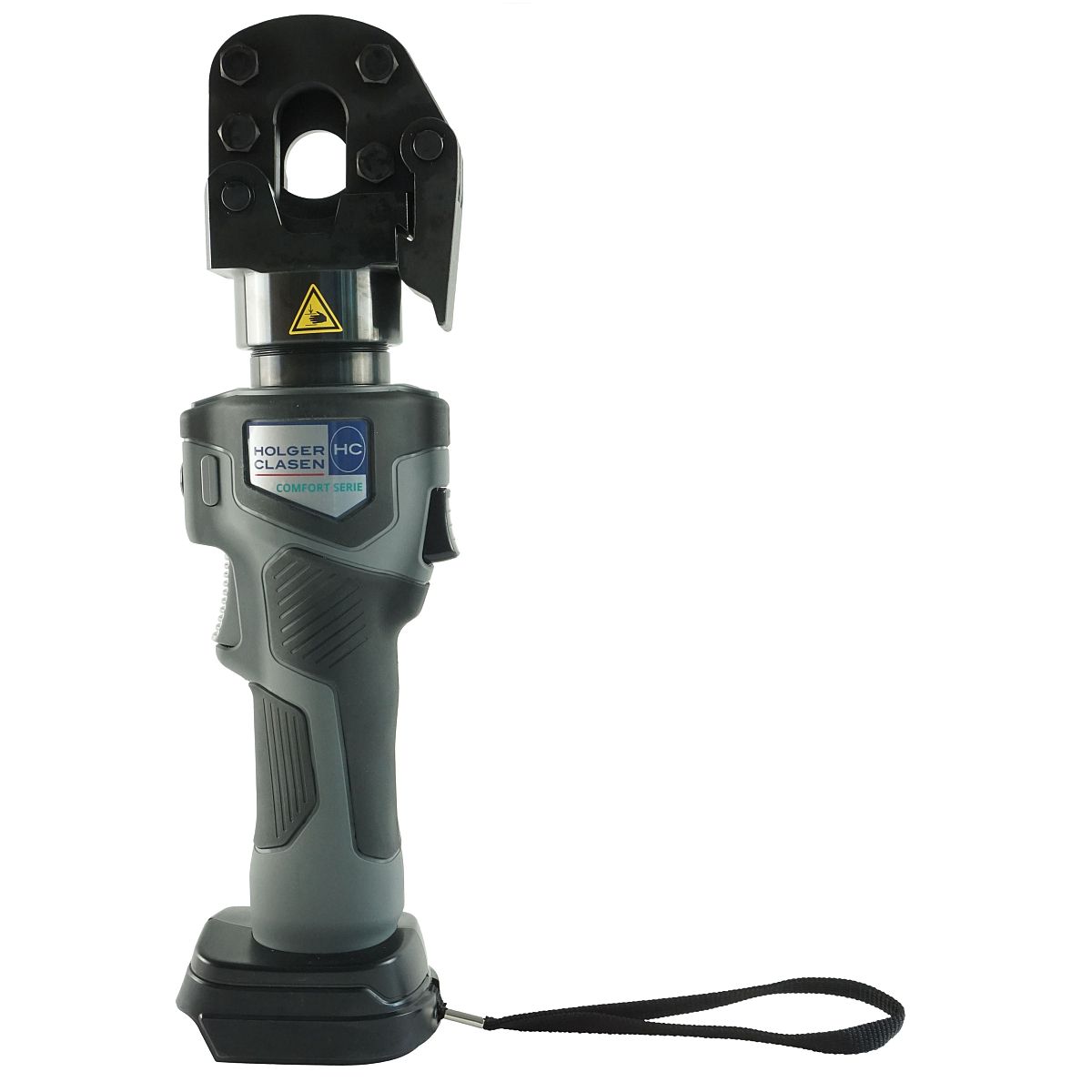

InLiner® CS2-Set Ma Battery-Operated Hydraulic Cutter with MasterBase technology
| Cutting force: | 85 kN |
|---|---|
| Opening width: | 24 mm |
| Suitable for: | overhead lines |
| Information: | Compatible with 18 V Makita Batteries |
MasterBase-Technologie
Ergonomic
LED lightend
Rotating Head
Battery Control
With case
18 V Makita-kompatibel
InLiner® CS2-Set Ma Battery-Operated Hydraulic Cutter with MasterBase technology
Powerful cutting tech for network and infrastructure pros - As a modern energy supplier, infrastructure construction service provider, civil engineering pro, or elevator construction service technician, you face the daily challenge of cutting a wide variety of cables and materials safely, efficiently, and flexibly—often in tight spaces and under strict safety requirements. The InLiner® CS2 battery-powered hydraulic rod cutter is designed precisely for these scenarios: technically advanced, robust in use, and suitable for changing locations on construction sites, on masts, or in cable ducts.
InLiner® CS2 cordless hydraulic cutter – Precise cutting power for energy suppliers, elevator construction, and building projects
Product highlights of the InLiner® CS2 cordless rod shape cutter
- Slim rod shape, lightweight & ergonomic: Weighs only 3.7 kg, optimally balanced and comfortable to use even for overhead work – ideal for installations on masts, in shafts, and confined spaces.
- Powerful and universal: 85 kN cutting force, opening width 24 mm – for powerful cutting through Cu and Al cables (class 1 & 2, single and stranded, sector conductors), power cables, round Cu up to 18 mm and Al up to 24 mm, Al/St cables (up to 24 mm, steel component 53 mm²), round steel (20 mm), wire rope, and guy wire.
- Perfect cuts: Closed cutting geometry for clean, safe cuts without extensive reworking; double-piston hydraulics ensure fast cutting cycles even under load.
-
Versatile for everyday use: Rotatable head (180°) for flexible positioning even in complicated installation situations.
-
Intuitive operation & safety: Selectable automatic return, easy switching, forward and reverse can be controlled separately.
-
LED work area illumination: Optimal view of the material being cut – increases precision and work safety even in poor lighting conditions.
-
Low maintenance & durable: High-quality construction, designed for a variety of daily applications.
-
MasterBase technology: Freely selectable battery holder – compatible with 18 V batteries from Makita, Bosch, Milwaukee, and 22 V Hilti (B22). This allows you to flexibly integrate the tool into existing fleets and save on investment and storage costs.
- Copper and aluminum cables, class 1 and 2 (stranded/multi-stranded/sector conductor/energy cable) up to Ø 24 mm
- Cu round material up to Ø 18 mm, Al round material up to Ø 24 mm
- Al/St cable up to Ø 24 mm (steel content up to 53 mm²)
- ACSR (overhead lines) up to Ø 24 mm (steel content up to 53 mm²)
- Round steel Ø 20 mm
- Wire rope (6x7 up to Ø18 mm, 6x12/6x19 up to Ø24 mm)
- Guy wire up to Ø 20 mm
- Reinforcing steel up to Ø 16 mm
Note: Areas of application subject to change. A trial processing is recommended.
| Cutting force: | 85 kN |
|---|---|
| Opening width: | 24 mm |
| Suitable for: | overhead lines |
| Battery voltage: | Makita 18 V |
| Information: | Compatible with 18 V Makita Batteries |
| Weight without battery: | 3.7 kg |
| Dimensions LxWxH: | 362 x 76 x 109 mm |
| Construction form: | Bar-shaped Tool |
| Head: | closed |
| Lock type: | Snap fit |
