TriLiner-Set Battery drive set for pressing, cutting + bending attachment % Action %

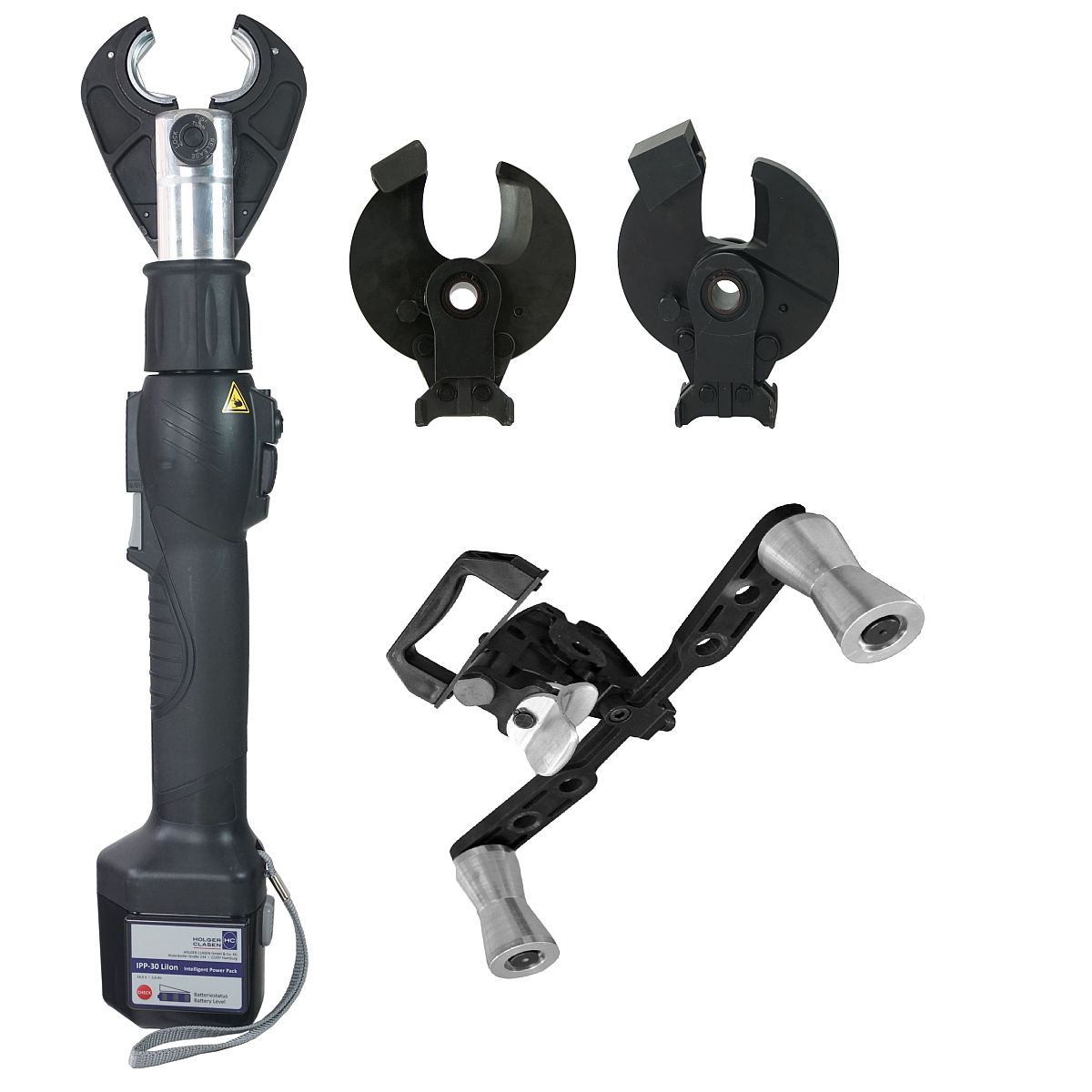

The TriLiner offers three application possibilities with one drive unit: crimping, cutting, cable bending. The tool attachments must be ordered separately. This set includes the drive unit, a battery and charger as well as the case.
Crimping, cutting and cable bending with only one tool!
- Drive unit for usage with optional available tool attachments
- Force: 70 kN
- 2-step hydraulic for fast working cycles
- LED work field illumination
- Grip-proof housing thanks to 2-component material
- Well-balanced ergonomical and slim design for fatigue-free working and places that are hard to reach
- Included in the Set: Drive Unit TriLiner, one battery IPP-40, one battery charger and a transportation case
These options are possible (see accessories):
Crimping attachment SL-6CJ:
Crimping width: max. 14 mm (DIN Hexagonal)
Crimping Dies: CS-shaped small
Crimping Range DIN-Hexagonal: Cu 6 – 240 mm2/Al 10 – 240 mm2
Crimping Range Al/St-Ropes: Al 16 – 185 mm2/St 2.5 – 25 mm2
Crimping Range Tubular cable lugs similar to DIN: 10 – 240 mm2
Cutting attachment SL-CH:
Application: Cu- and Al-rope, Cu- and Al-energy cable
Opening width: max. 30 mm diameter
Cutting attachment SL-ACSR:
Application: Al/St-rope with single steel core
Opening width: max. 20 mm diameter
Bending tool attachment SLCB-JAW:
Application: Bending cable
Cabel max.: 1,000 mm2 (e.g. 4 x 240 mm2)
| Crimping force: | 70 kN |
|---|---|
| Cutting force: | 70 kN |
| Battery voltage: | 14.4 V |
| Stroke: | 21 mm |
| Weight without battery: | 2.3 kg |
| Dimensions LxWxH: | 421 x 70 x 95 mm |
| Construction form: | Bar-shaped Tool |
| Head: | only available separately |
Tool with LiIon battery IPP-40, charger IMC-2 (DC) and carrying case KOFF-Km Tri.
The tool attachments must be ordered separately.
