MD205/75-LK100 Double rotor air motor
| Power [kW]: | 2.05 kW |
|---|---|
| Useful speed: | 0 - 750 min-1 |
| Direction of rotation: | Reversible |
| Chuck: | Shaft-hub-connection Ø 19 j6 |
| Current: | Pneumatic |
Product number:
54324300
High tool life
MD205/75-LK100 Double rotor air motor
Applications
Air motors with double rotors (gear wheels) - drive technology intended to be assembled into other machines. These air motors are high operating safe, sturdy and direction of rotation is returnable.
Air motor Stainless steel (optional) with 2.05 kW power
Useful Speed: 0 - 750 min-1Convincing through easy control and high starting safety
Operation in clockwise/counterclockwise rotation
Flexibility through optimum speed range
The air motor with double rotors impresses with its very long service life.
High starting torque
Edelstahl models II 2 GDcT4 - T6 or other special versions are available on request.

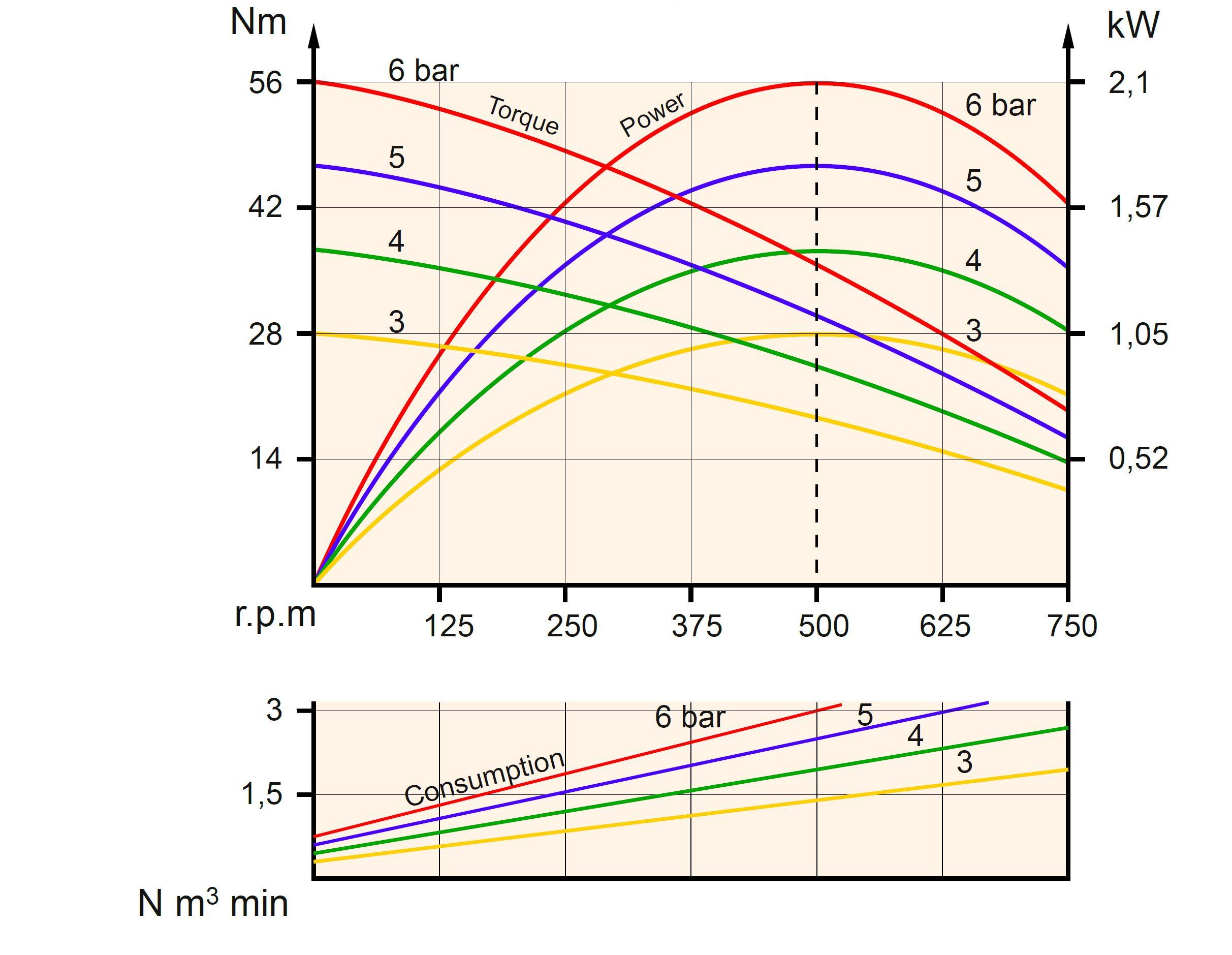

| Power [kW]: | 2.05 kW |
|---|---|
| Useful speed: | 0 - 750 min-1 |
| Optimal speed: | 100 - 450 min-1 |
| Starting Torque: | 53 Nm |
| Direction of rotation: | Reversible |
| Chuck: | Shaft-hub-connection Ø 19 j6 |

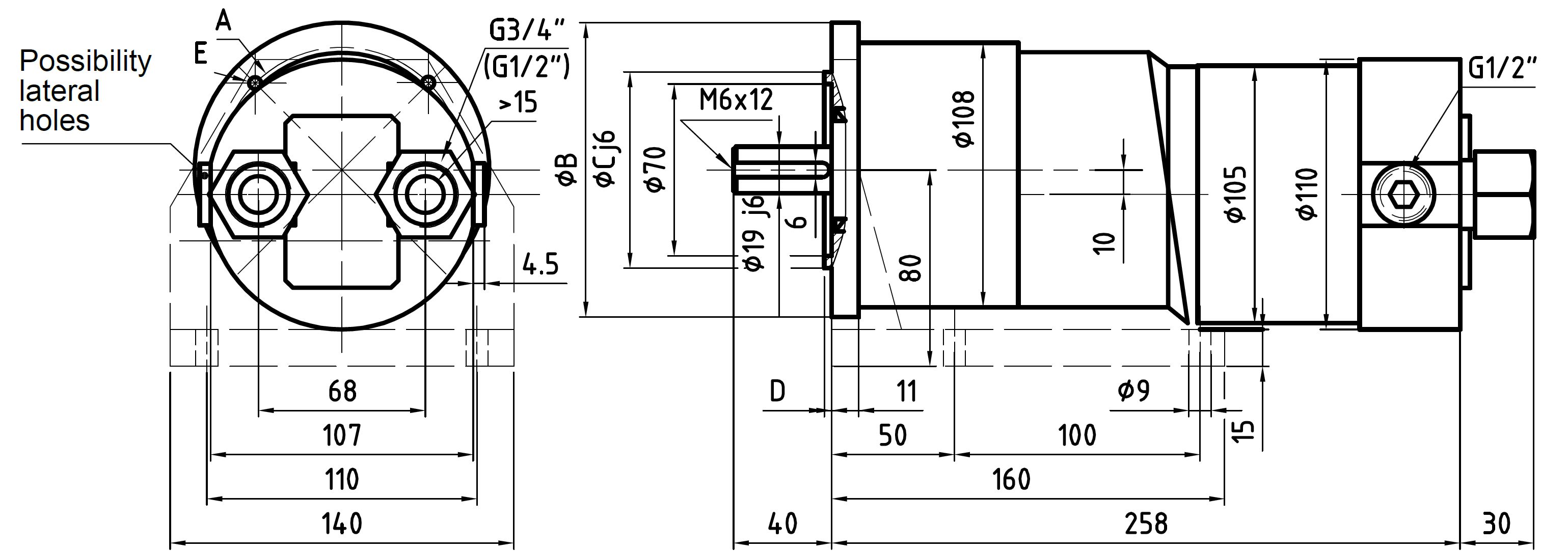

| Construction form: | IEC-flange pitch circle 100 mm |
| Weight: | 8.10 kg |
| Length: | 258 mm |
| Housing Ø: | 110 mm |
| Shaft length: | 40 mm |
| Dimension A: | 100 mm |
| Dimension B: | 120 mm |
| Dimension C: | 80 mm |
| Dimension D: | 3 mm |
| Dimension E: | M6 |
| Min. Ø Inlet Air Motor / Pipe: | 12 / 13 mm |
| Min. Ø Exhaust Air Motor / Pipe: | 14 / 15 mm |
| Current: | Pneumatic |
| Max. Working pressure: | 6.0 bar |
| Inlet air connection: | G 3/4" (G 1/2") |
