MD310/170-LK100 Double rotor air motor
| Power [kW]: | 3.10 kW |
|---|---|
| Useful speed: | 0 - 1700 min-1 |
| Direction of rotation: | Reversible |
| Chuck: | Shaft-hub-connection Ø 19 j6 |
| Current: | Pneumatic |
Product number:
54326700
High tool life
MD310/170-LK100 Double rotor air motor
Applications
Air motors with double rotors (gear wheels) - drive technology intended to be assembled into other machines. These air motors are high operating safe, sturdy and direction of rotation is returnable.
Air motor for assembly in a machine - with 3.1 kW power
Useful Speed: 0 - 1,700 min-1Convincing through easy control and high starting safety
Operation in clockwise/counterclockwise rotation
Flexibility through optimum speed range
The air motor with double rotors impresses with its very long service life.
High starting torque
ATEX models II 2 GDcT4 - T6 or other special versions are available on request.

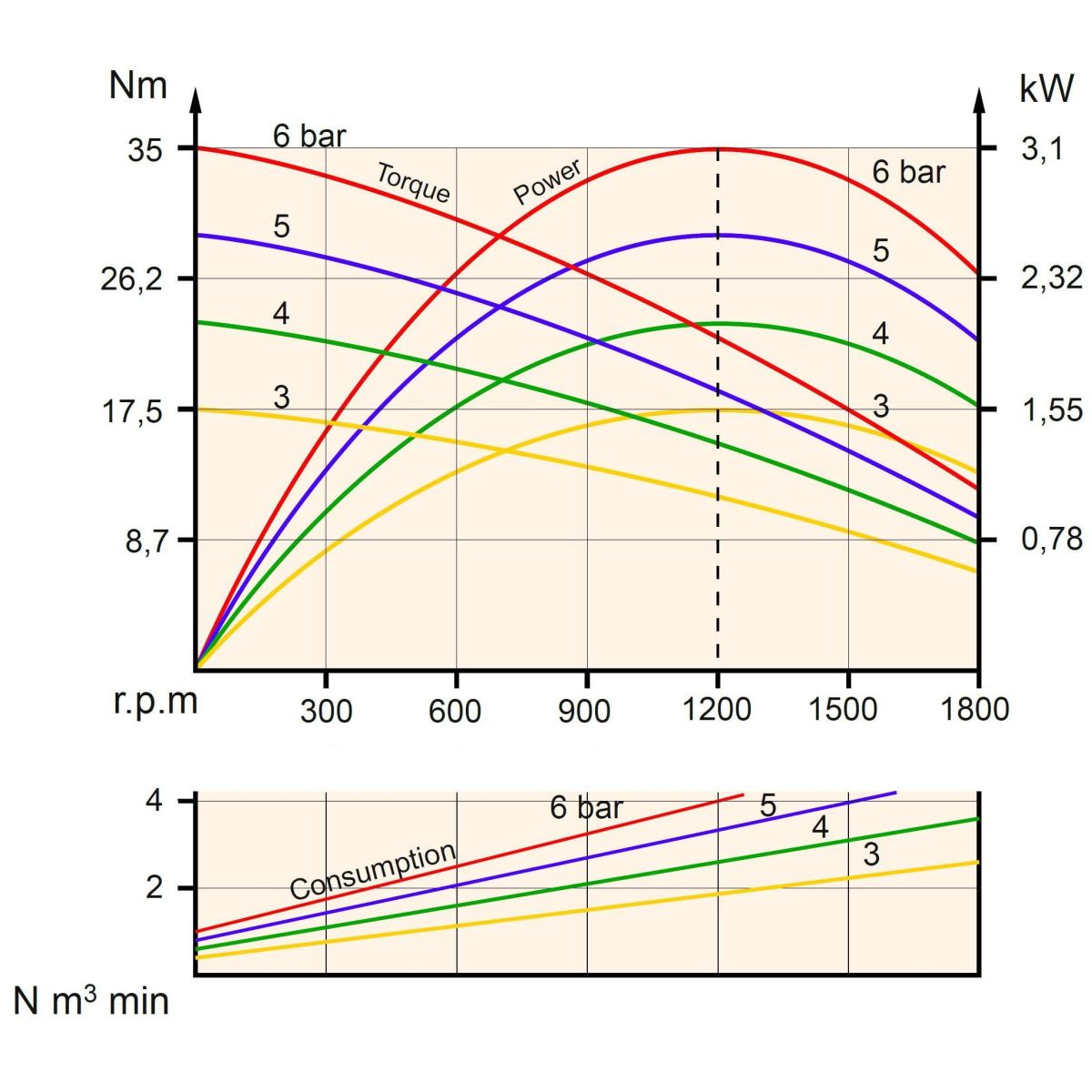

| Power [kW]: | 3.10 kW |
|---|---|
| Useful speed: | 0 - 1700 min-1 |
| Optimal speed: | 250 - 1100 min-1 |
| Starting Torque: | 33 Nm |
| Direction of rotation: | Reversible |
| Chuck: | Shaft-hub-connection Ø 19 j6 |

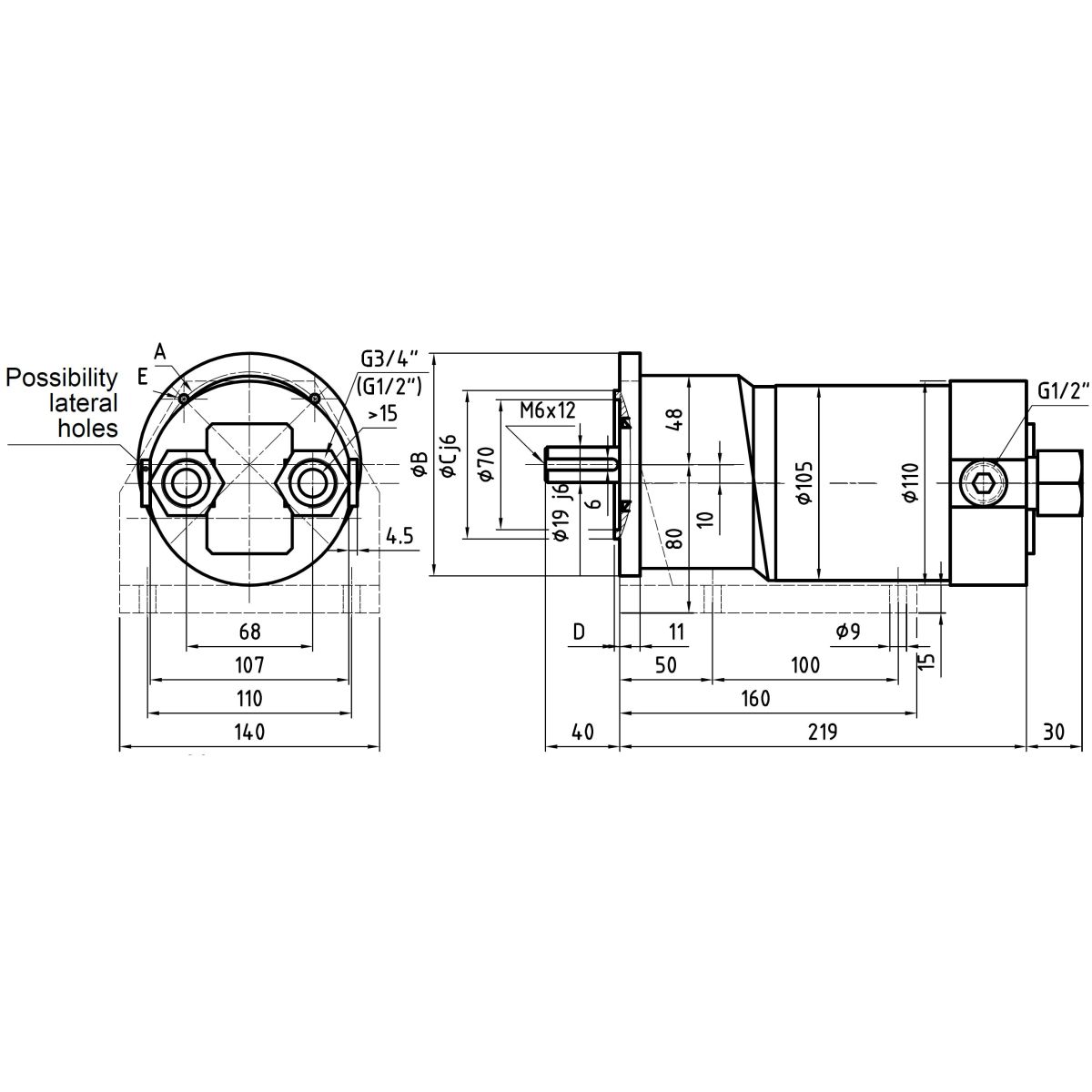

| Construction form: | IEC-flange pitch circle 100 mm |
| Weight: | 7.20 kg |
| Length: | 219 mm |
| Housing Ø: | 110 mm |
| Shaft length: | 40 mm |
| Dimension A: | 100 mm |
| Dimension B: | 120 mm |
| Dimension C: | 80 mm |
| Dimension D: | 3 mm |
| Dimension E: | M6 |
| Min. Ø Inlet Air Motor / Pipe: | 15 / 16 mm |
| Min. Ø Exhaust Air Motor / Pipe: | 17 / 19 mm |
| Current: | Pneumatic |
| Max. Working pressure: | 6.0 bar |
| Inlet air connection: | G 3/4" (G 1/2") |
