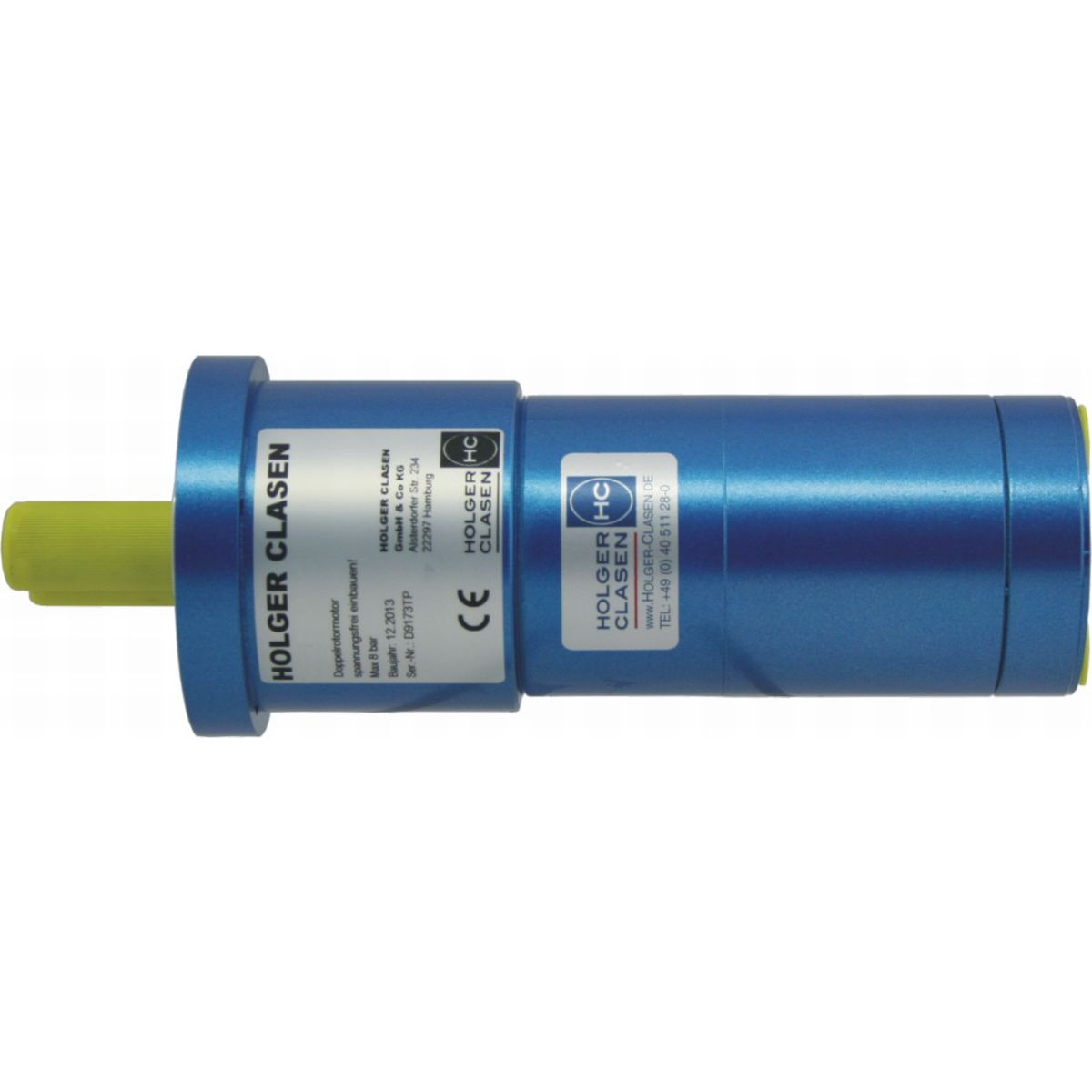

MD215/1100-LK100 Double rotor air motor
| Power [kW]: | 2.15 kW |
|---|---|
| Useful speed: | 0 - 11000 min-1 |
| Direction of rotation: | Reversible |
| Chuck: | Shaft-hub-connection Ø 19 j6 |
| Current: | Pneumatic |
Product number:
54322500
High tool life
MD215/1100-LK100 Double rotor air motor
Applications
Air motors with double rotors (gear wheels) - drive technology intended to be assembled into other machines. These air motors are high operating safe, sturdy and direction of rotation is returnable.
High torque air motor with 2.15 kW power
Useful Speed: 0 - 11,000 min-1Convincing through easy control and high starting safety
Operation in clockwise/counterclockwise rotation
Flexibility through optimum speed range
The Compressed air motor with double rotors impresses with its very long service life.
High starting torque
Hersteller models II 2 GDcT4 - T6 or other special versions are available on request.
| Power [kW]: | 2.15 kW |
|---|---|
| Useful speed: | 0 - 11000 min-1 |

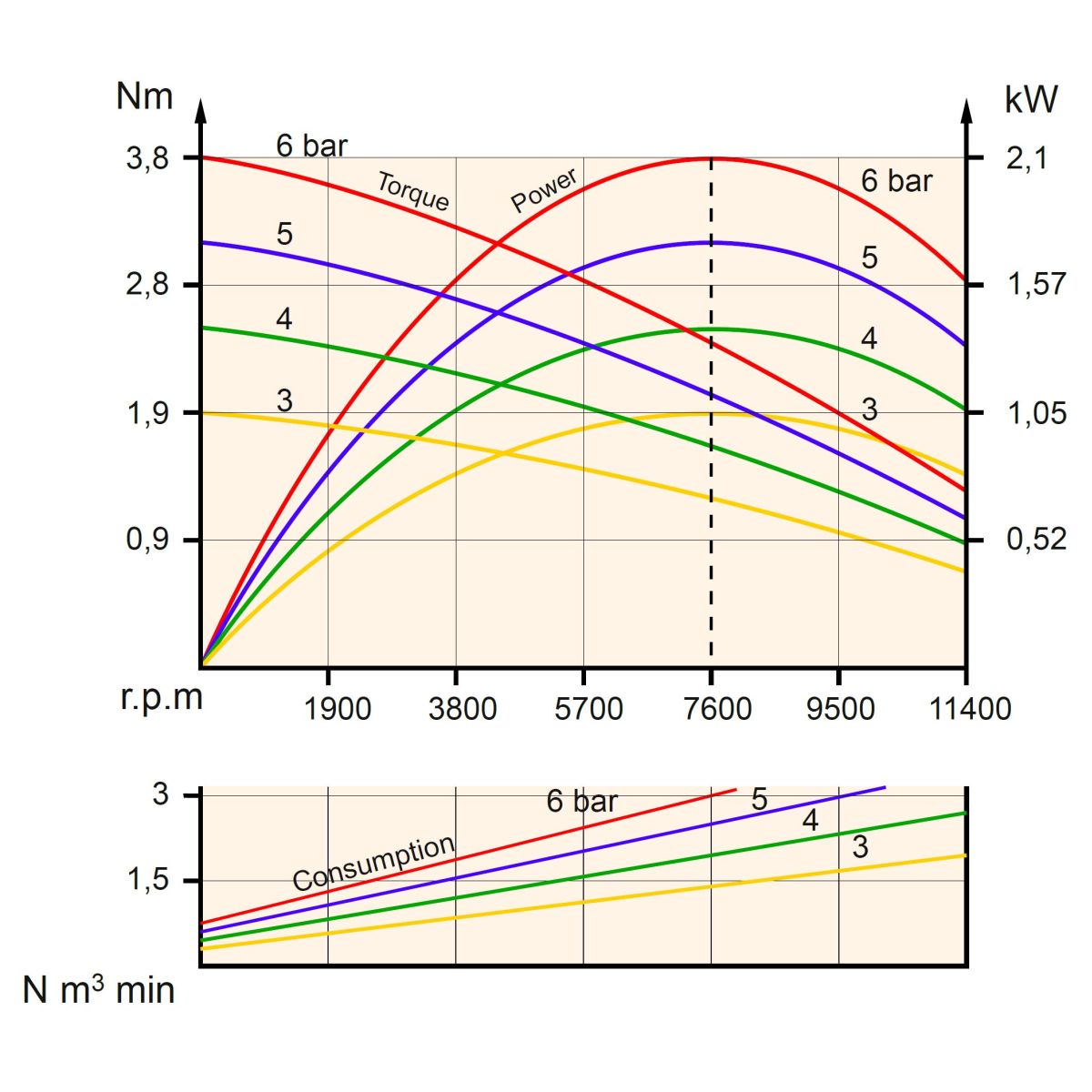

| Optimal speed: | 1400 - 7000 min-1 |
| Starting Torque: | 3.60 Nm |
| Direction of rotation: | Reversible |
| Chuck: | Shaft-hub-connection Ø 19 j6 |
| Construction form: | IEC-flange pitch circle 100 mm |
| Weight: | 3.80 kg |
| Length: | 134 mm |
| Housing Ø: | 110 mm |
| Shaft length: | 40 mm |

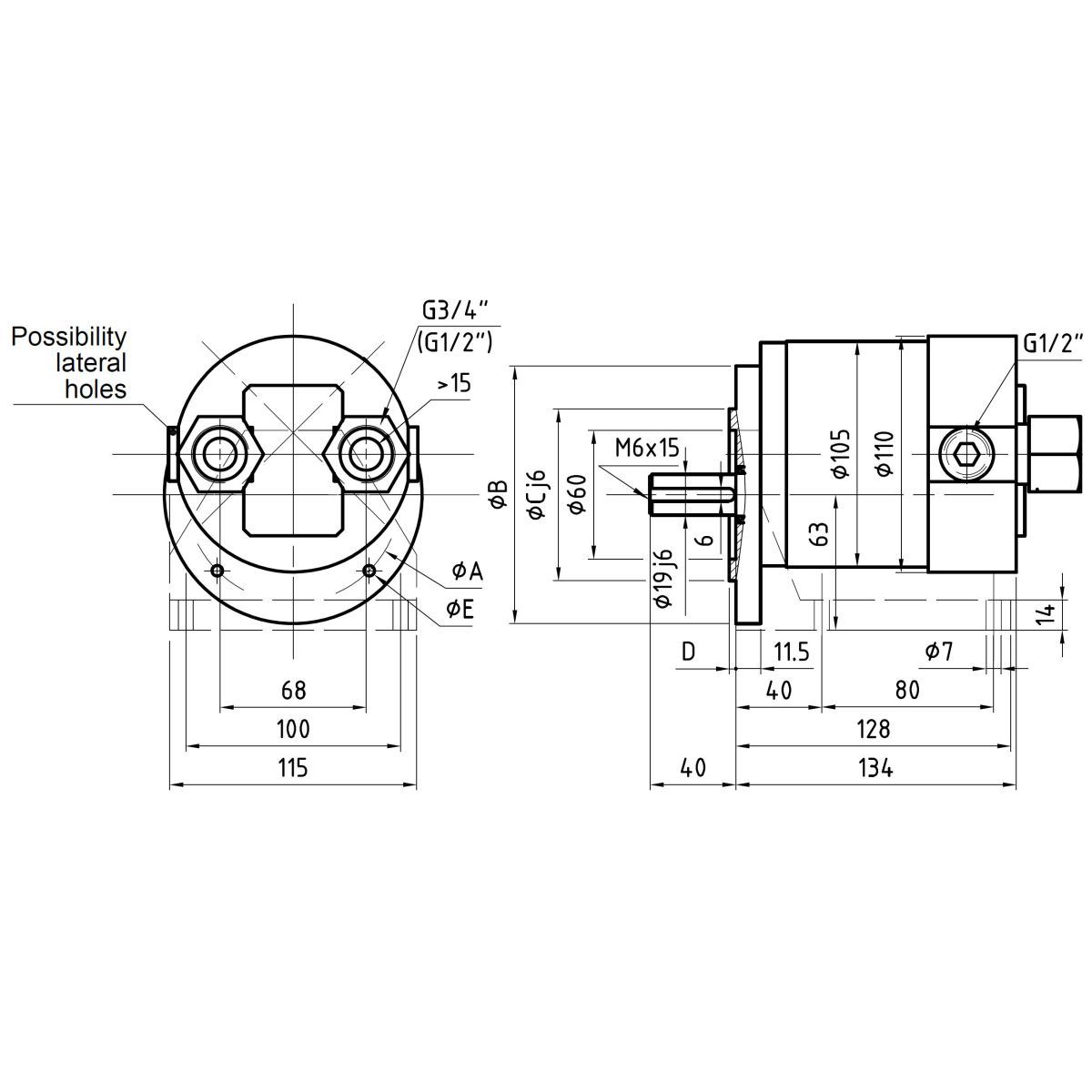

| Dimension A: | 100 mm |
| Dimension B: | 120 mm |
| Dimension C: | 80 mm |
| Dimension D: | 3 mm |
| Dimension E: | M6 |
| Min. Ø Inlet Air Motor / Pipe: | 12 / 13 mm |
| Min. Ø Exhaust Air Motor / Pipe: | 14 / 15 mm |
| Current: | Pneumatic |
| Max. Working pressure: | 6.0 bar |
| Inlet air connection: | G 3/4" (G 1/2") |
